Intake Manifold: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

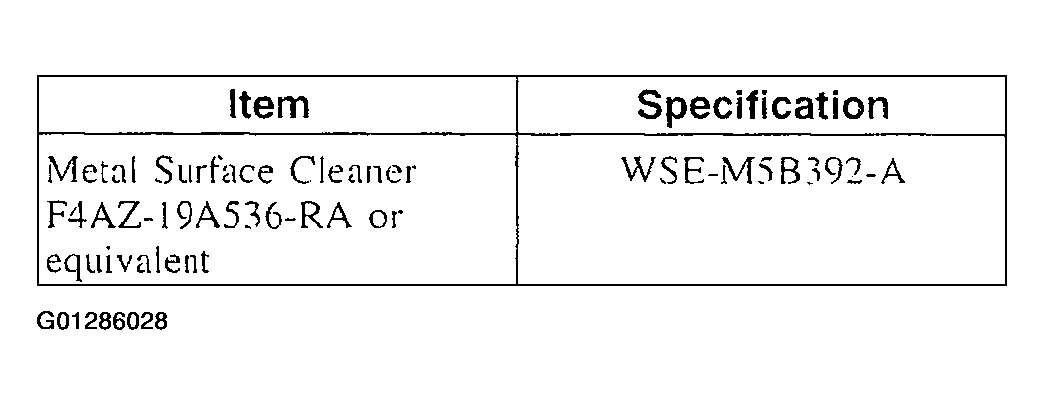

Fig 1: Material Specification Chart

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
Remove the air cleaner outlet tube.

CAUTION: The coolant drain procedure must be followed exactly or damage to the engine can occur.

Drain the engine cooling system. For additional information, Refer to ENGINE COOLING .
Remove the cowl vent screen. For additional information, Refer to BODY SYSTEM - INTERIOR .
Remove the engine compartment brace.

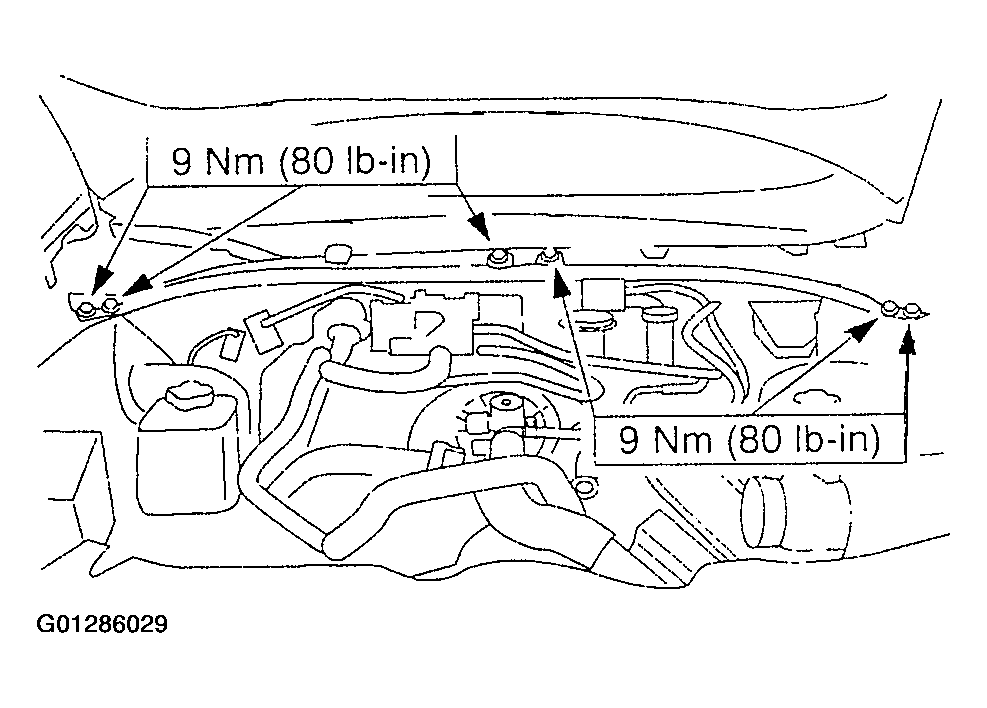

Fig 2: Removing Engine Compartment Brace
Courtesy of FORD MOTOR CO.
Disconnect the fuel line. For additional information, Refer to FUEL SYSTEM .
Remove the exhaust gas recirculation (EGR) system module. For additional information, Refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .
Illustration 1 of 4. Remove the components in the order indicated in the following illustration and table.

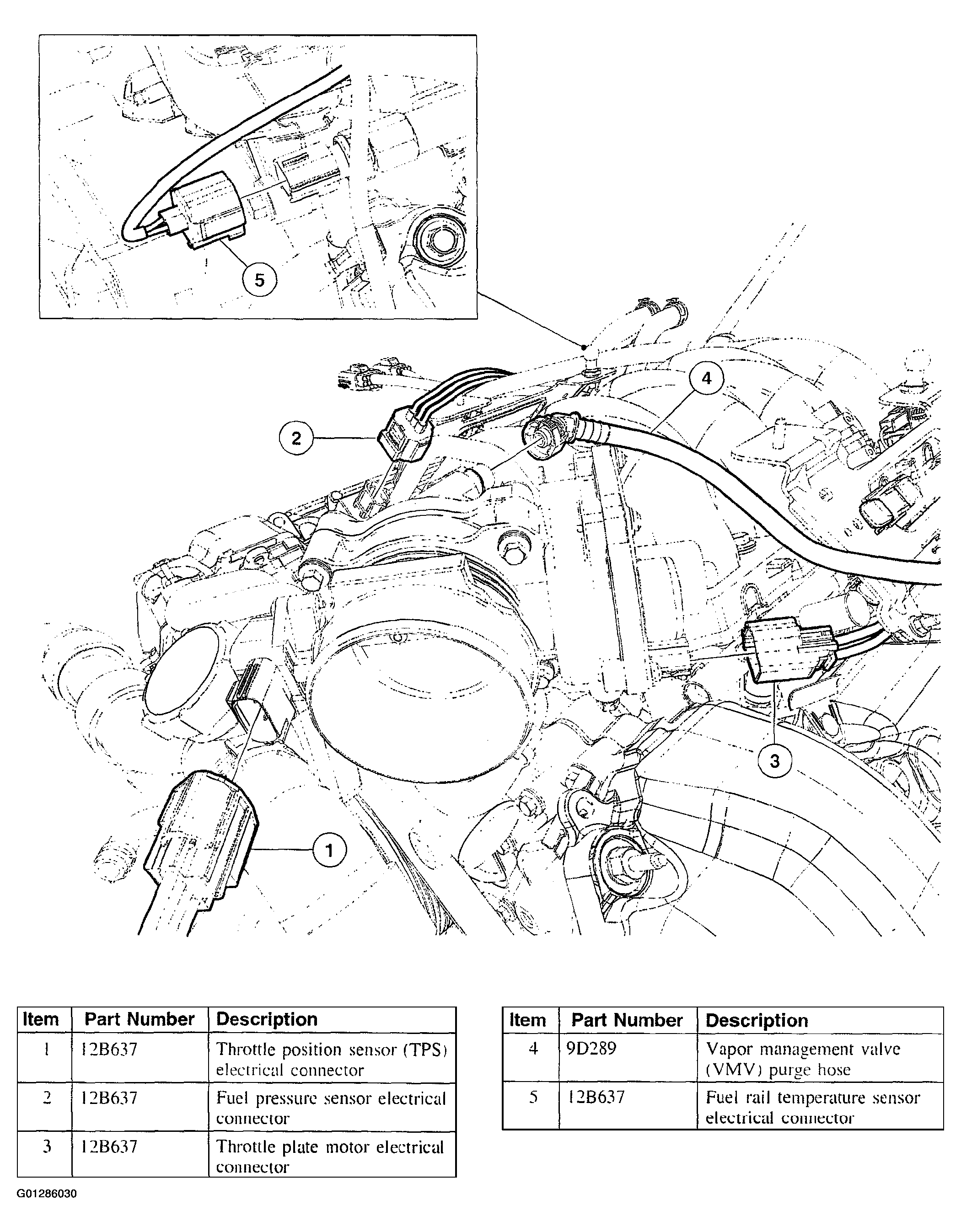

Fig 3: Identifying Intake Manifold Connectors And Hose Pipe
Courtesy of FORD MOTOR CO.
Illustration 2 of 4. Remove the components in the order indicated in the following illustration and table.

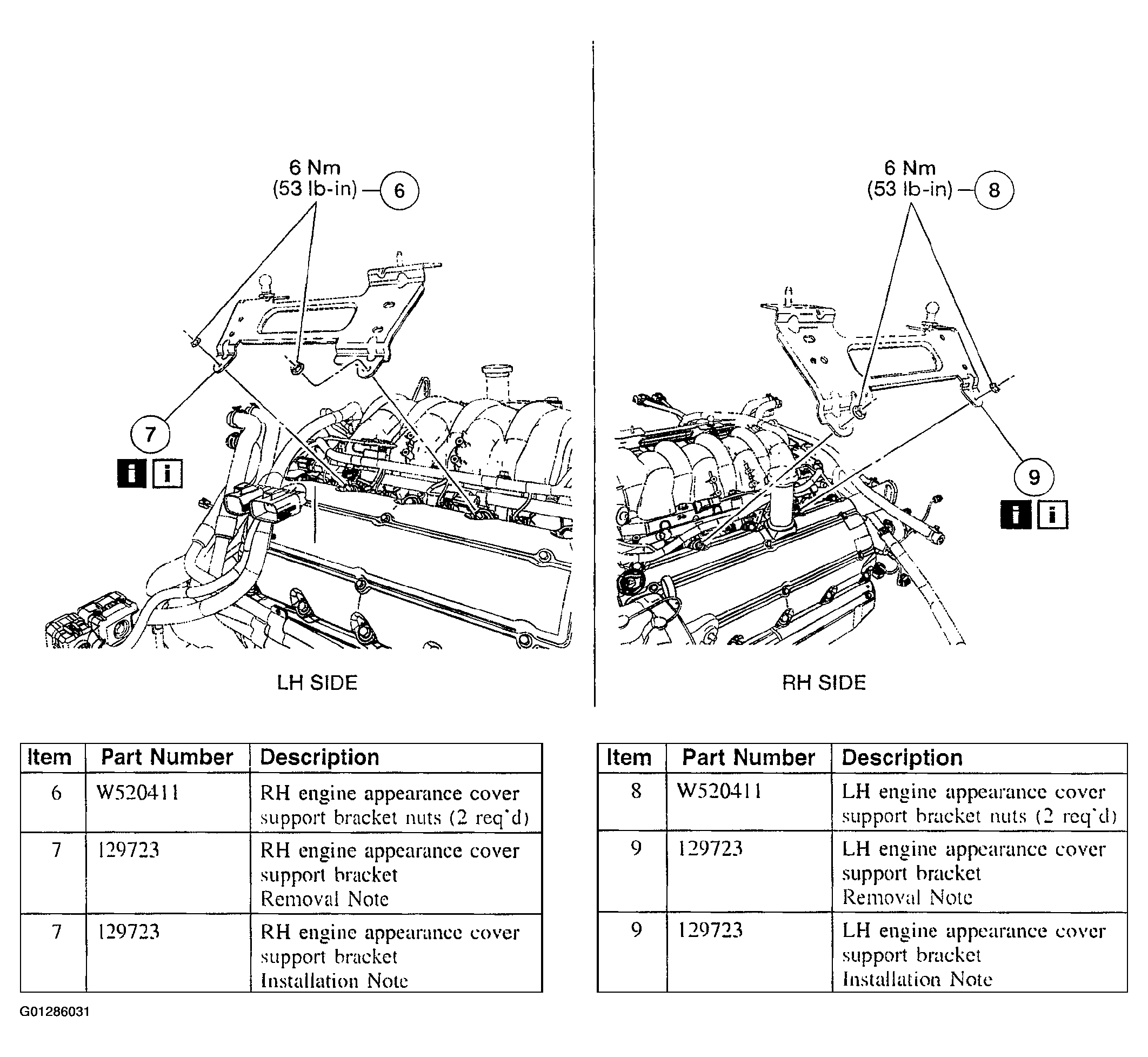

Fig 4: Identifying Intake Manifold Engine Appearance Cover Support Bracket (RH And LH Side)
Courtesy of FORD MOTOR CO.
Illustration 3 of 4. Remove the components in the order indicated in the following illustration and table.

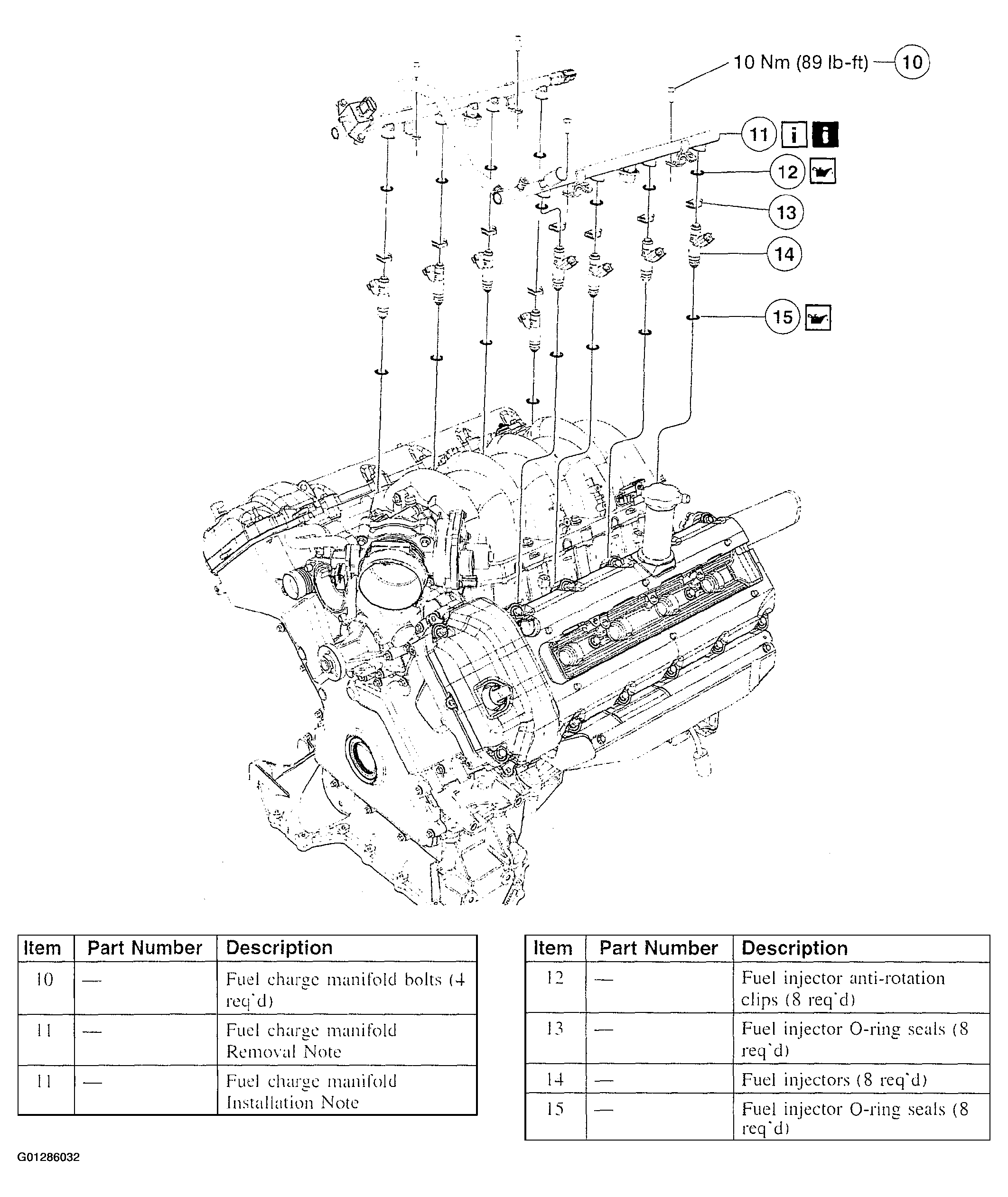

Fig 5: Removing Injectors
Courtesy of FORD MOTOR CO.
Illustration 4 of 4. Remove the components in the order indicated in the following illustration and table.

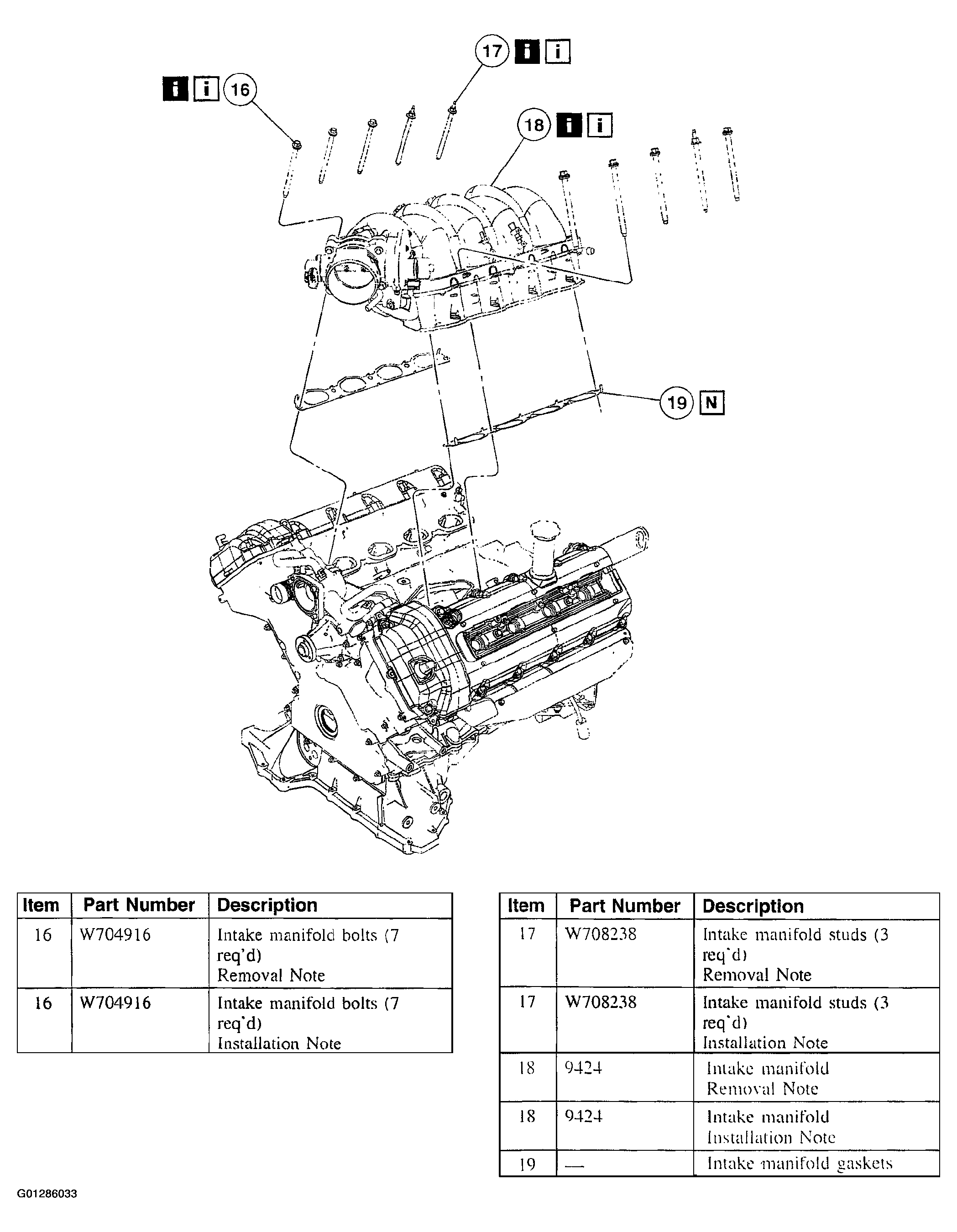

Fig 6: Removing Intake Manifold
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
