Timing Drive Components: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

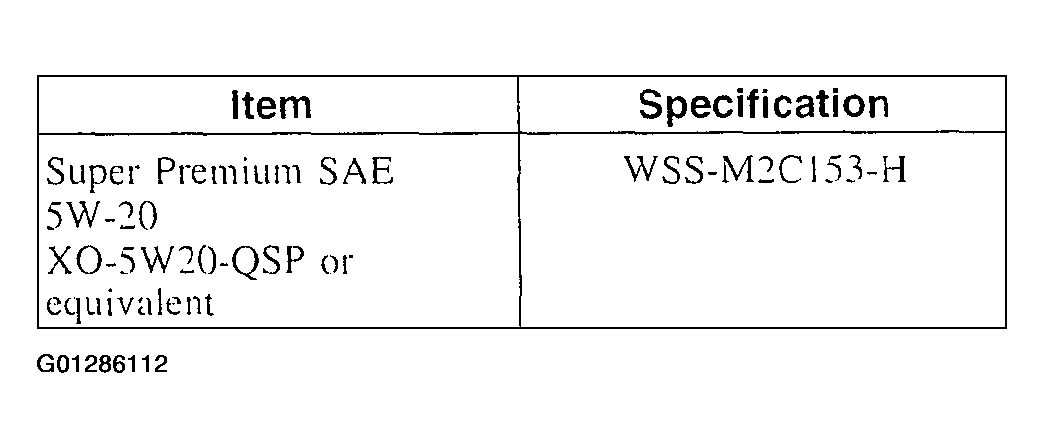

Fig 1: Material Specification

Courtesy of FORD MOTOR CO.

Remove the engine front cover. For additional information, Refer to ENGINE FRONT COVER .
Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

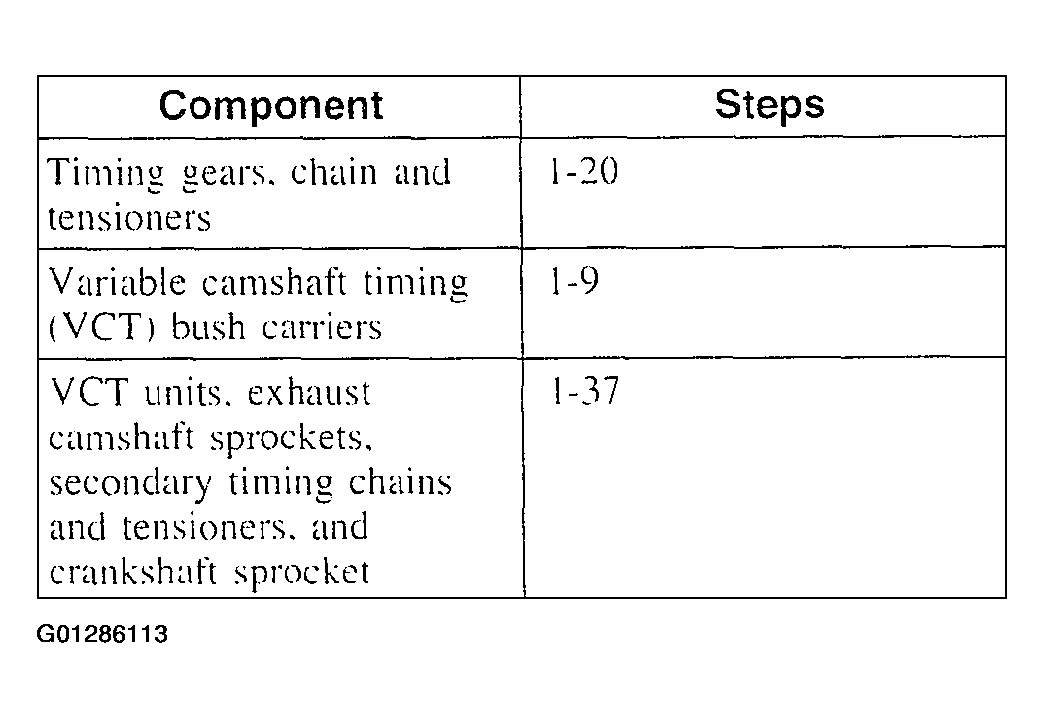

Fig 2: Removing Components Steps Chart
Courtesy of FORD MOTOR CO.
Illustration 1 of 4. Remove the components in the order indicated in the following illustration and table.

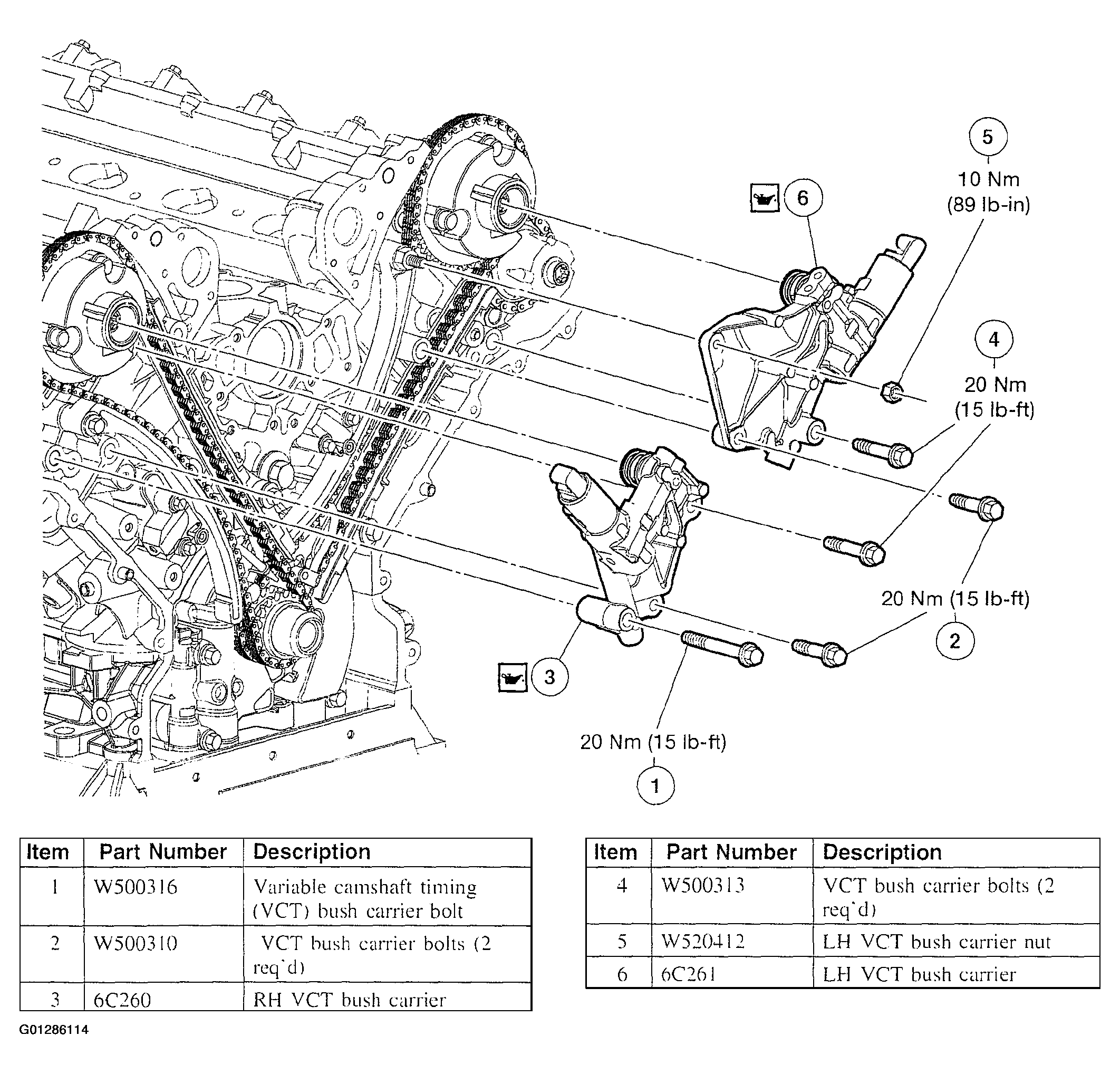

Fig 3: Removing VCT Bush Carrier (LH And RH)
Courtesy of FORD MOTOR CO.
Illustration 2 of 4. Remove the components in the order indicated in the following illustration and table.

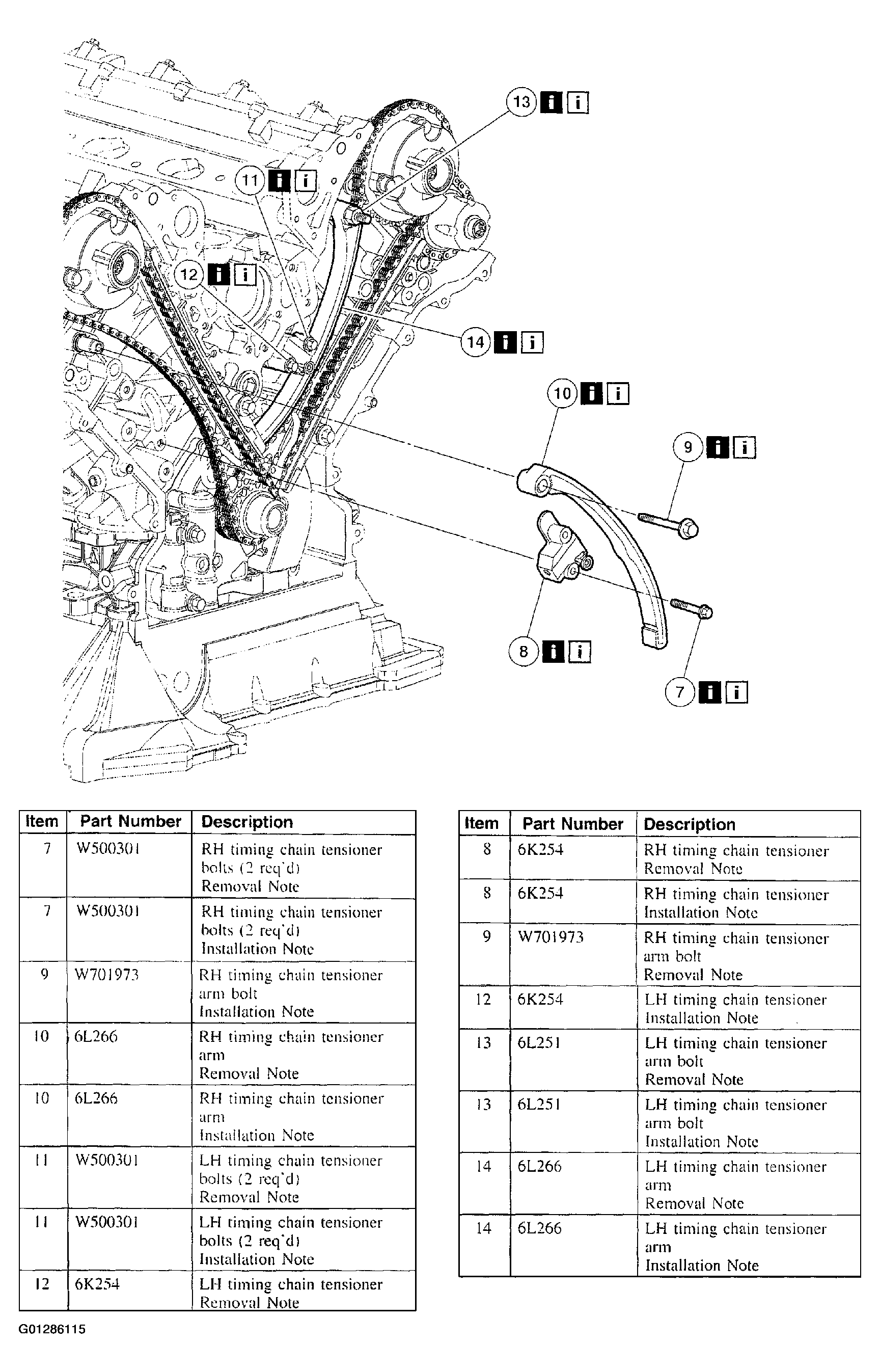

Fig 4: Removing RH Timing Chain Tensioner
Courtesy of FORD MOTOR CO.
Illustration 3 of 4. Remove the components in the order indicated in the following illustration and table.

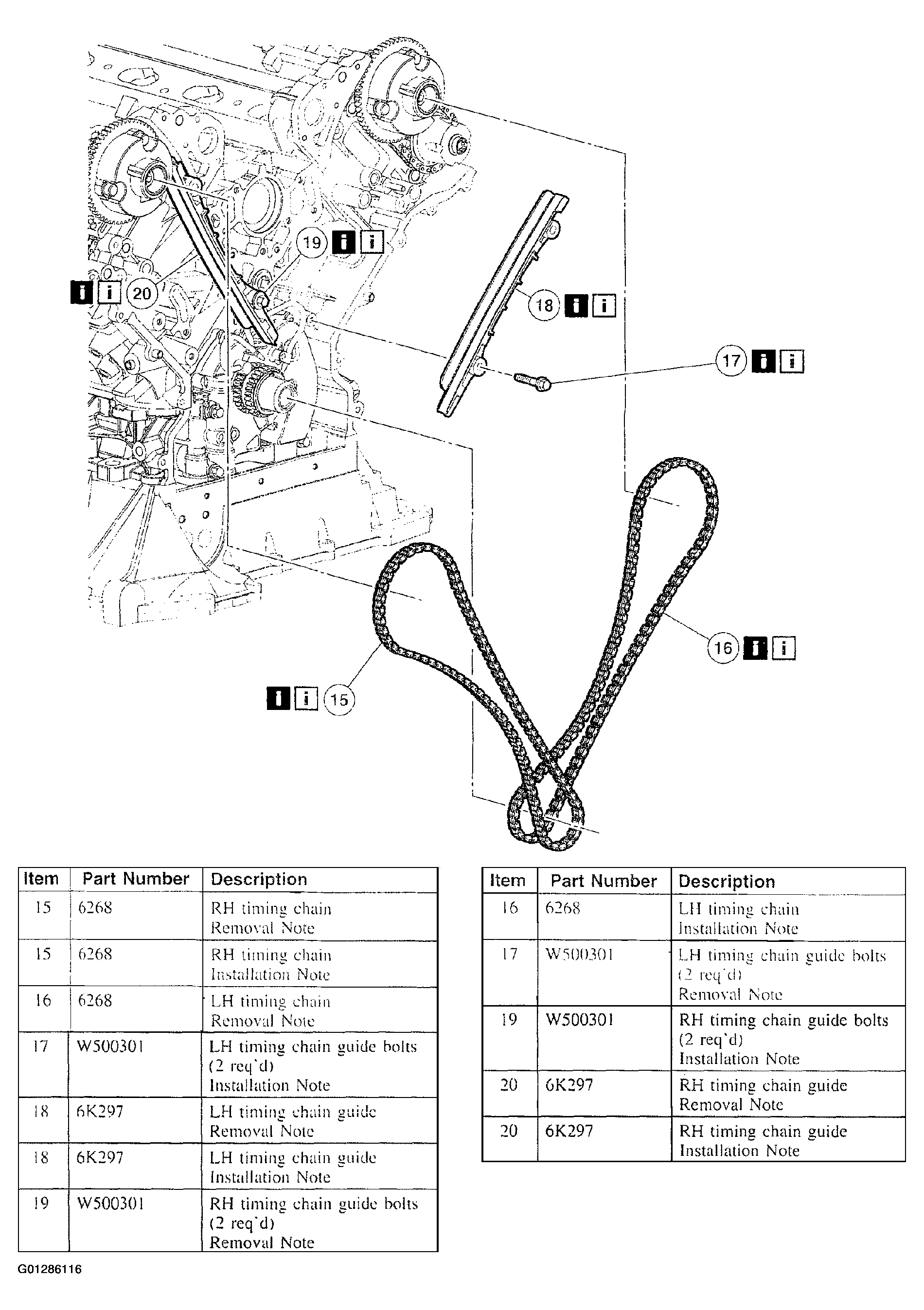

Fig 5: Removing Timing Chain (RH And LH) And Timing Chain Guide
Courtesy of FORD MOTOR CO.
Illustration 4 of 4. Remove the components in the order indicated in the following illustration and table.

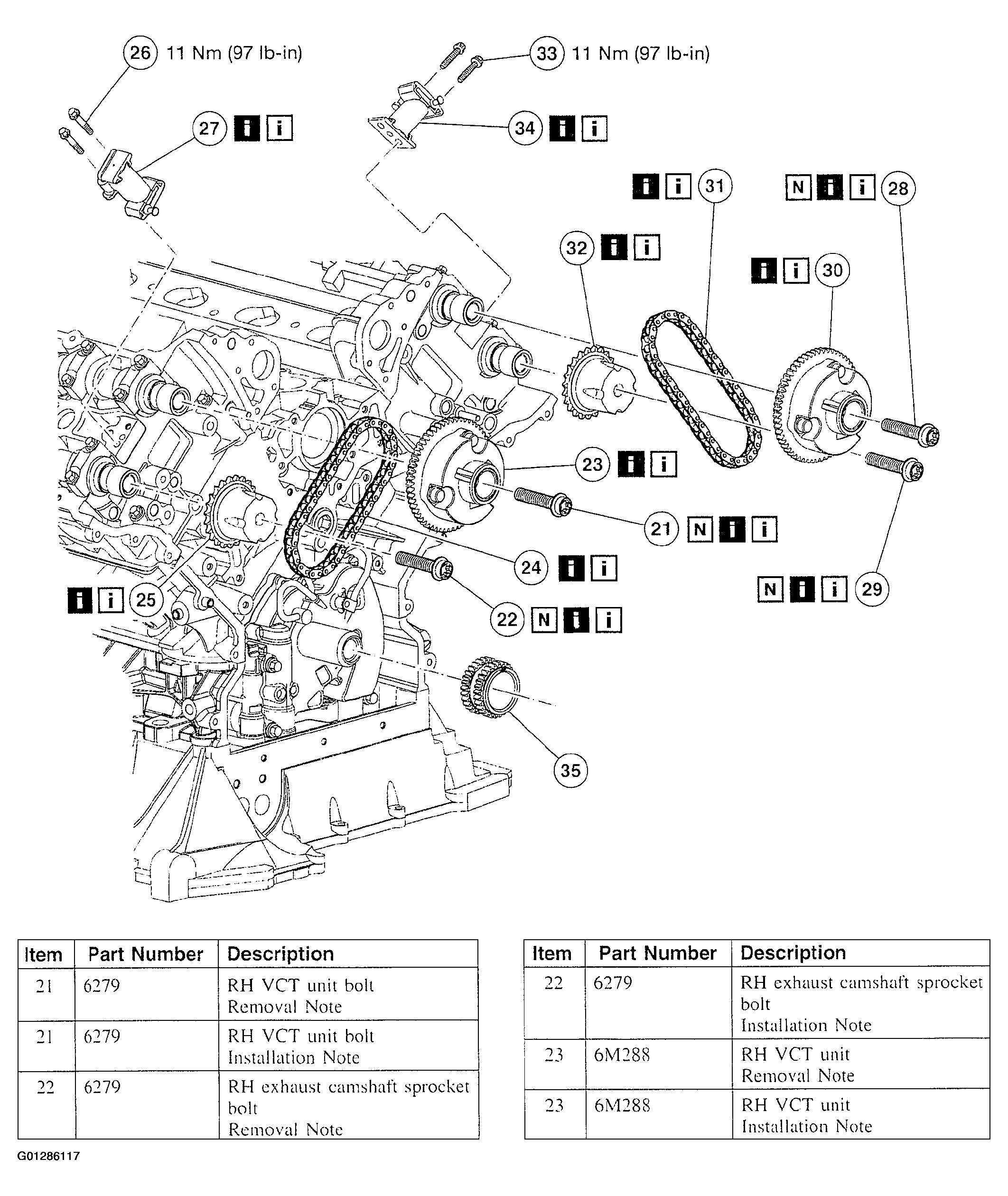

Fig 6: Removing LH VCT Unit, LH Secondary Timing Chain And LH Exhaust Cam Shaft Sprocket
Courtesy of FORD MOTOR CO.

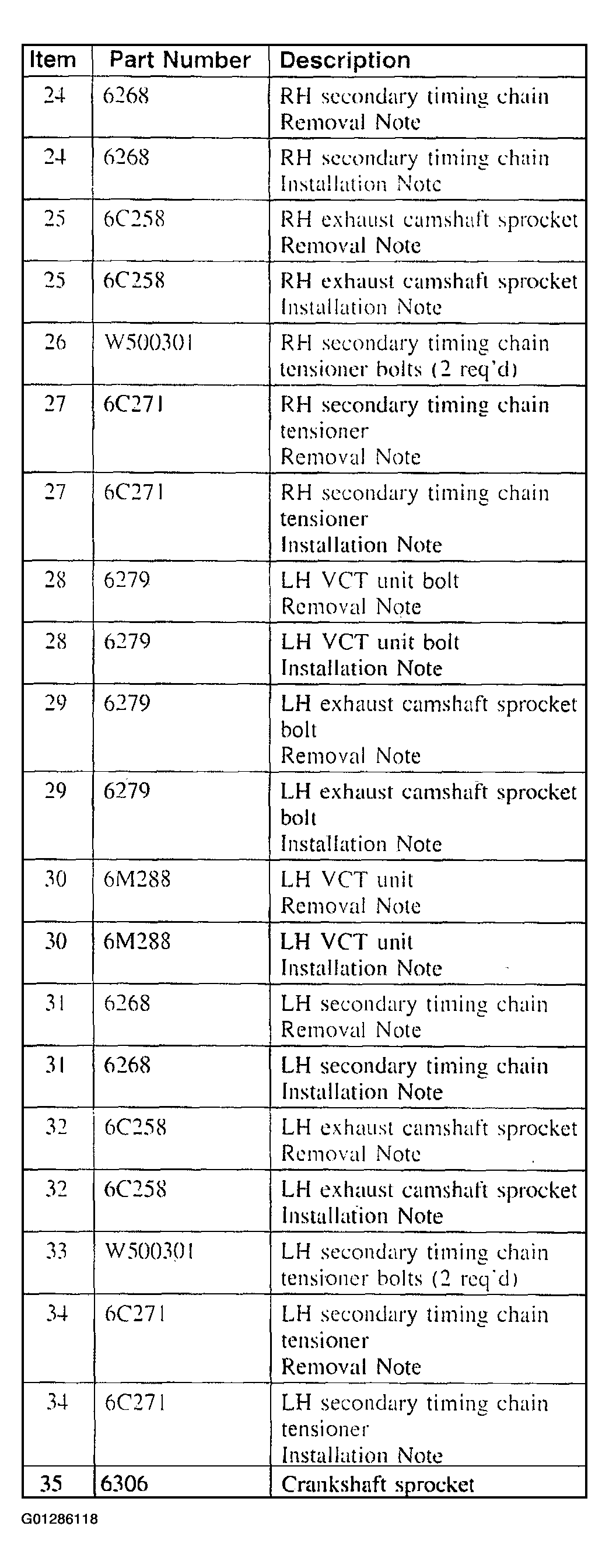

Fig 7: Part Number Description Chart
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
