Section 340 (Engine-3.9L): Installation: Engine: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

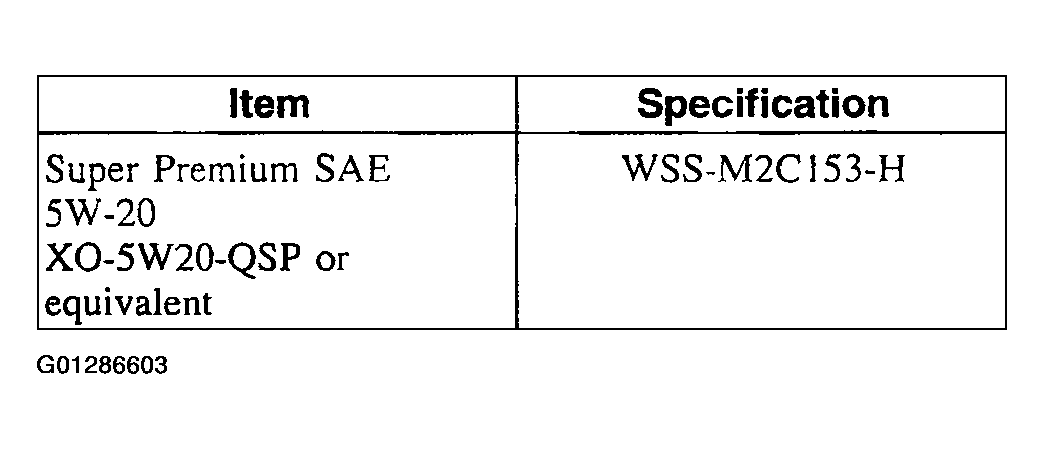

Fig 1: Material Specifications

Courtesy of FORD MOTOR CO.

Illustration 1 of 13. Install the components in the order indicated in the following illustration and table.

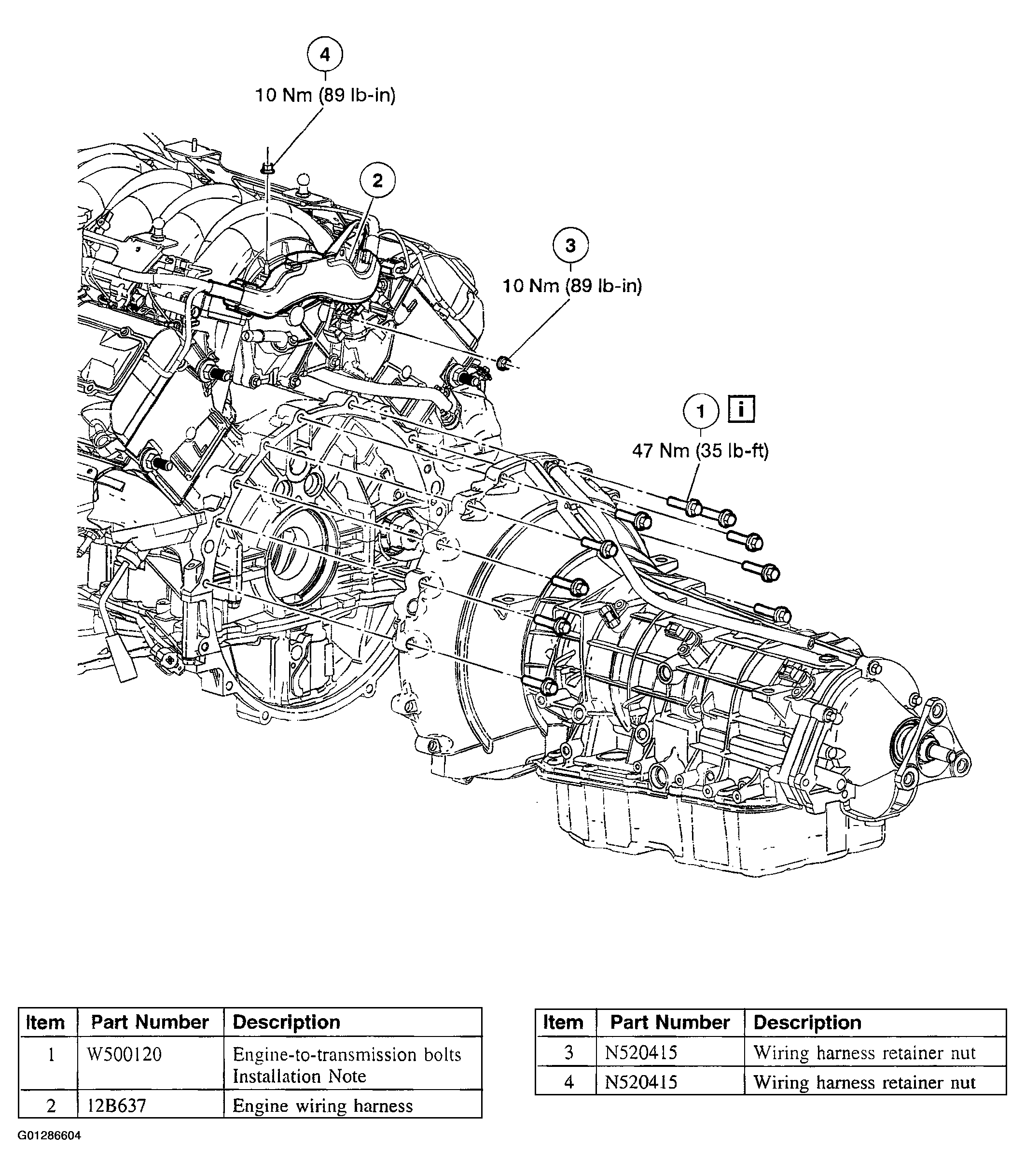

Fig 2: Installing Engine To Transmission Bolts
Courtesy of FORD MOTOR CO.
Illustration 2 of 13. Install the components in the order indicated in the following illustration and table.

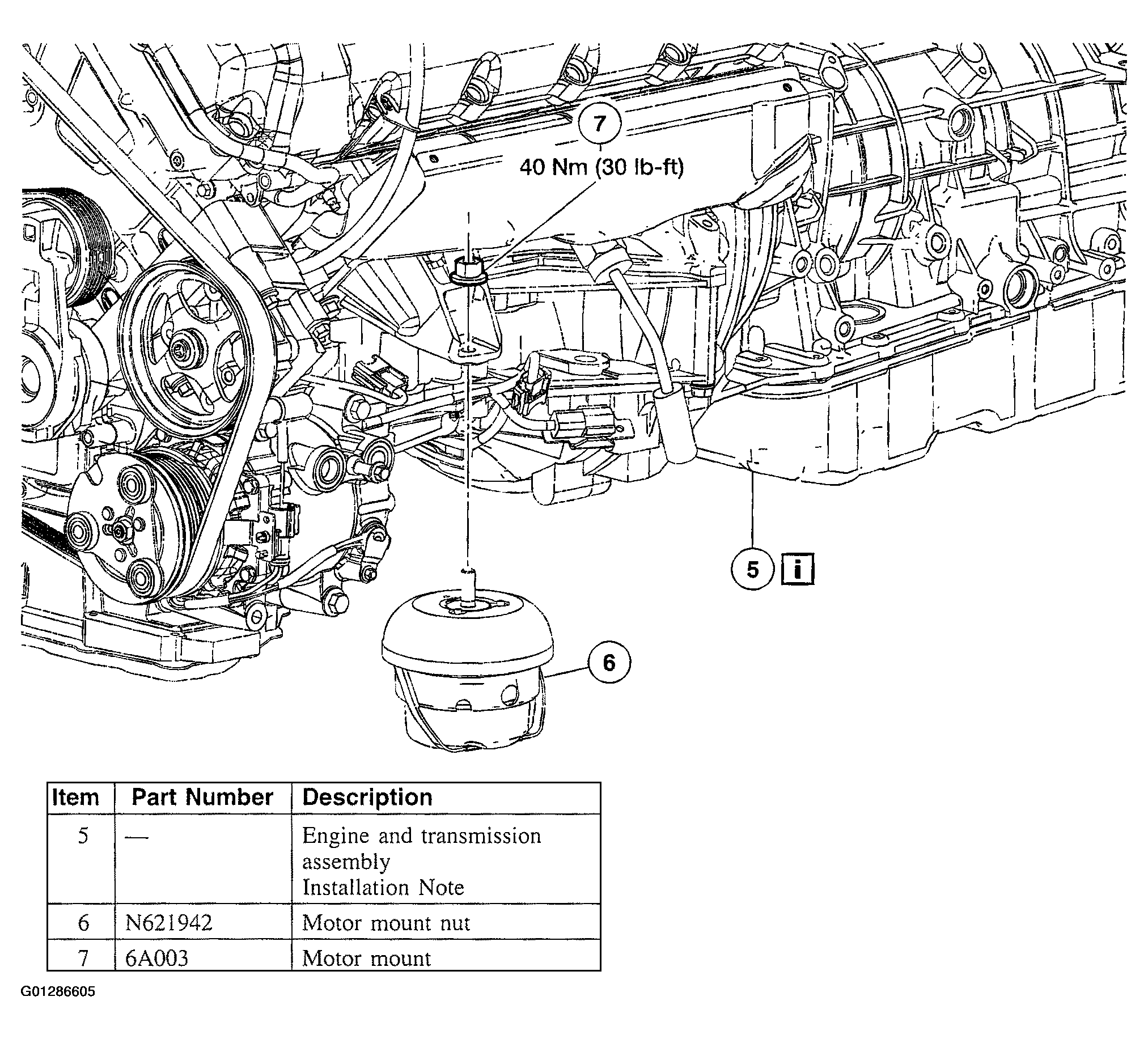

Fig 3: Installing Motor Mount And Nut
Courtesy of FORD MOTOR CO.
Illustration 3 of 13. Install the components in the order indicated in the following illustration and table.

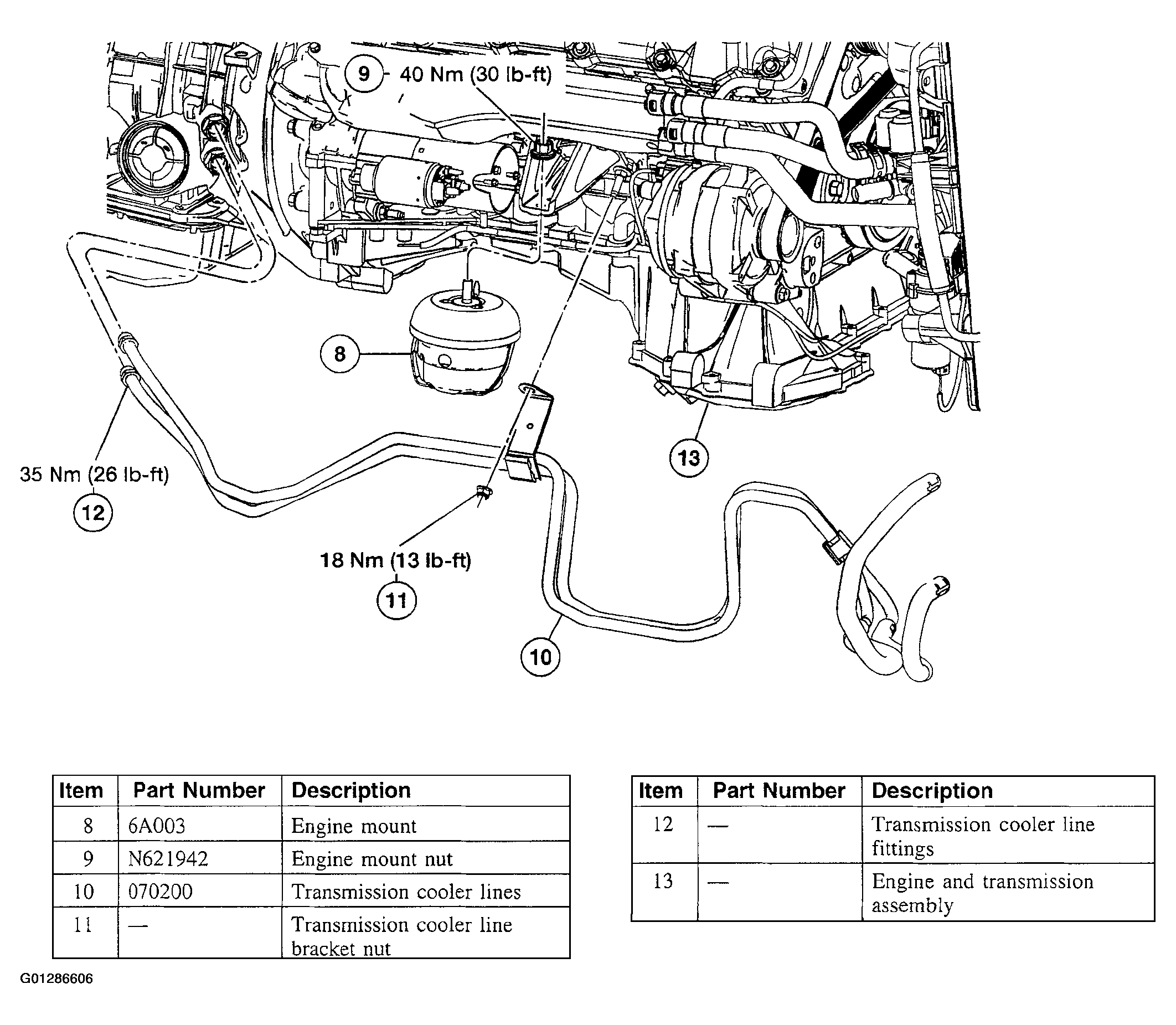

Fig 4: Installing Transmission Cooler Lines
Courtesy of FORD MOTOR CO.
Illustration 4 of 13. Install the components in the order indicated in the following illustration and table.

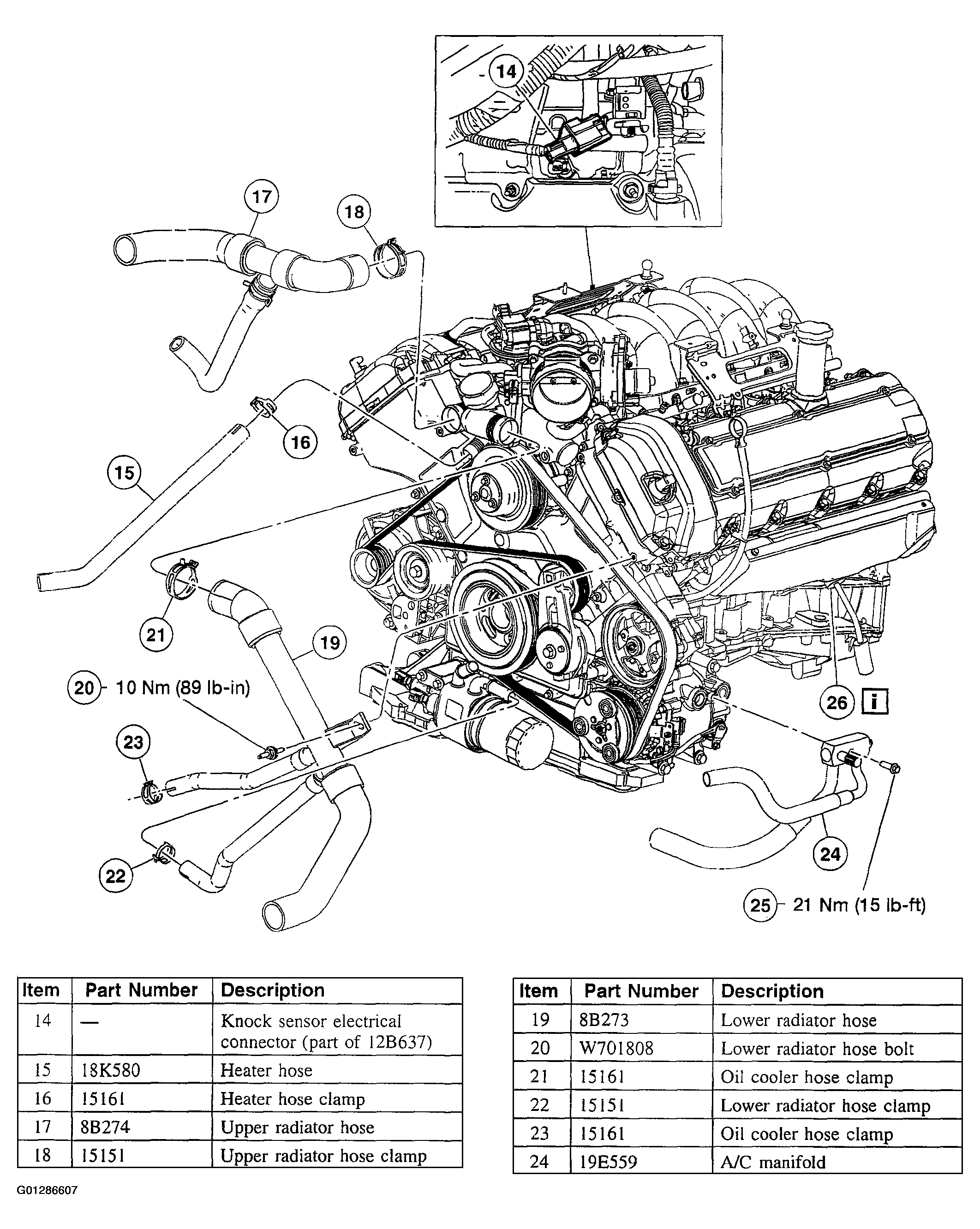

Fig 5: Installing Hoses Components
Courtesy of FORD MOTOR CO.

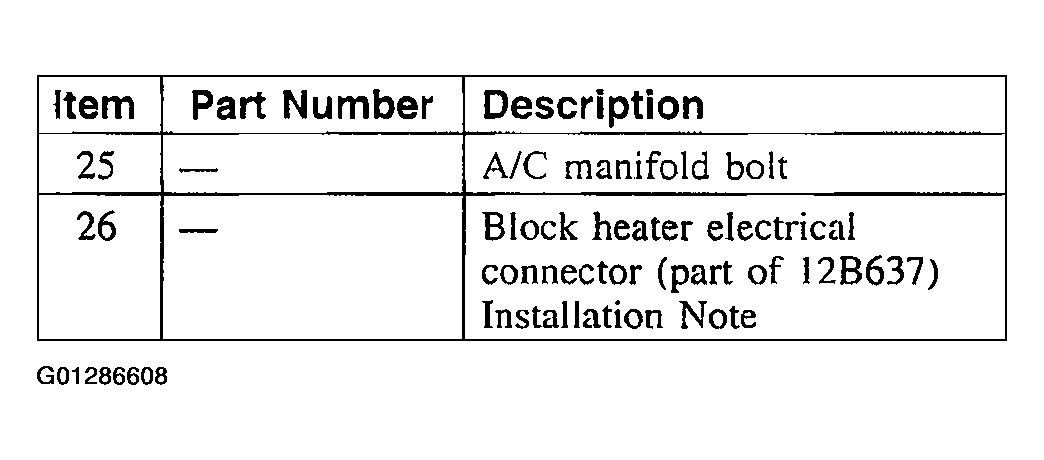

Fig 6: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 5 of 13. Install the components in the order indicated in the following illustration and table.

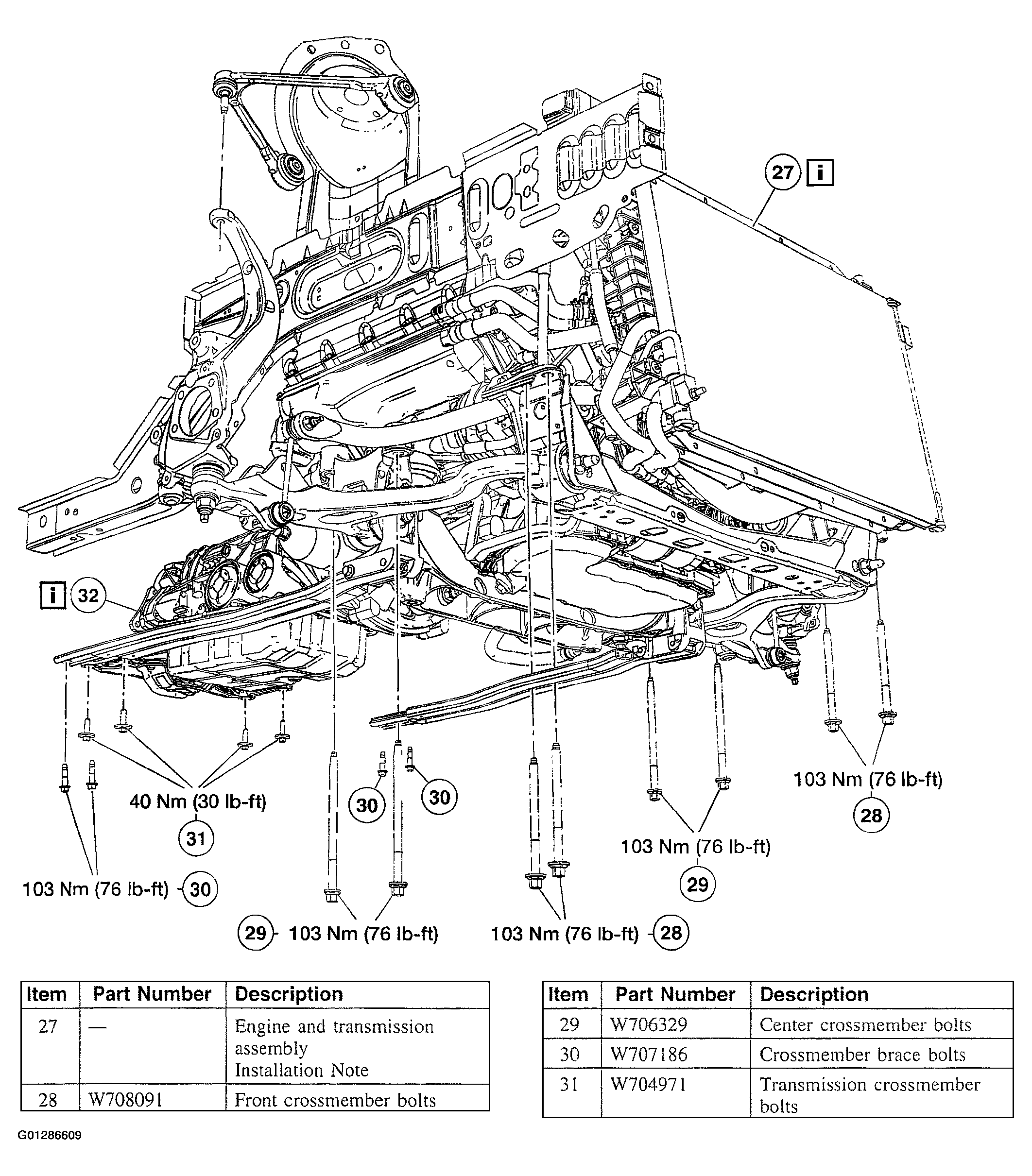

Fig 7: Installing Transmission Crossmember Components
Courtesy of FORD MOTOR CO.

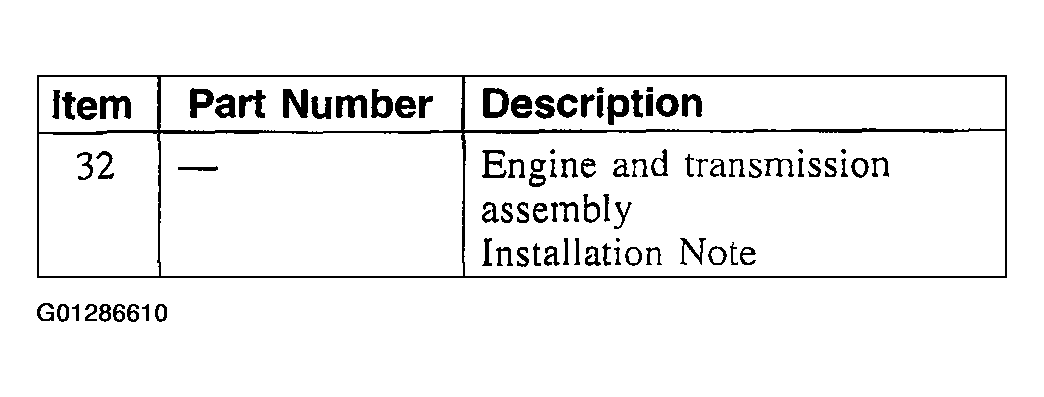

Fig 8: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 6 of 13. Install the components in the order indicated in the following illustration and table.

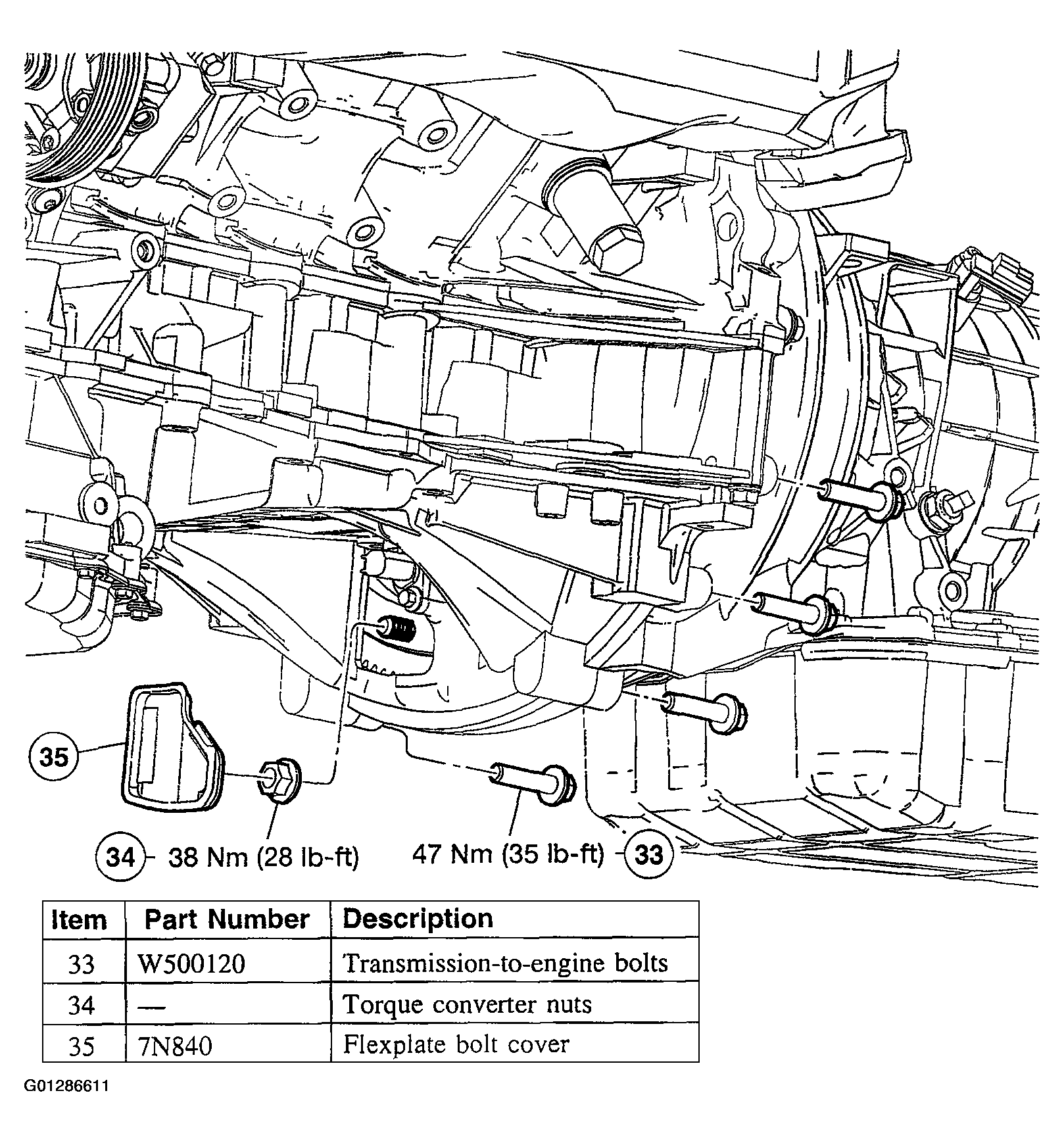

Fig 9: Installing Transmission To Engine Bolts
Courtesy of FORD MOTOR CO.
Illustration 7 of 13. Install the components in the order indicated in the following illustration and table.

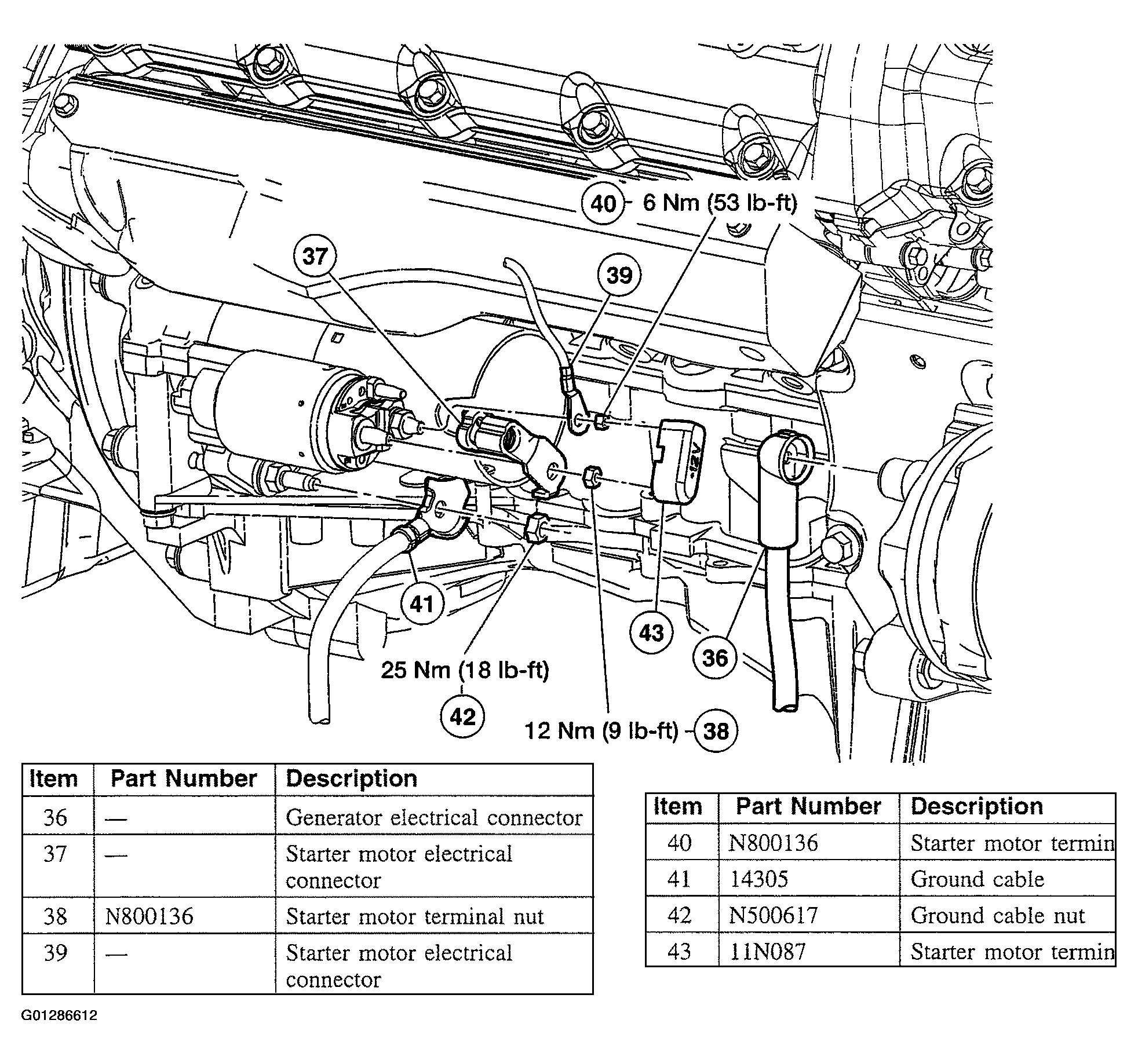

Fig 10: Installing Starter Motor Connectors And Components
Courtesy of FORD MOTOR CO.
Illustration 8 of 13. Install the components in the order indicated in the following illustration and table.

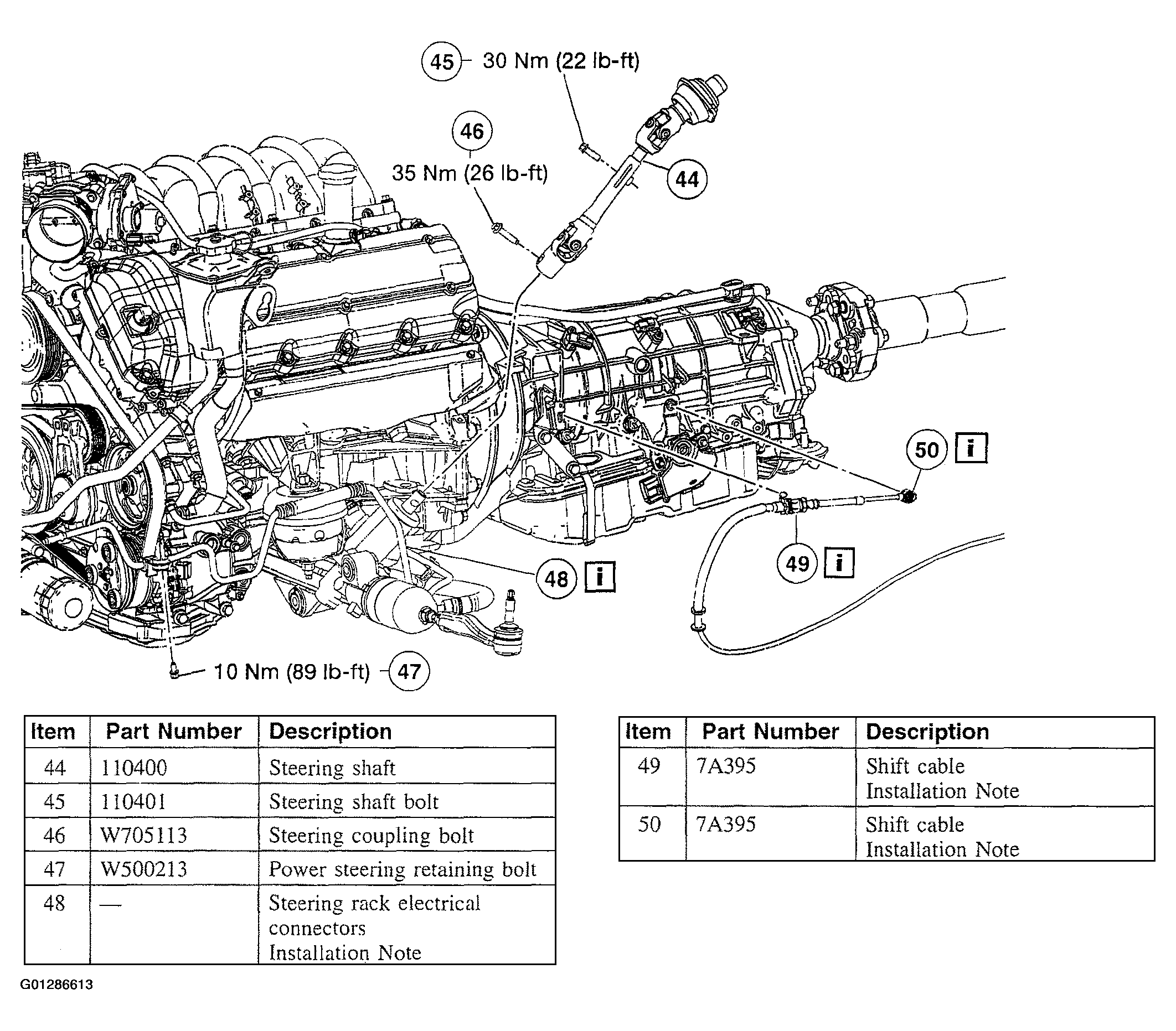

Fig 11: Installing Steering Shaft Components
Courtesy of FORD MOTOR CO.
Illustration 9 of 13. Install the components in the order indicated in the following illustration and table.

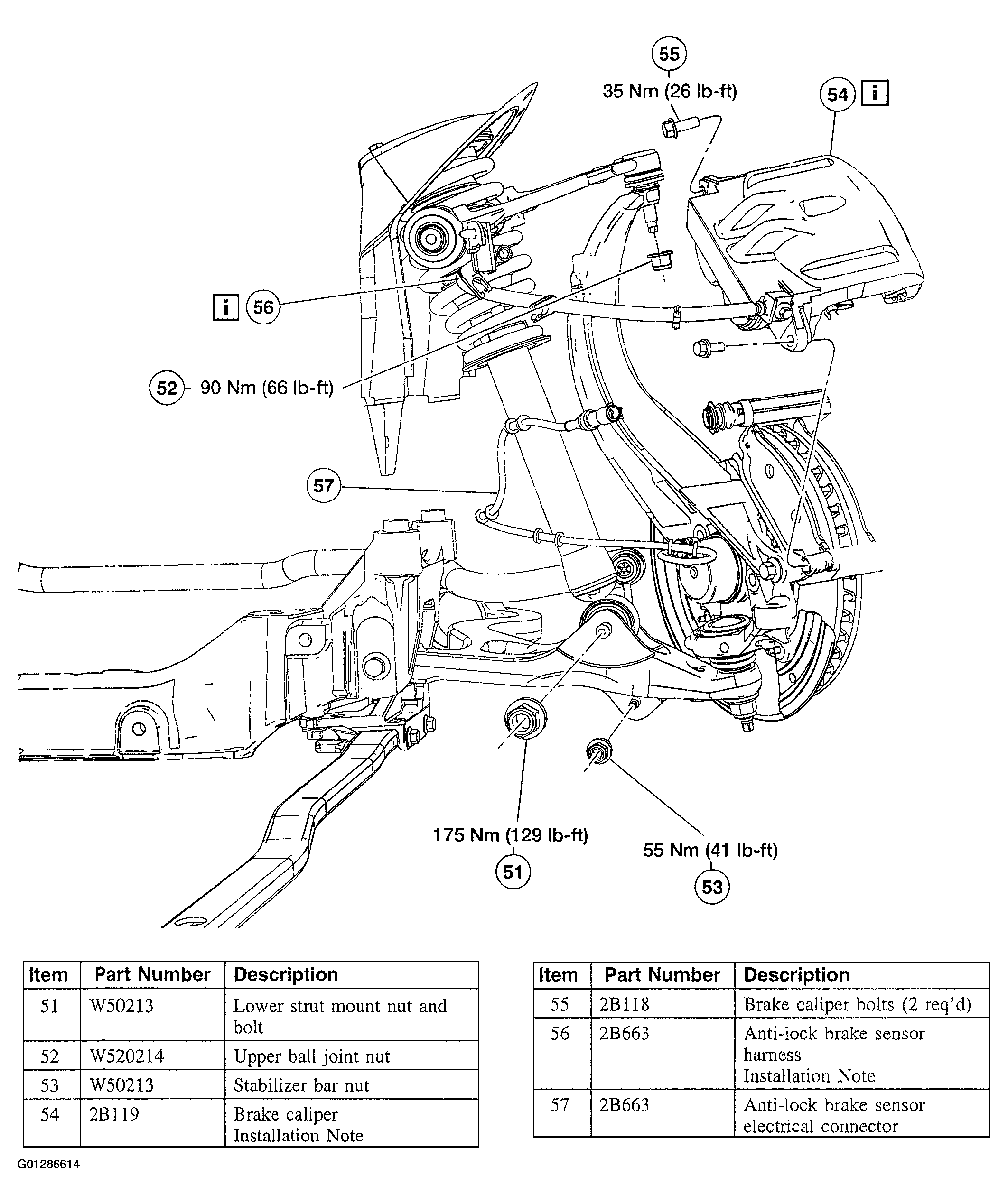

Fig 12: Installing Brake Caliper Components (1 Of 2)
Courtesy of FORD MOTOR CO.
Illustration 10 of 13. Install the components in the order indicated in the following illustration and table.

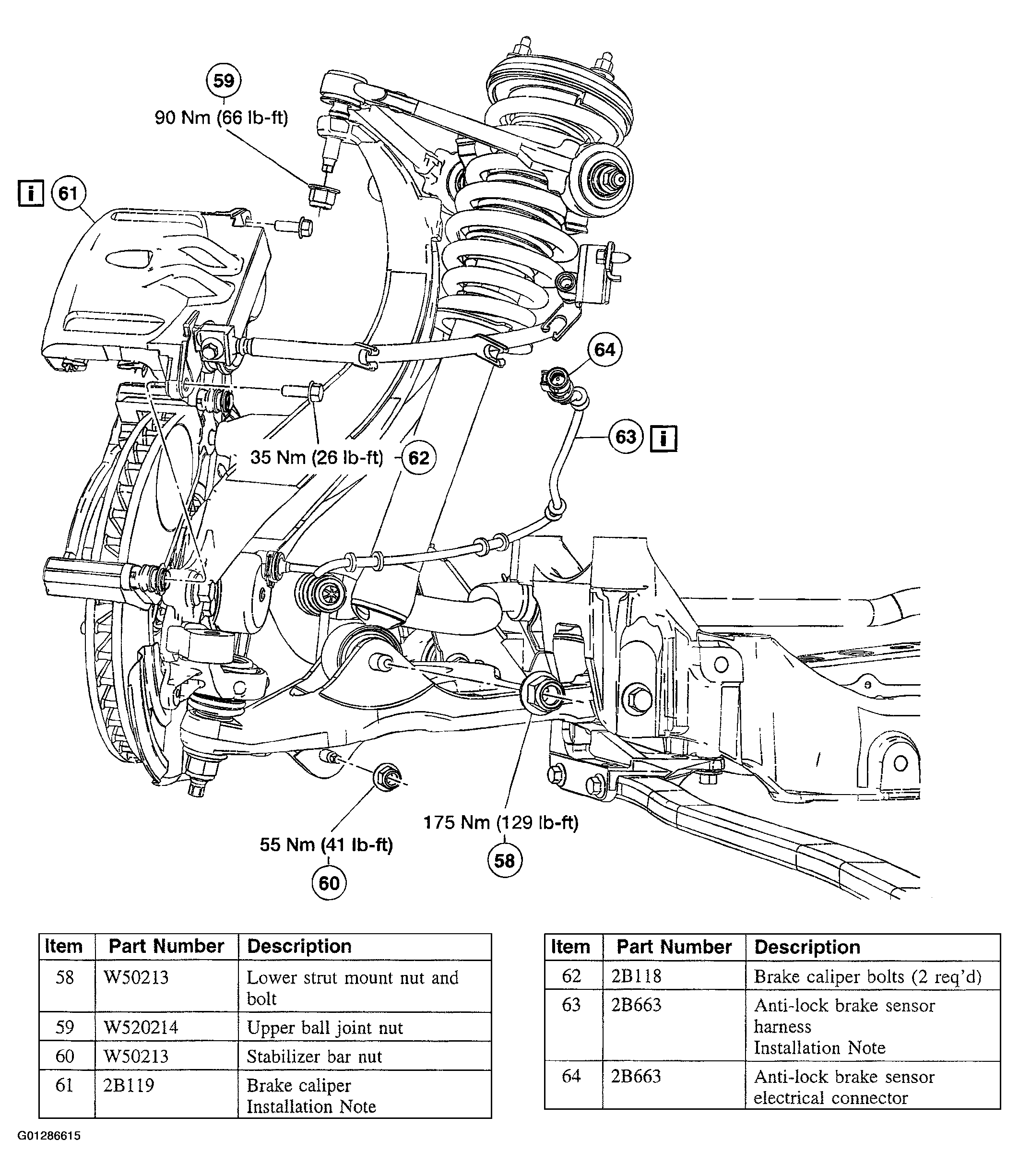

Fig 13: Installing Brake Caliper Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Illustration 11 of 13. Install the components in the order indicated in the illustration and table.

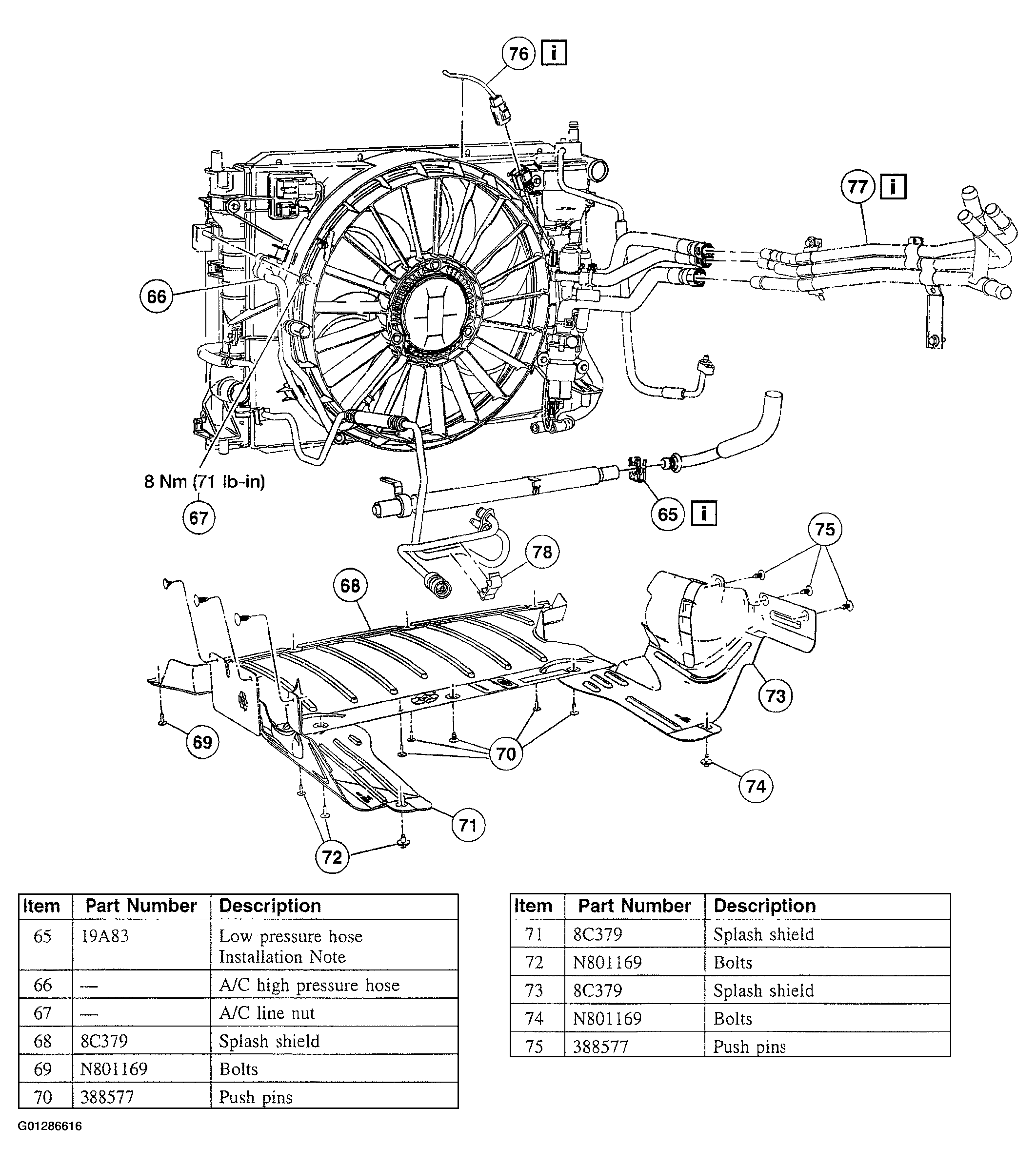

Fig 14: Installing Splash Shield Components
Courtesy of FORD MOTOR CO.

Fig 15: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 12 of 13. Install the components in the order indicated in the following illustration and table.

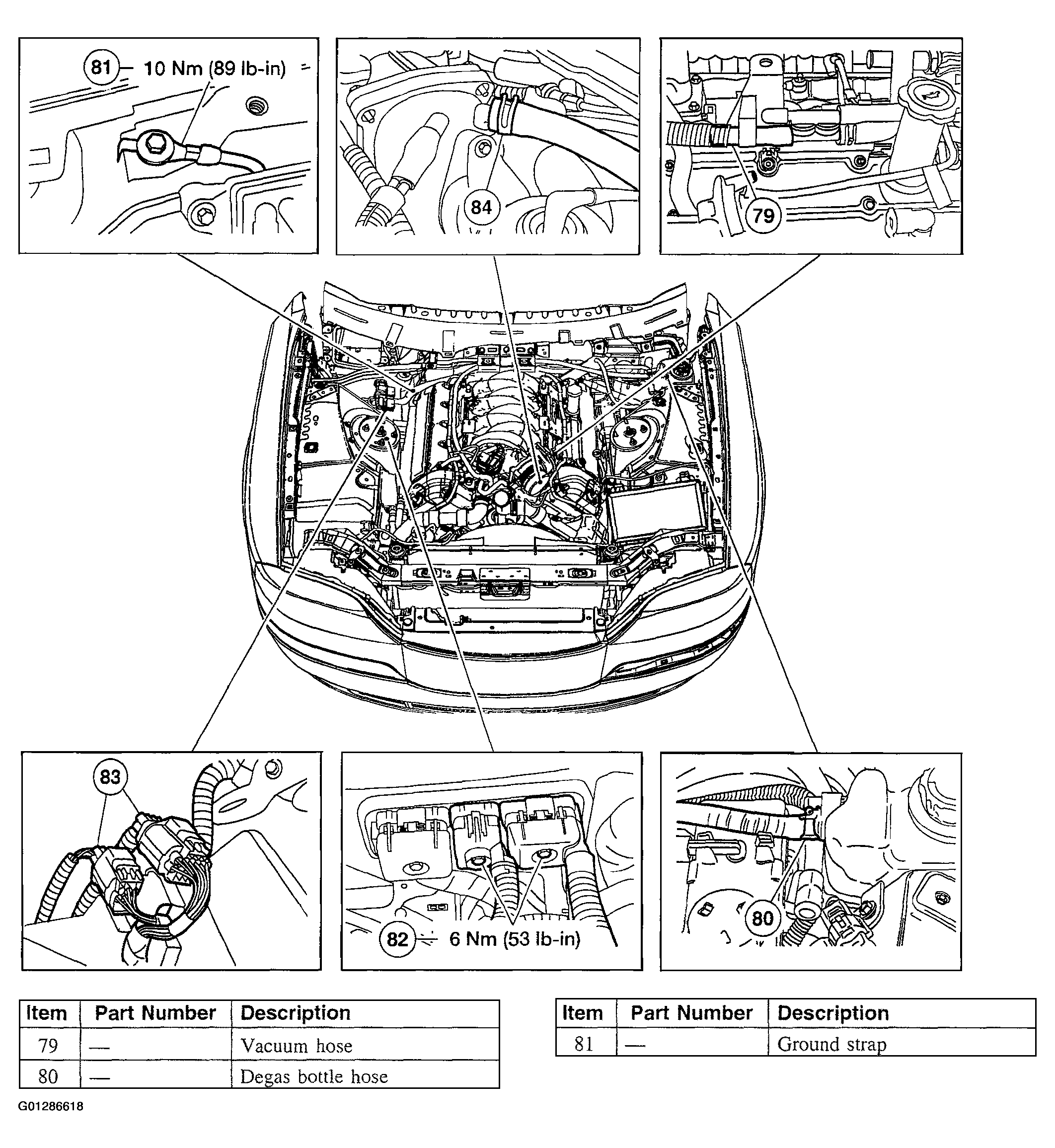

Fig 16: Identifying Hoses Components
Courtesy of FORD MOTOR CO.

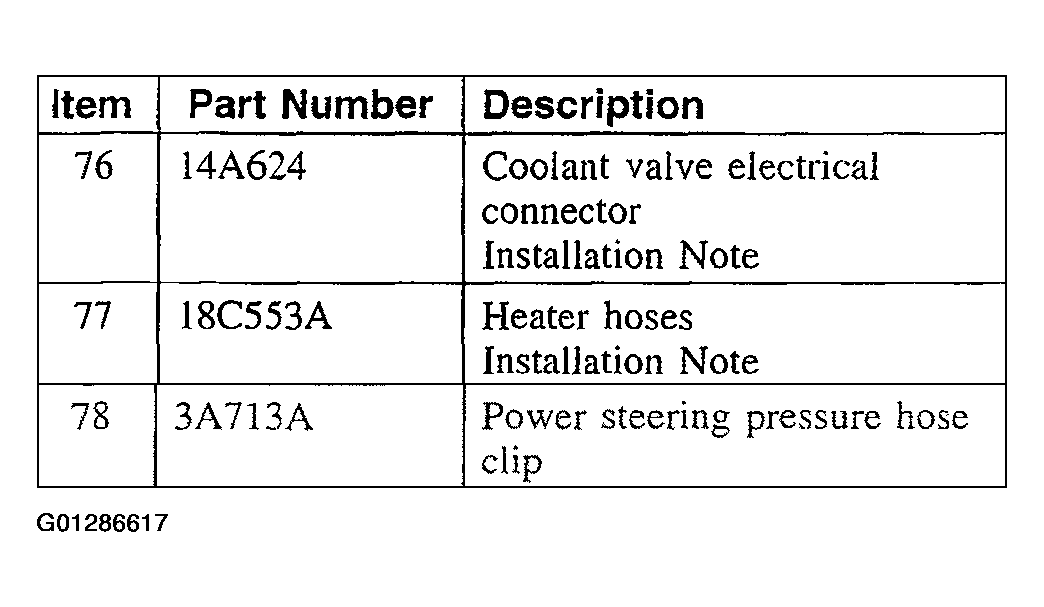

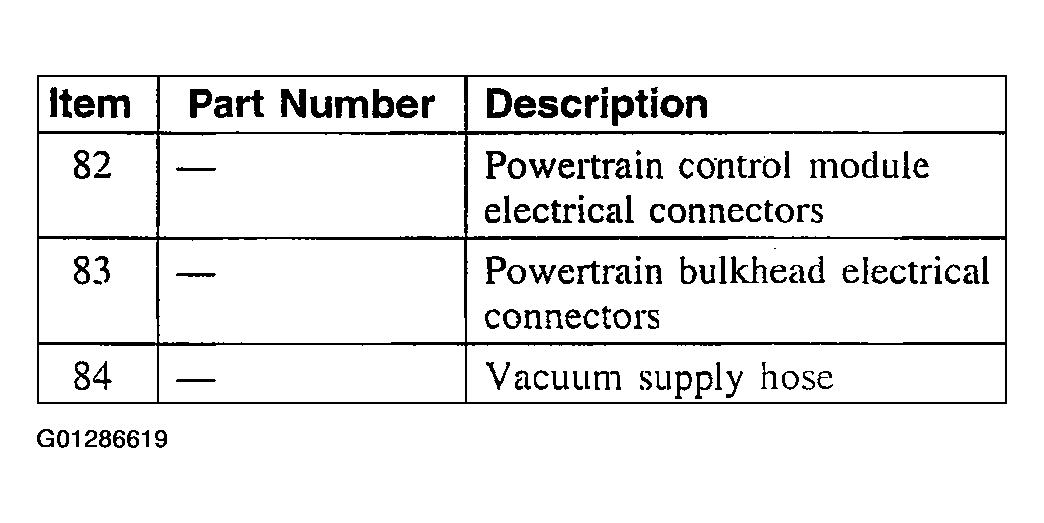

Fig 17: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 13 of 13. Install the components in the order indicated in the following illustration and table.

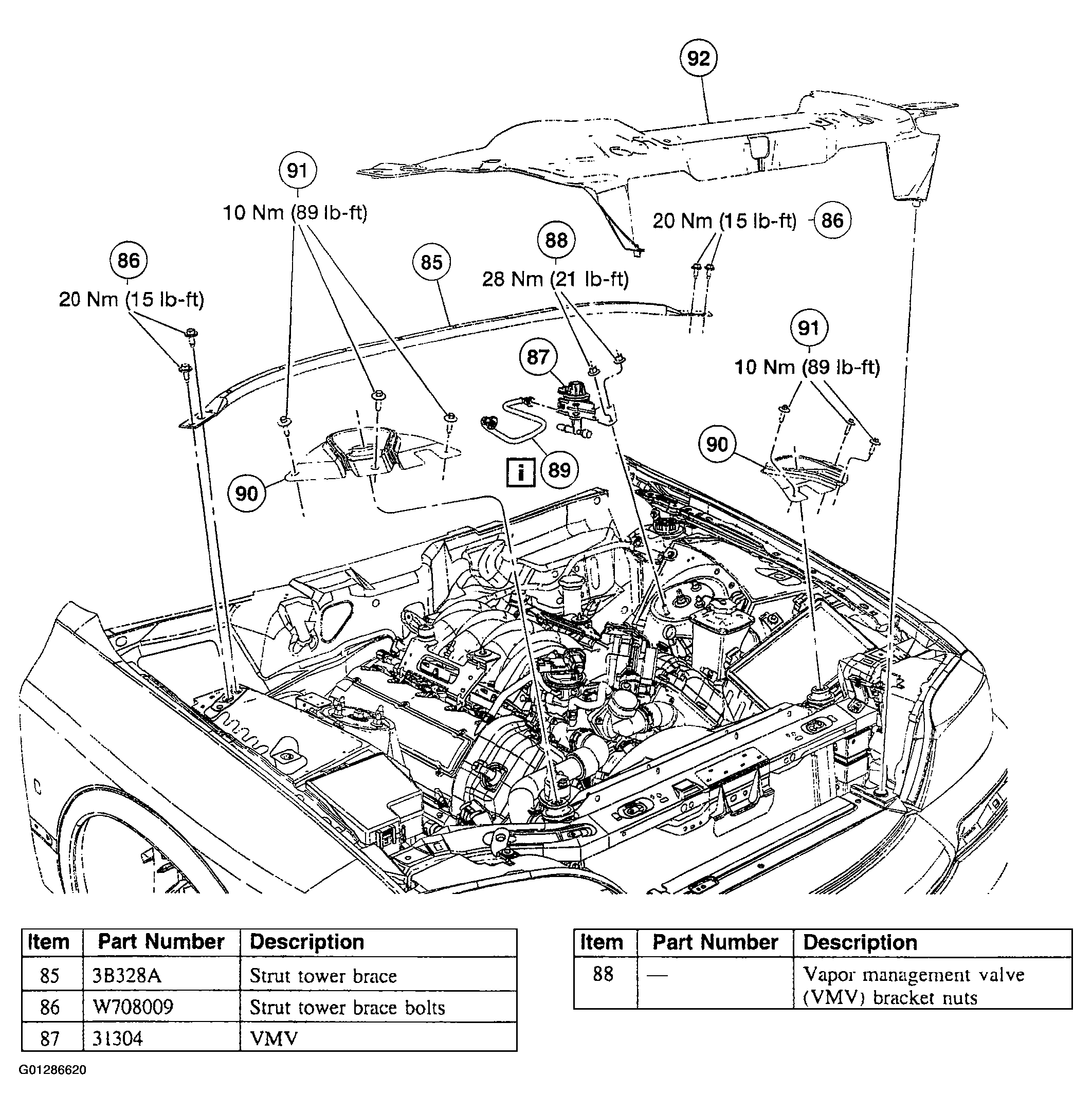

Fig 18: Installing Strut Tower Brace Components
Courtesy of FORD MOTOR CO.

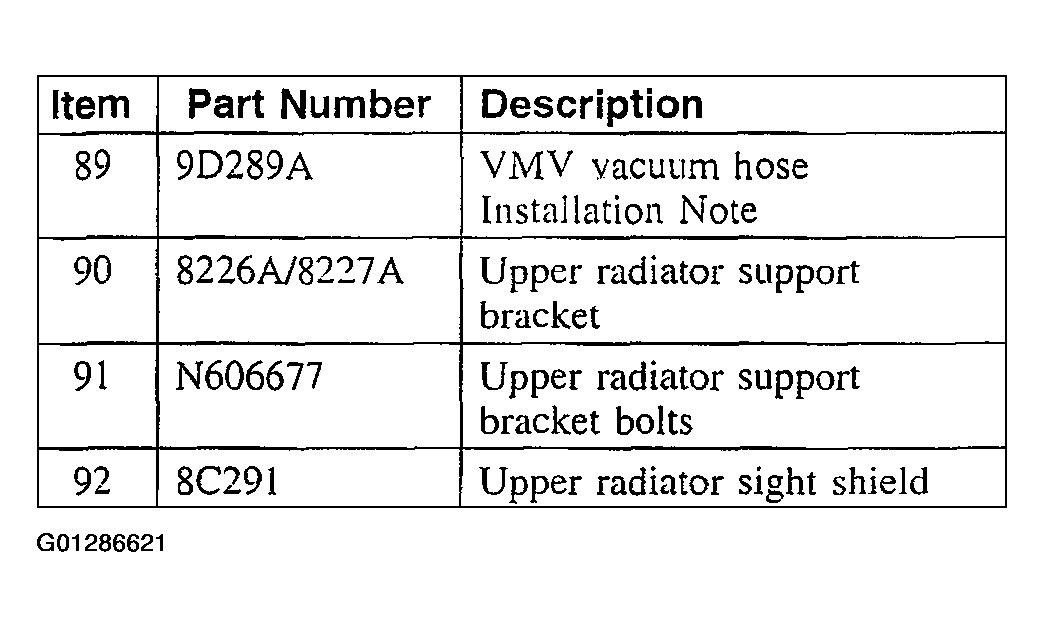

Fig 19: Parts Description Chart
Courtesy of FORD MOTOR CO.
Install the air cleaner inlet.

CAUTION: The coolant Fill procedure must be followed exactly or damage to the engine can occur.

Fill the engine coolant. For additional information, Refer to ENGINE COOLING .
Charge the A/C system. For additional information, Refer to CLIMATE CONTROL SYSTEM .
Install the power steering pump reservoir bolts. For additional information, Refer to DRIVELINE SYSTEM .
Install the cowl vent screens. For additional information, Refer to BODY SYSTEM - EXTERIOR .
Connect the fuel hose. For additional information, Refer to FUEL SYSTEM .
Install the fresh air filter panel. For additional information, Refer to CLIMATE CONTROL SYSTEM .
Install the front wheels and tires.
Install the LH and the RH inner splash shields.
Install the driveshaft. For additional information, Refer to DRIVELINE SYSTEM .
Install the three-way catalytic converter (TWC). For additional information, Refer to EXHAUST STEM .
