Removal And Installation

Remove the quarter window trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Use Safety Belt Bolt Bit to remove the rear safety belt lower anchor bolt.

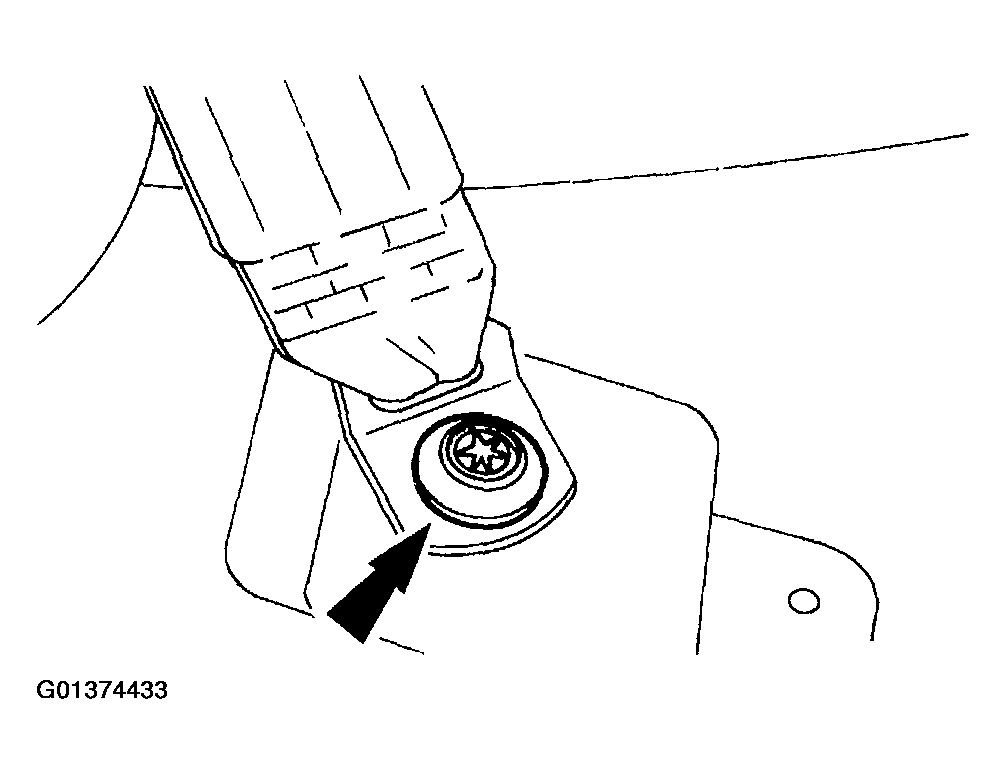

Fig 1: Removing Rear Safety Belt Lower Anchor Bolt
Courtesy of FORD MOTOR CO.
Use Safety Belt Bolt Bit to remove the rear safety belt upper guide.

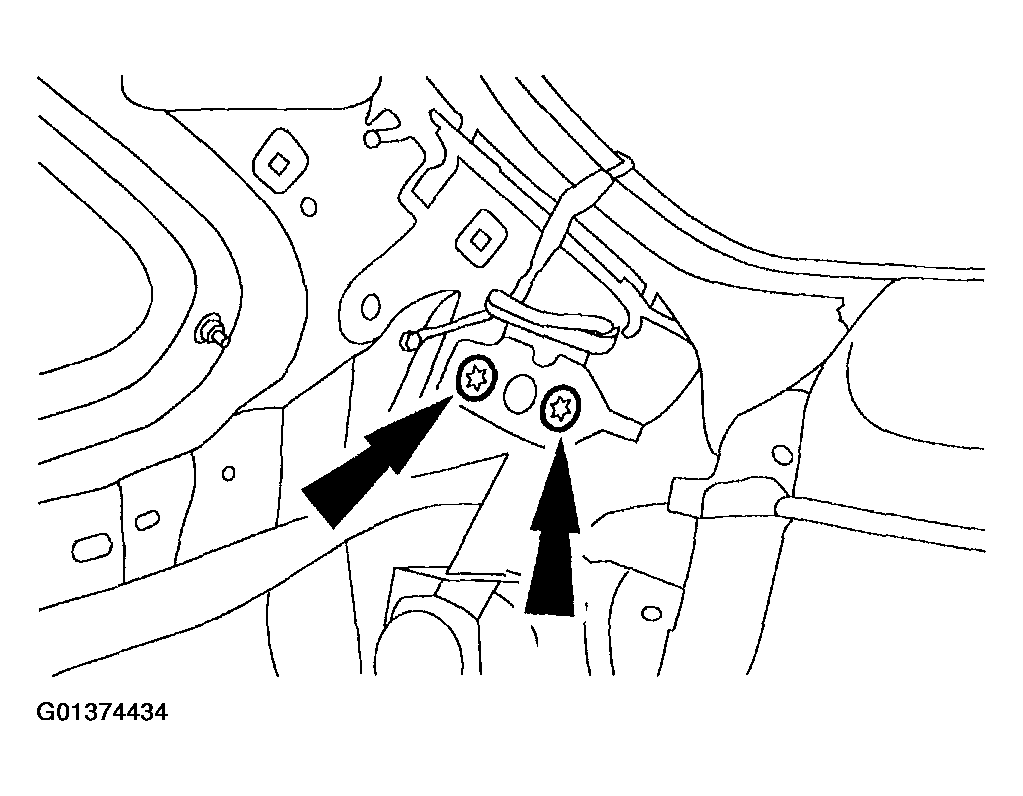

Fig 2: Removing Rear Safety Belt Upper Guide
Courtesy of FORD MOTOR CO.
Use Safety Belt Bolt Bit to remove the rear safety belt retractor bolt.

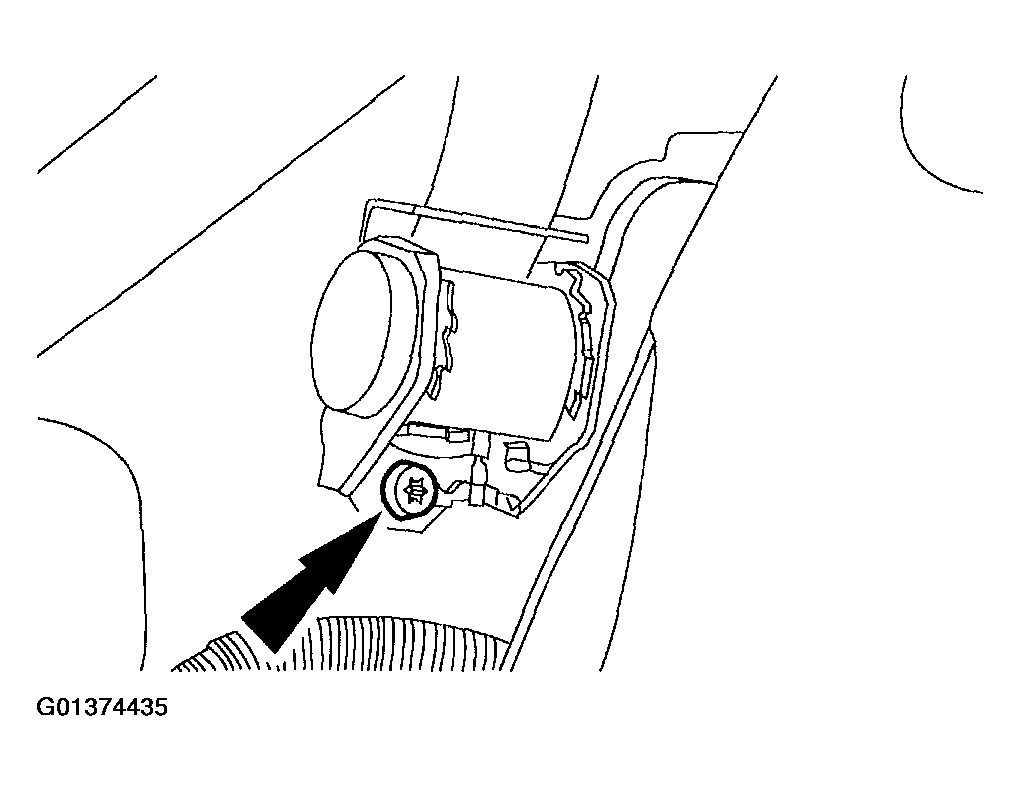

Fig 3: Removing Rear Safety Belt Retractor Bolt
Courtesy of FORD MOTOR CO.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Ensure that after the rear safety belt retractor is installed, the retractor is not stuck in the Automatic Locking Retractor (ALR) mode.

NOTE: Apply Ford Threadlock 262 (E2FZ-19554-B) or equivalent to fasteners when installing safety belt buckle or retractor assemblies.

NOTE: Perform the Functional Test to ensure that the new retractor operates correctly. For additional information, refer to COMPONENT TEST .

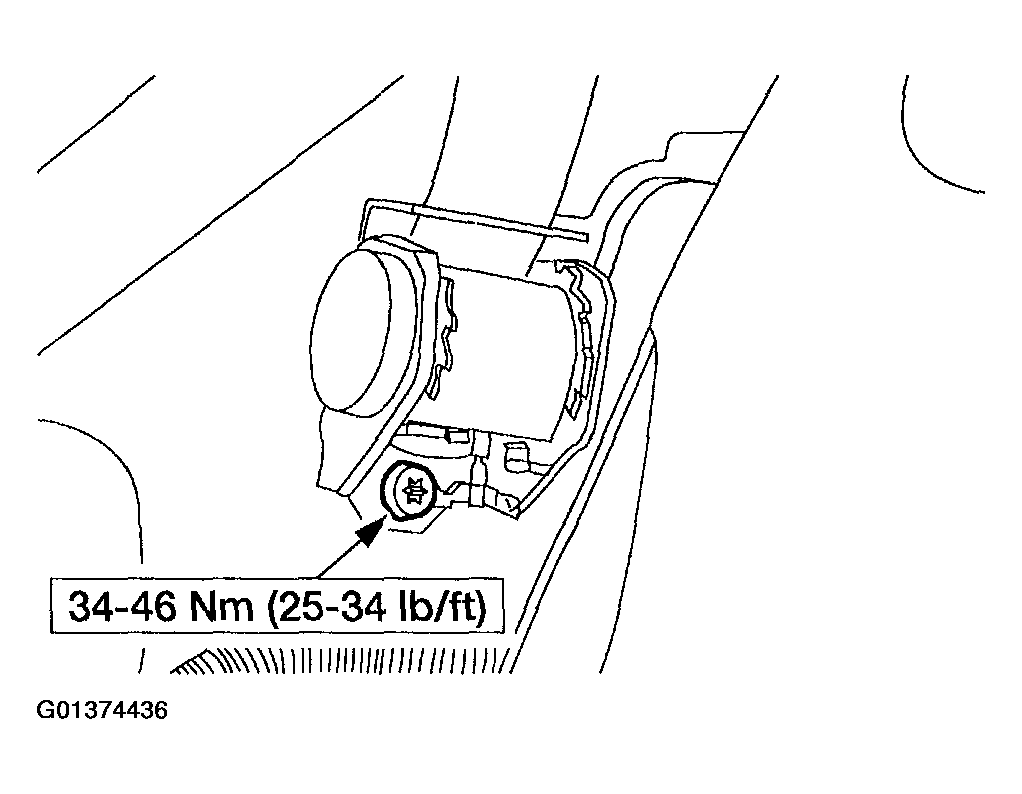

Fig 4: Installing Rear Safety Belt Retractor Bolt

Courtesy of FORD MOTOR CO.

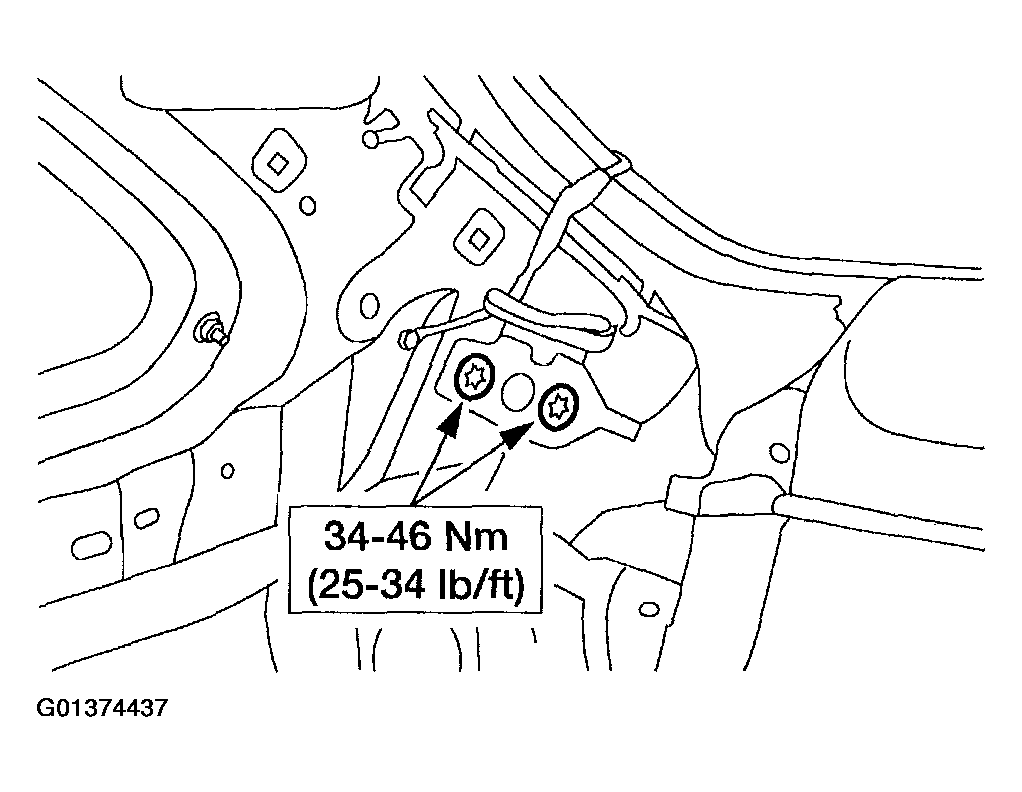

Fig 5: Installing Rear Safety Belt Upper Guide

Courtesy of FORD MOTOR CO.

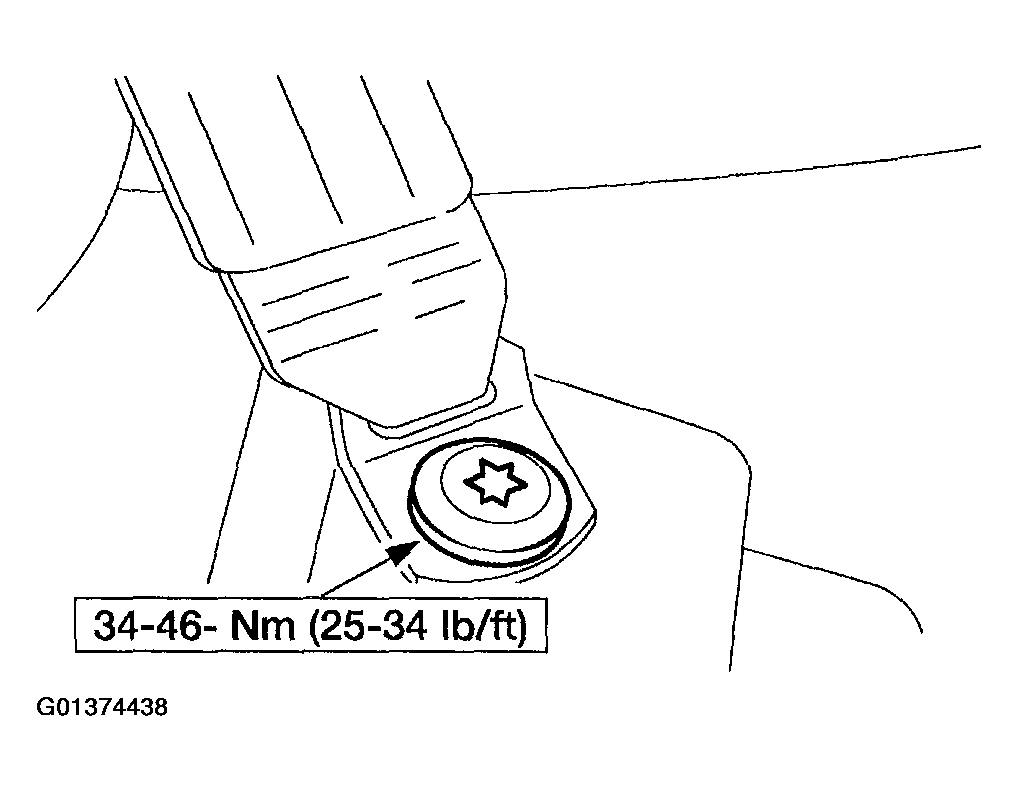

Fig 6: Installing Rear Safety Belt Lower Anchor Bolt

Courtesy of FORD MOTOR CO.
