Ignition Switch Lock Cylinder: Installation

Position the ignition switch lock cylinder and bracket and loosely install the two new break-away bolts.
- Tighten the bolts only enough to hold the ignition switch lock cylinder in place.
- With the key in the ignition, verify the operation of the ignition switch lock cylinder.
- If necessary, reposition the ignition switch lock cylinder until it operates properly.
Tighten the ignition switch lock cylinder bracket break-away bolts until the bolt heads break off.

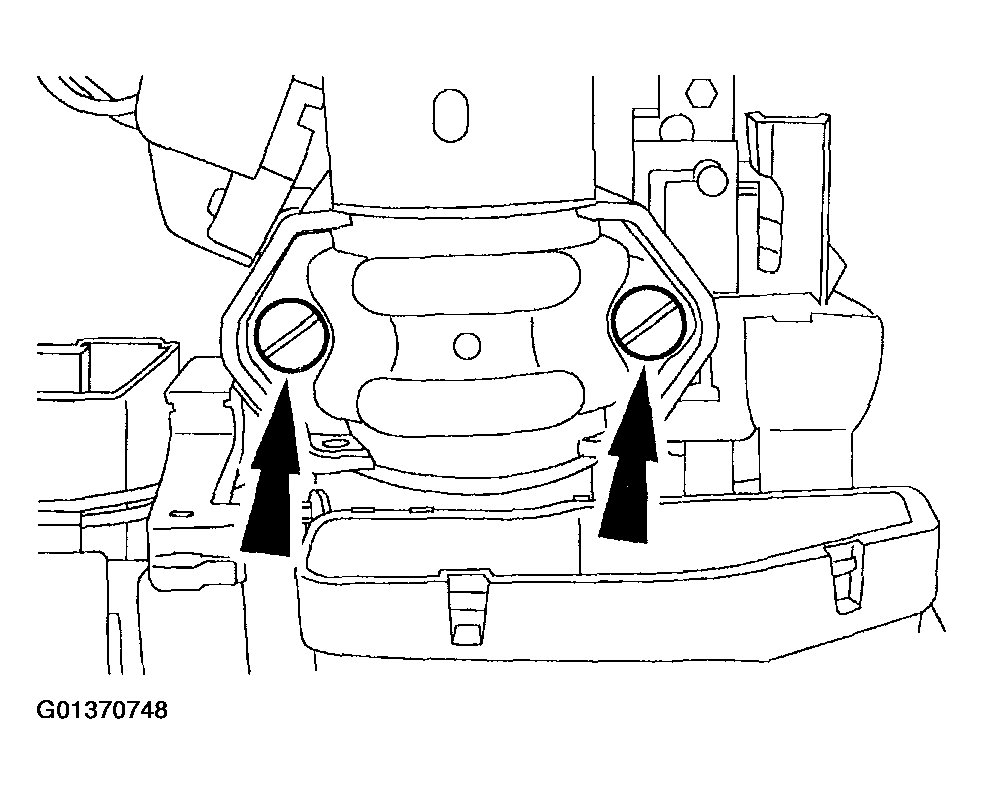

Fig 1: Tightening Ignition Switch Lock Cylinder Bracket Break-Away Bolts
Courtesy of FORD MOTOR CO.
Install the ignition/shifter interlock cable and the mounting bracket bolt.

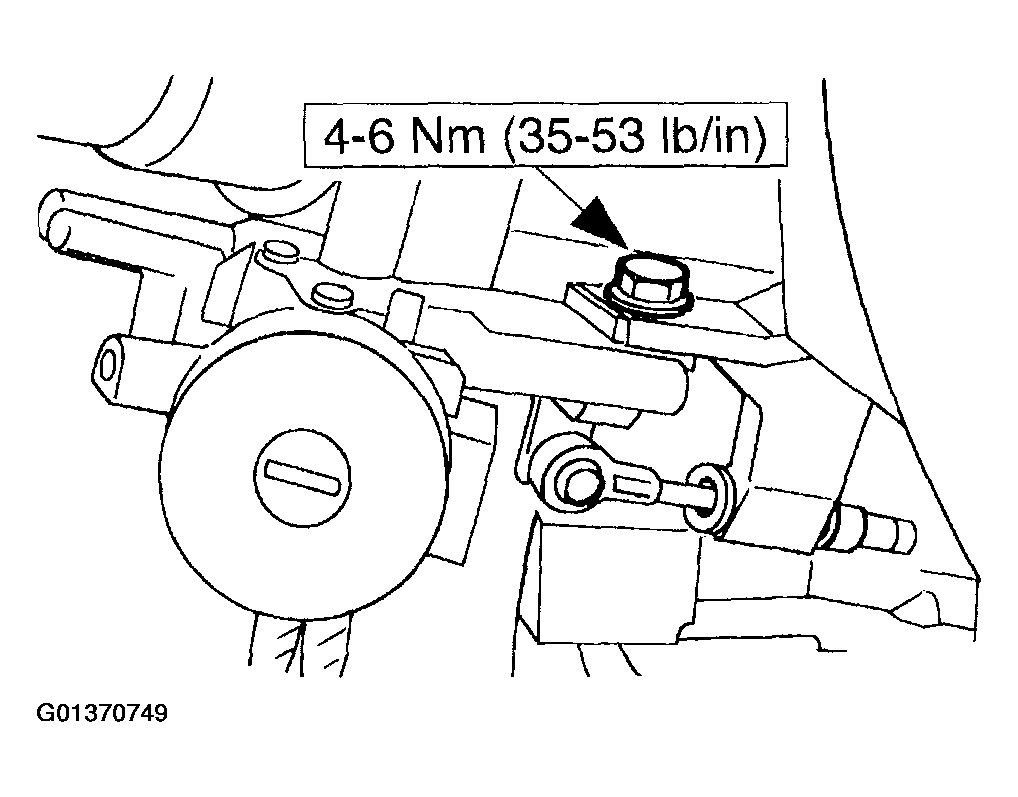

Fig 2: Installing Ignition/Shifter Interlock Cable
Courtesy of FORD MOTOR CO.
Connect the ignition switch electrical connector.

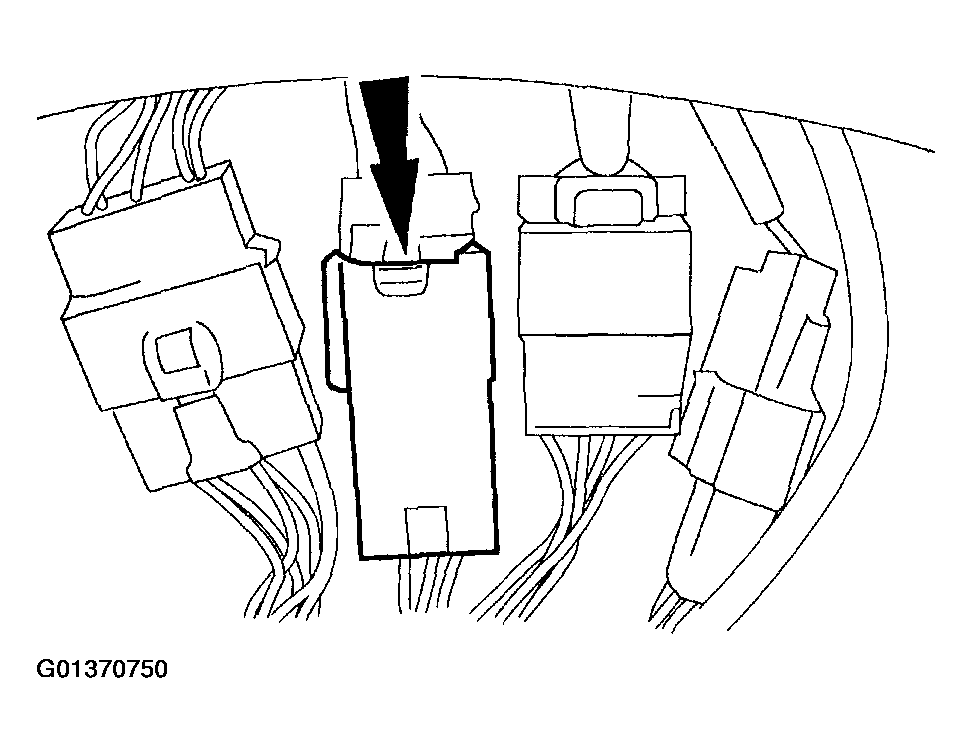

Fig 3: Connecting Ignition Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Install the multi-function switch; refer to REMOVAL AND INSTALLATION in STEERING COLUMN SWITCHES - ZX2 article.
Inspect the shift interlock system; refer to SHIFT INTERLOCK SYSTEM .
