Disassembled Views - Apply Components

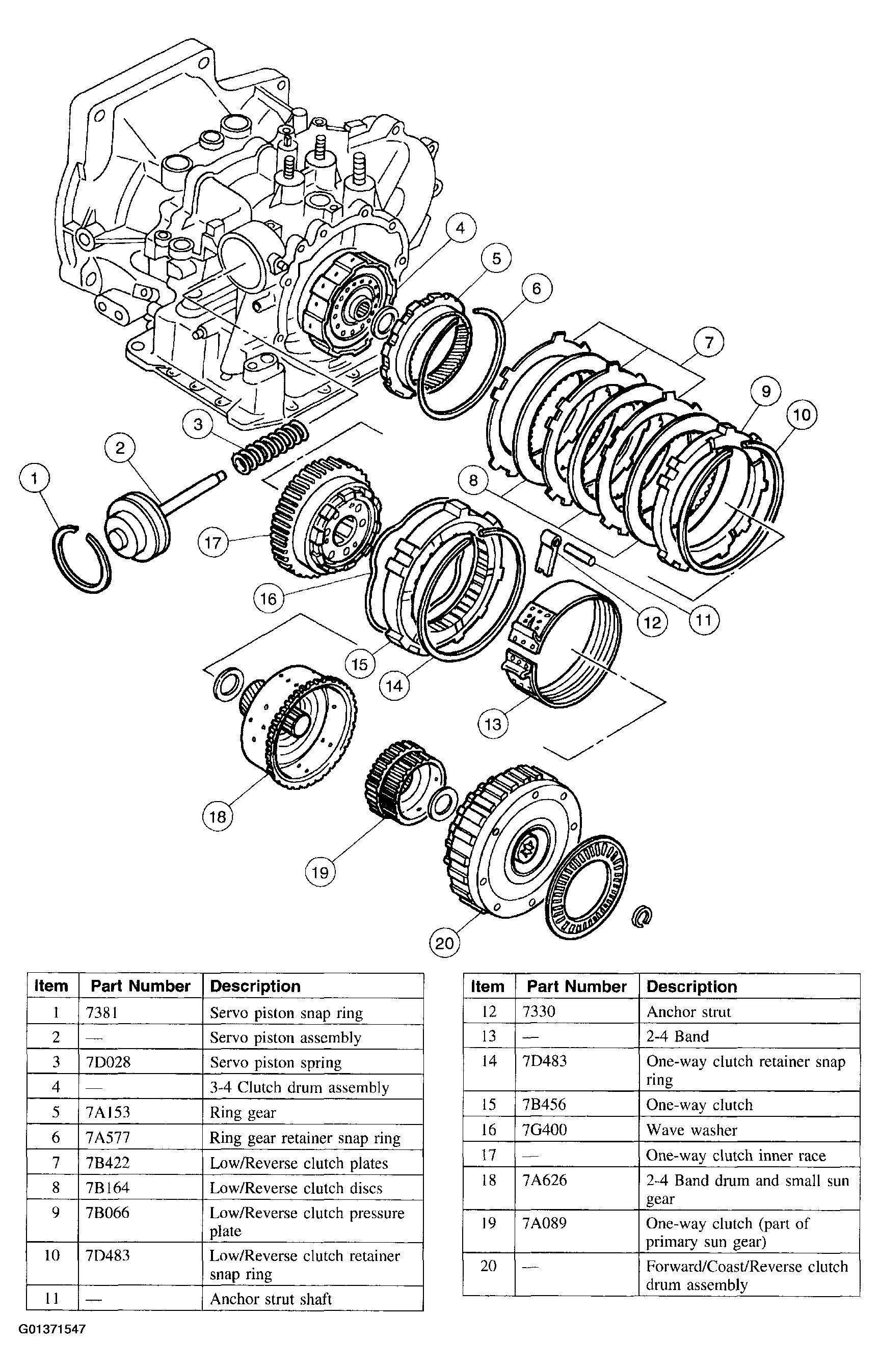

Fig 1: Exploded View Of Automatic Transmission - Apply Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
