Disassembled Views - Differential Components

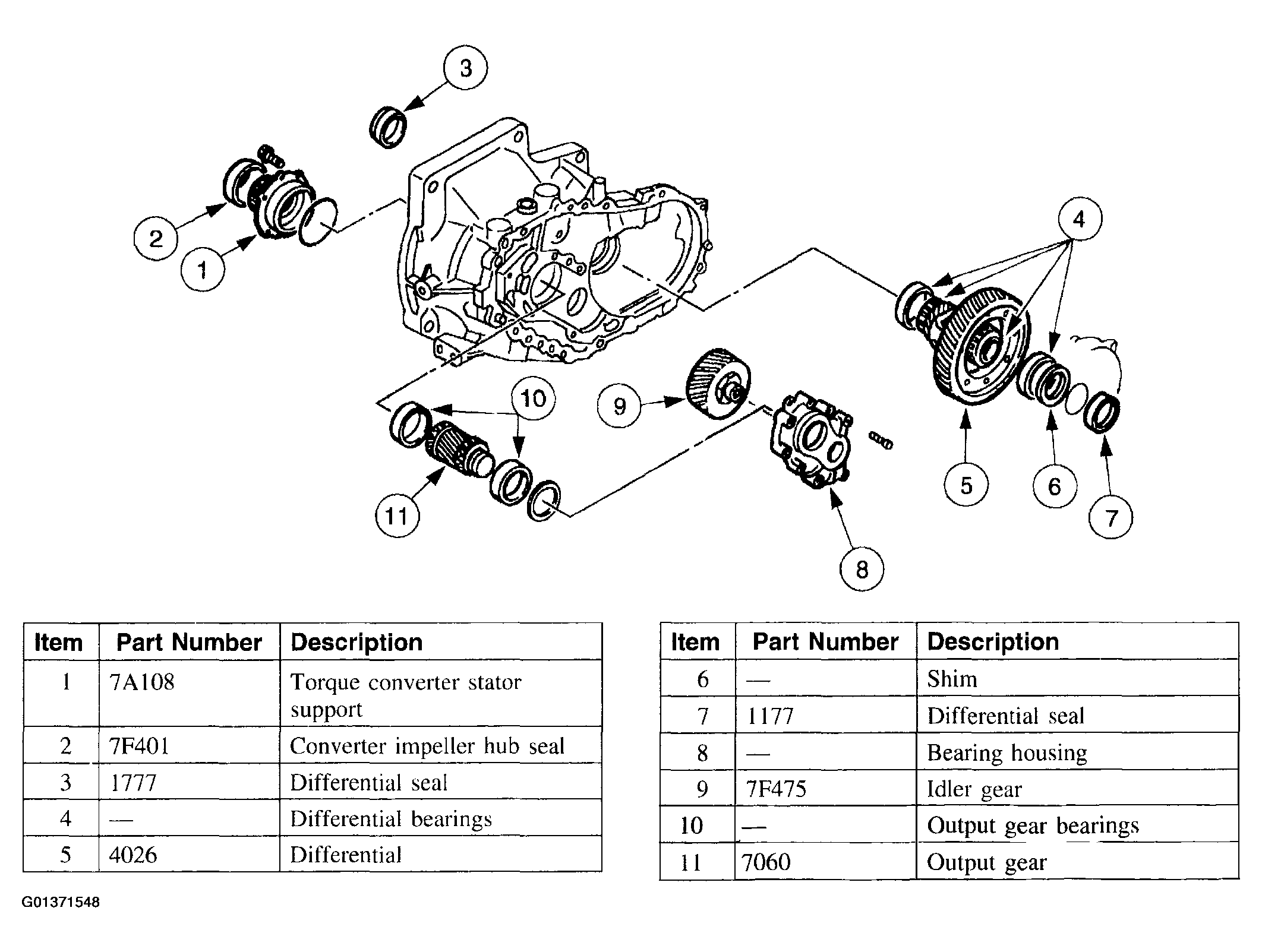

Fig 1: Exploded View Of Differential Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
