Front Planetary And One-Way Clutch: Disassembly

Remove the one-way clutch outer race.

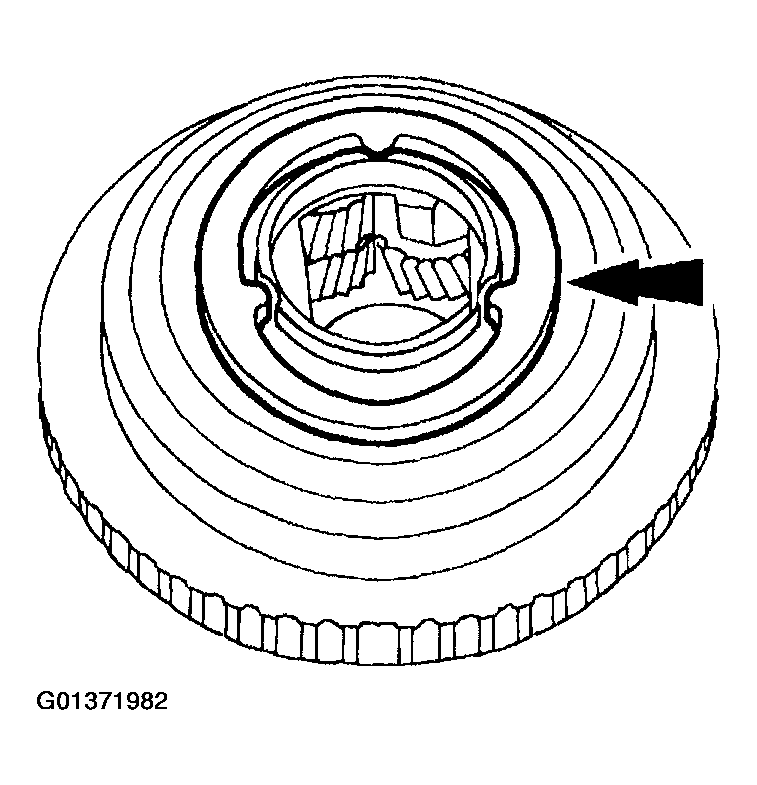

Fig 1: Removing One-Way Clutch Outer Race
Courtesy of FORD MOTOR CO.
Remove the planet gear bearing thrust washer (7F368).

Fig 2: Removing Planet Gear Bearing Thrust Washer
Courtesy of FORD MOTOR CO.
Remove the clutch pressure plate snap ring.

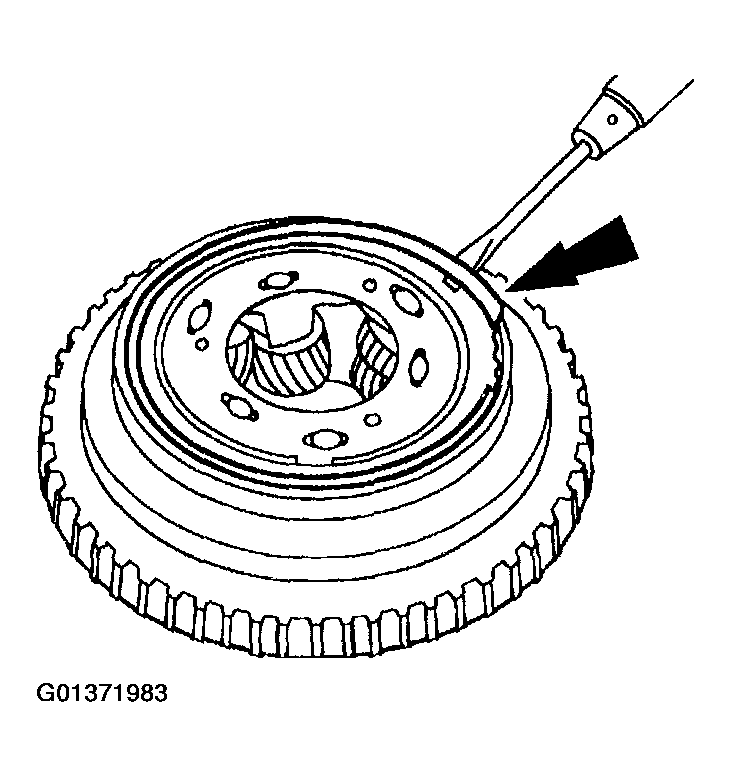

Fig 3: Removing Clutch Pressure Plate Snap Ring
Courtesy of FORD MOTOR CO.
Remove the front planet (7A398).

Fig 4: Removing Front Planet
Courtesy of FORD MOTOR CO.
