Upper and Main Control Valve Bodies

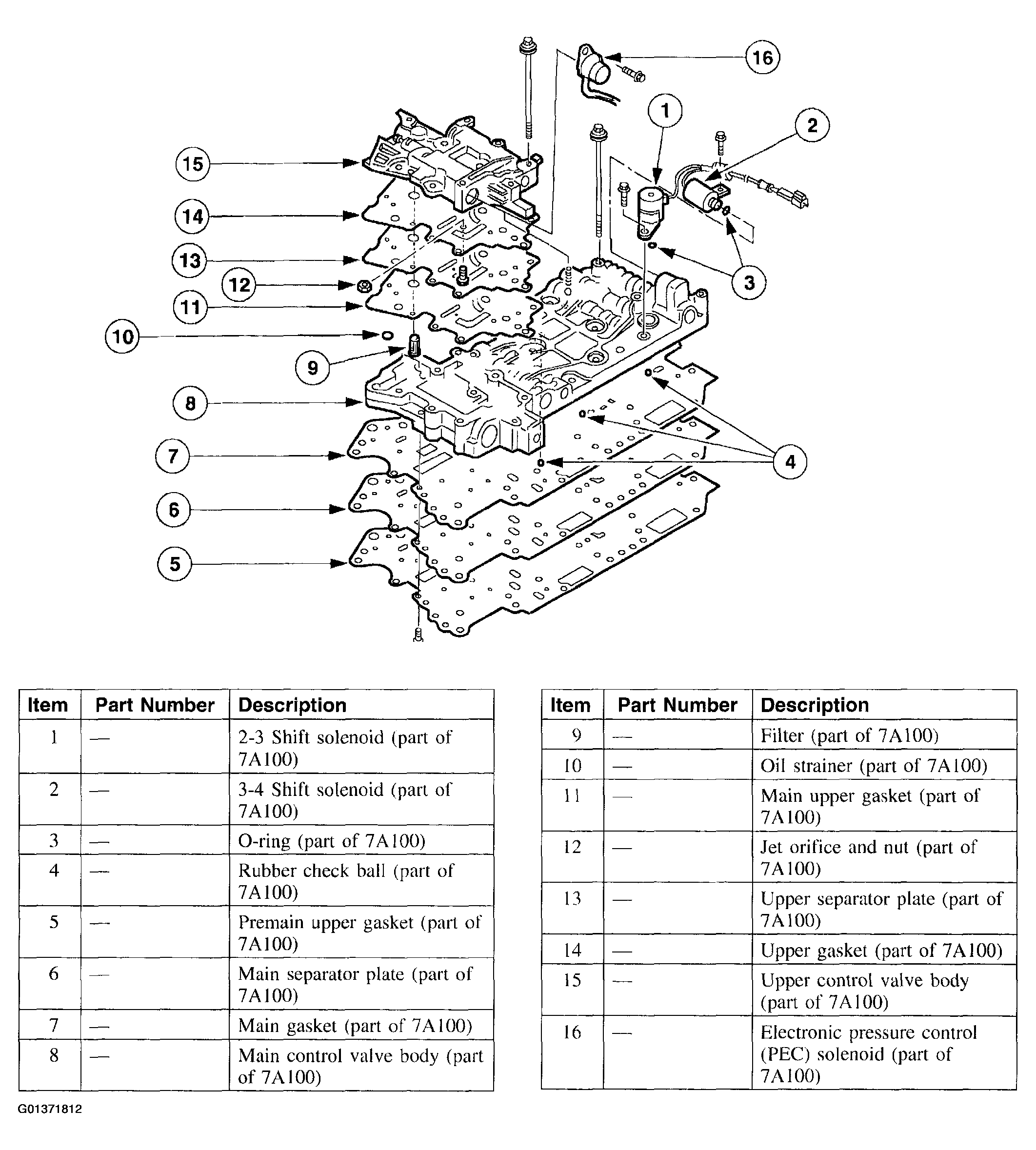

Fig 1: Disassembled View Of Upper And Main Control Valve Bodies
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
