Main Control Valve Body - PREMAIN: Disassembly

NOTE: Each valve should slide in and out of its bore under its own weight. When a valve will not slide out under its own weight, depending on the valve, push it out with a wire or place the valve body open-side down and lightly tap it with a soft hammer. Never scratch or damage a valve bore. Do not drop the valves or use a valve that has been damaged. Before assembling the valve body, be certain that all valves are clean and lubricated with Motorcraft MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON.

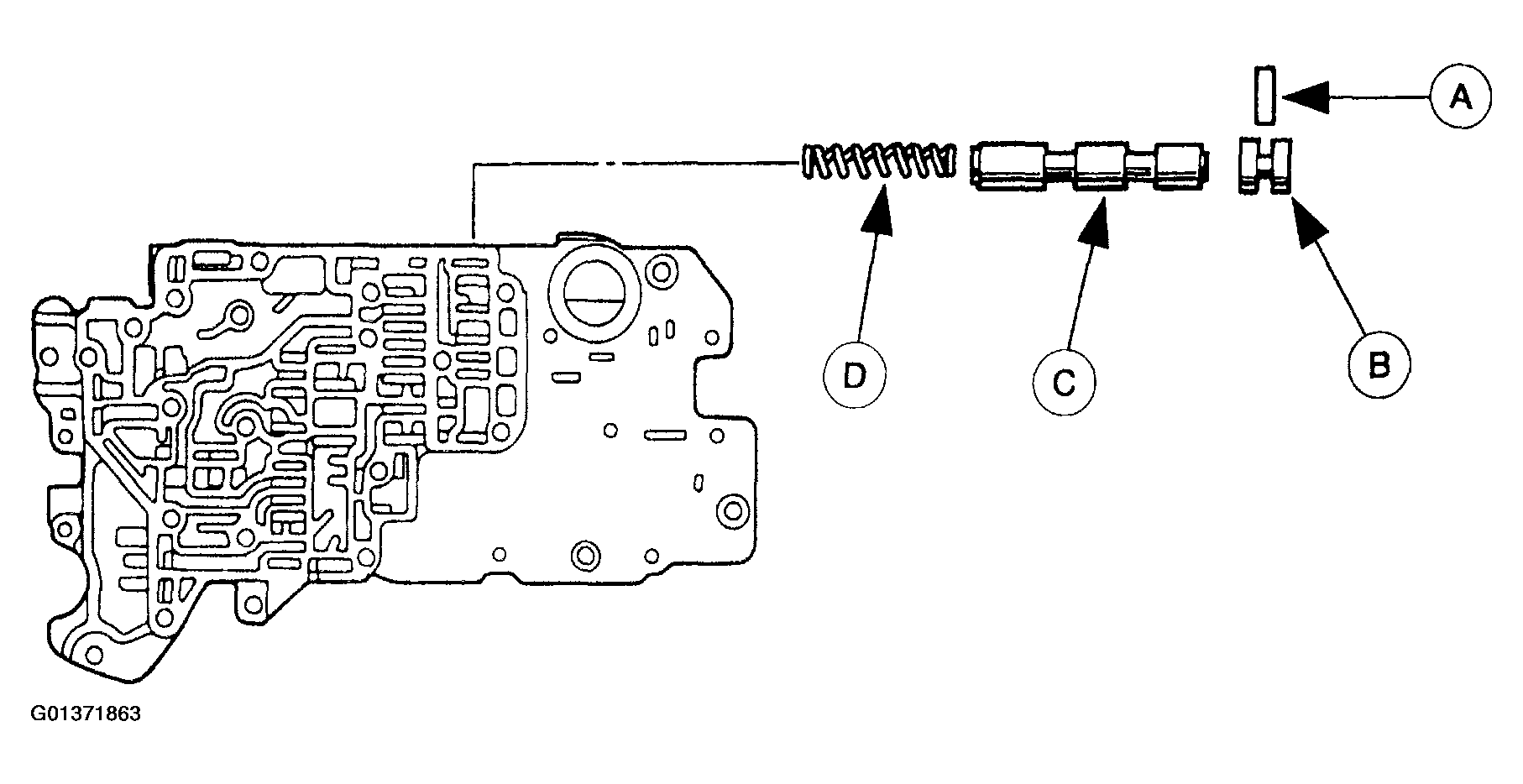

Remove the (A) stop pin, (B) stop plug, (C) 2-3 shift valve, and the (D) bypass valve spring.

Fig 1: Removing Stop Pin, Stop Plug, 2-3 Shift Valve, And Bypass Valve Spring
Courtesy of FORD MOTOR CO.
Remove the (A) stop pin, (B) stop plug, (C) bypass valve, and the (D) 2-3 shift valve spring.

Fig 2: Removing Stop Pin, Stop Plug, Bypass Valve, And 2-3 Shift Valve Spring
Courtesy of FORD MOTOR CO.

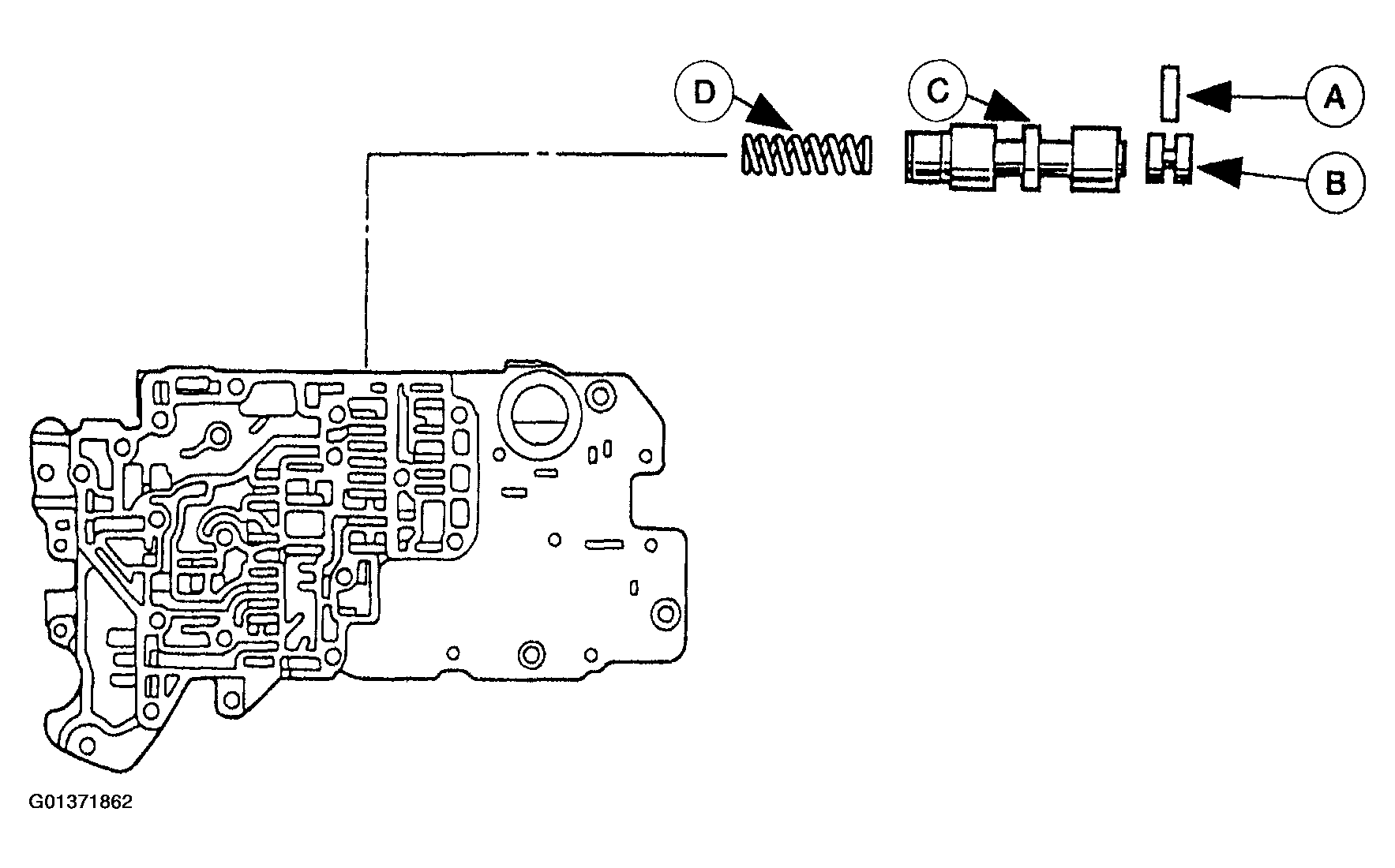

Remove the (A) spring retainer, (B) converter relief valve spring, and the (C) converter relief valve.

Fig 3: Removing Spring Retainer, Converter Relief Valve Spring, And Converter Relief Valve
Courtesy of FORD MOTOR CO.

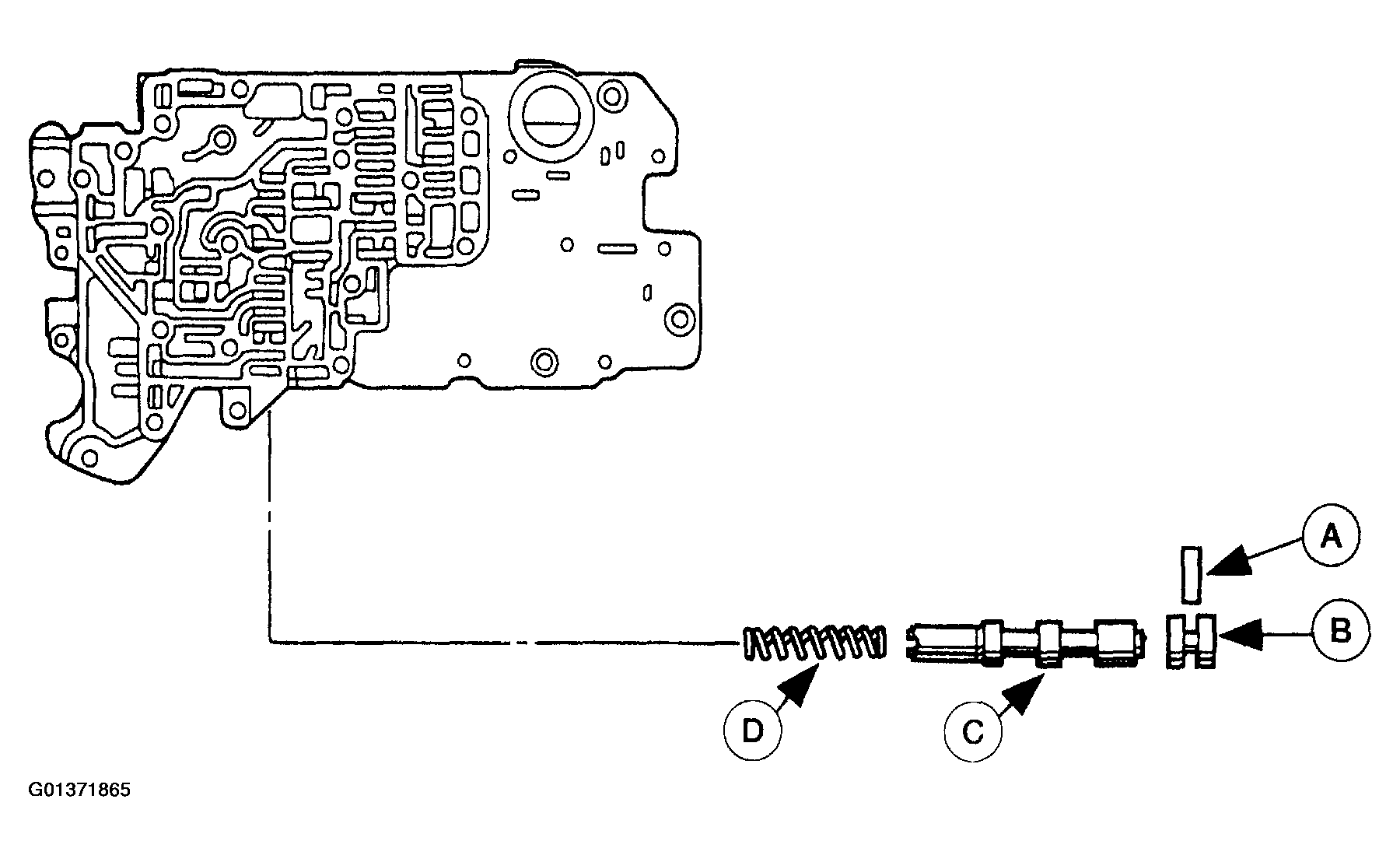

Remove the (A) stop pin, (B) stop plug, (C) TCC control valve, and the (D) TCC control valve spring.

Fig 4: Removing Stop Pin, Stop Plug, TCC Control Valve, And TCC Control Valve Spring
Courtesy of FORD MOTOR CO.
