Premain Control Valve Body

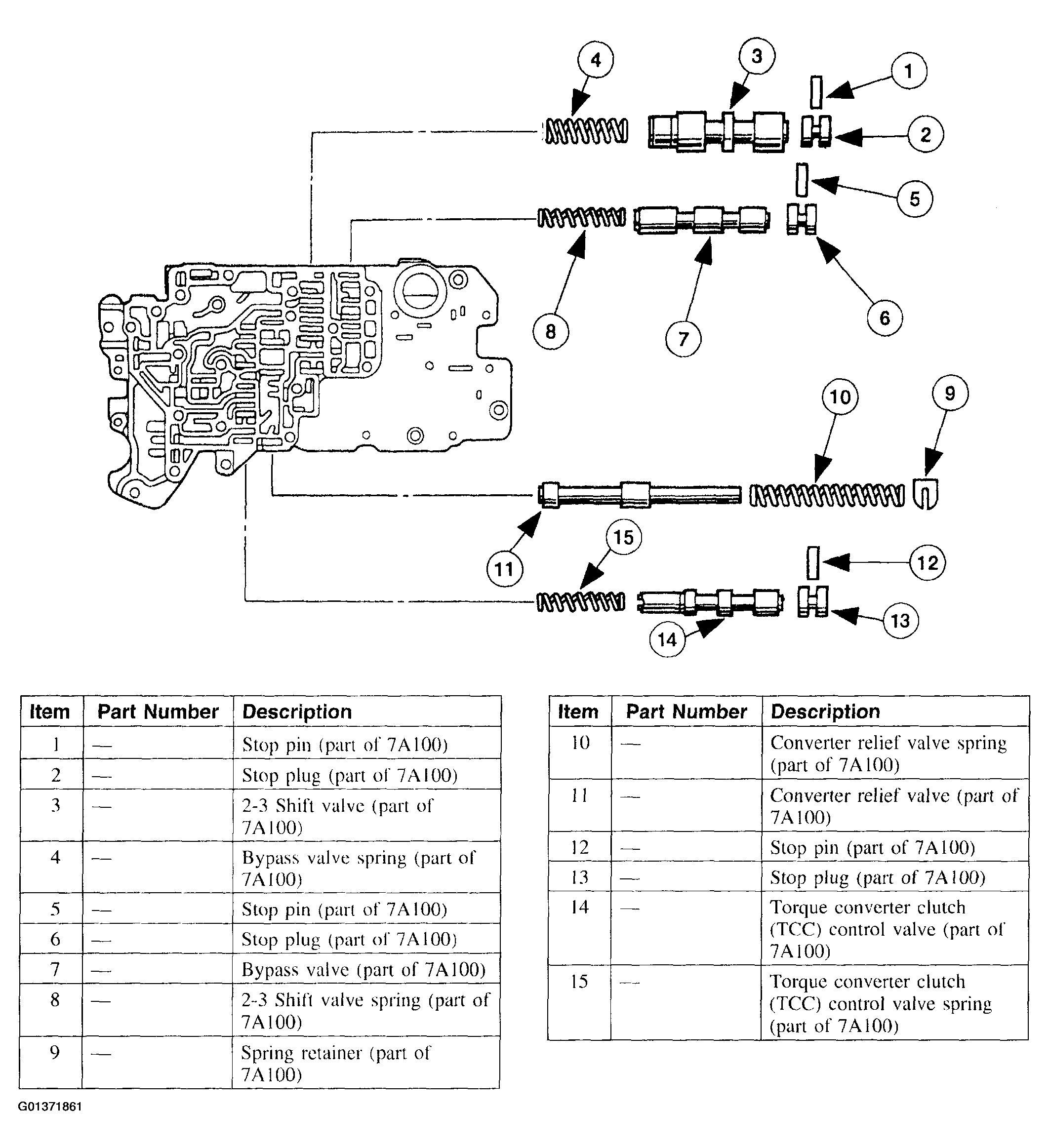

Fig 1: Disassembled View Of Premain Control Valve Body
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
