Special Tool(s)

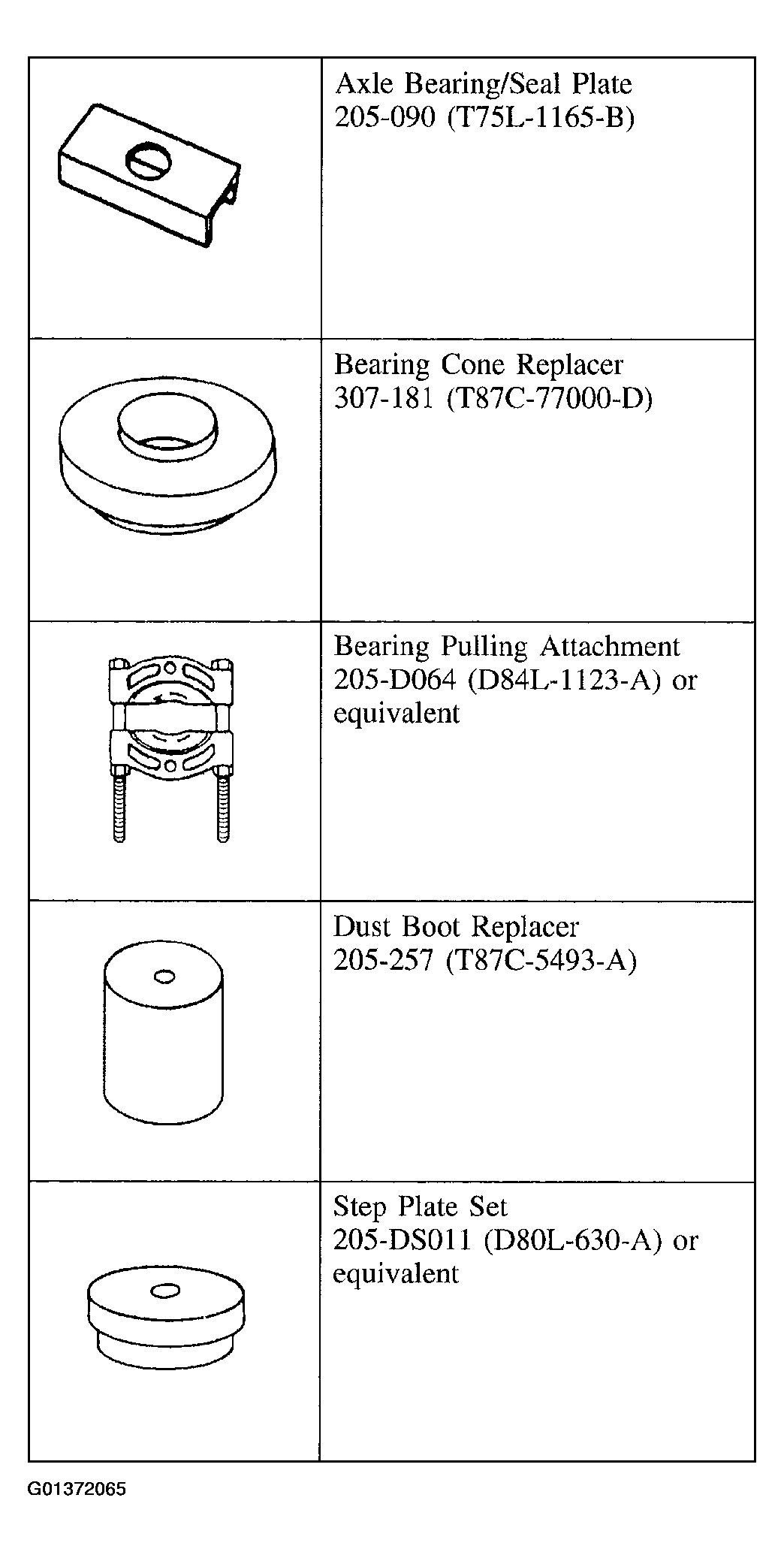

Fig 1: Identifying Special Tool(s)
G01372065Courtesy of FORD MOTOR CO.

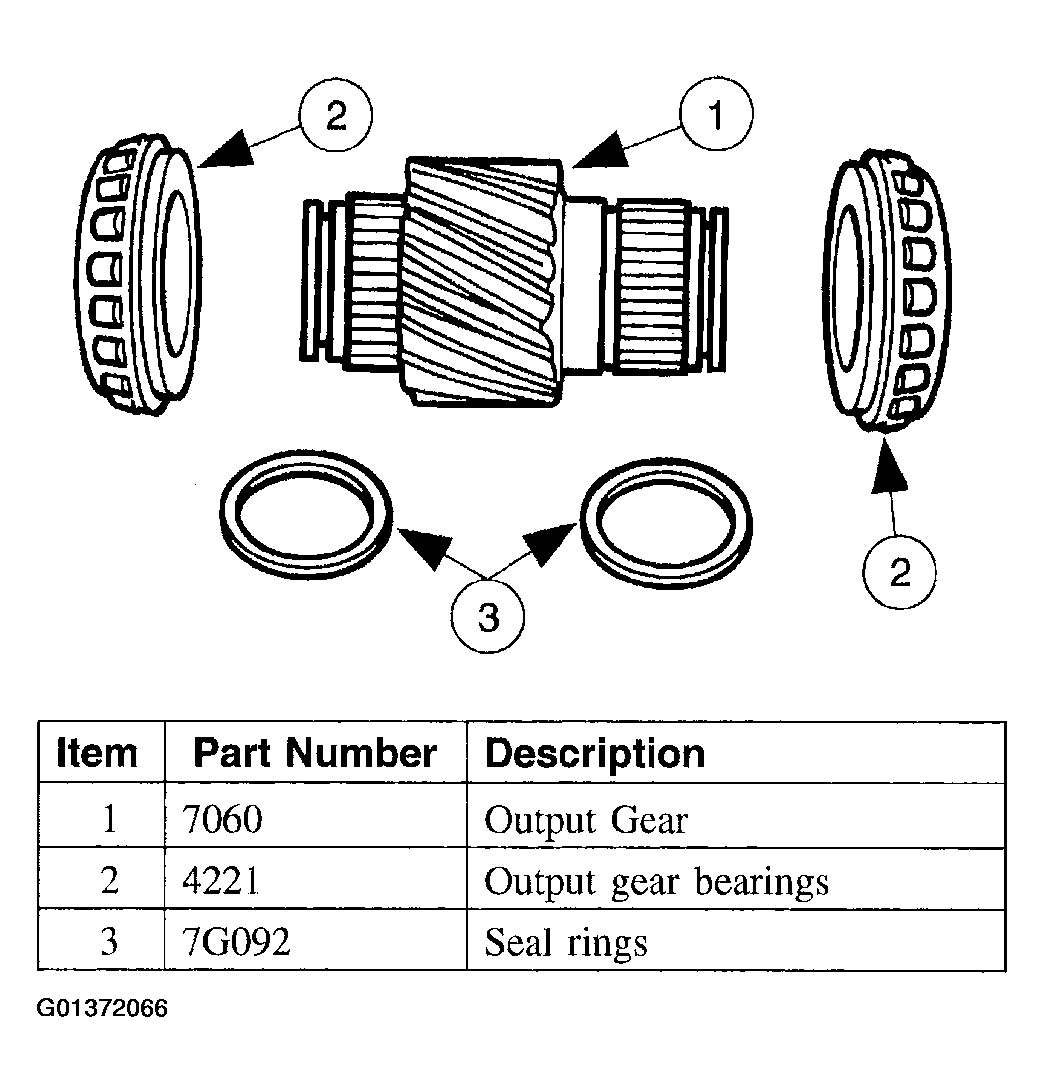

Fig 2: Identifying Output Gear, Bearings And Seal Rings
G01372066Courtesy of FORD MOTOR CO.
