Differential Fluid Seals: Installation

  1. Use Differential Seal Replacer to tap in the new differential oil seals.

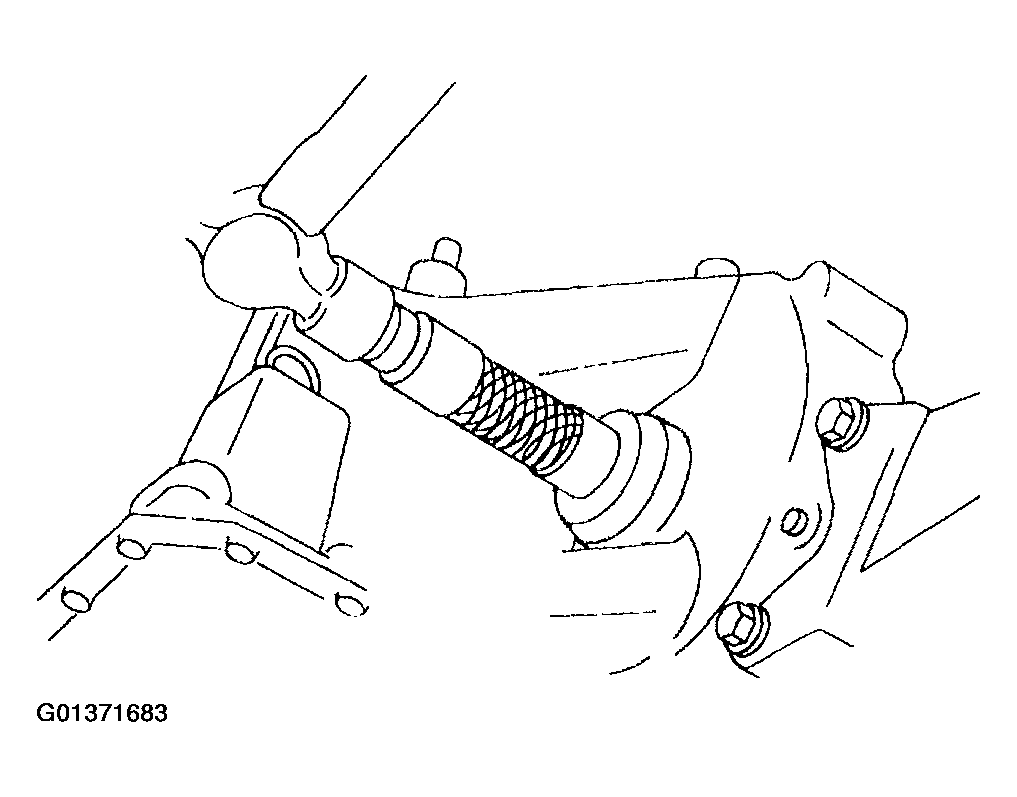

    Fig 1: Installing Differential Oil Seals
    G01371683Courtesy of FORD MOTOR CO.
  2. Install the halfshafts; refer to AXLE SHAFTS .
  3. Install the transmission case drain plug with a new washer.

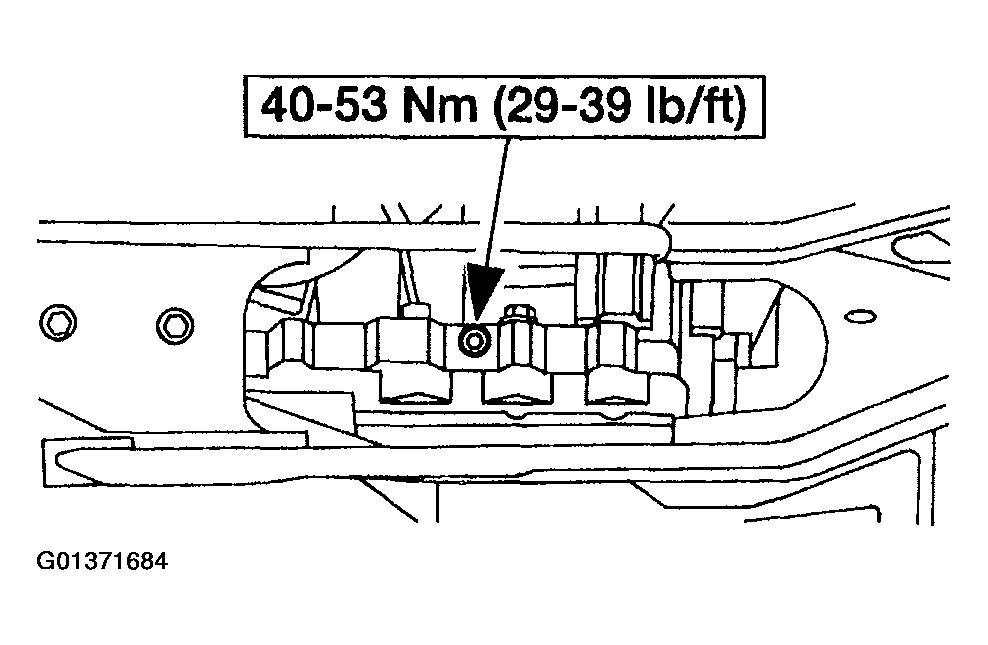

    Fig 2: Installing Transmission Case Drain Plug With Washer
    G01371684Courtesy of FORD MOTOR CO.
  4. Add the specified transmission fluid and inspect for leaks.
