Transaxle Support Insulator - LH: Removal

  1. Remove the battery tray; refer to BATTERY .
  2. Remove the wiring harness from the LH transmission insulator and position it aside.

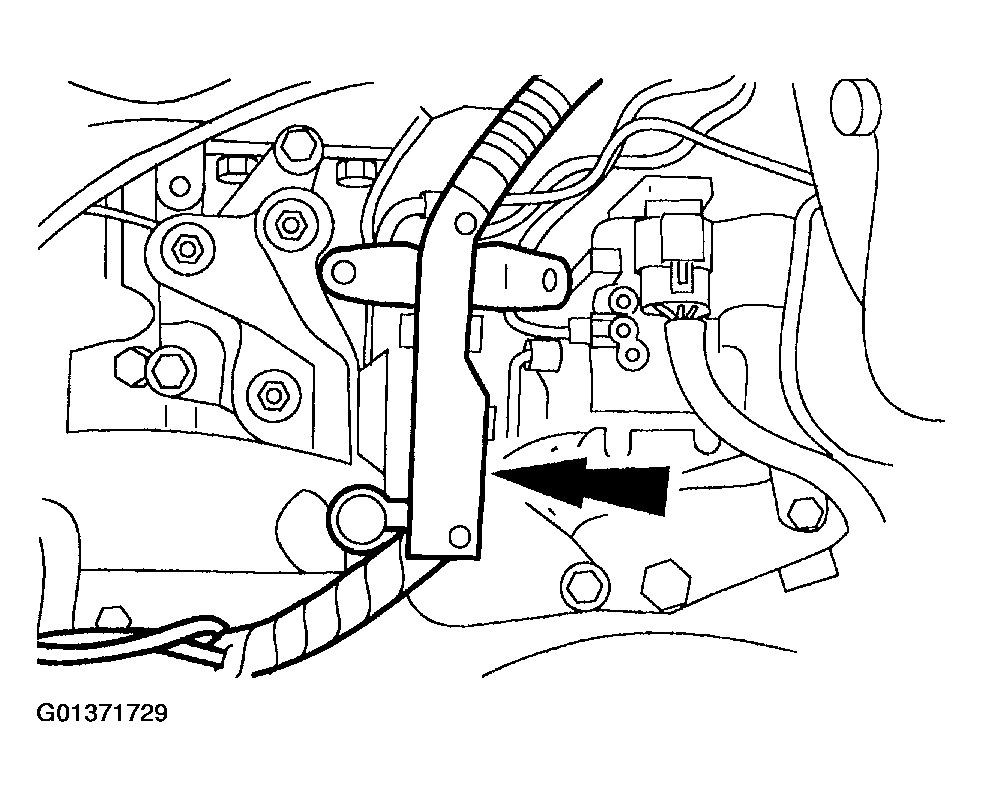

    Fig 1: Removing Wiring Harness From LH Transmission Insulator
    G01371729Courtesy of FORD MOTOR CO.
  3. Remove the LH transmission insulator to transmission nuts and washers.

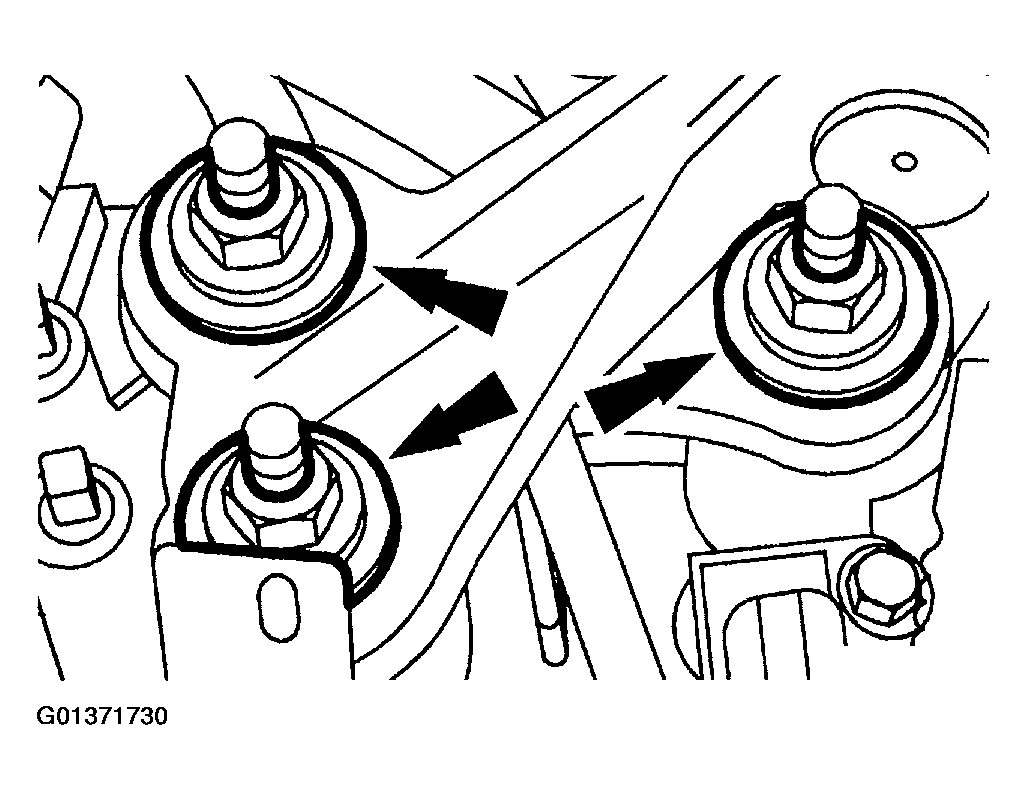

    Fig 2: Removing LH Transmission Insulator To Transmission Nuts And Washers
    G01371730Courtesy of FORD MOTOR CO.
  4. Remove the LH transmission insulator.
    1. Remove the nuts.
    2. Remove the bolts.
    3. Remove the LH transmission insulator.

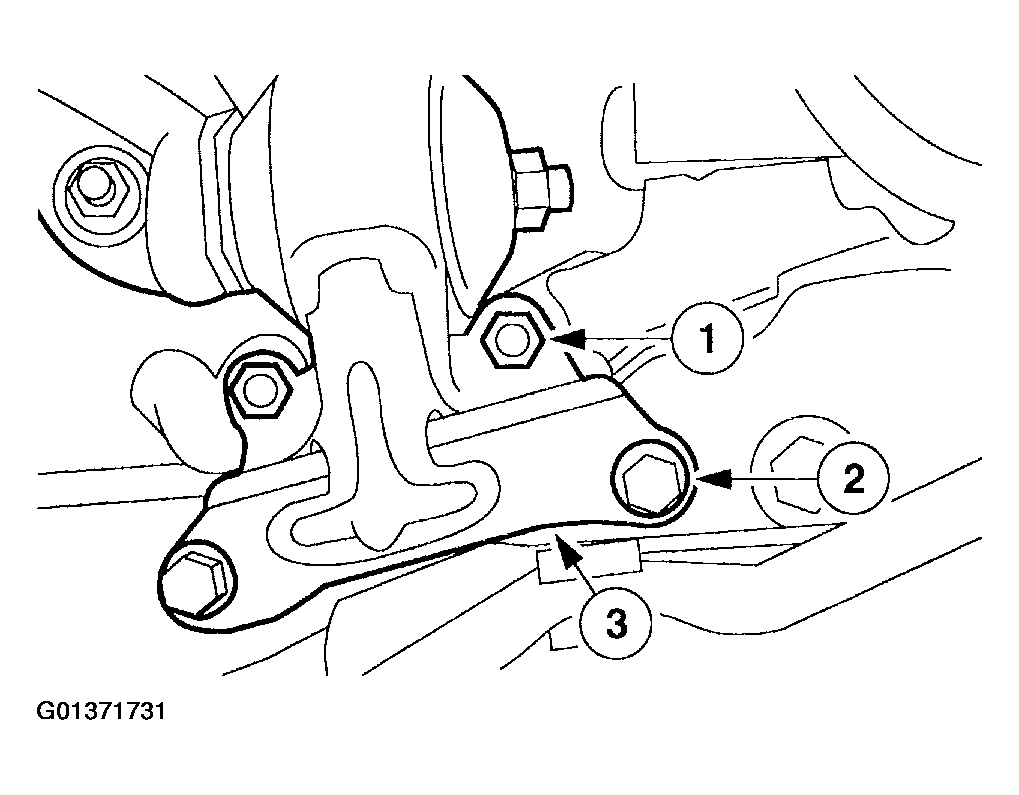

    Fig 3: Removing LH Transmission Insulator Bolts And Nuts
    G01371731Courtesy of FORD MOTOR CO.
