Transmission Range (Tr) Sensor: Removal

  1. Disconnect the battery ground cable (14301).
    Fig 1: Disconnecting Battery Ground Cable
    G01371685Courtesy of FORD MOTOR CO.
  2. Remove the air cleaner outlet tube; refer to AIR INDUCTION SYSTEMS .
  3. Remove the (A) shift cable and bracket nut and the (B) control cable front clamp (7713).

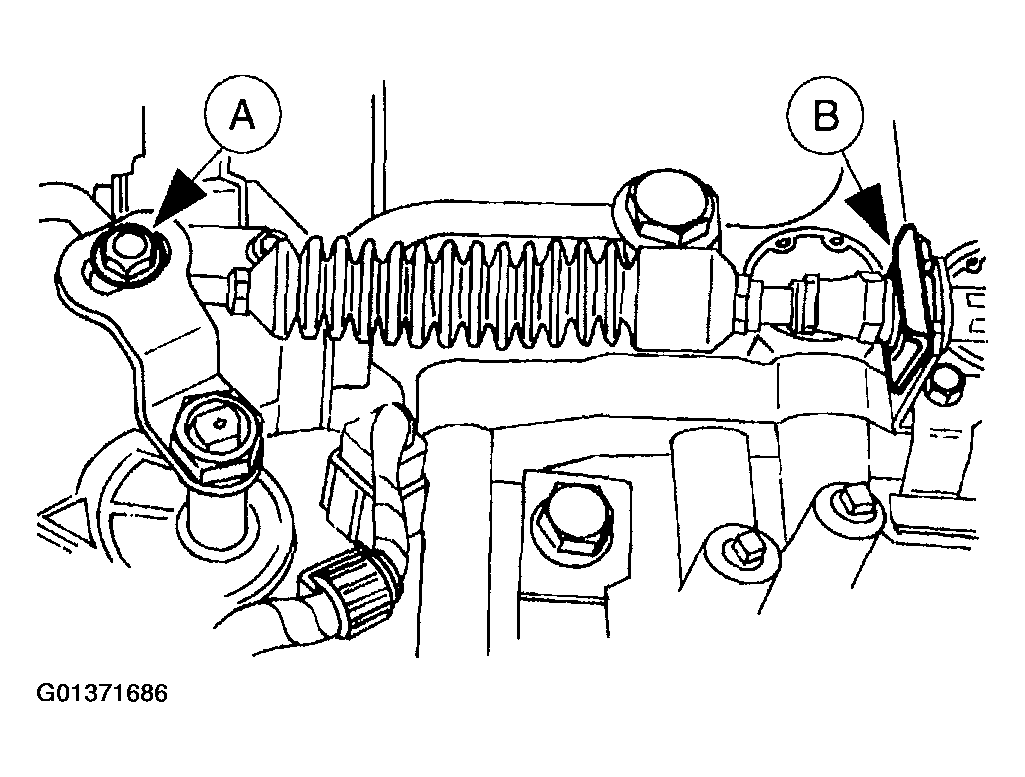

    Fig 2: Removing Shift Cable And Bracket Nut And Control Cable Front Clamp
    G01371686Courtesy of FORD MOTOR CO.
  4. Remove the (A) manual control lever nut and the (B) manual control lever.

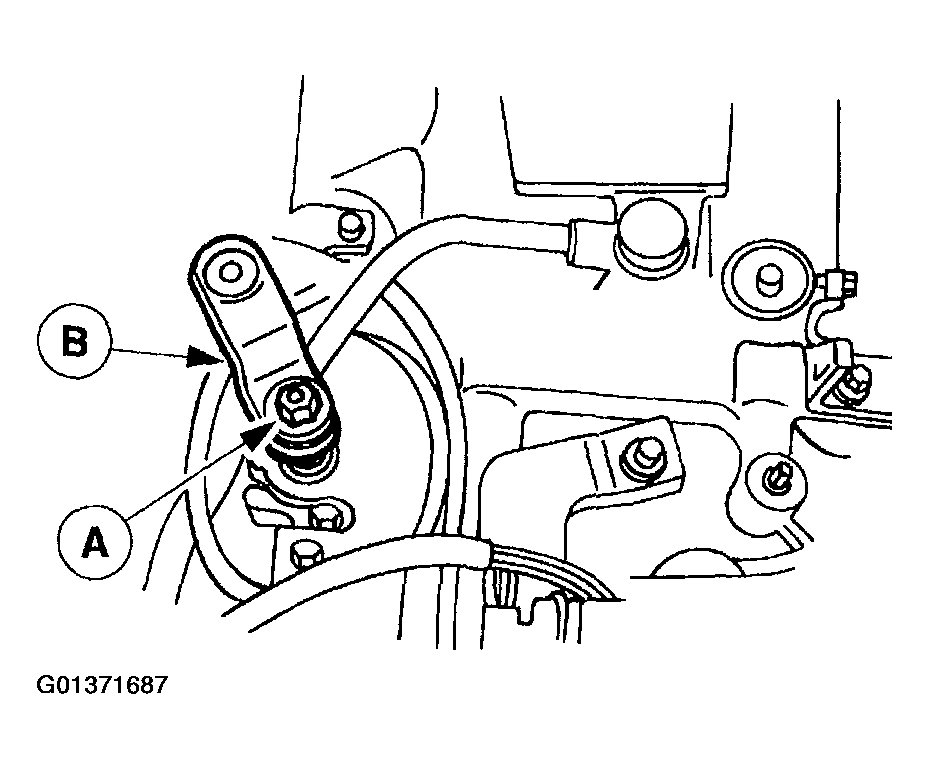

    Fig 3: Removing Manual Control Lever Nut And Manual Control Lever
    G01371687Courtesy of FORD MOTOR CO.
  5. Disconnect the transmission range (TR) sensor electrical connector.

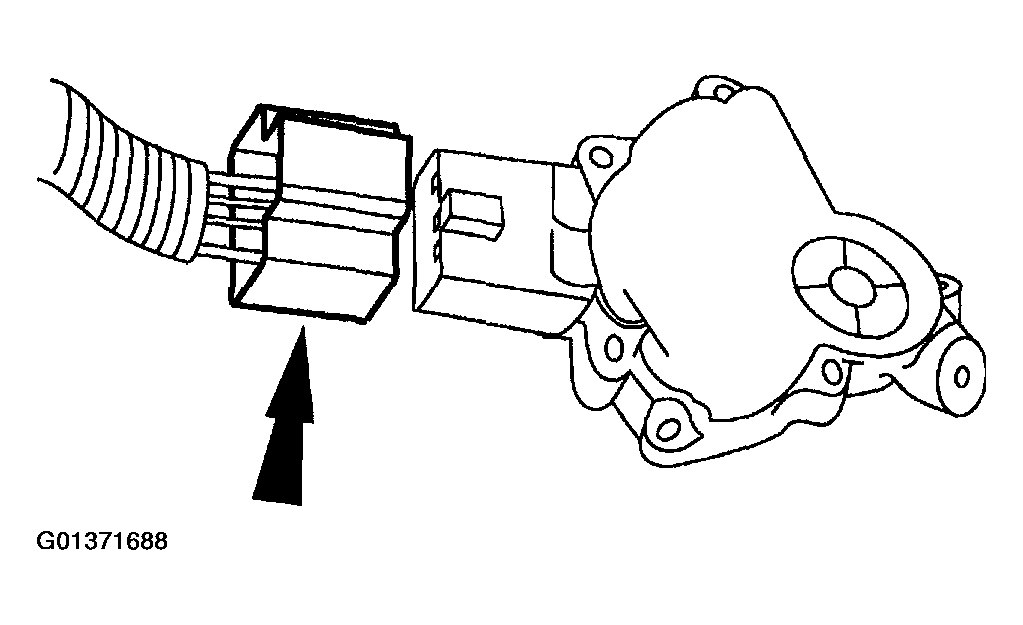

    Fig 4: Disconnecting Transmission Range Sensor Electrical Connector
    G01371688Courtesy of FORD MOTOR CO.
  6. Remove the TR sensor bolts and remove the TR sensor.

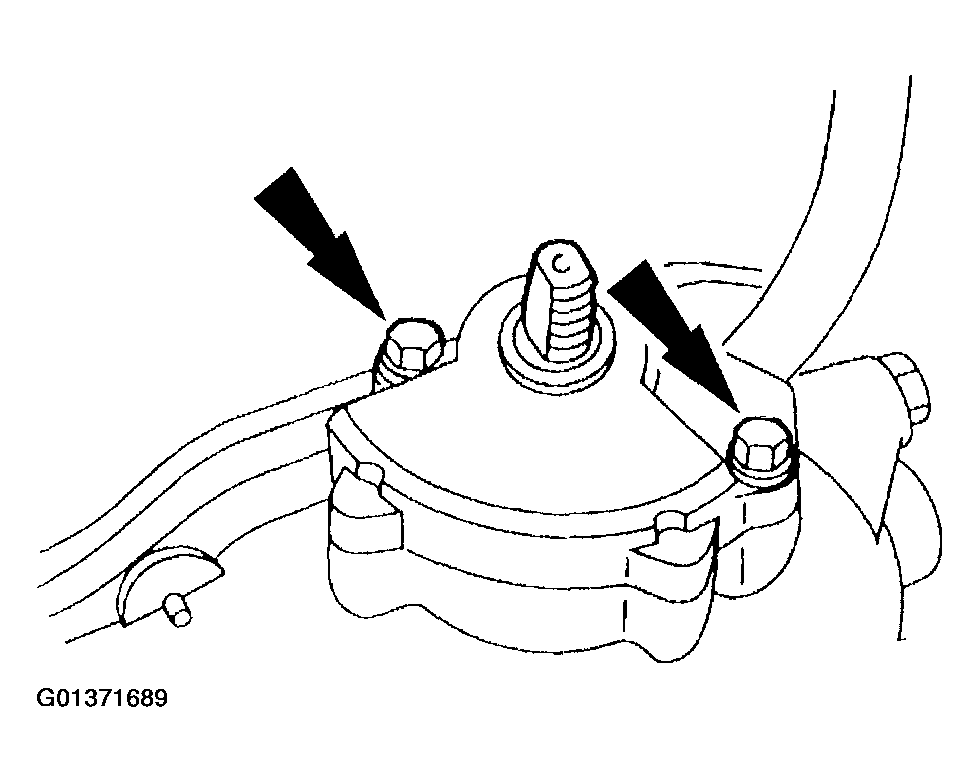

    Fig 5: Removing TR Sensor Bolts
    G01371689Courtesy of FORD MOTOR CO.
