Vehicle Speed Sensor (VSS): Removal

  1. Raise and support the vehicle; refer to JACKING & HOISTING .
  2. Disconnect the vehicle speed sensor (VSS) electrical connector.

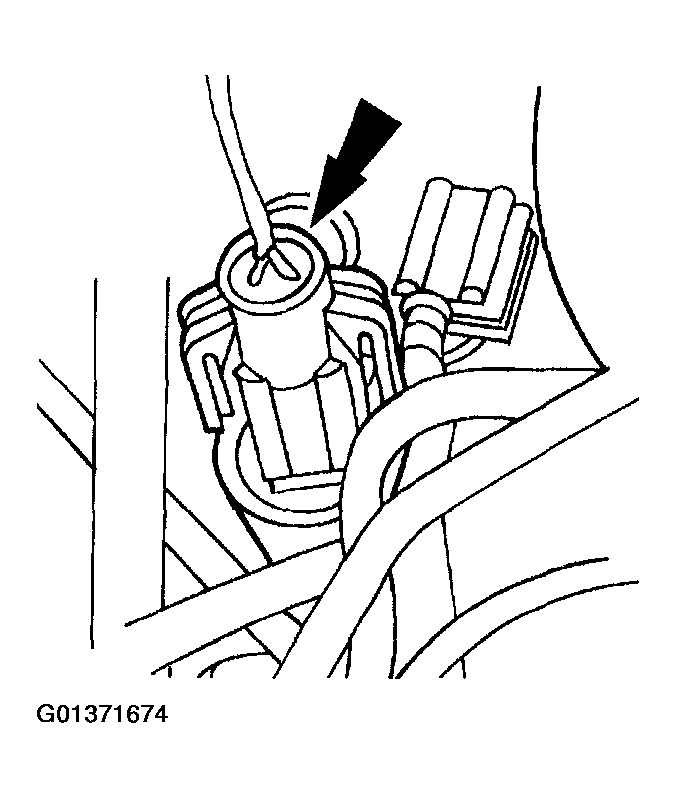

    Fig 1: Disconnecting Vehicle Speed Sensor Electrical Connector
    G01371674Courtesy of FORD MOTOR CO.
  3. Unclip the heated oxygen sensor (HO2S) wire clip from the VSS bracket.

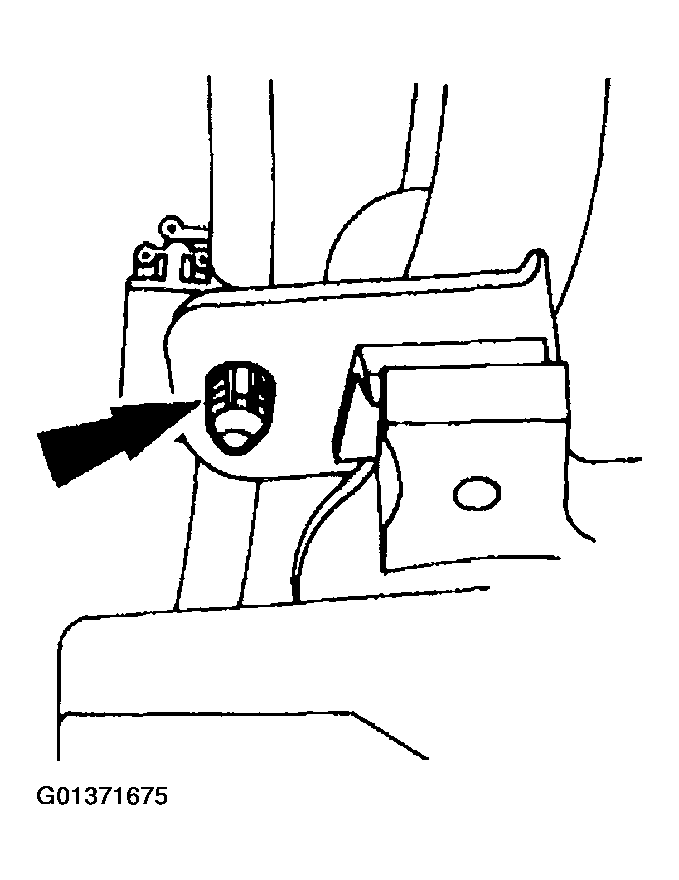

    Fig 2: Uncliping Heated Oxygen Sensor
    G01371675Courtesy of FORD MOTOR CO.
  4. Remove the VSS.
    1. Remove the bolt.
    2. Remove the VSS.

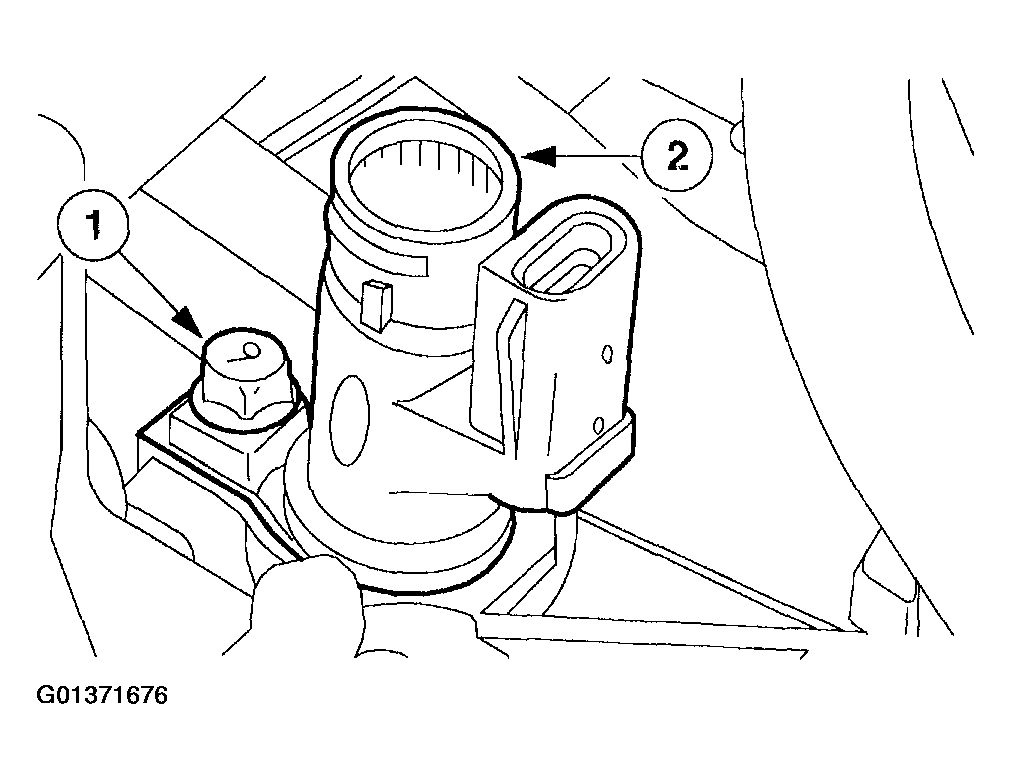

    Fig 3: Removing VSS
    G01371676Courtesy of FORD MOTOR CO.
