Clutch/Band Application Charts

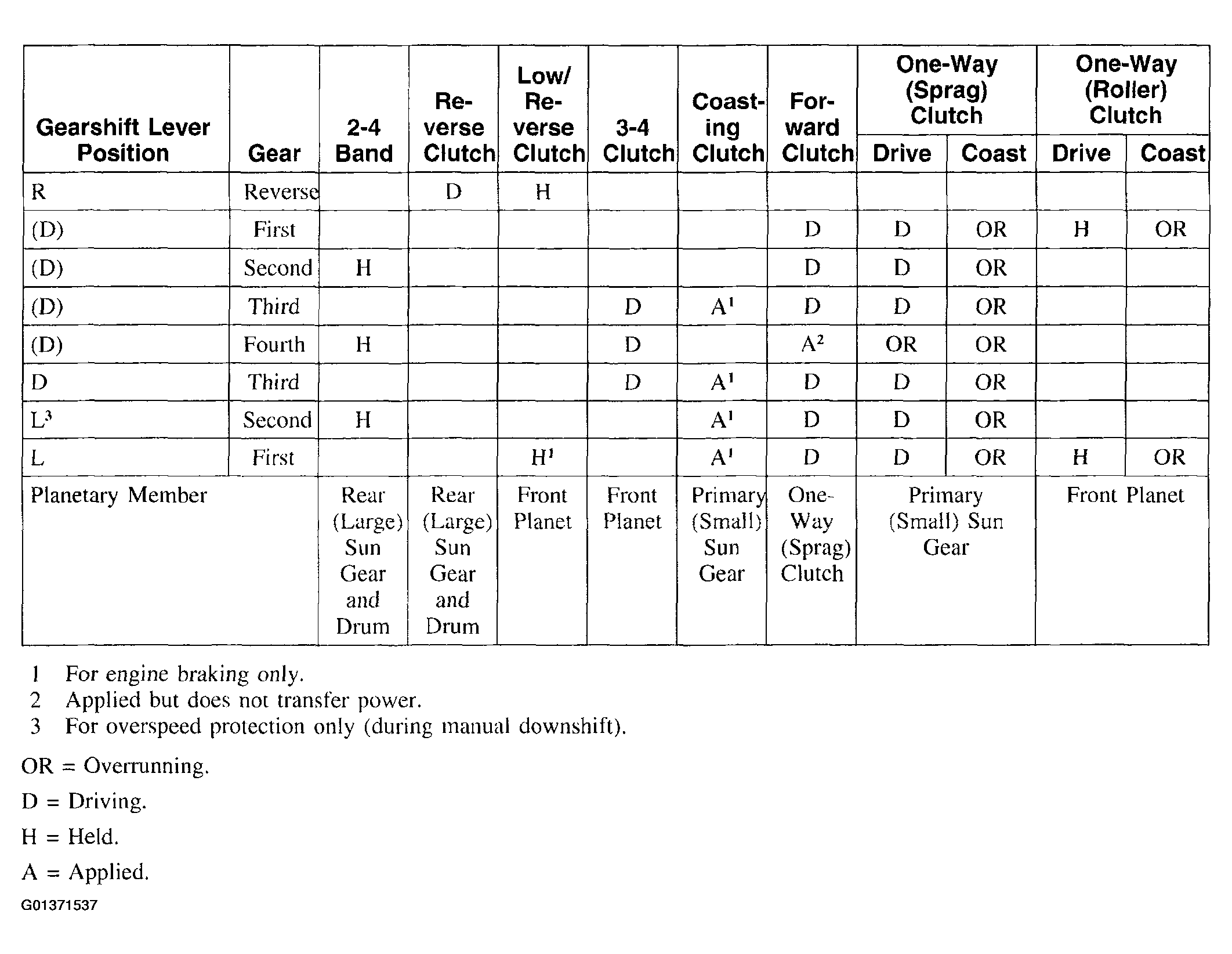

Fig 1: Clutch/Band Application Charts
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
