Differential Bearing Preload Shims

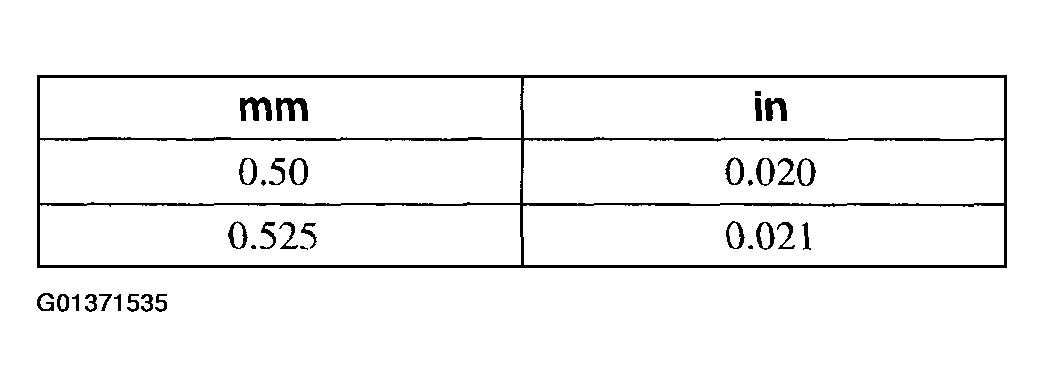

Fig 1: Differential Bearing Preload Shims Specifications (1 Of 2)
G01371535Courtesy of FORD MOTOR CO.

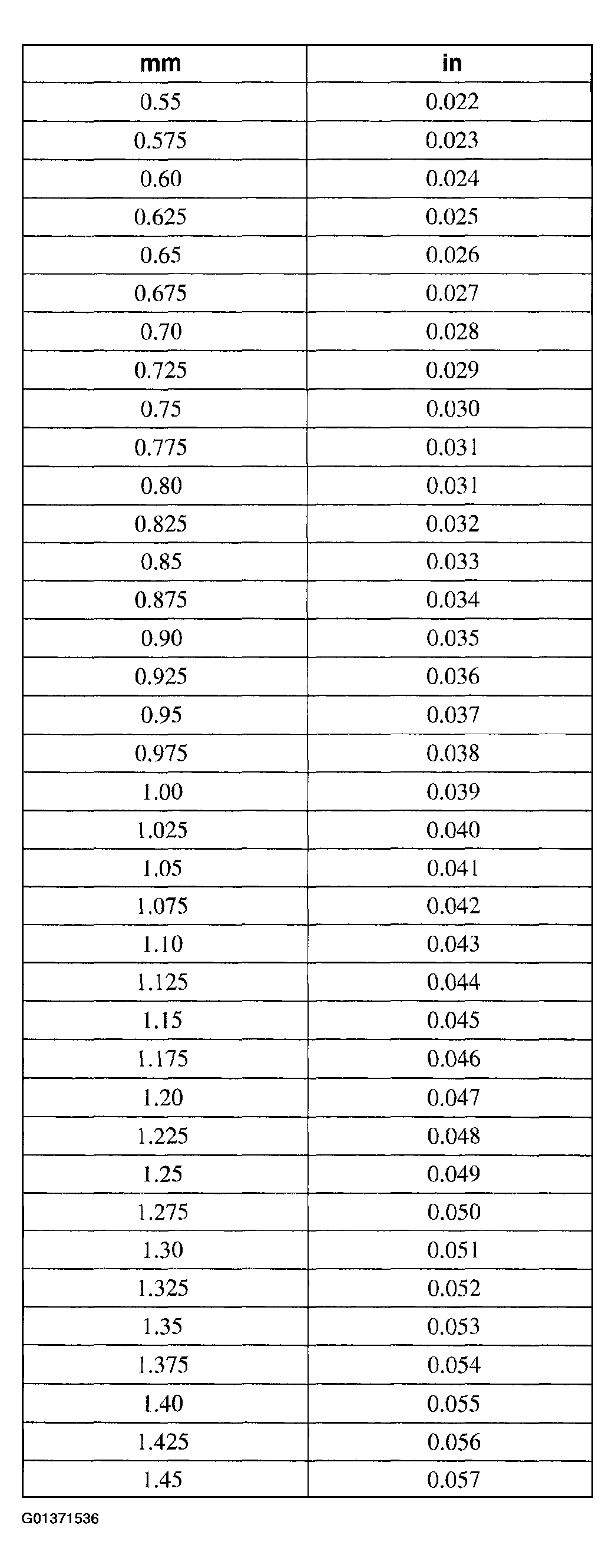

Fig 2: Differential Bearing Preload Shims Specifications (2 Of 2)
G01371536Courtesy of FORD MOTOR CO.
