Removal And Installation: Tubes: Removal

NOTE: Place a drain pan under the fluid cooler inlet tubes (7A030) to catch the fluid.

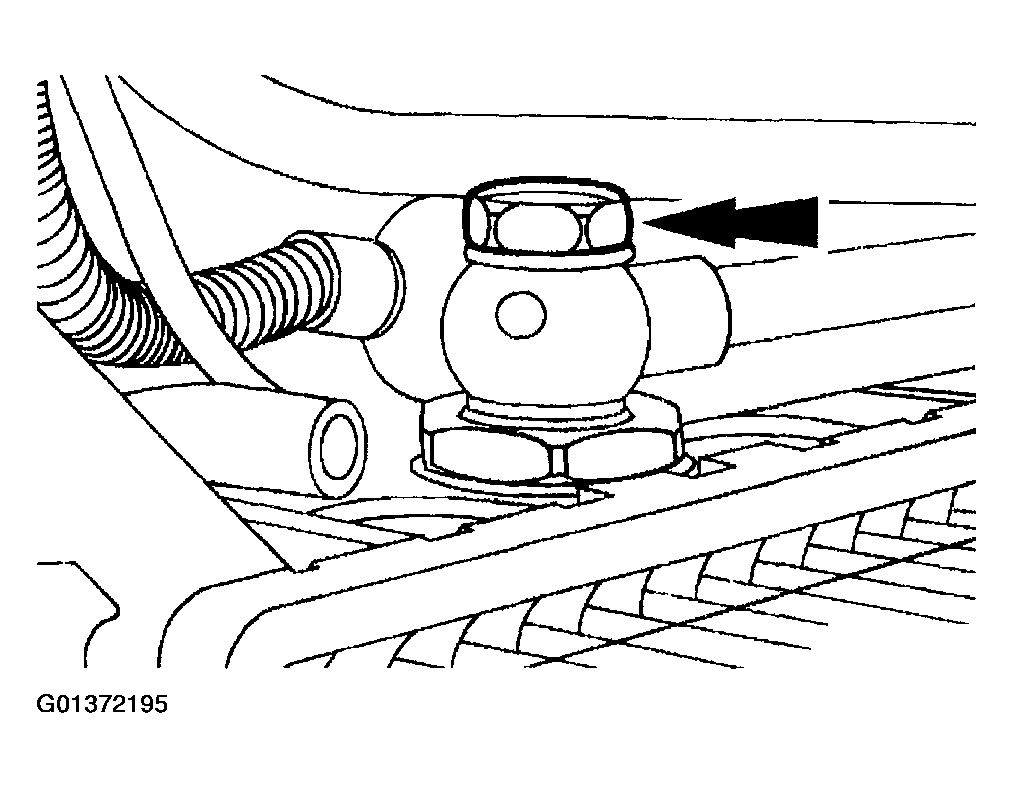

Fig 1: Disconnecting Upper Fluid Cooler Tube Banjo Bolt

Courtesy of FORD MOTOR CO.

Disconnect the upper fluid cooler tube banjo bolt from the radiator and discard the two copper crush washers.
Disconnect the upper fluid cooler tube from the transmission.

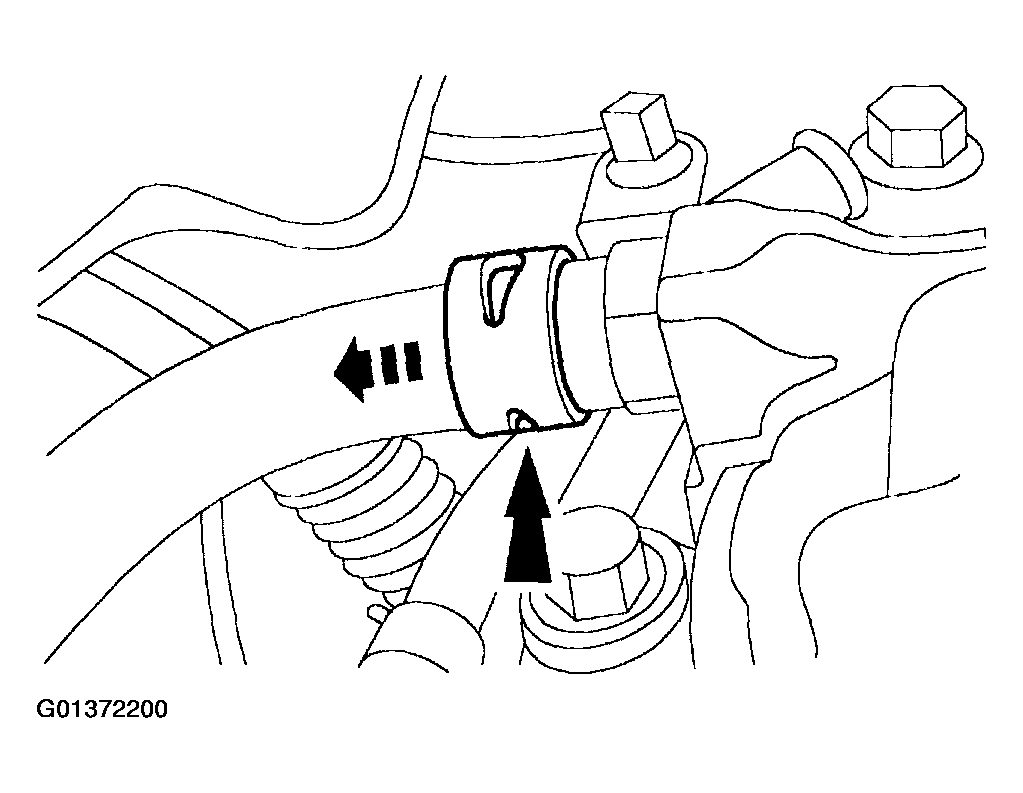

Fig 2: Disconnecting Upper Fluid Cooler Tube From Transmission
Courtesy of FORD MOTOR CO.
Raise and support the vehicle; refer to JACKING & HOISTING .
Remove the LH splash shield.
1. Remove the splash shield bolts.
2. Remove the LH splash shield.

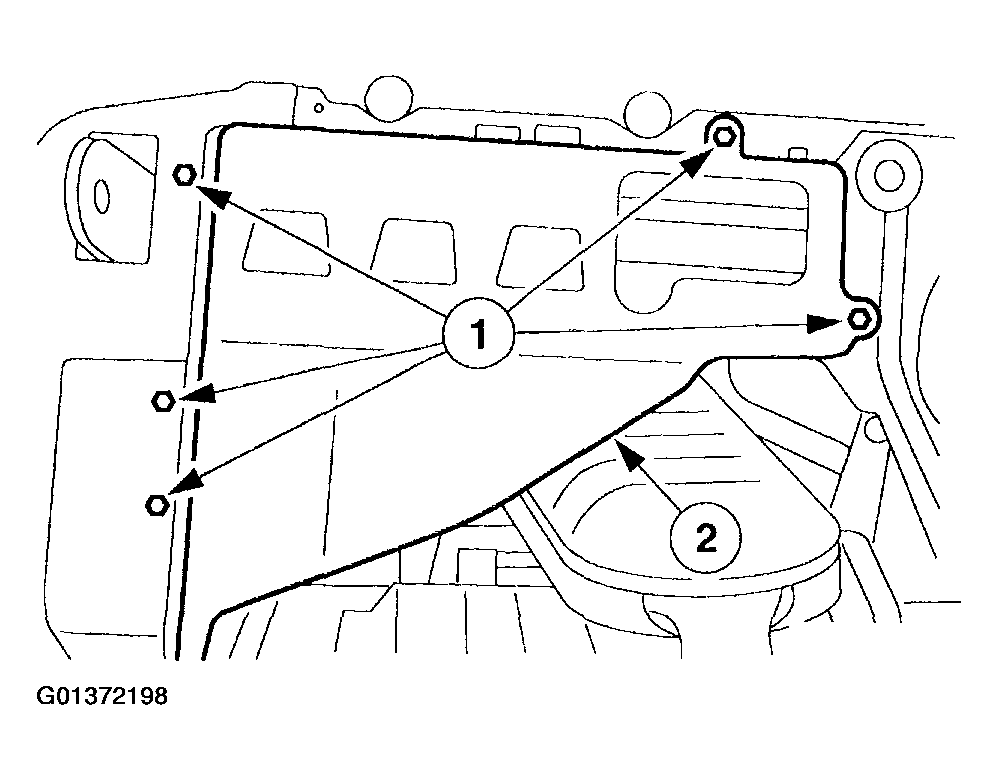

Fig 3: Removing LH Splash Shield
Courtesy of FORD MOTOR CO.
Remove the RH splash shield.
1. Remove the splash shield bolts.
2. Remove the RH splash shield.
Fig 4: Removing RH Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the lower fluid cooler tube banjo bolt from the radiator and discard the two copper crush washers.

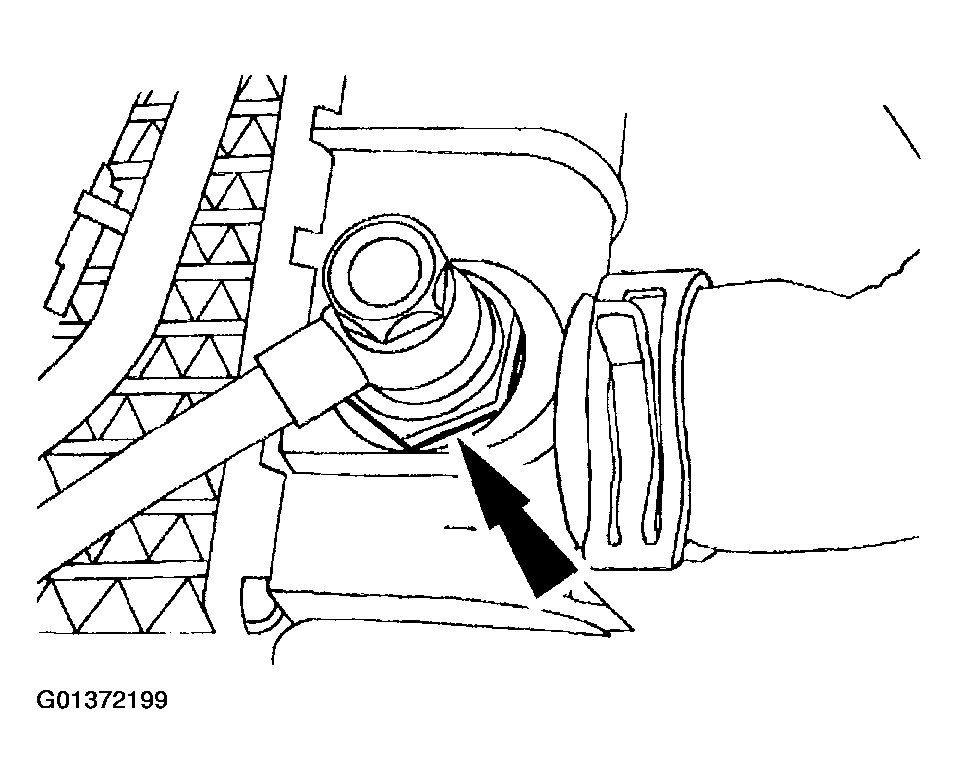

Fig 5: Disconnecting Lower Fluid Cooler Tube Banjo Bolt
Courtesy of FORD MOTOR CO.
Remove the lower fluid cooler tube from the transmission.

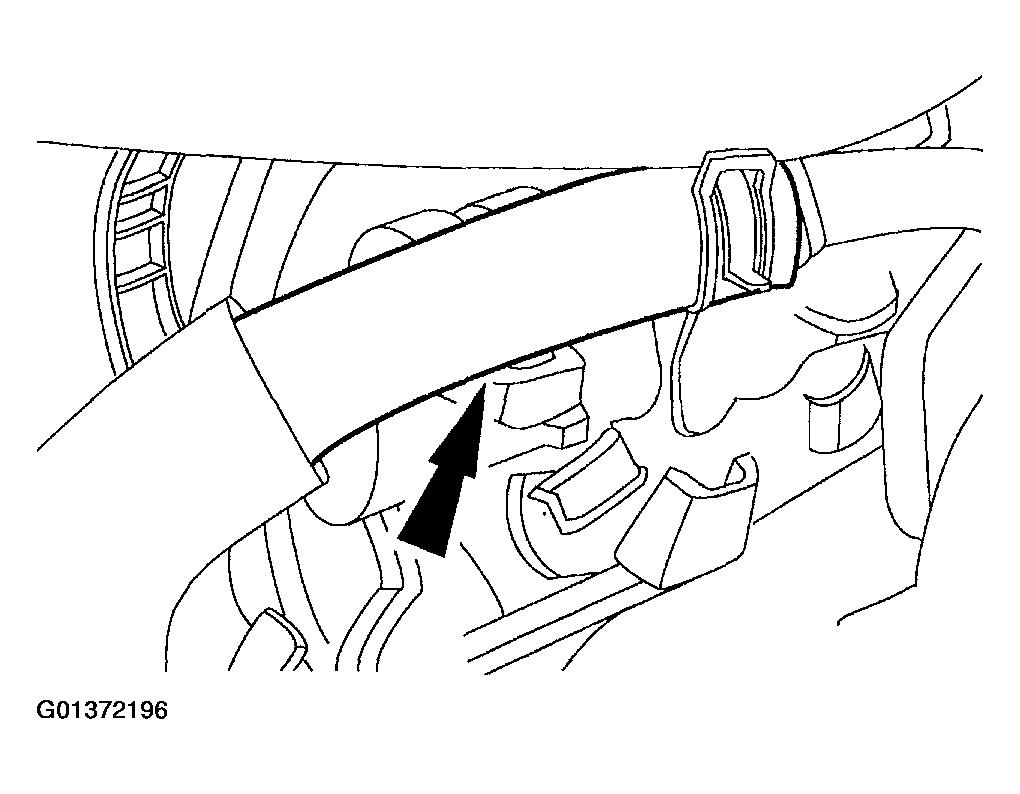

Fig 6: Removing Lower Fluid Cooler Tube From Transmission
Courtesy of FORD MOTOR CO.
Remove the fluid cooler tube bracket bolts and remove the fluid cooler tubes from the vehicle.

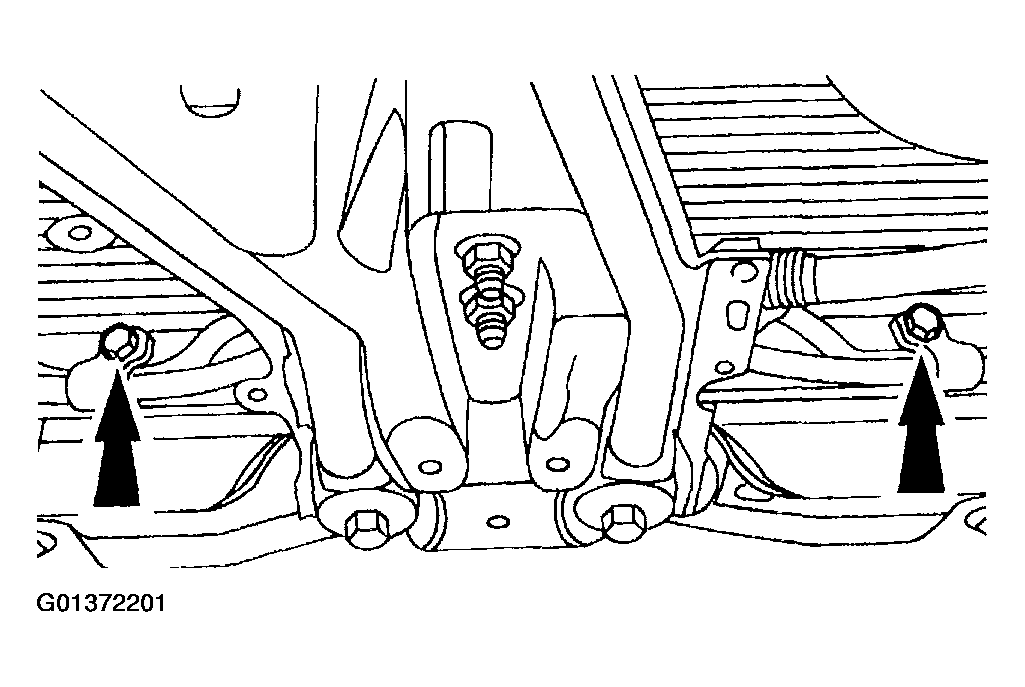

Fig 7: Removing Fluid Cooler Tube Bracket Bolts

Courtesy of FORD MOTOR CO.
