Bezel Adjustment - Transmission Control Selector Dial

1. Place the gearshift lever in the PARK position.
2. Loosen the transmission control selector dial bezel screws.

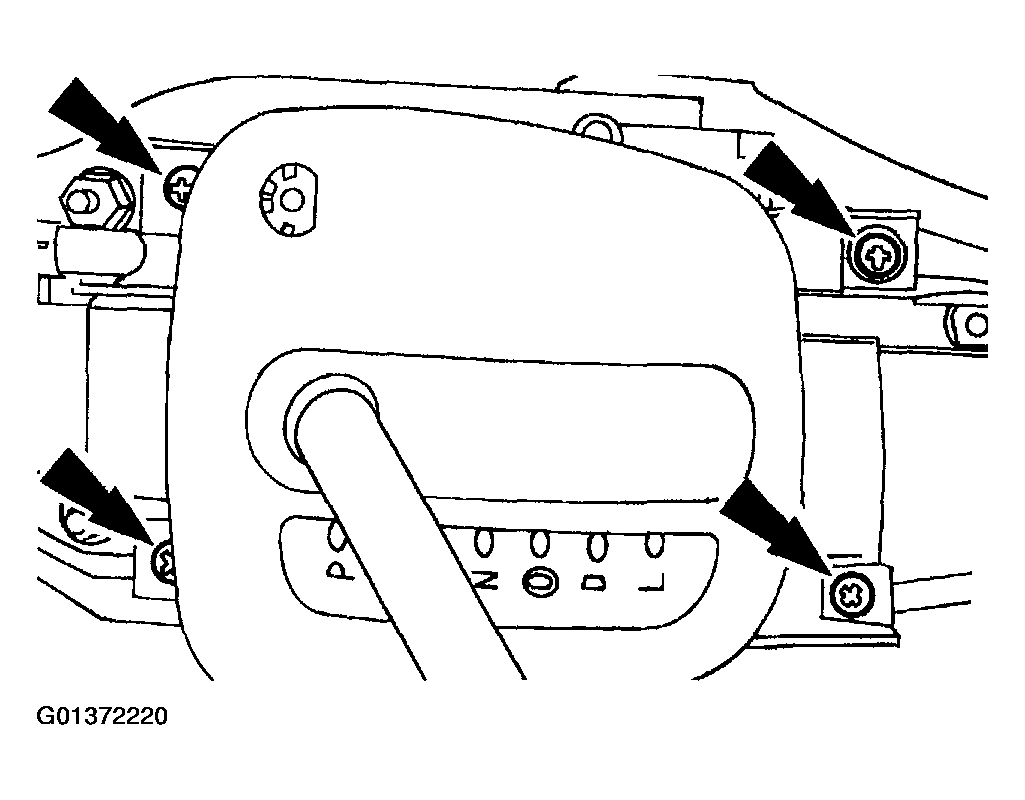

   Fig 1: Loosening Transmission Control Selector Dial Bezel Screws

   Courtesy of FORD MOTOR CO.
3. Place a (A) stiff wire in the (B) slider panel and position the pointer on the (B) slider panel to align with the PARK position on the (C) transmission control selector dial bezel (7D443).

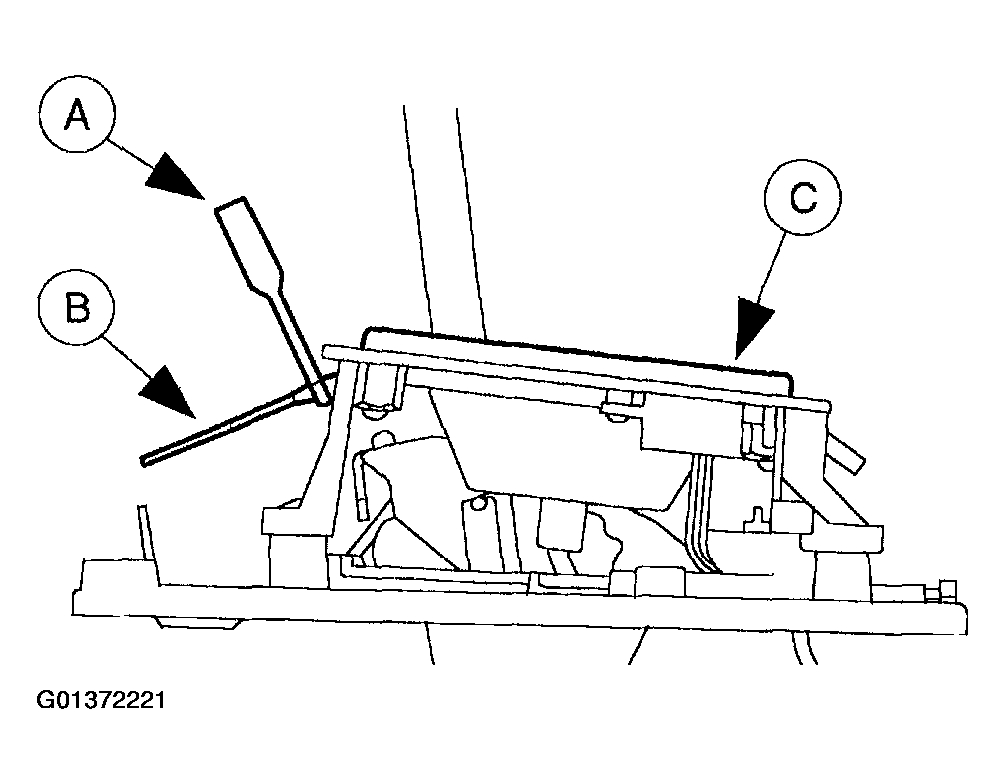

   Fig 2: Aligning Shift Indicator

   Courtesy of FORD MOTOR CO.
4. Tighten the transmission control selector dial bezel screws in the sequence shown.

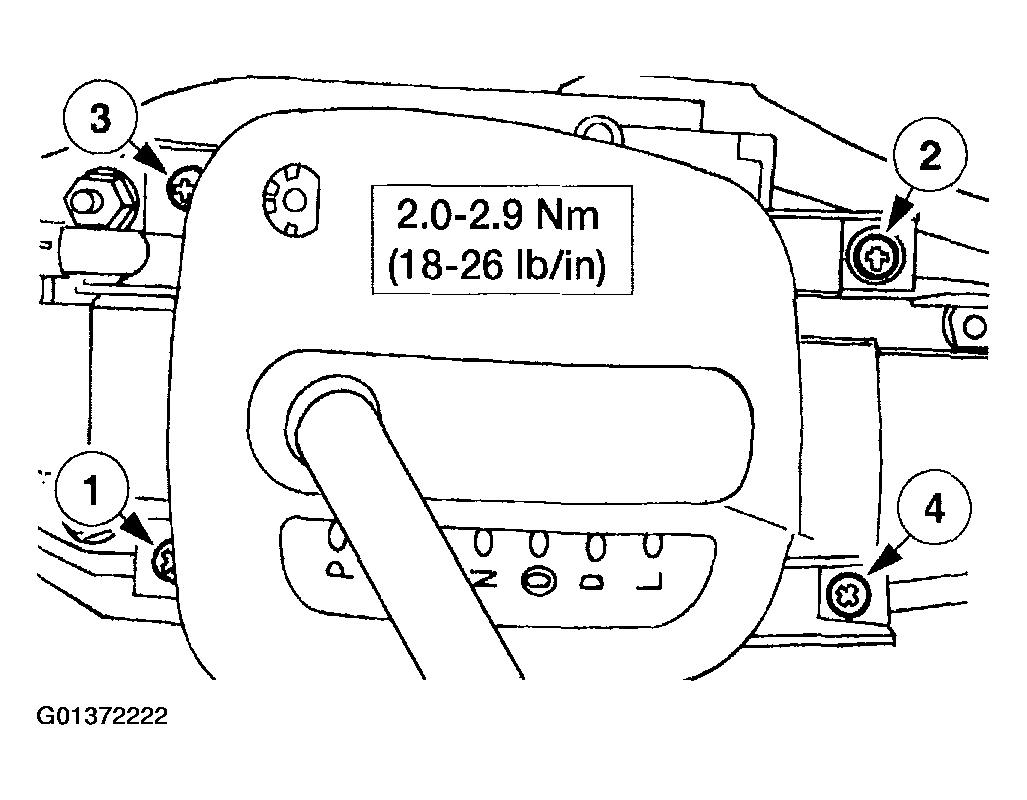

Fig 3: Tightening Transmission Control Selector Dial Bezel Screws

Courtesy of FORD MOTOR CO.
