Brake Shift Interlock Actuator: Installation

    NOTE: Adjust the transmission control selector dial bezel (7D443); refer to BEZEL ADJUSTMENT - TRANSMISSION CONTROL SELECTOR DIAL .

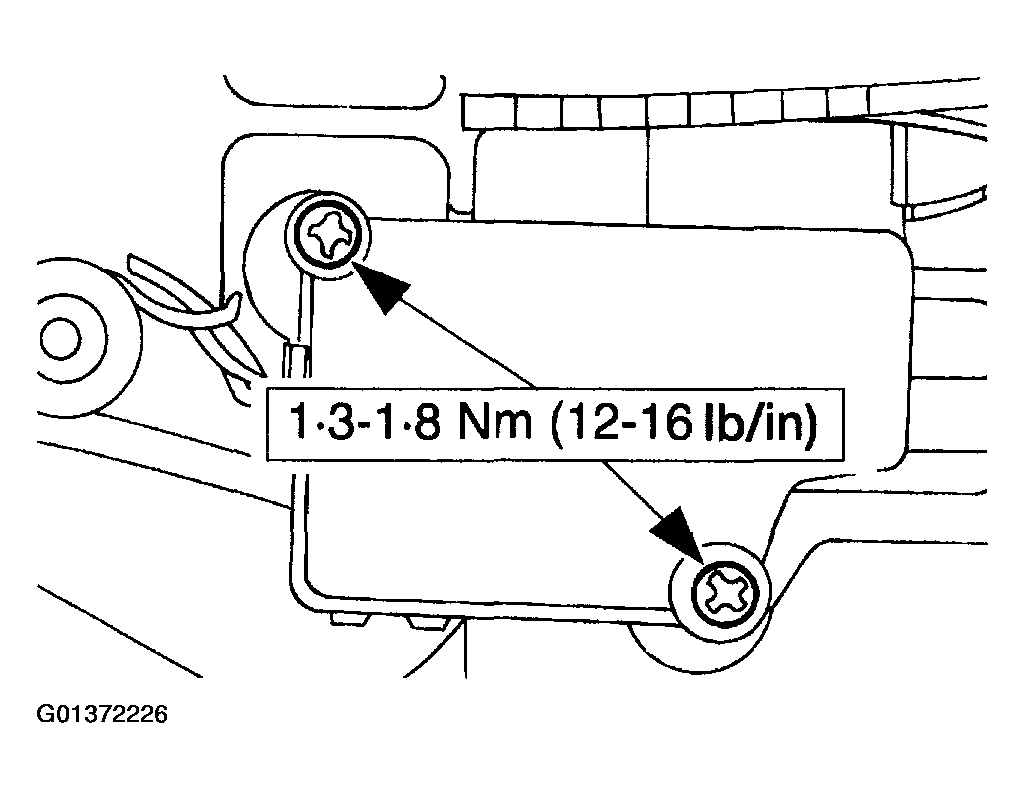

    Fig 1: Installing Brake Shift Interlock Actuator
    G01372226Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
