Cable - Ignition/Shifter Interlock: Installation

NOTE: Adjust the shift cable and bracket as necessary; refer to CABLE ADJUSTMENT - SHIFT .
NOTE: Adjust the transmission control selector dial bezel (7D443); refer to BEZEL ADJUSTMENT - TRANSMISSION CONTROL SELECTOR DIAL .
1. To install, reverse the removal procedure.

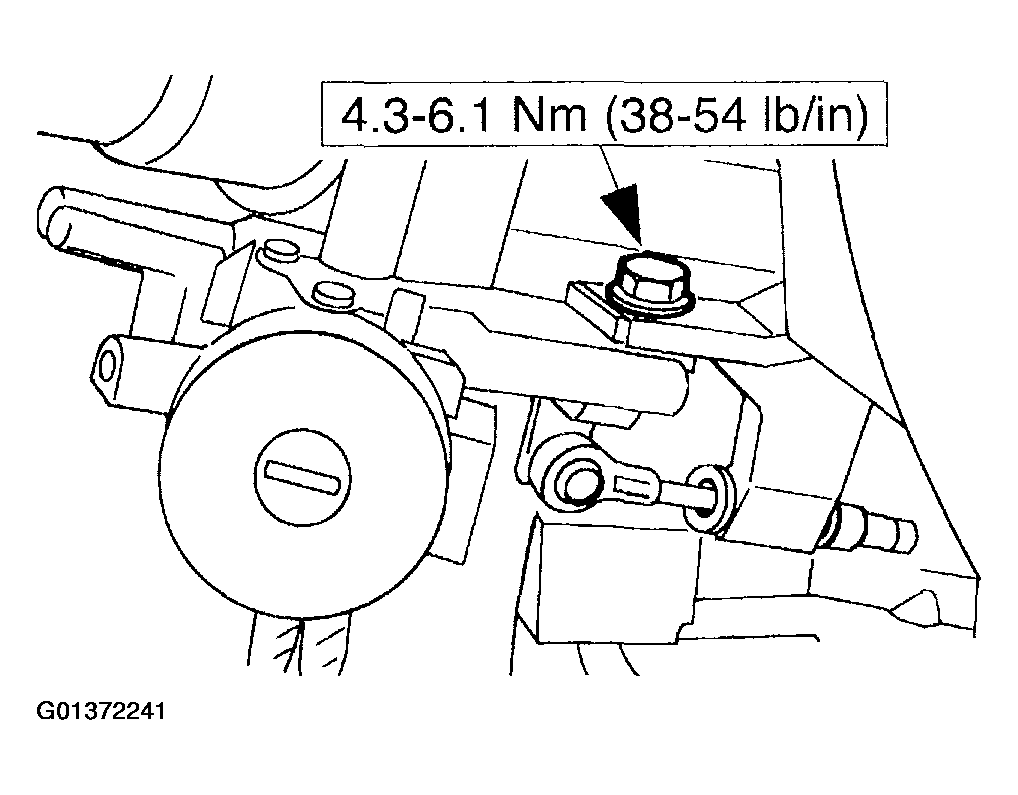

Fig 1: Installing Ignition/Shifter Interlock Cable And Bolt

Courtesy of FORD MOTOR CO.

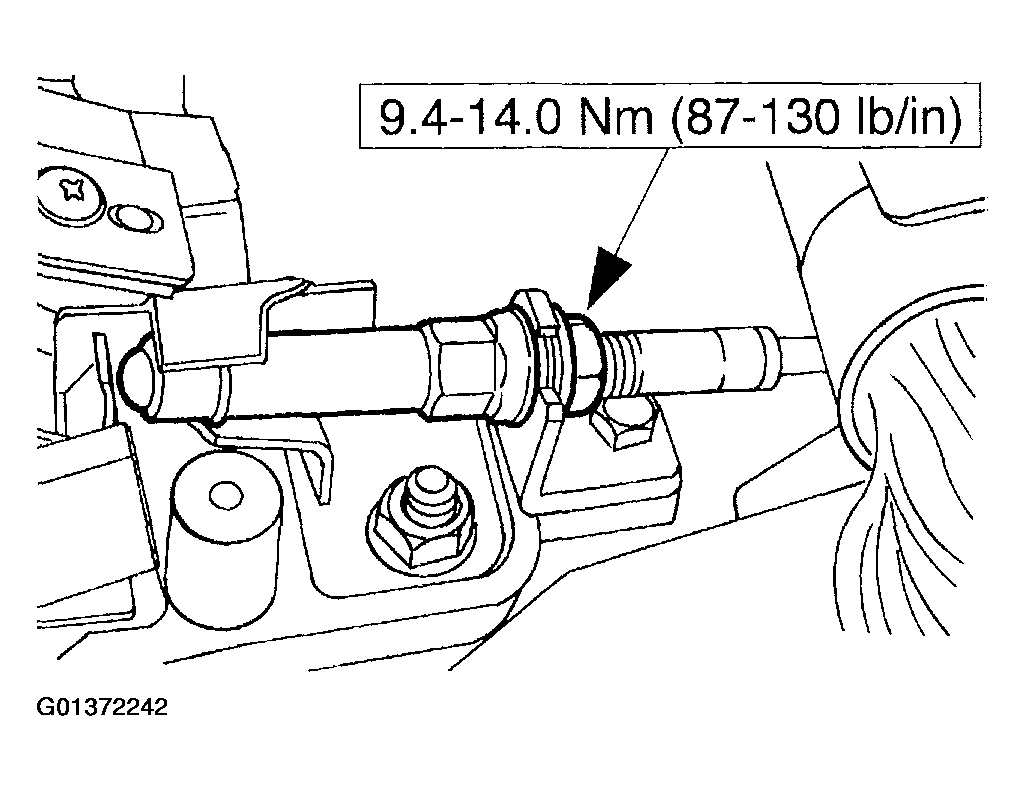

Fig 2: Identifying Ignition/Shifter Interlock Cable Locknut

Courtesy of FORD MOTOR CO.
