Cable - Shift: Installation

    NOTE: Adjust the shift cable and bracket; refer to CABLE ADJUSTMENT - SHIFT .
    NOTE: Adjust the transmission control selector dial bezel (7D443); refer to BEZEL ADJUSTMENT - TRANSMISSION CONTROL SELECTOR DIAL .
  1. To install, reverse the removal procedure.

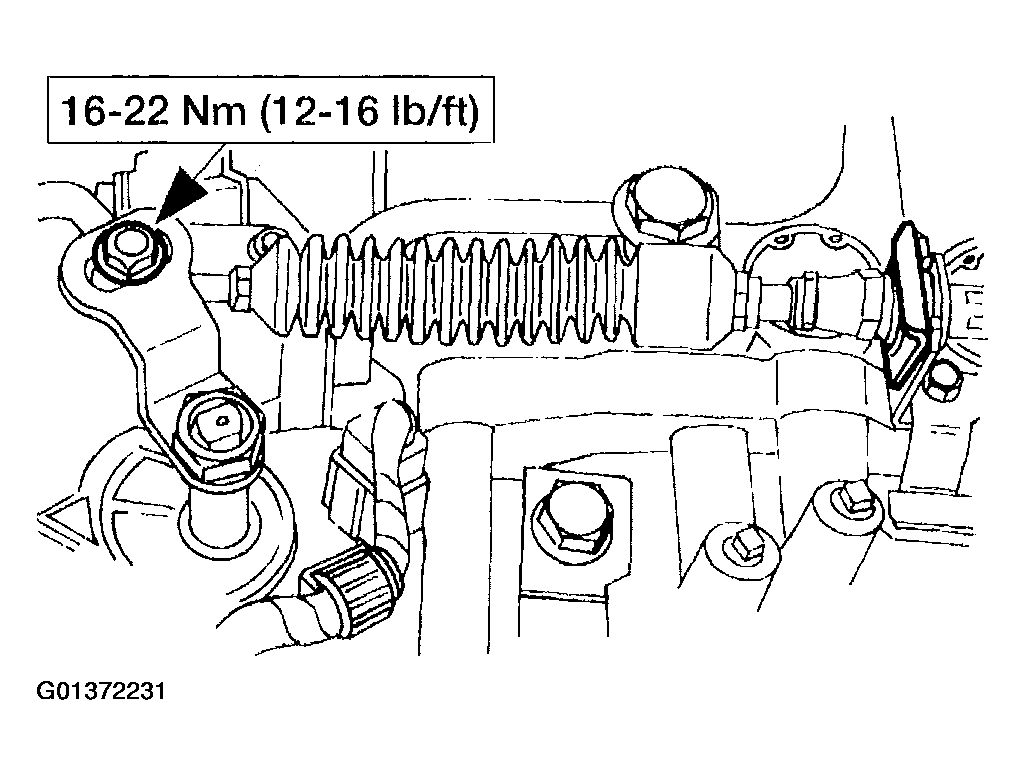

Fig 1: Installing Transmission Range Switch Cable Nut & Front Clamp
G01372231Courtesy of FORD MOTOR CO.

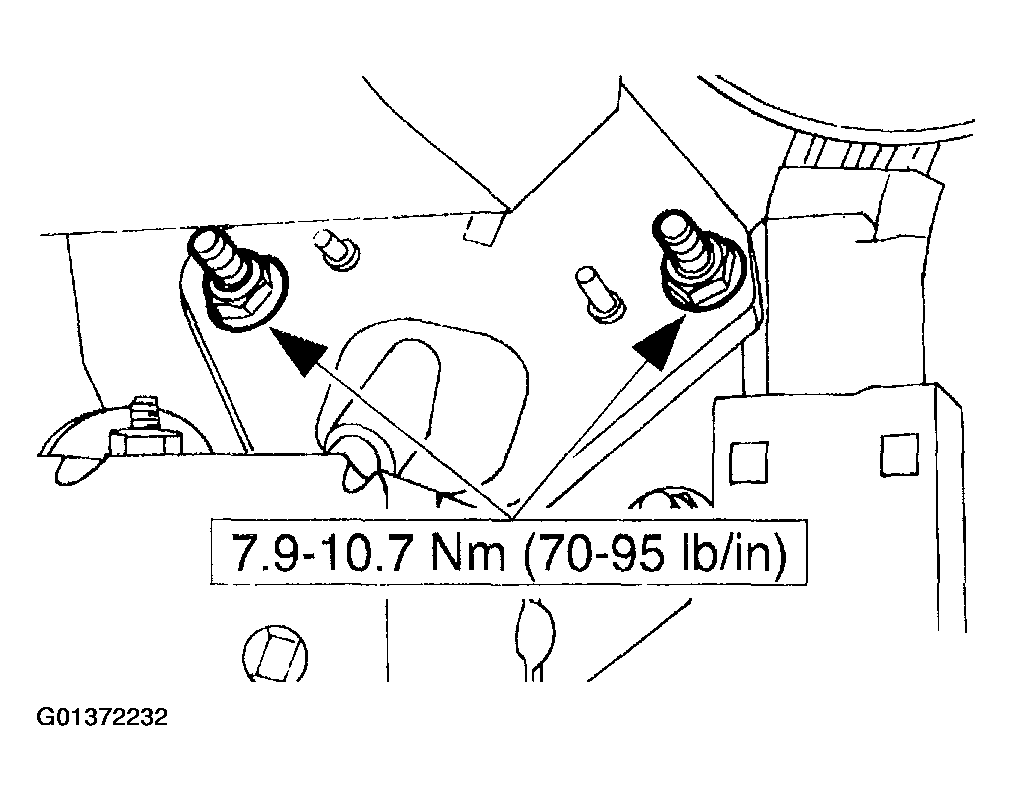

Fig 2: Installing Cable Bulkhead Bracket Nuts
G01372232Courtesy of FORD MOTOR CO.

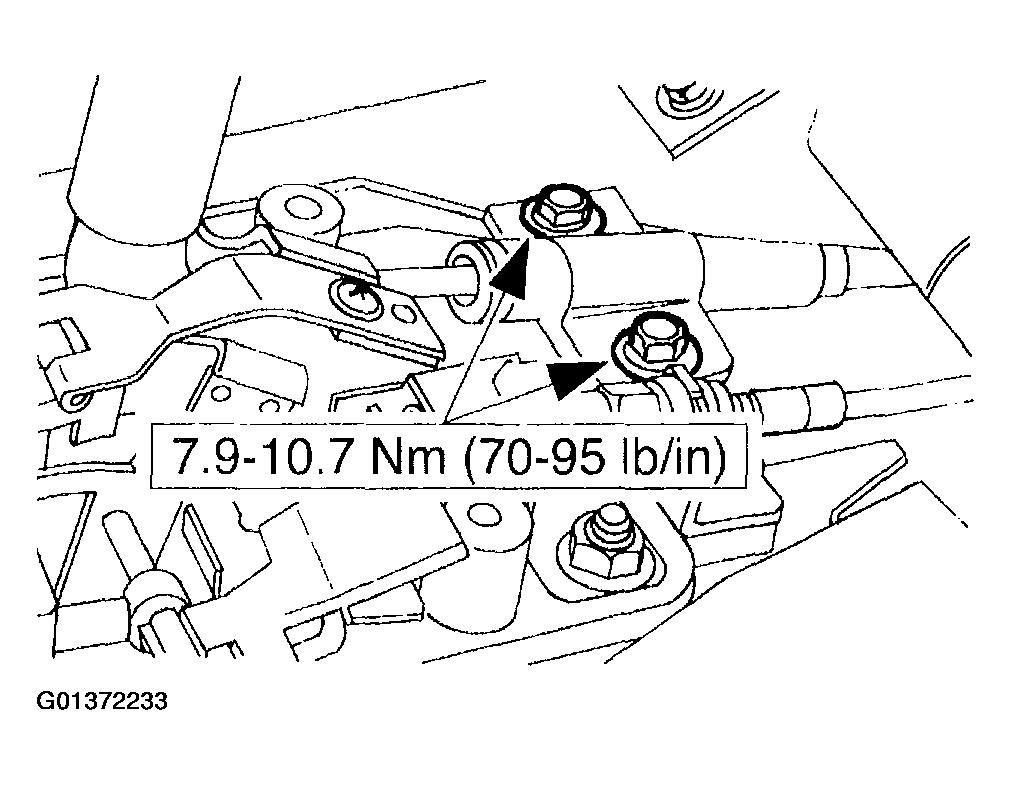

Fig 3: Installing Cable Floorpan Bracket Bolts
G01372233Courtesy of FORD MOTOR CO.

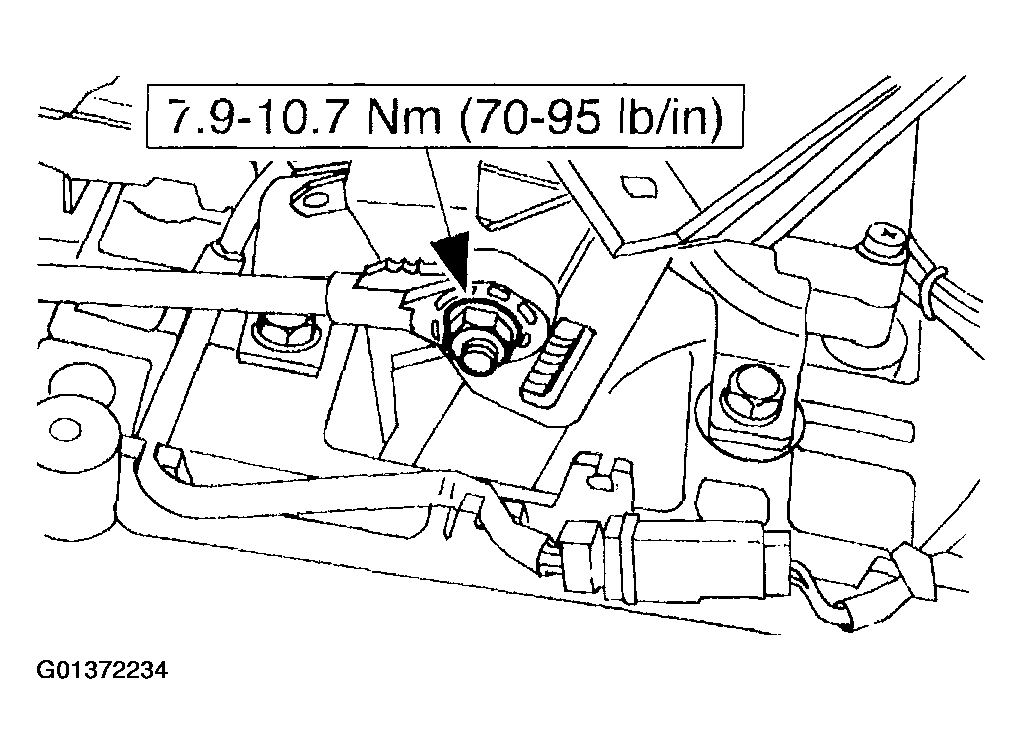

Fig 4: Installing Gearshift Lever Cable Nut
G01372234Courtesy of FORD MOTOR CO.
