Cable - Shift: Removal

Remove the transmission control selector dial bezel; refer to BEZEL - TRANSMISSION CONTROL SELECTOR DIAL .
Remove the powertrain control module (PCM) (12A650) and the bracket; refer to POWERTRAIN CONTROL MODULE .
Remove the air bag diagnostic monitor (14B056) and the bracket; refer to AIR BAG RESTRAINT SYSTEMS .

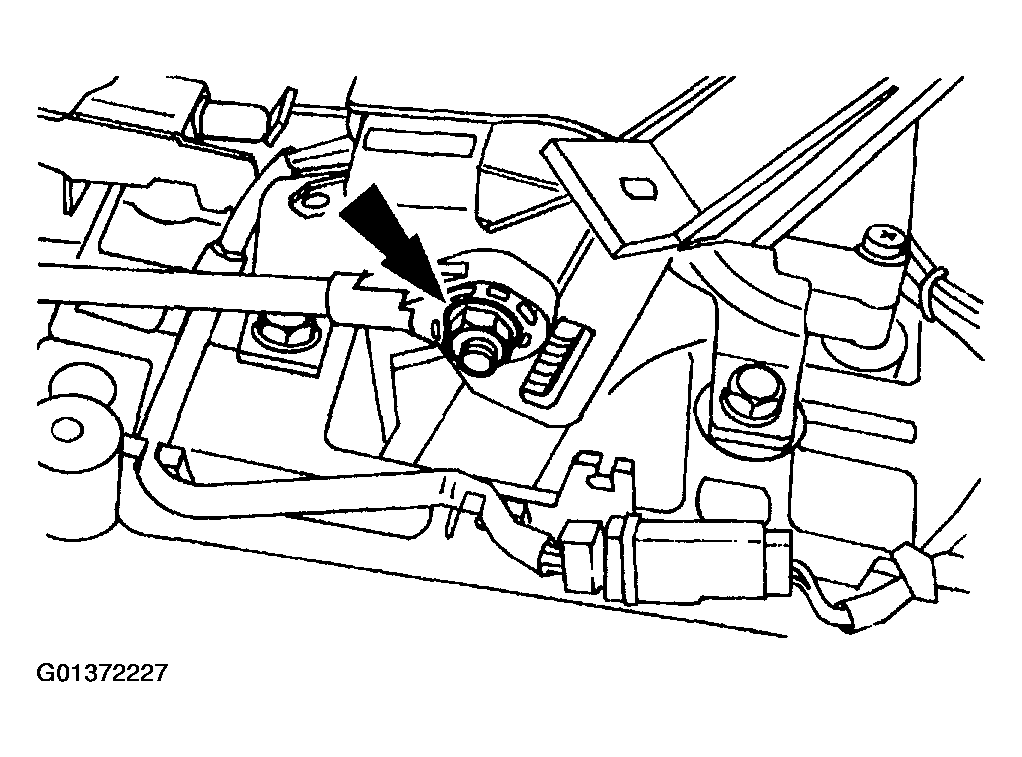

Remove the gearshift lever cable nut.

Fig 1: Removing Gearshift Lever Cable Nut
Courtesy of FORD MOTOR CO.

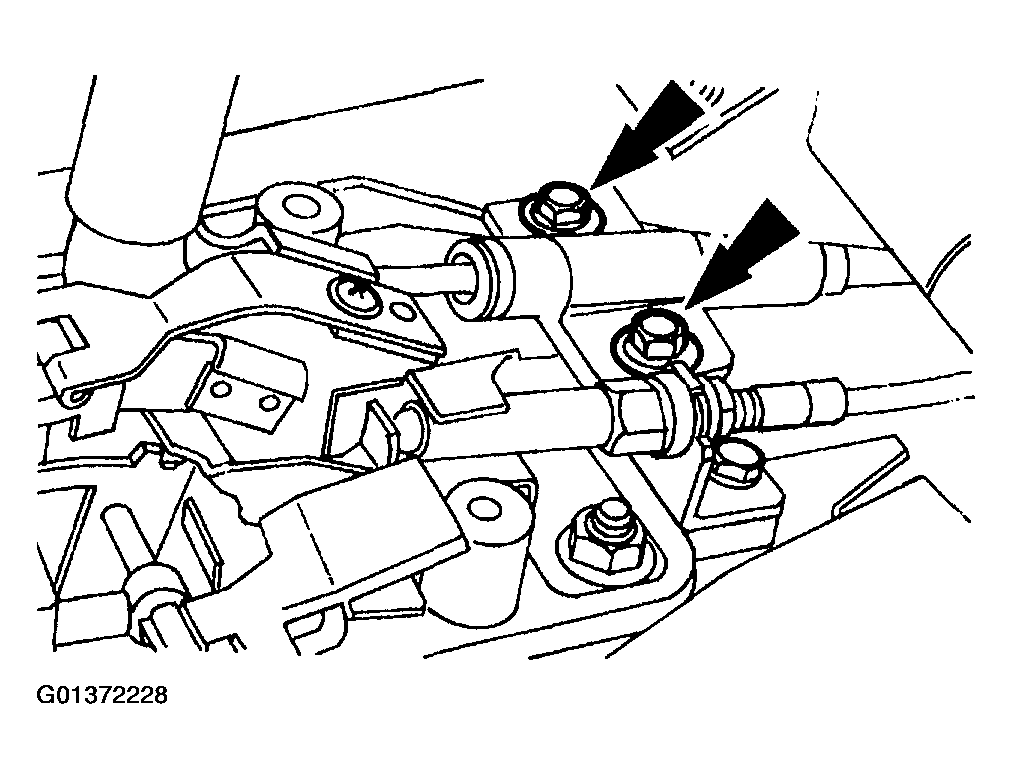

Remove the cable floorpan bracket bolts.

Fig 2: Removing Cable Floorpan Bracket Bolts
Courtesy of FORD MOTOR CO.

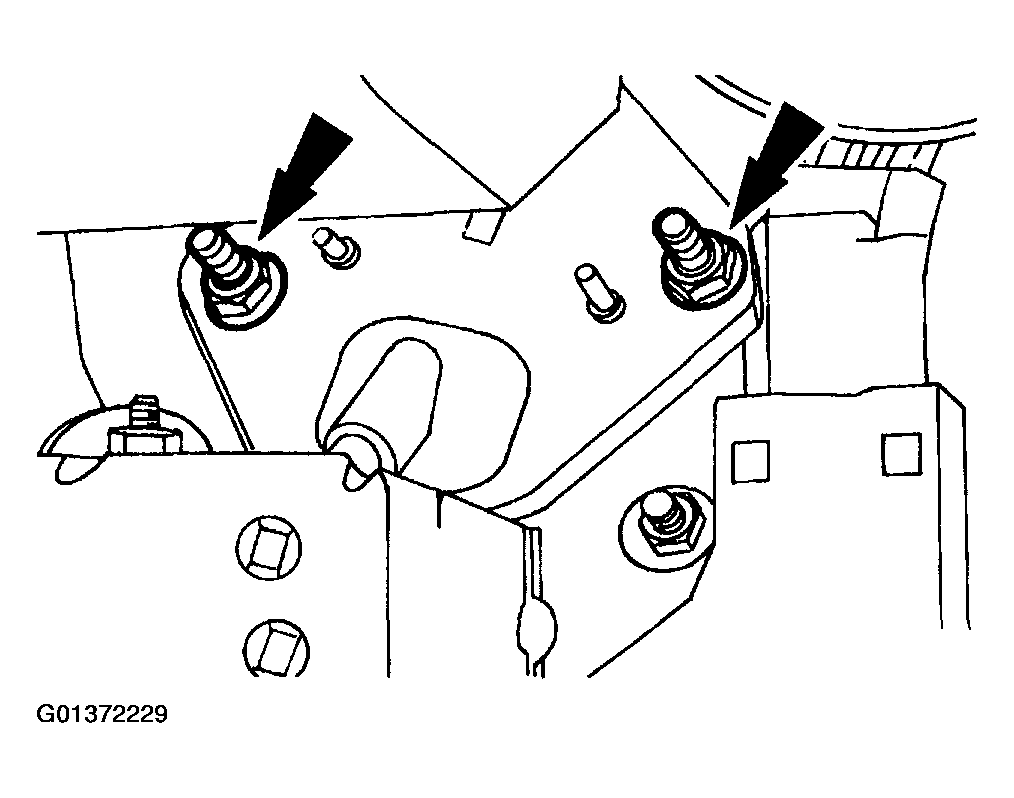

Remove the cable bulkhead bracket nuts.

Fig 3: Removing Cable Bulkhead Bracket Nuts
Courtesy of FORD MOTOR CO.

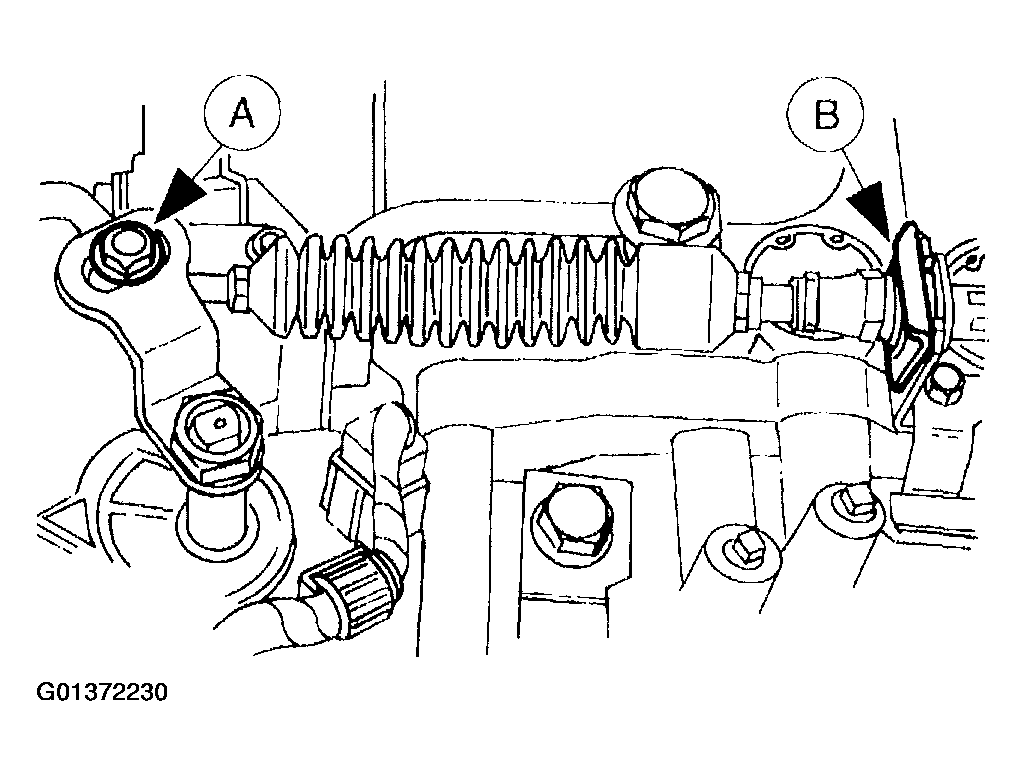

Remove the (A) transmission range switch cable nut and the (B) control cable front clamp (7713).

Fig 4: Removing Transmission Range Switch Cable Nut & Front Clamp
Courtesy of FORD MOTOR CO.
Remove the shift cable and bracket (7E395) from inside the vehicle.
