Selector Lever - Gearshift: Installation

NOTE: Adjust the shift cable and bracket; refer to CABLE ADJUSTMENT - SHIFT .

NOTE: Adjust the transmission control selector dial bezel (7D443); refer to BEZEL ADJUSTMENT - TRANSMISSION CONTROL SELECTOR DIAL .

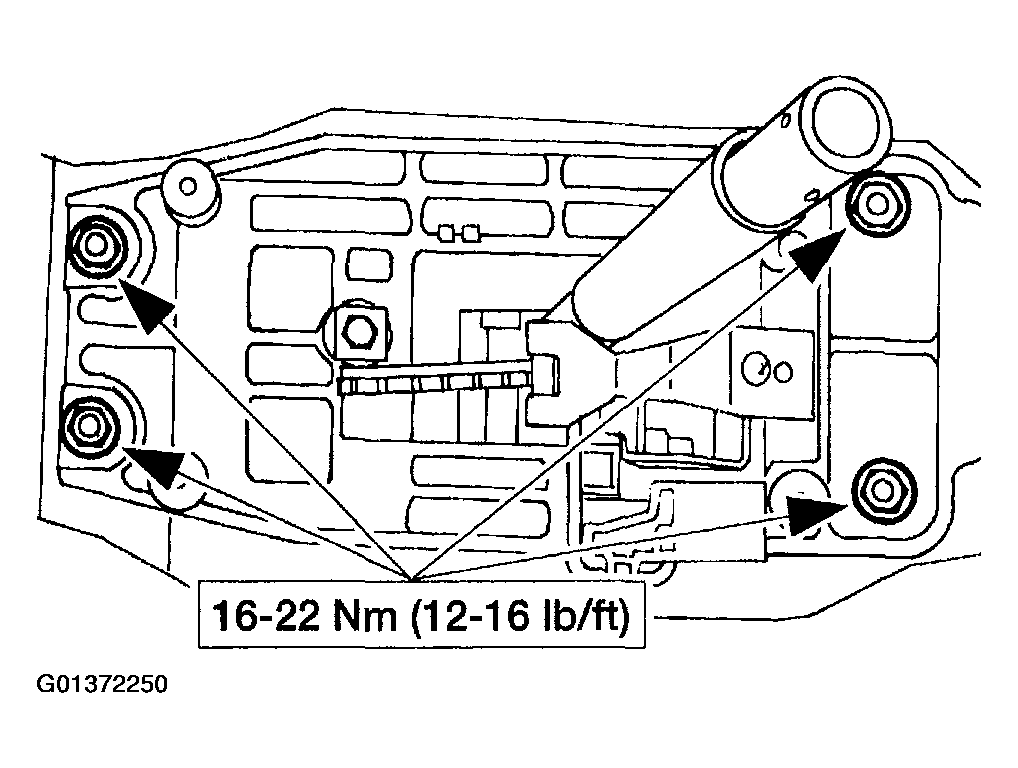

Fig 1: Installing Gearshift Lever Bolts

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Ignition/Shifter Interlock Cable Locknut

Courtesy of FORD MOTOR CO.

Fig 3: Installing Cable Floorpan Bracket Bolts

Courtesy of FORD MOTOR CO.

Fig 4: Installing Gearshift Lever Cable Nut

Courtesy of FORD MOTOR CO.

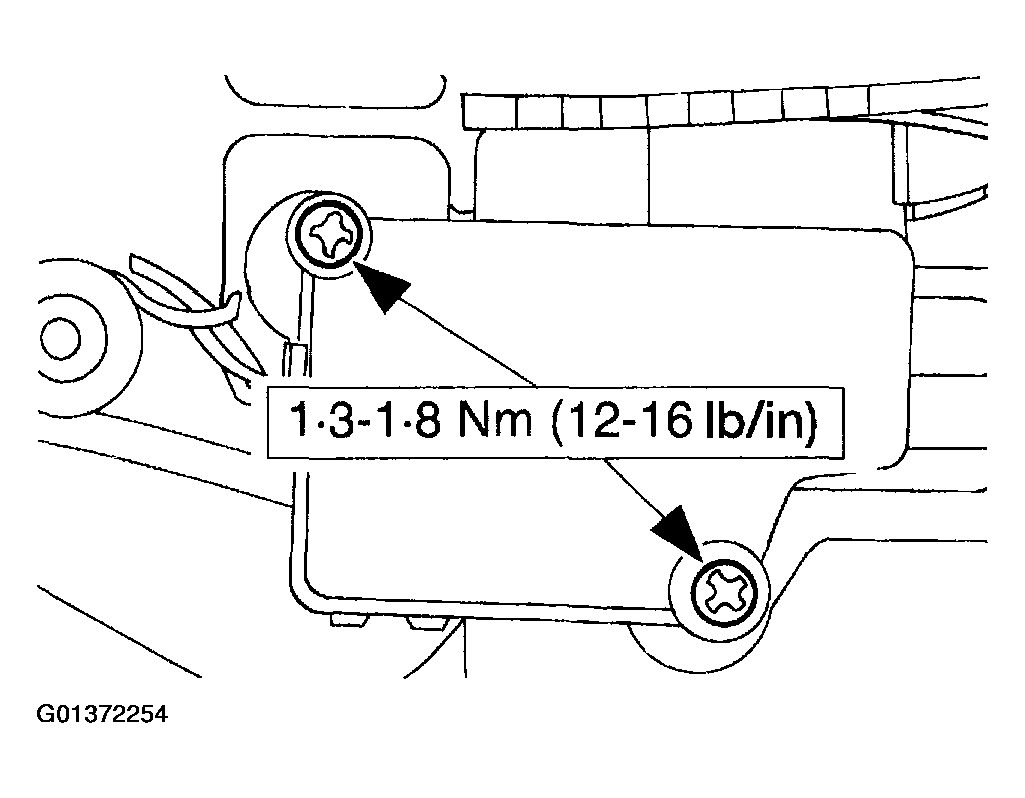

Fig 5: Installing Brake Shift Interlock Actuator

Courtesy of FORD MOTOR CO.
