Selector Lever - Gearshift: Removal

Remove the transmission control selector dial bezel; refer to BEZEL - TRANSMISSION CONTROL SELECTOR DIAL .
Disconnect the brake shift interlock actuator electrical connector.

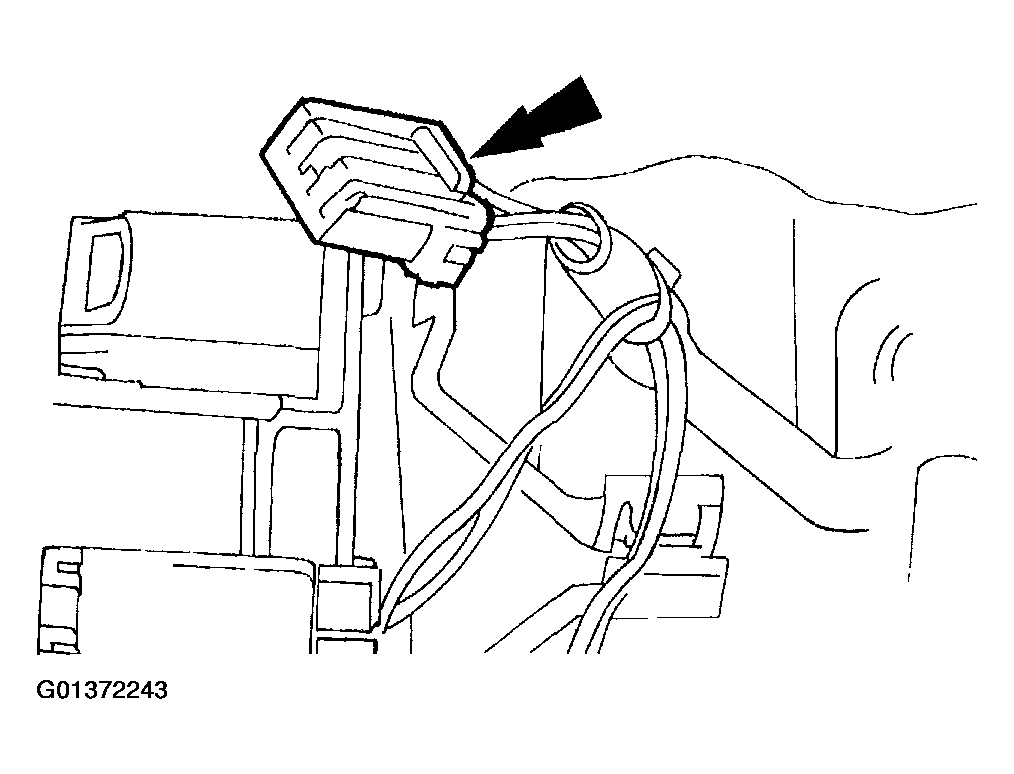

Fig 1: Disconnecting Brake Shift Interlock Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the park range switch electrical connector.

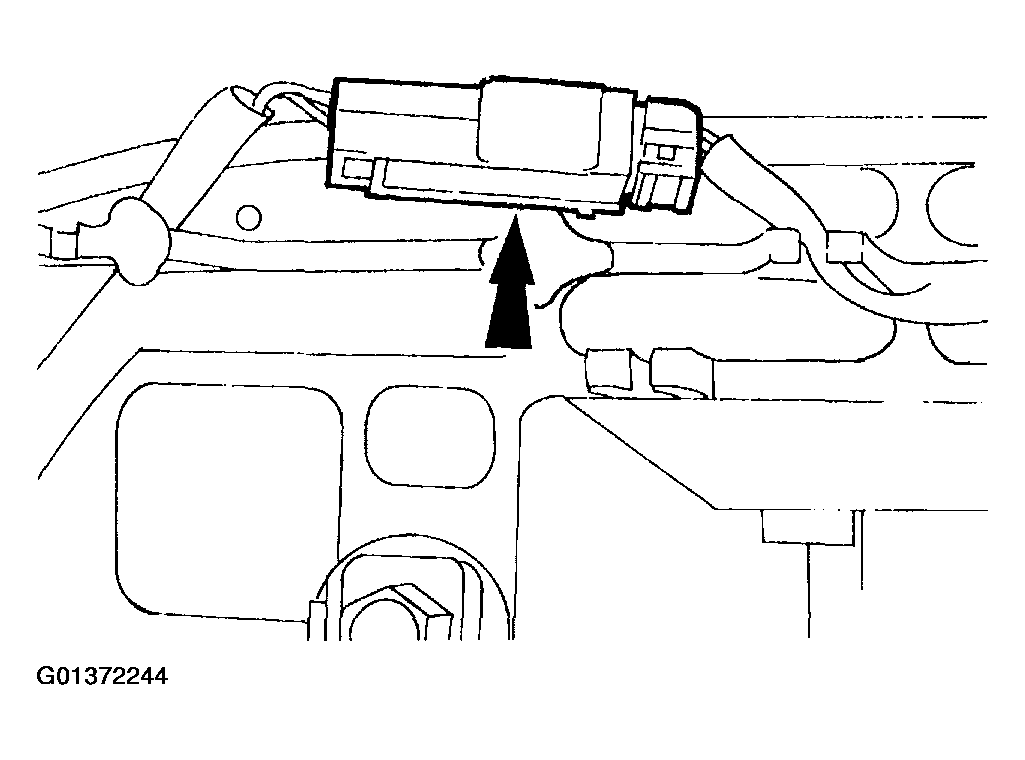

Fig 2: Disconnecting Park Range Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws and the brake shift interlock actuator.

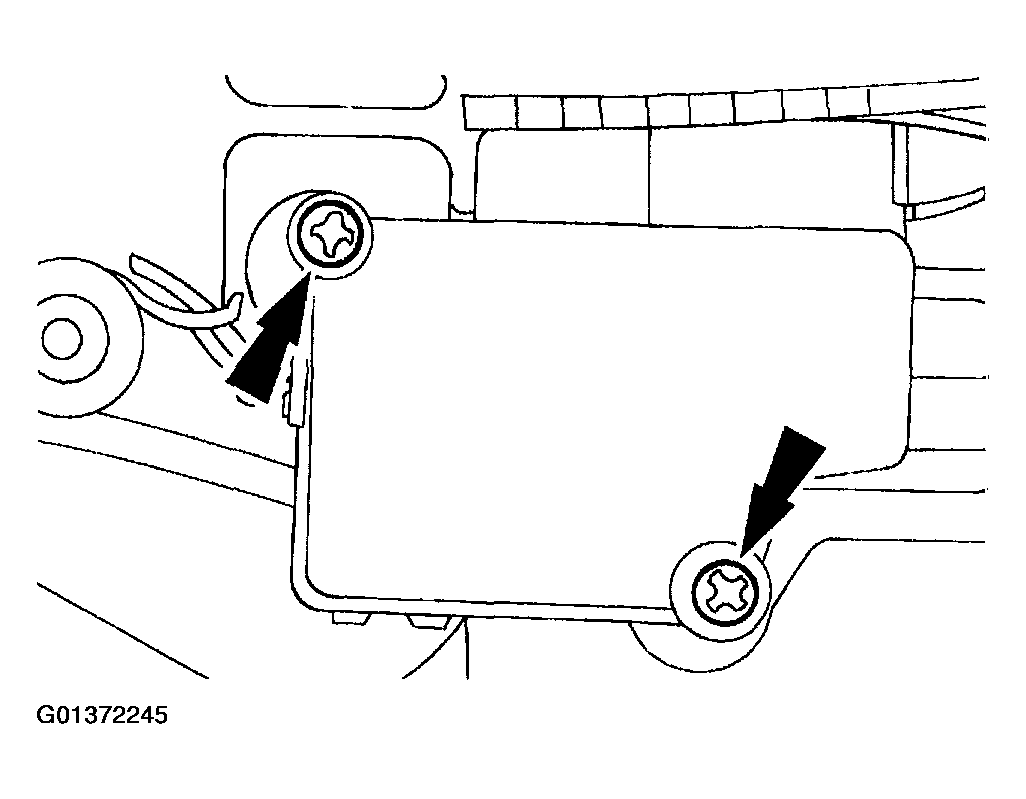

Fig 3: Removing Brake Shift Interlock Actuator
Courtesy of FORD MOTOR CO.
Remove the gearshift lever cable nut.

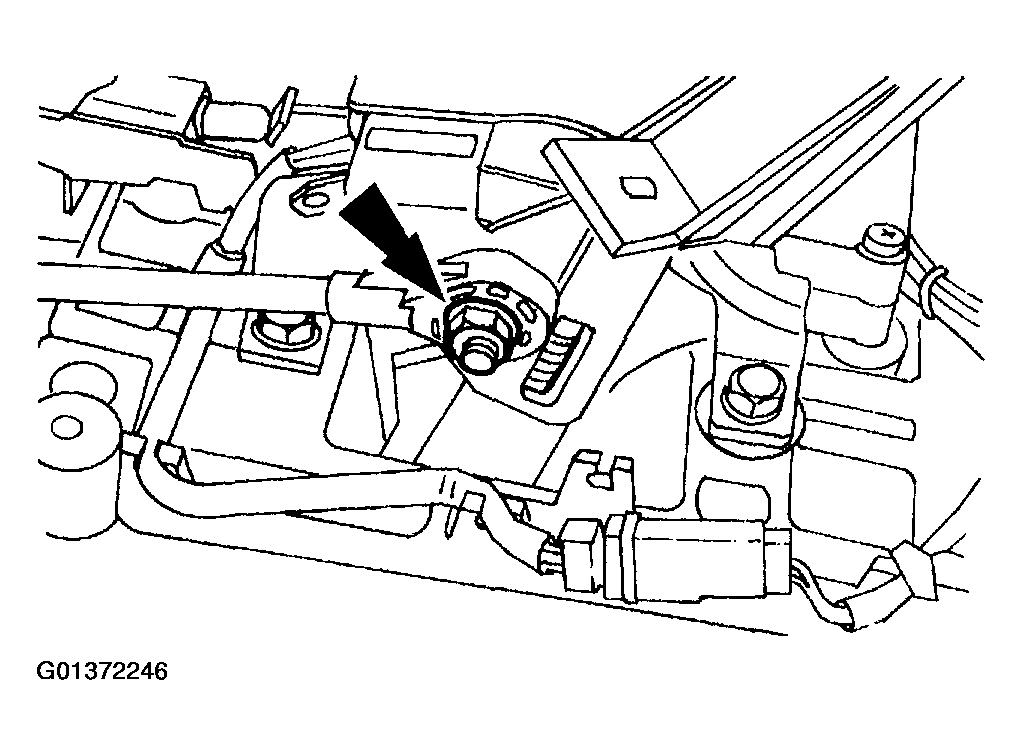

Fig 4: Removing Gearshift Lever Cable Nut
Courtesy of FORD MOTOR CO.

CAUTION: Be careful not to kink the shift cable and bracket (7E395) when repositioning it aside to avoid cable binding.

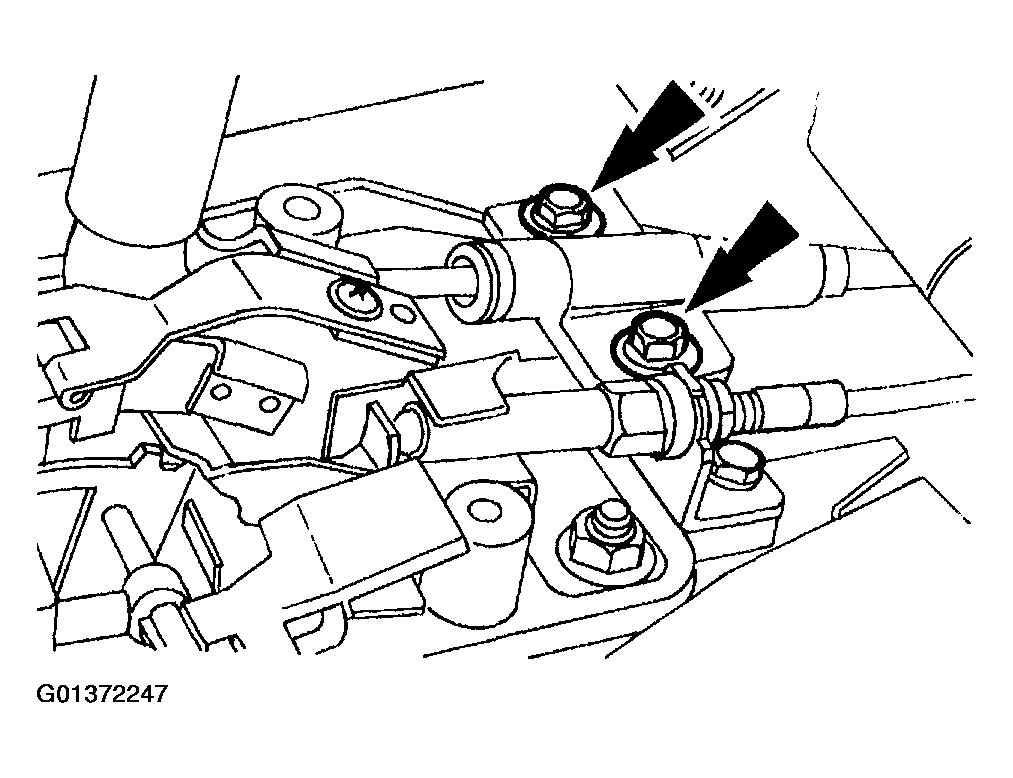

Fig 5: Removing Cable Floorpan Bracket Bolts

Courtesy of FORD MOTOR CO.

CAUTION: Do not loosen the ignition/shifter interlock cable locknut from the factory setting for proper shift-lock operation to avoid misadjustment.

CAUTION: Be careful not to kink the ignition/shifter interlock cable (3F719) when repositioning it aside.

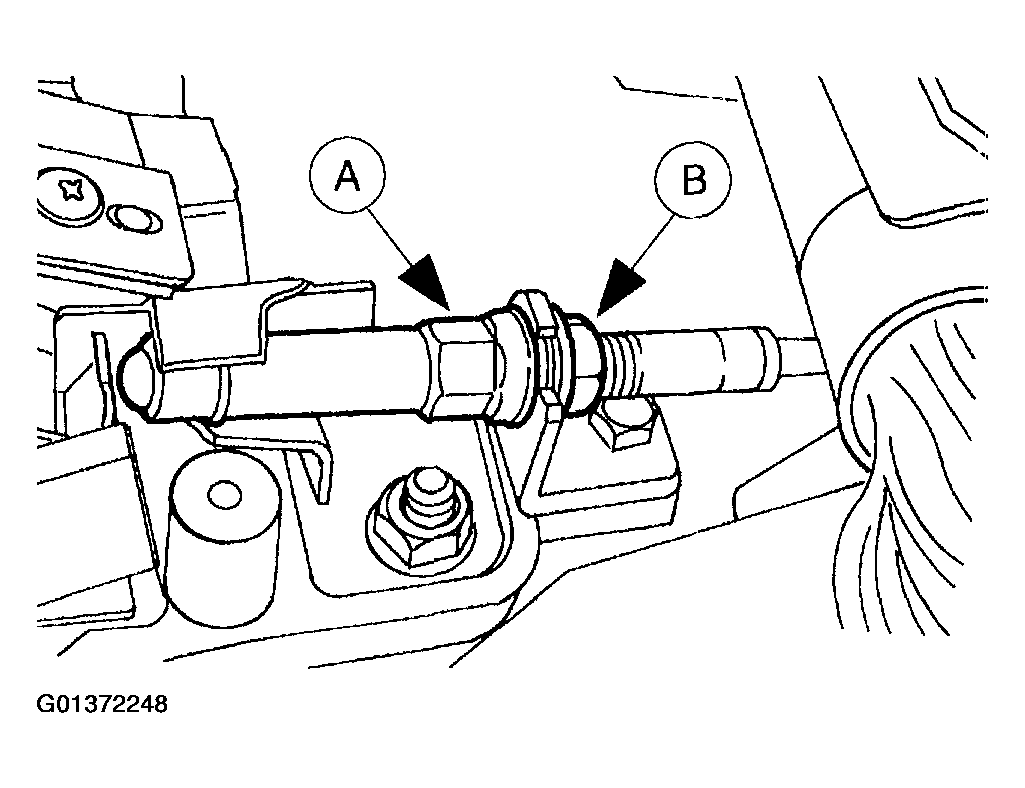

Fig 6: Identifying Ignition/Shifter Interlock Cable Locknut

Courtesy of FORD MOTOR CO.

Hold the (A) ignition/shifter interlock cable locknut to prevent it from turning while loosening the (B) ignition/shifter interlock cable locknut and position the cable aside.
Remove the nuts and remove the gearshift lever.

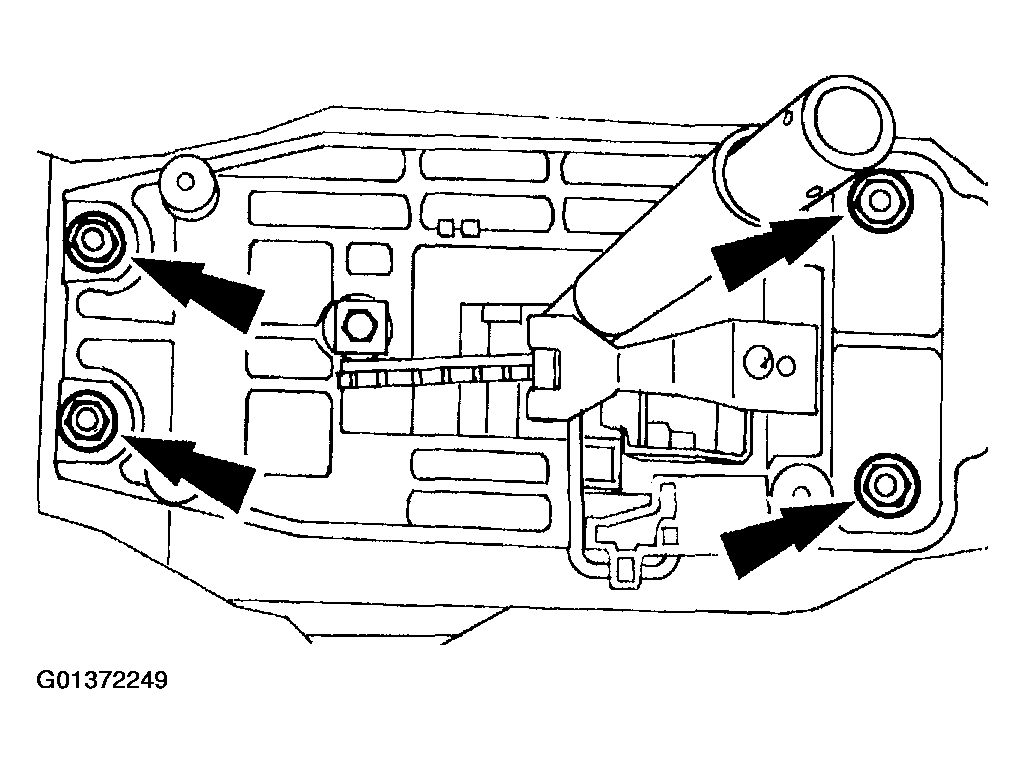

Fig 7: Removing Gearshift Lever

Courtesy of FORD MOTOR CO.
