Pinpoint Test R: No Communication With The Module

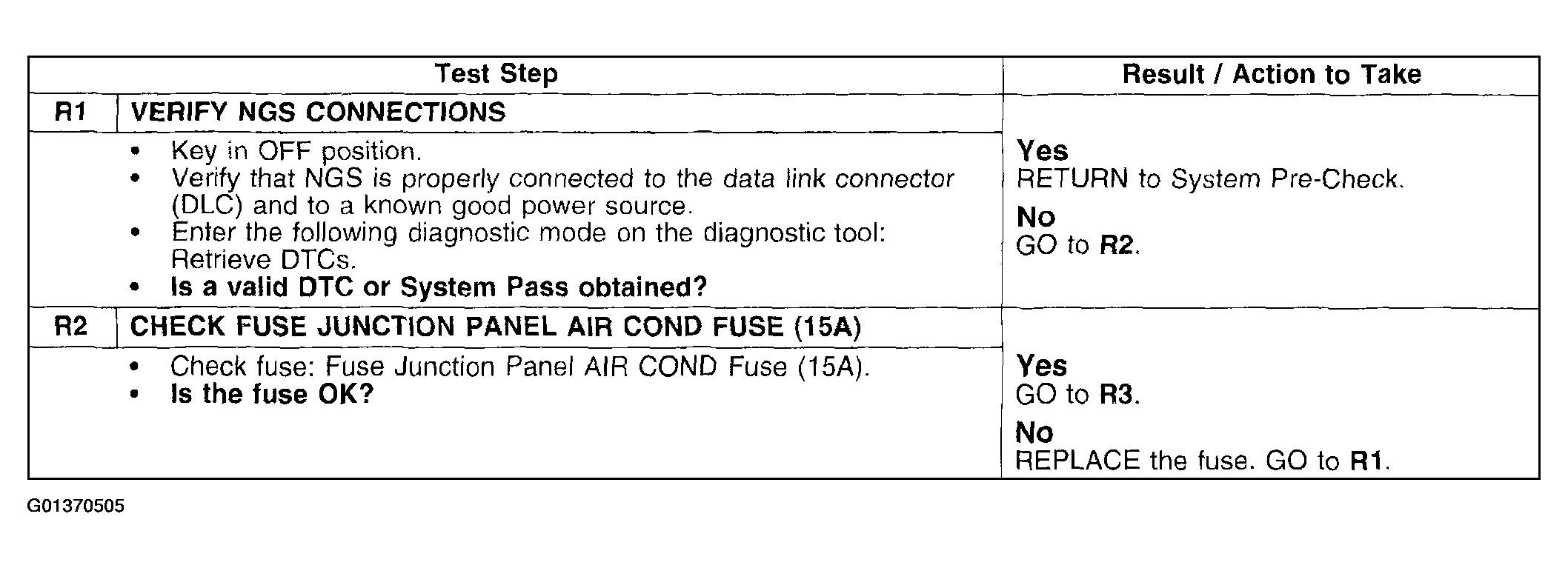

Fig 1: Pinpoint Test R Chart - No Communication With Module (R1-R2)

Courtesy of FORD MOTOR CO.

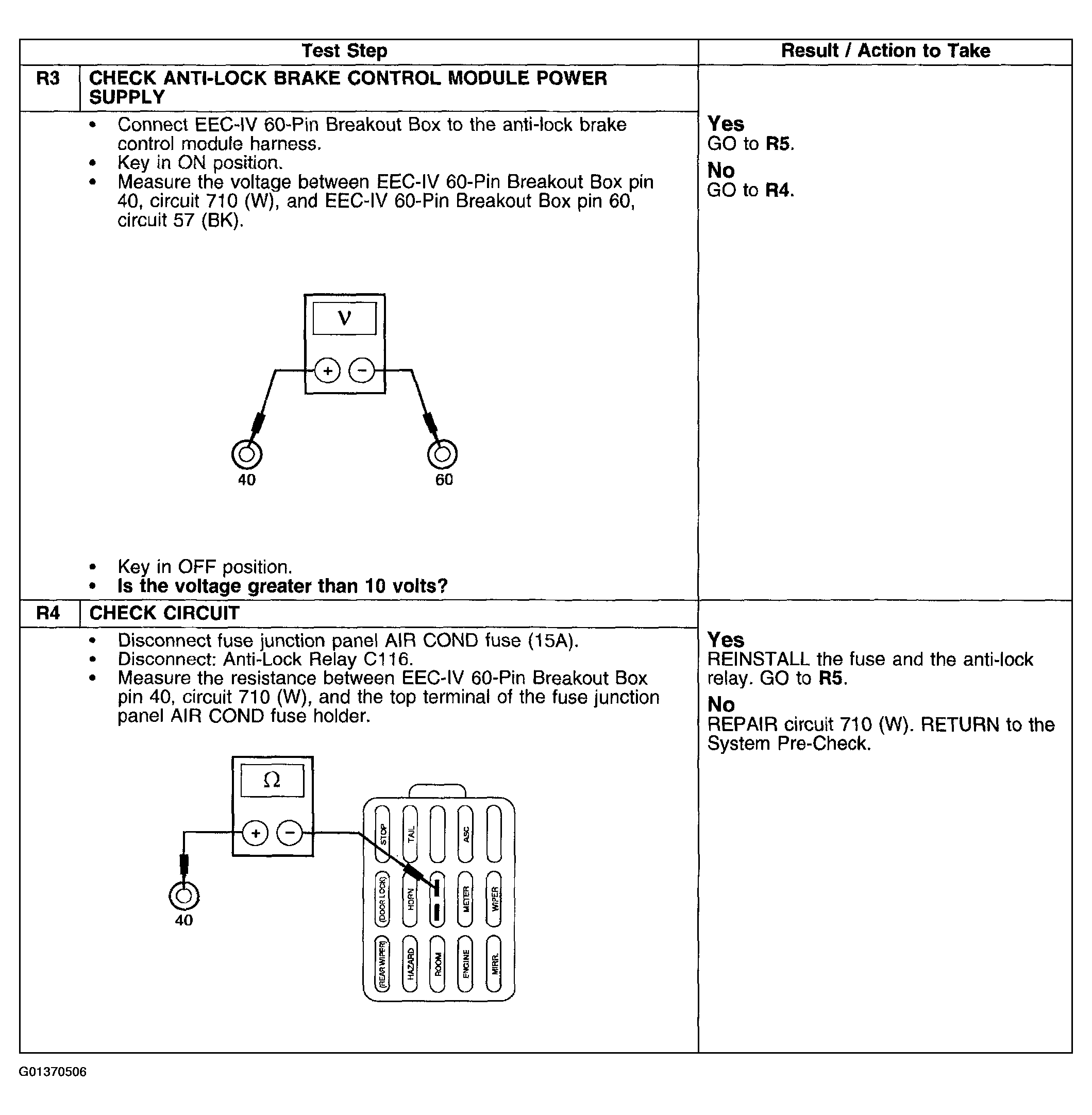

Fig 2: Pinpoint Test R Chart - No Communication With Module (R3-R4)

Courtesy of FORD MOTOR CO.

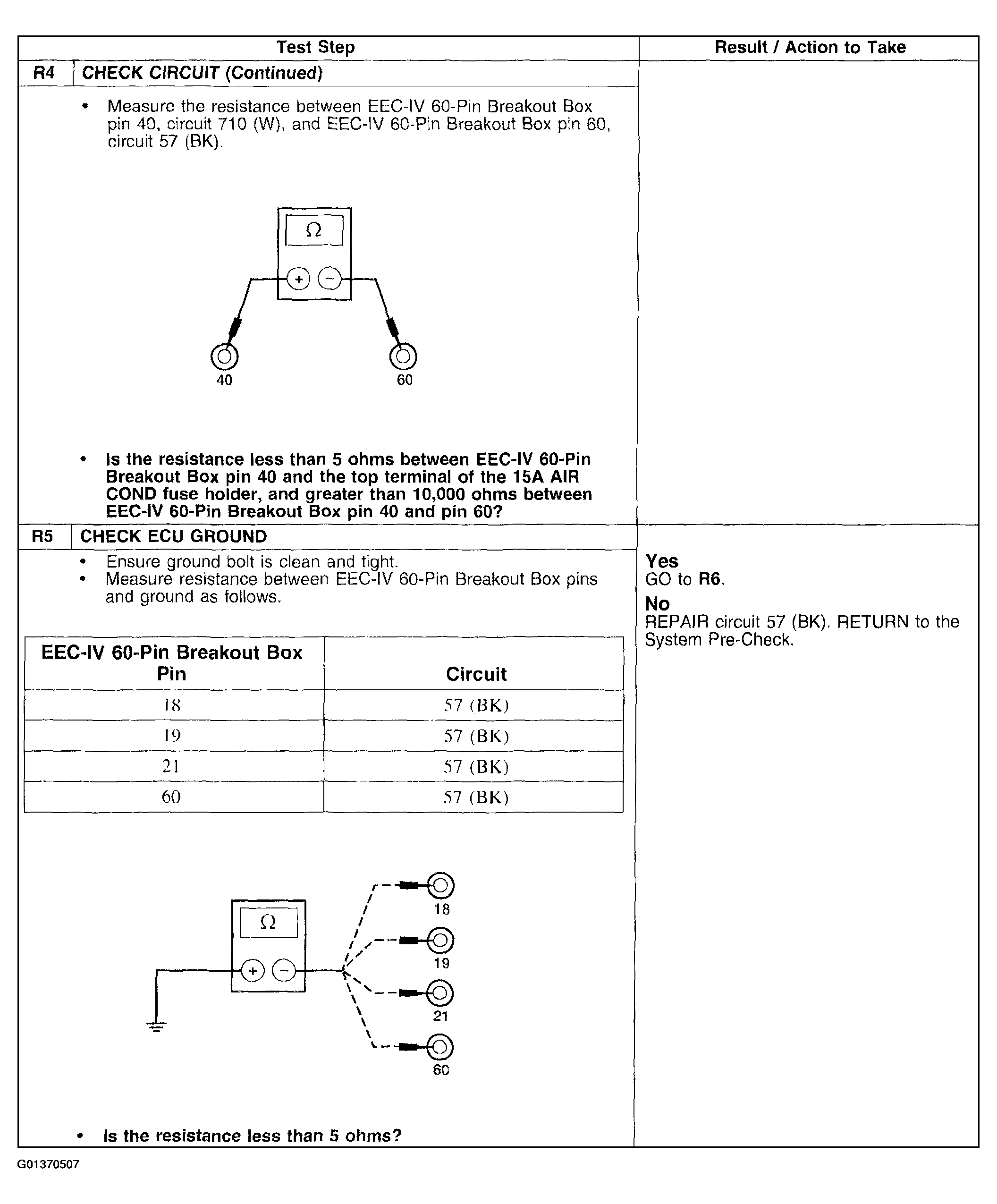

Fig 3: Pinpoint Test R Chart - No Communication With Module (R4-R5)

Courtesy of FORD MOTOR CO.

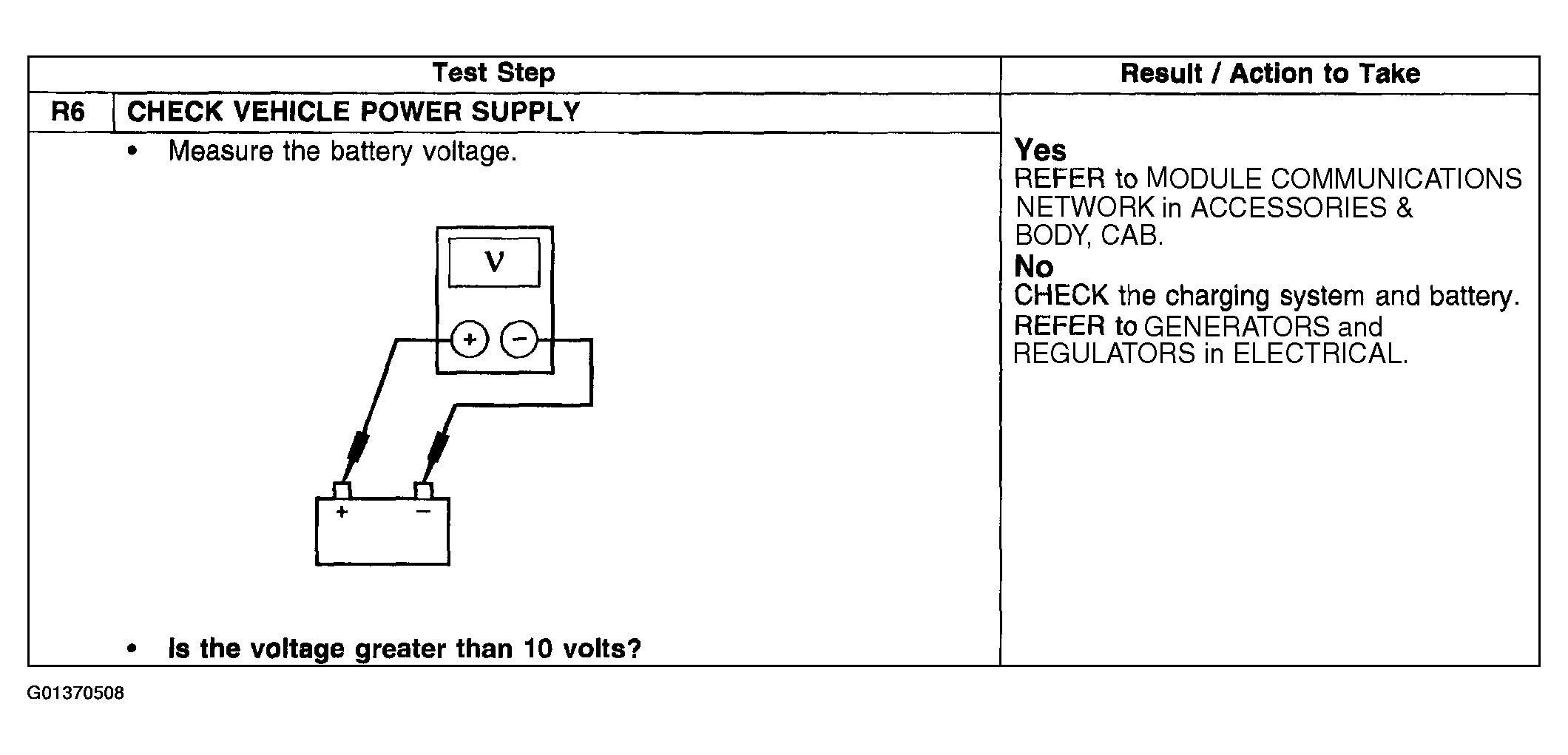

Fig 4: Pinpoint Test R Chart - No Communication With Module (R6)

Courtesy of FORD MOTOR CO.
