Inspection And Verification
- Verify the customer concern by operating the system in question.
- Visually inspect for obvious signs of electrical damage.

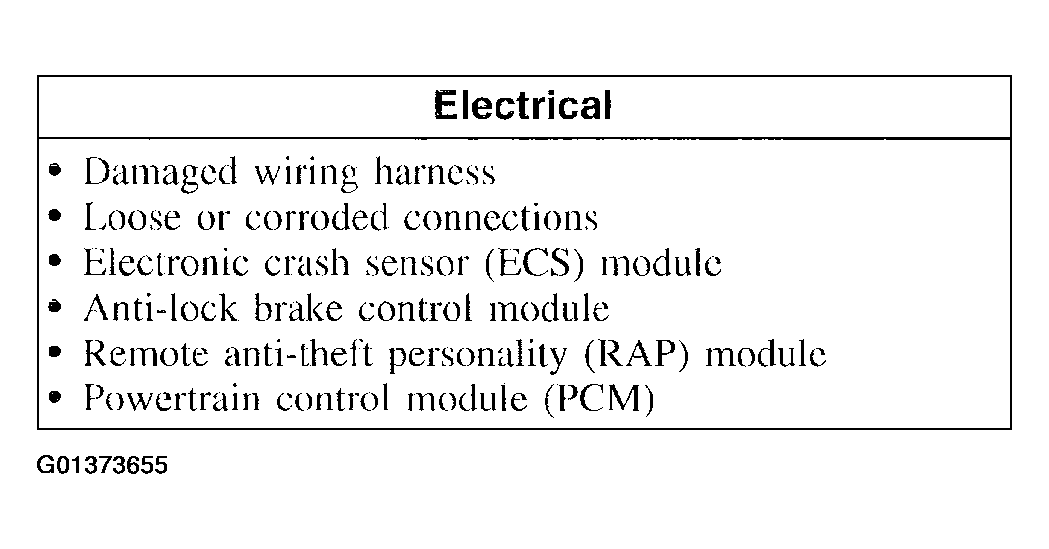

Visual Inspection Chart
- If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- Check that the program card is properly installed.
- Check the connections to the vehicle.
- Check the ignition switch position.
If the diagnostic tool still does not communicate with the vehicle, GO to PINPOINT TEST F: NO MODULE/NETWORK COMMUNICATION .
- GO to PINPOINT TEST PC: DATA LINK DIAGNOSTICS NETWORK TEST .
