Seat-Child Safety, Base: Disassembly

  1. Disconnect the hook and loop strip.

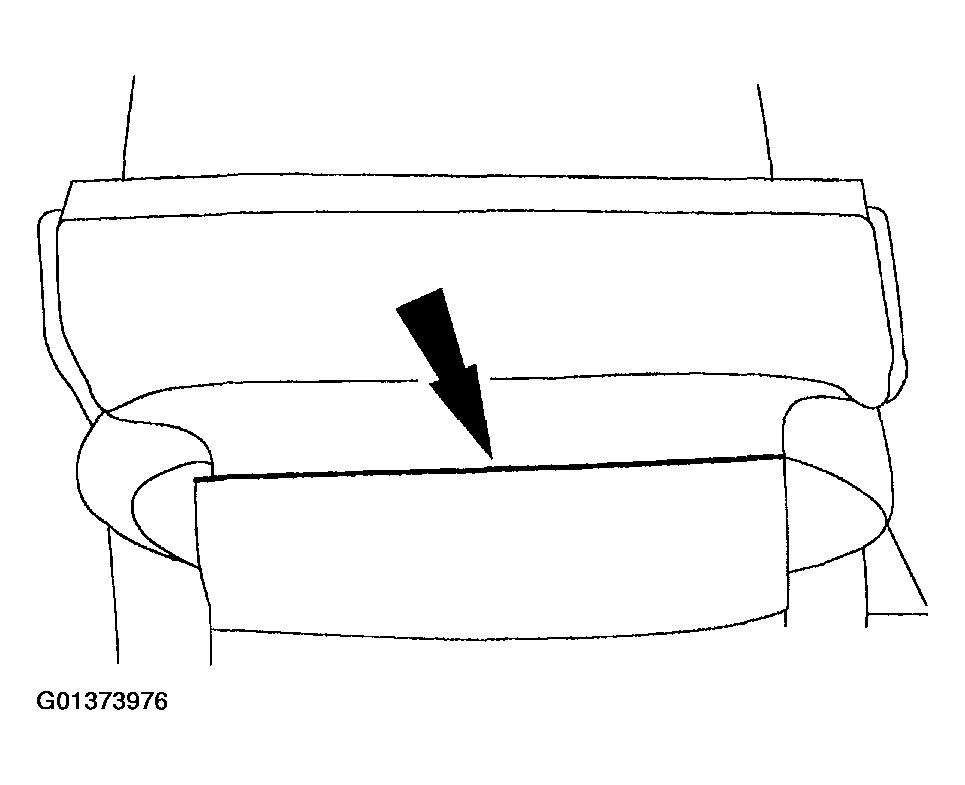

    Fig 1: Disconnecting Hook And Loop Strip
    G01373976Courtesy of FORD MOTOR CO.
  2. Remove the hog rings.

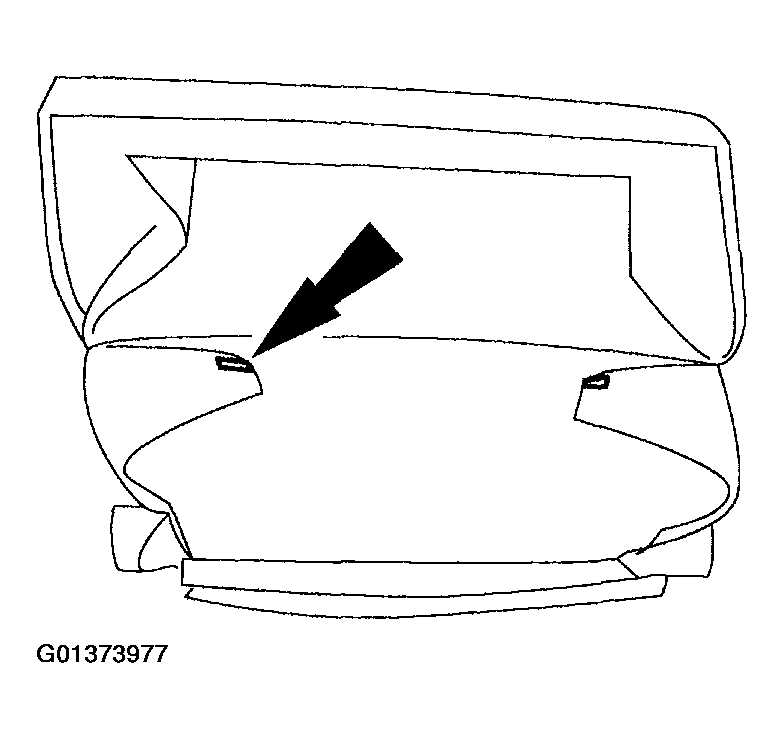

    Fig 2: Removing Hog Rings
    G01373977Courtesy of FORD MOTOR CO.
  3. Remove booster pad number 2.
    1. Invert the child safety seat trim cover.
    2. Remove booster pad number 2.

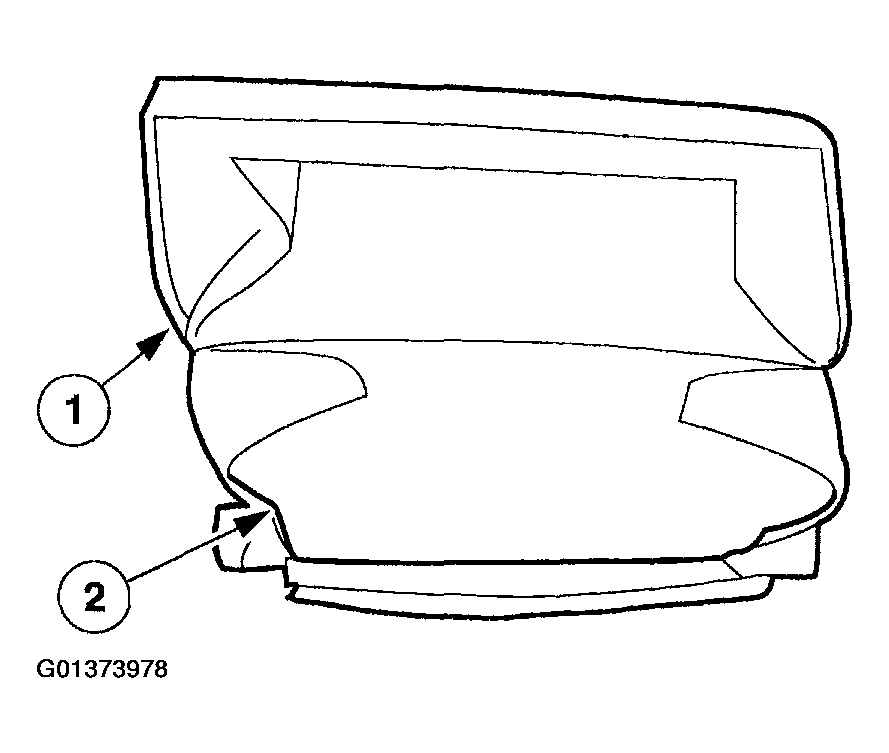

    Fig 3: Removing Booster Pad Number 2
    G01373978Courtesy of FORD MOTOR CO.
  4. Remove booster pad number 1.
    1. Invert the child safety seat trim cover.
    2. Remove booster pad number 1.

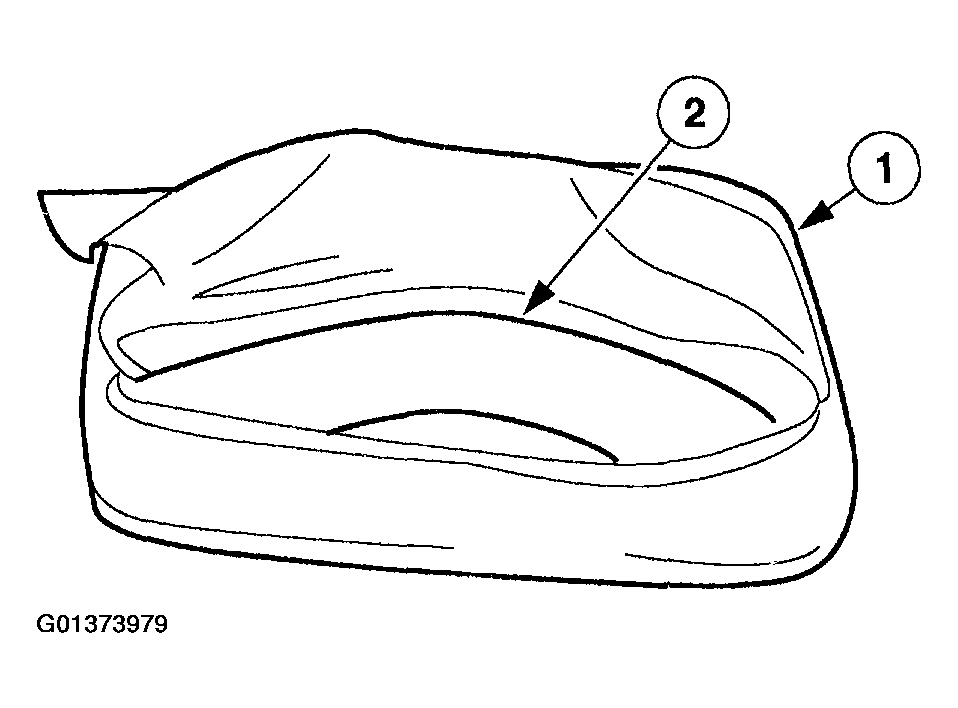

    Fig 4: Removing Booster Pad Number 1
    G01373979Courtesy of FORD MOTOR CO.
