Seat-Front, Base: Assembly

  1. Position the seat trim cover on the seat cushion hook and loop strips.

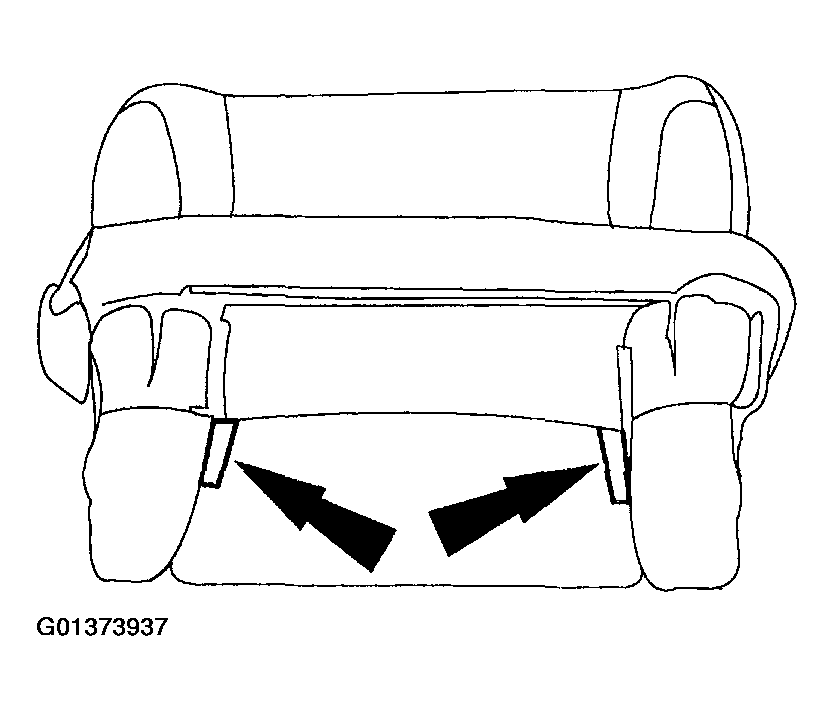

    Fig 1: Installing Seat Trim Cover On Seat Cushion Hook And Loop Strips
    G01373937Courtesy of FORD MOTOR CO.
  2. Position the seat trim and cushion onto the seat frame.

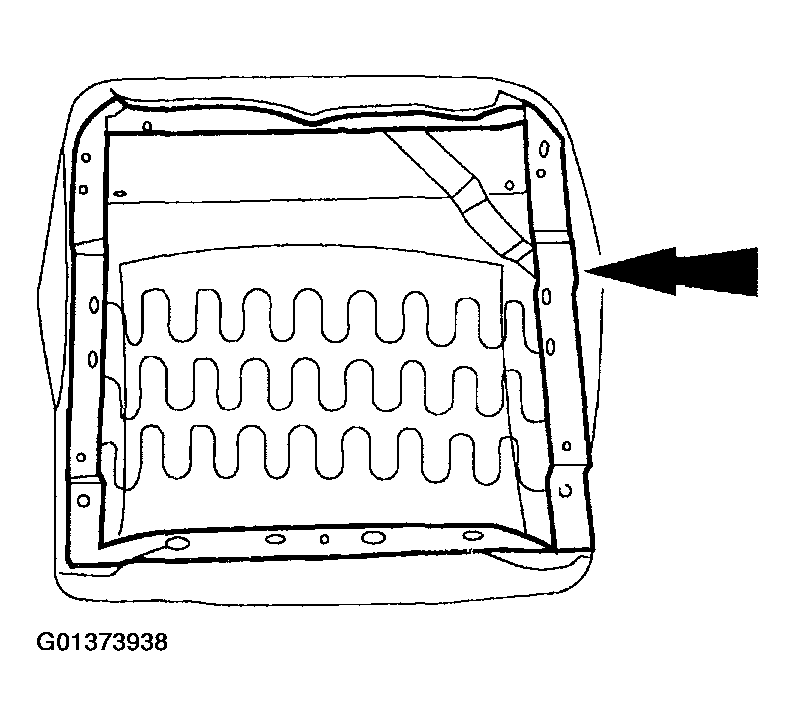

    Fig 2: Installing Seat Trim And Cushion Onto Seat Frame
    G01373938Courtesy of FORD MOTOR CO.
  3. Connect the seat base trim.
    • Install the hog rings.

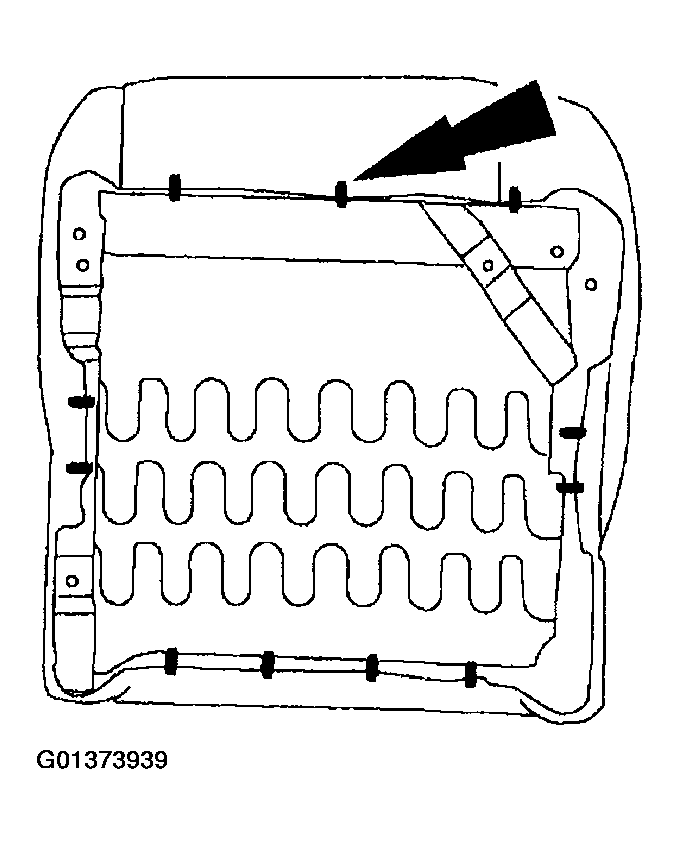

    Fig 3: Installing Hog Rings
    G01373939Courtesy of FORD MOTOR CO.
  4. Assemble the front seat; refer to SEAT-FRONT .
