Seat-Front, Seat Back: Assembly

  1. Install the front seat back latch.
    1. Position the latch.
    2. Install the bolts.

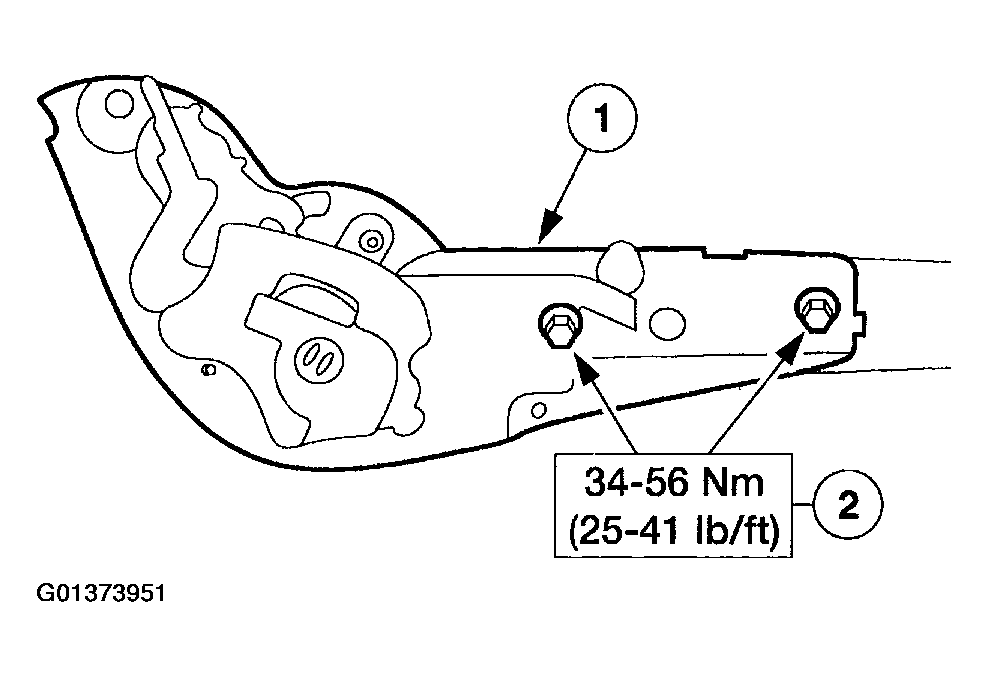

    Fig 1: Installing Front Seat Back Latch
    G01373951Courtesy of FORD MOTOR CO.
  2. Install the rear seat access lever trim support bracket.
    1. Position the bracket.
    2. Install the screws.

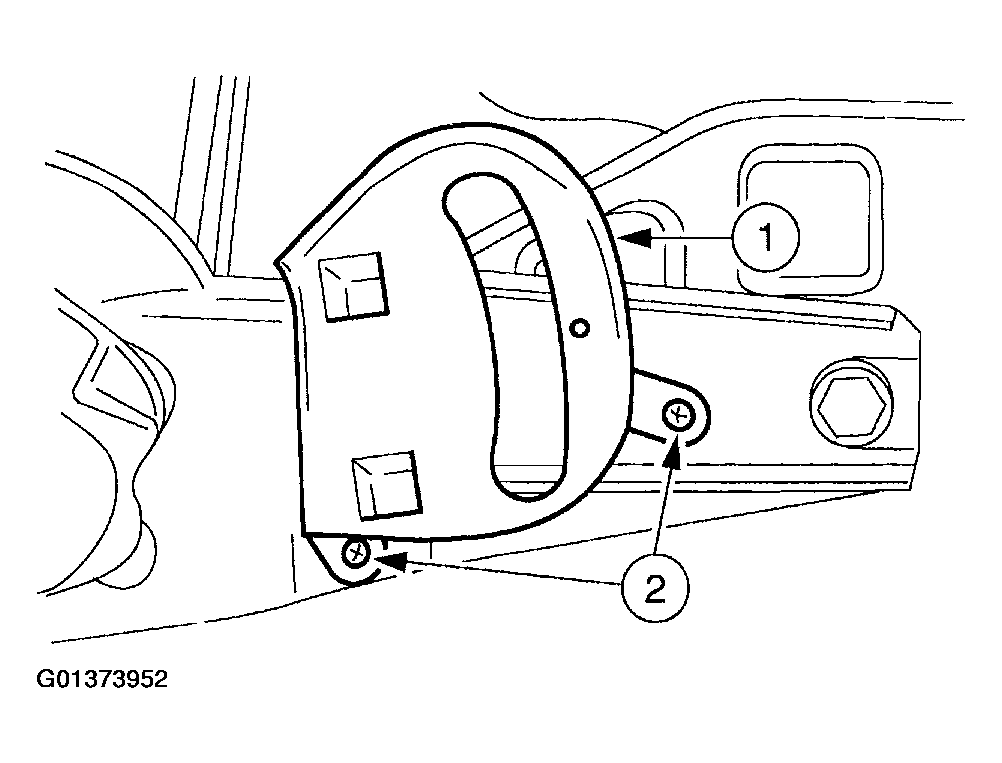

    Fig 2: Installing Rear Seat Access Lever Trim Support Bracket
    G01373952Courtesy of FORD MOTOR CO.
  3. Install the seat back pad onto the seat back frame.

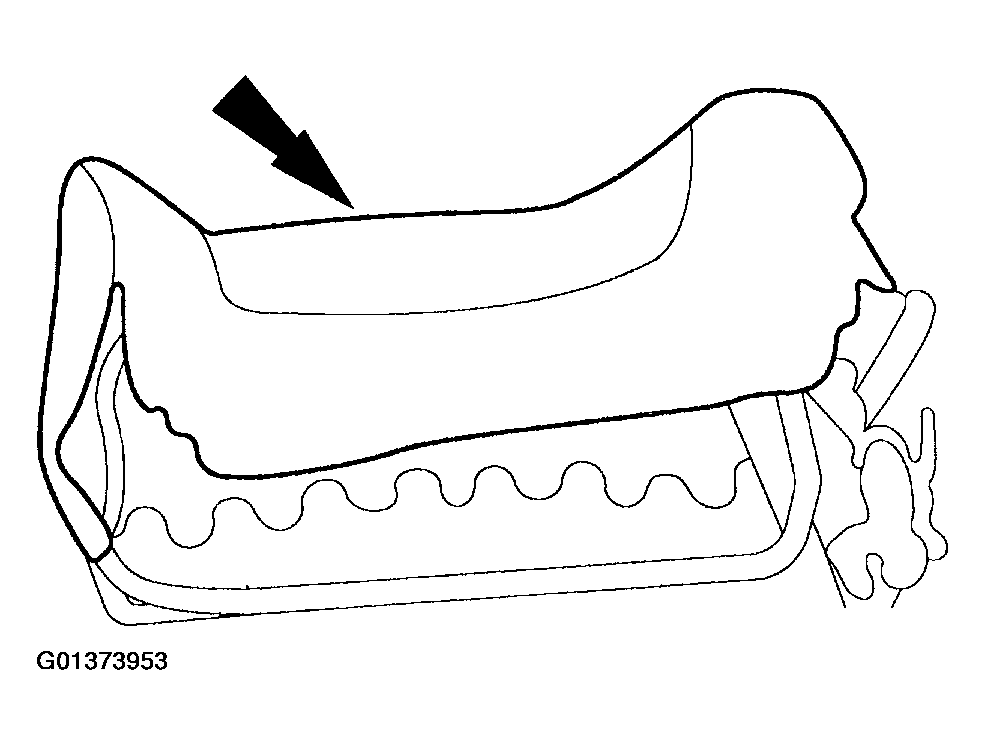

    Fig 3: Installing Seat Back Pad Onto Seat Back Frame
    G01373953Courtesy of FORD MOTOR CO.
  4. Install the front seat back trim onto the hog ring flaps.

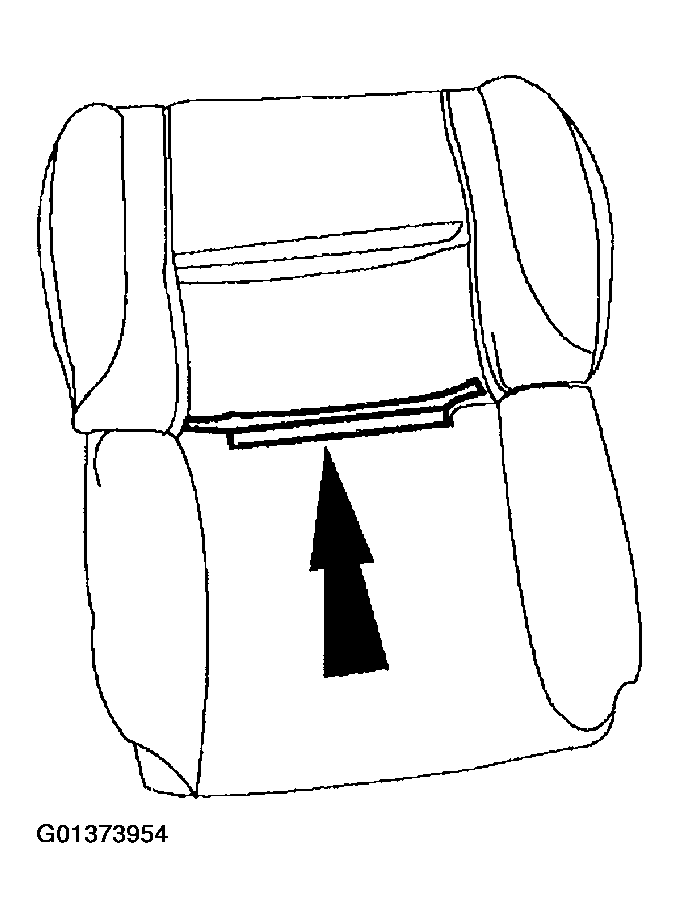

    Fig 4: Installing Front Seat Back Trim Onto Hog Ring Flaps
    G01373954Courtesy of FORD MOTOR CO.
    5. NOTE: Make sure the front seat back head restraint guide tube with the locking mechanism is aligned with the front seat back head restraint support rod with the notches.

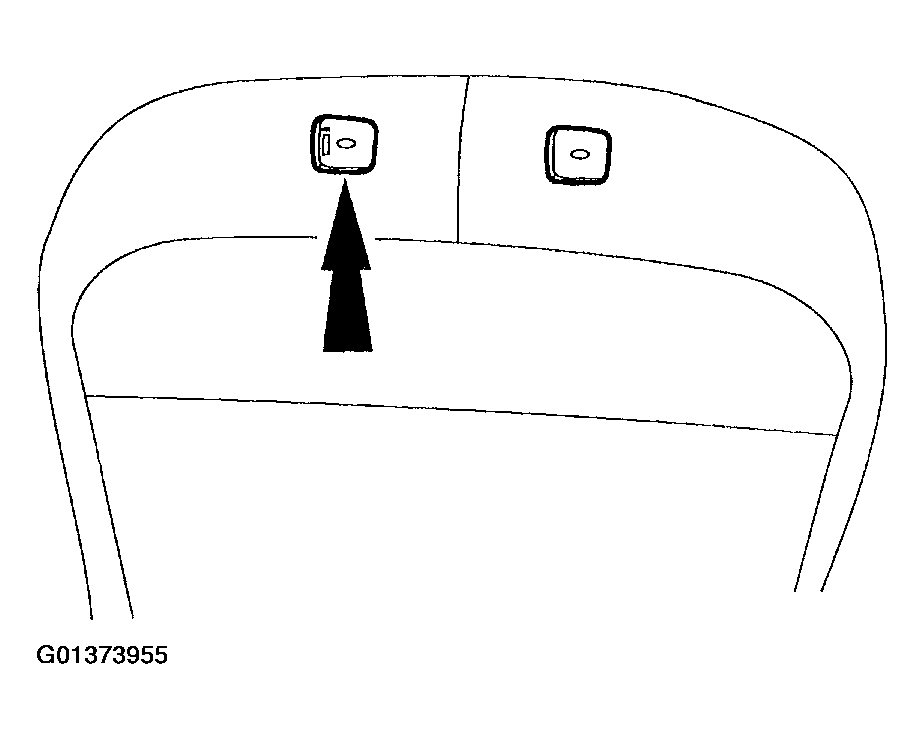

    Fig 5: Installing Front Seat Head Restraint Guide Tubes
    G01373955Courtesy of FORD MOTOR CO.
  5. Install the front seat head restraint guide tubes.
  6. Install the hog rings on the back side of the front seat back.

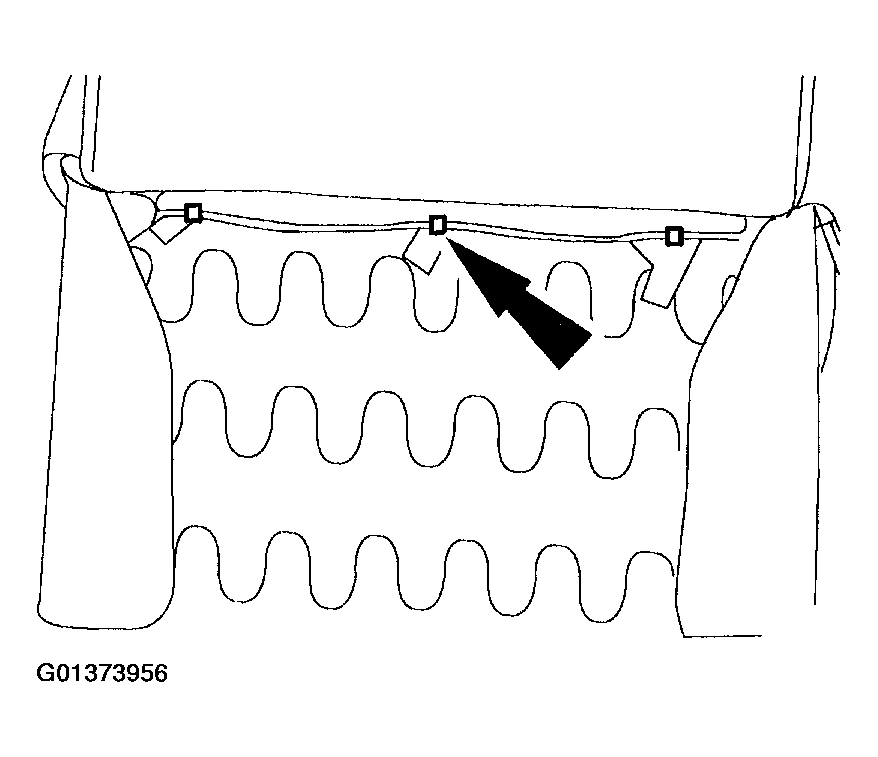

    Fig 6: Installing Hog Rings On Back Side Of Front Seat Back
    G01373956Courtesy of FORD MOTOR CO.
  7. Install the hog rings on the front side of the front seat back.

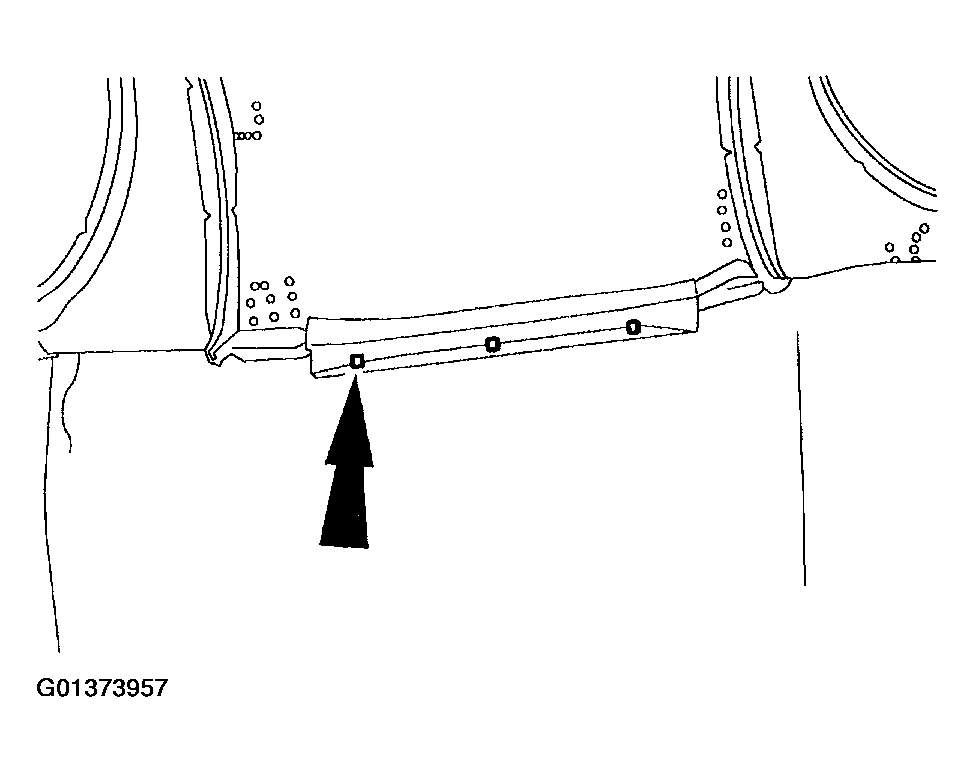

    Fig 7: Installing Hog Rings On Front Side Of Front Seat Back
    G01373957Courtesy of FORD MOTOR CO.
  8. Position the front seat back trim and connect the retainer.

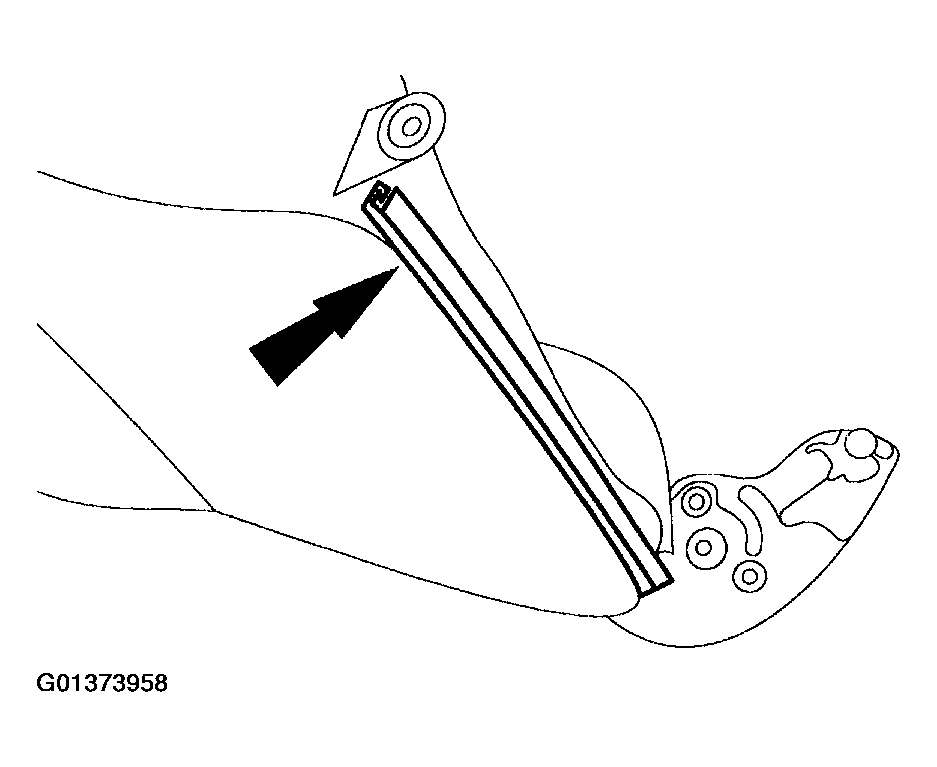

    Fig 8: Installing Front Seat Back Trim And Connect Retainer
    G01373958Courtesy of FORD MOTOR CO.
  9. Install the rear seat access lever trim.
    1. Position the rear seat access lever trim.
    2. Install the screw.
    3. Install the knob.

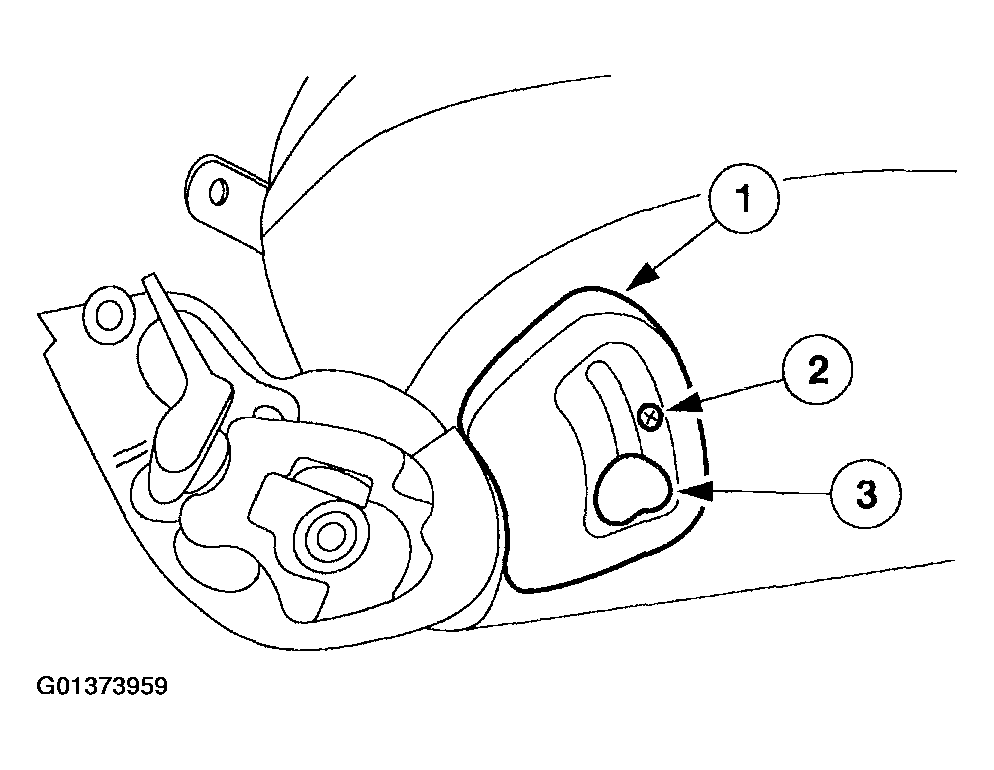

    Fig 9: Installing Rear Seat Access Lever Trim
    G01373959Courtesy of FORD MOTOR CO.
  10. Install the front seat back head restraint.

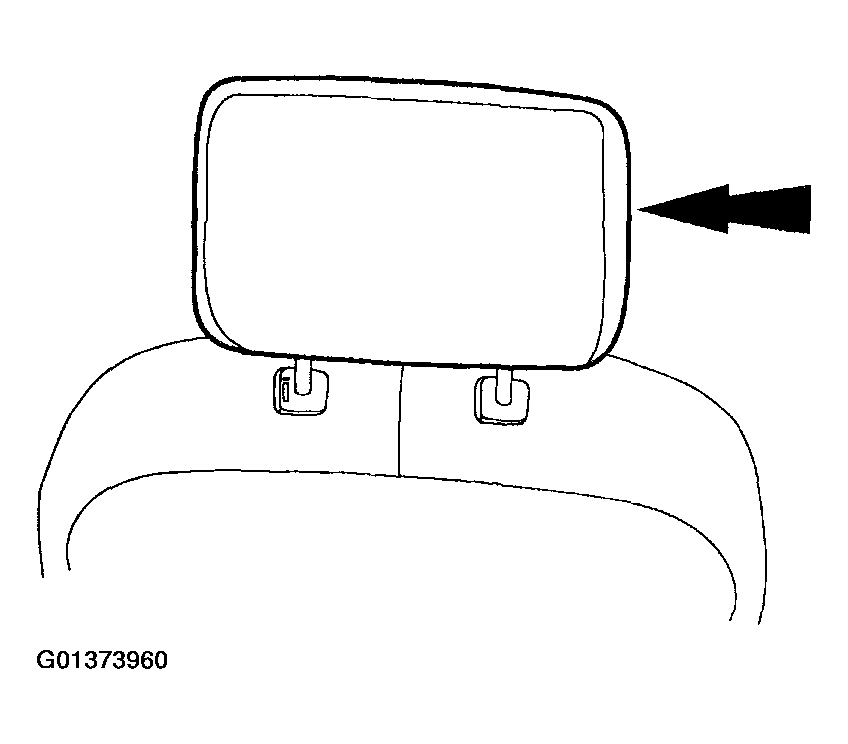

    Fig 10: Installing Front Seat Back Head Restraint
    G01373960Courtesy of FORD MOTOR CO.
  11. Assemble the front seat; refer to SEAT-FRONT .
