Seat-Rear, With Integral Child Safety Seat: Assembly

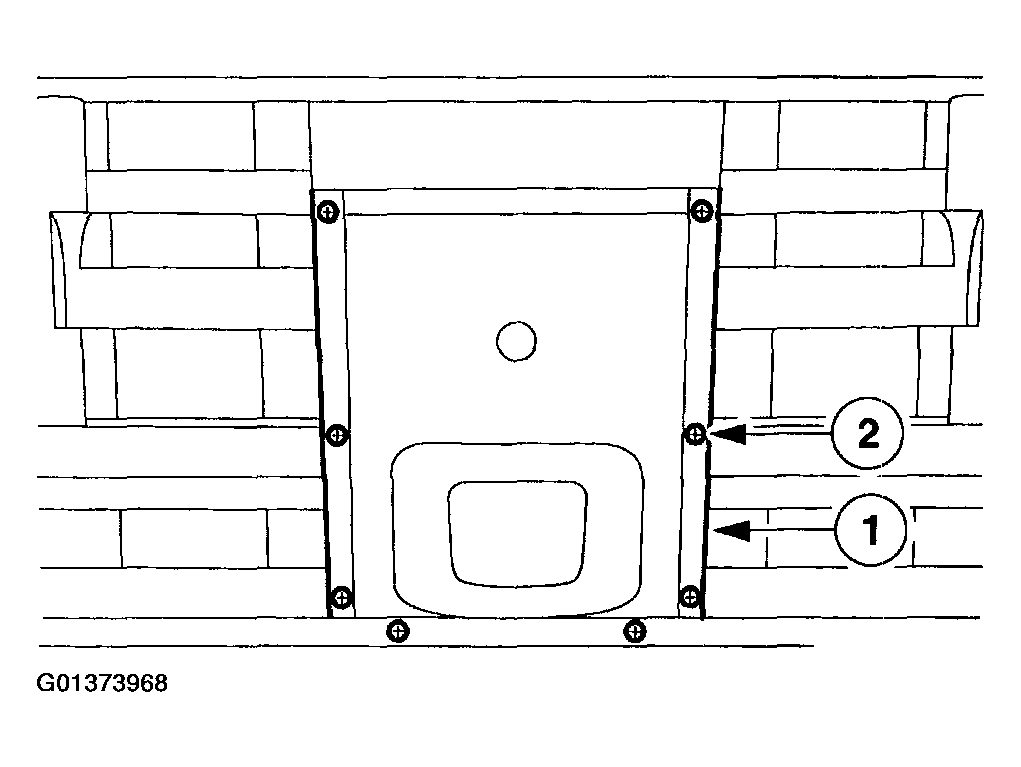

Install the child safety seat safety belt cover.
1. Position the child safety seat safety belt cover.
2. Install the eight screws.
Fig 1: Installing Child Safety Seat Safety Belt Cover
Courtesy of FORD MOTOR CO.

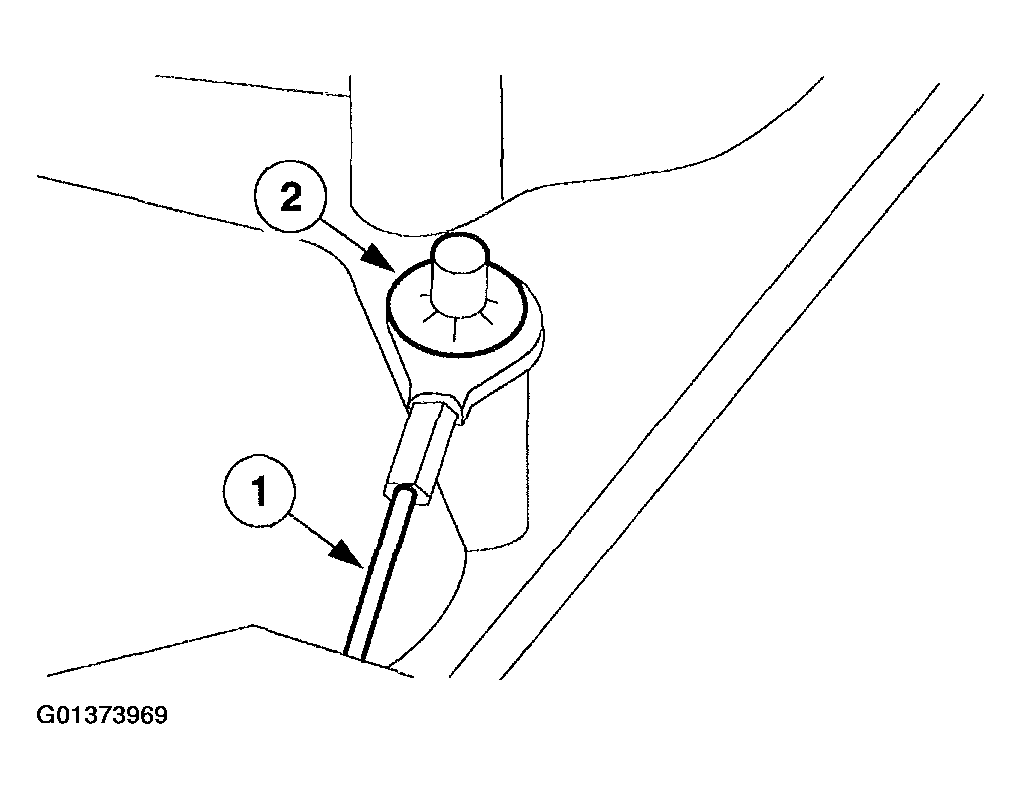

Install the seat back release knob end of the pin link.
1. Position the pin link.
2. Install the speed nut.
Fig 2: Installing Seat Back Release Knob End Of Pin Link
Courtesy of FORD MOTOR CO.

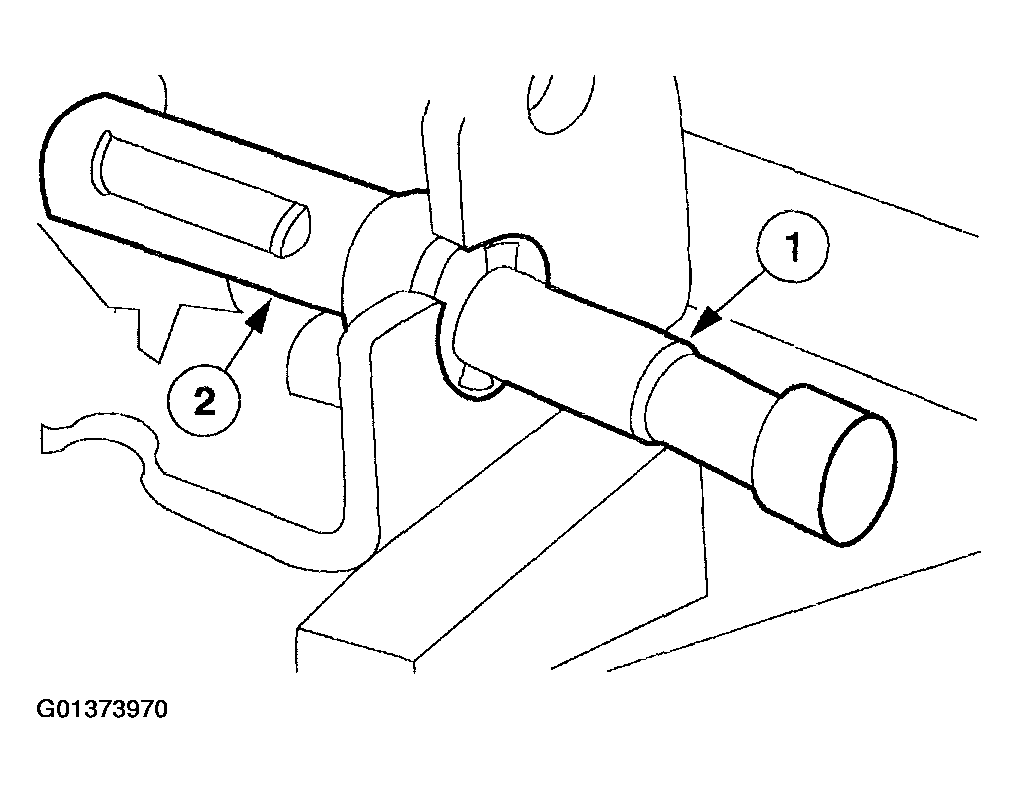

Install the child safety seat end of the pin link.
1. Retract the pin.
2. Install the pin link.
Fig 3: Installing Pin Link
Courtesy of FORD MOTOR CO.

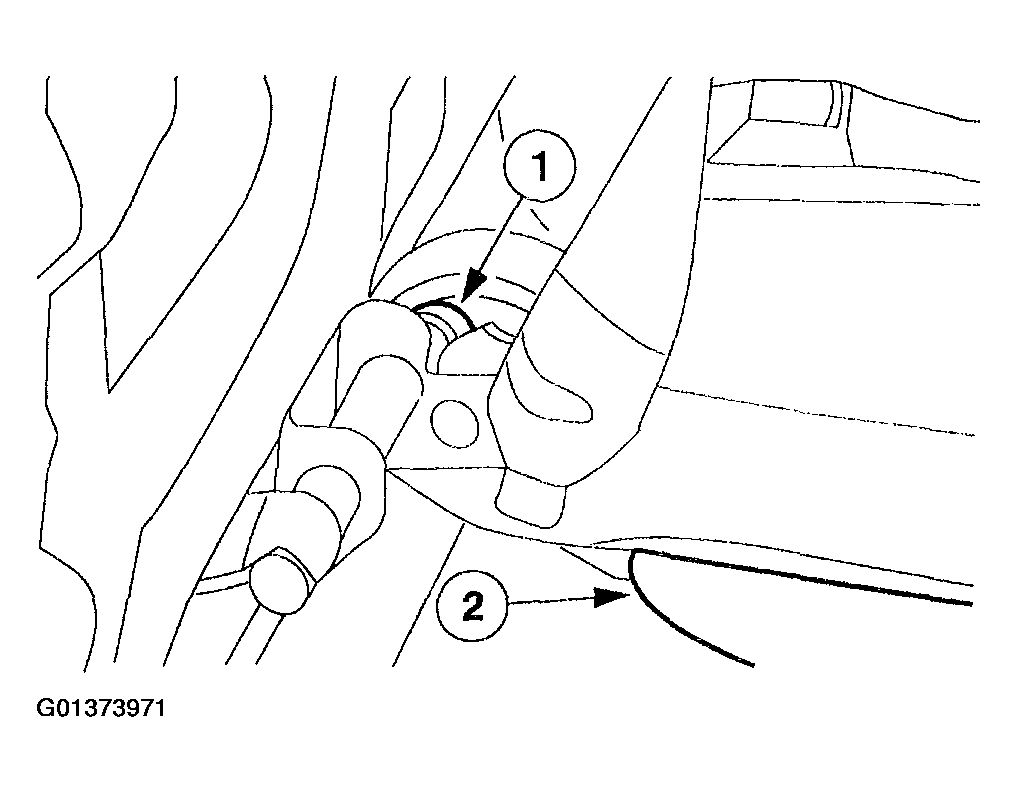

Install the child safety seat base.
1. Retract the pin links on both sides.
2. Install the child safety seat base.
Fig 4: Installing Child Safety Seat Base
Courtesy of FORD MOTOR CO.

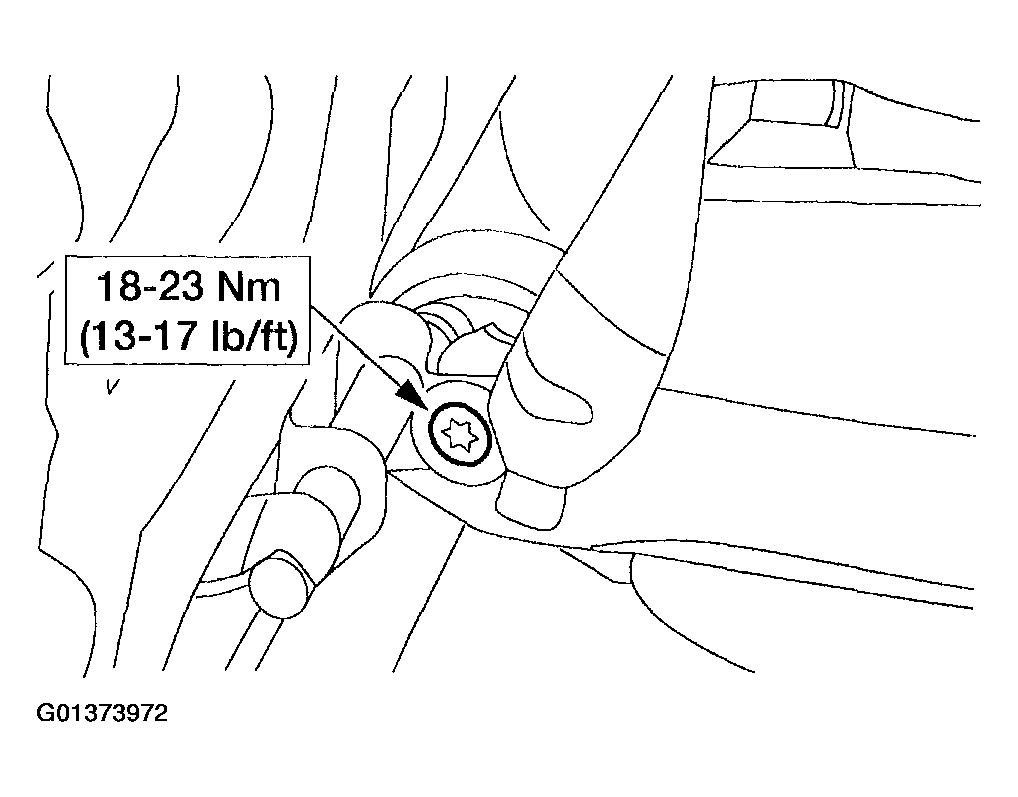

Install the two child safety seat base pivot bolts.

Fig 5: Installing Child Safety Seat Base Pivot Bolts
Courtesy of FORD MOTOR CO.

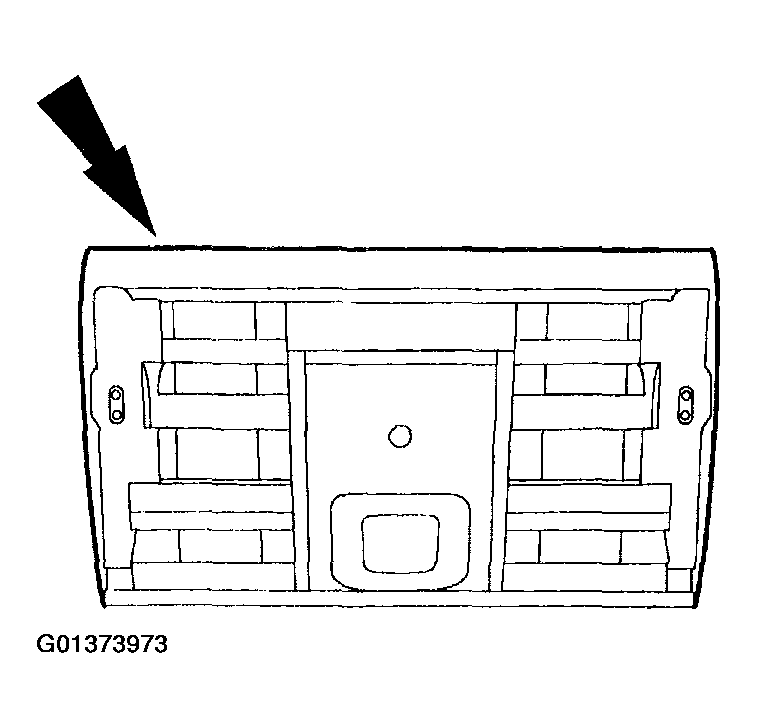

Install the rear seat back pad.

Fig 6: Installing Rear Seat Back Pad
Courtesy of FORD MOTOR CO.

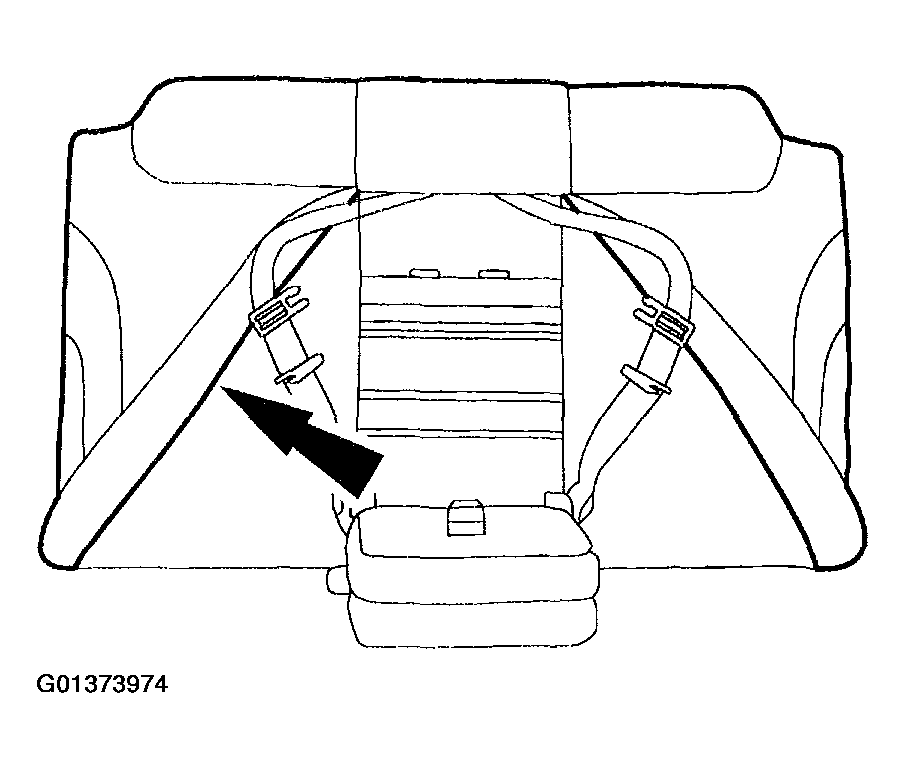

Invert the rear seat trim cover.

Fig 7: Inverting Rear Seat Trim Cover
Courtesy of FORD MOTOR CO.

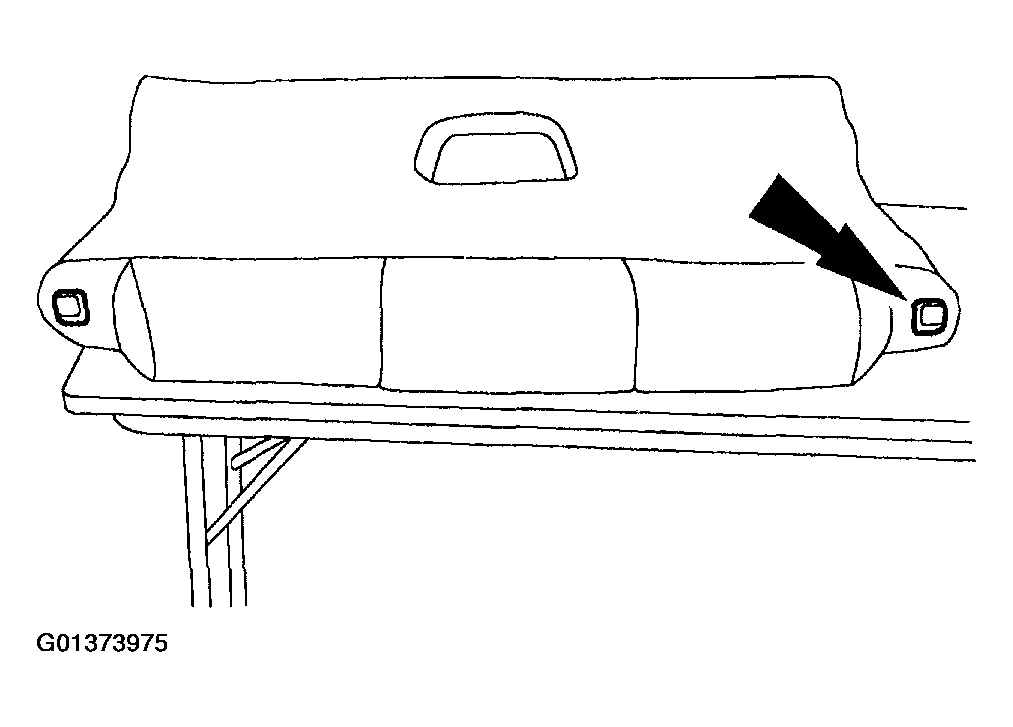

If equipped, install the seat back release knob guides.

Fig 8: Installing Seat Back Release Knob Guides
Courtesy of FORD MOTOR CO.
Install the rear seat back latches; refer to LATCH-REAR SEAT WITH INTEGRAL CHILD SAFETY SEAT .
Open the rear seat back latches by either pulling the straps or pushing the release buttons.
