Sensor - Front Anti-Lock Brake: Removal

Disconnect the battery ground cable (14301).

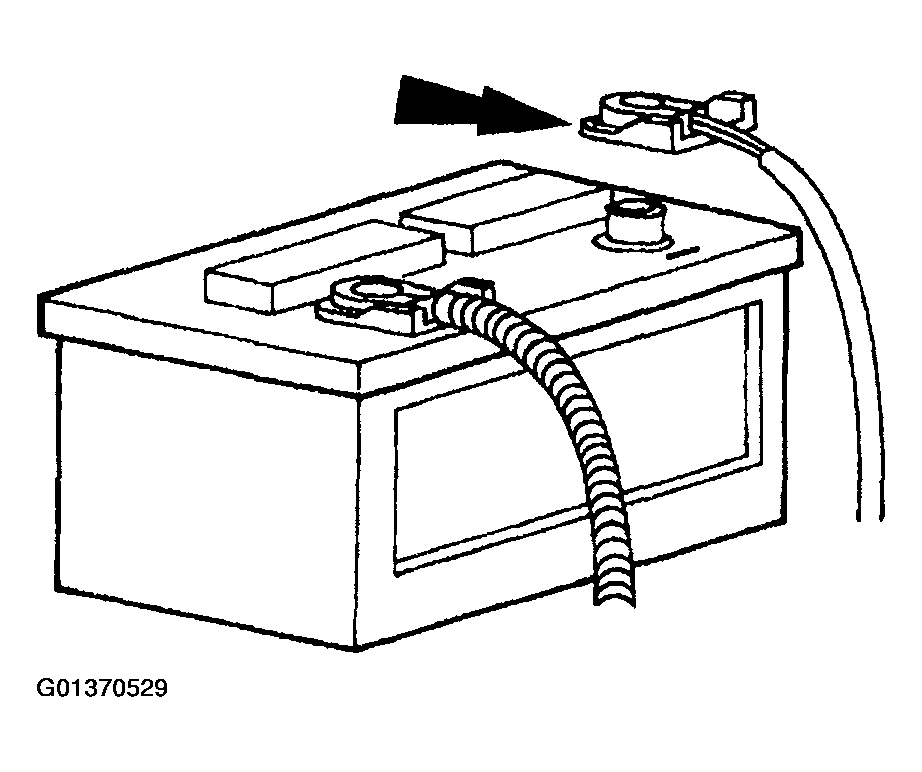

Fig 1: Disconnecting Battery Ground Cable
Courtesy of FORD MOTOR CO.

NOTE: For right hand side access, remove the windshield washer pump and reservoir; refer to REMOVAL AND INSTALLATION .

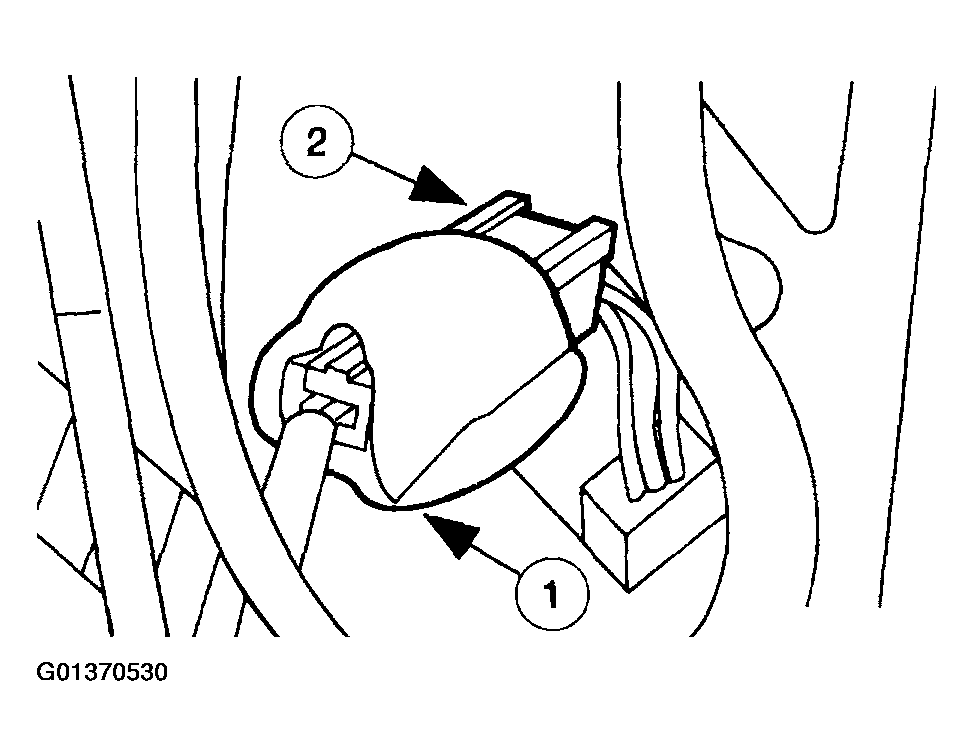

Fig 2: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the front anti-lock brake sensor electrical connector.
1. Peel back the foam insulation.
2. Disconnect the front anti-lock brake sensor electrical connector.
Remove the wheel and tire assembly.
1. Remove the four lug nuts.
2. Remove the wheel and tire assembly.

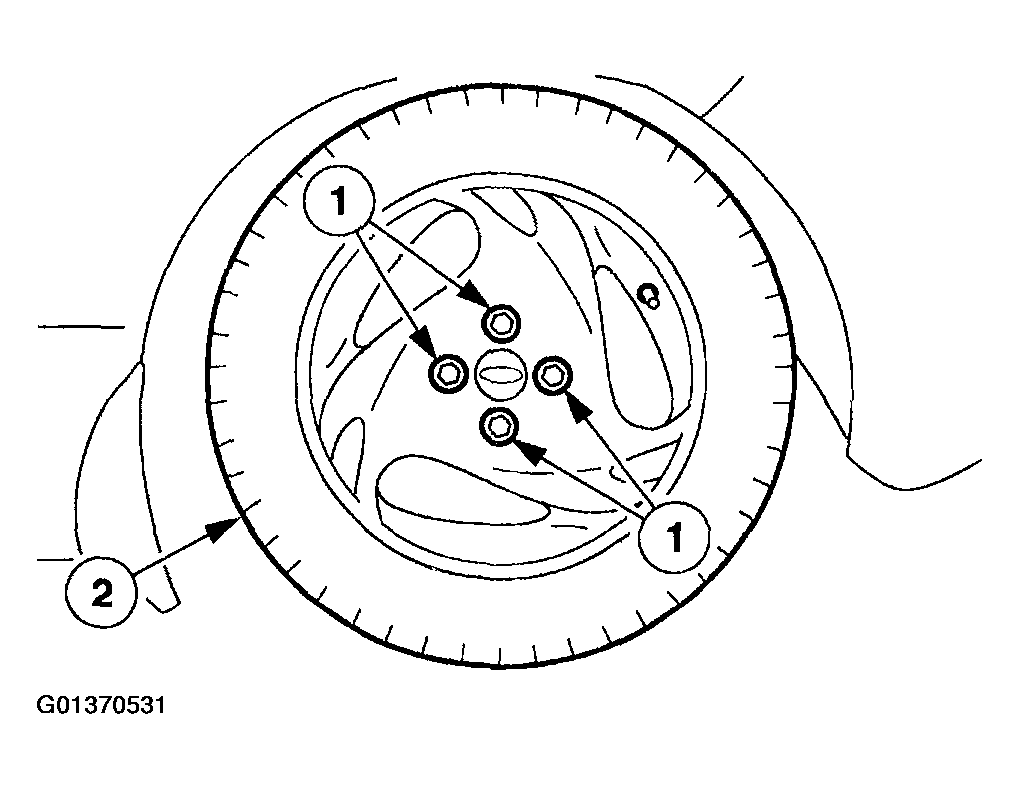

Fig 3: Removing Wheel And Tire Assembly
Courtesy of FORD MOTOR CO.
Remove the upper sensor cable bracket.
1. Remove the bolt.
2. Remove the bracket and cable assembly.

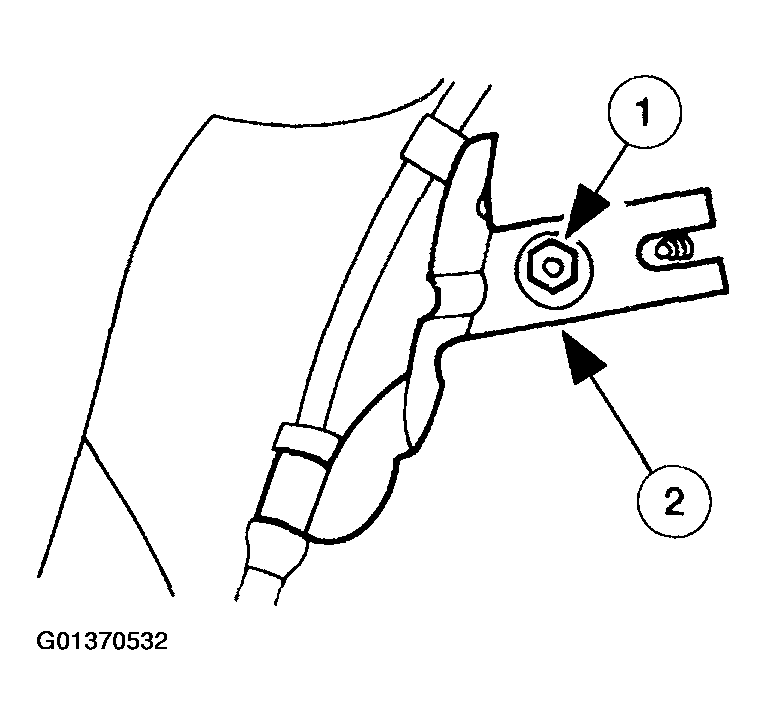

Fig 4: Removing Upper Sensor Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the grommet and pull the sensor cable through the opening.
Remove the front anti-lock brake sensor.
1. Remove the anti-lock cable clamp bolt.
2. Remove the anti-lock cable clamp.
3. Remove the two bolts.
4. Remove the front anti-lock brake sensor.

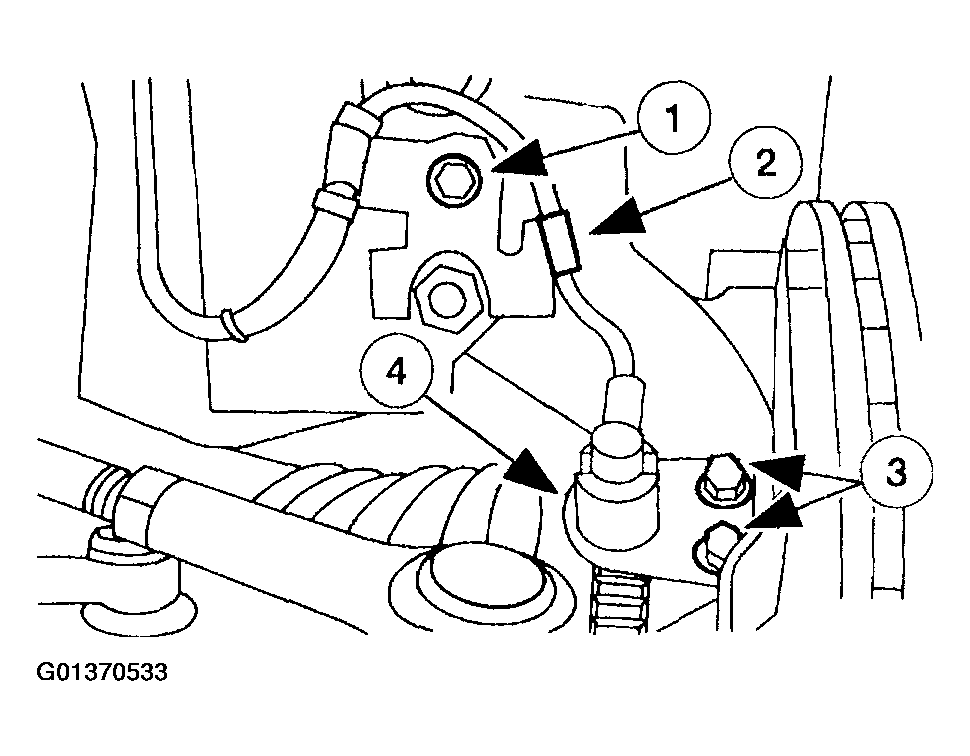

Fig 5: Removing Front Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.
