PCV Tube

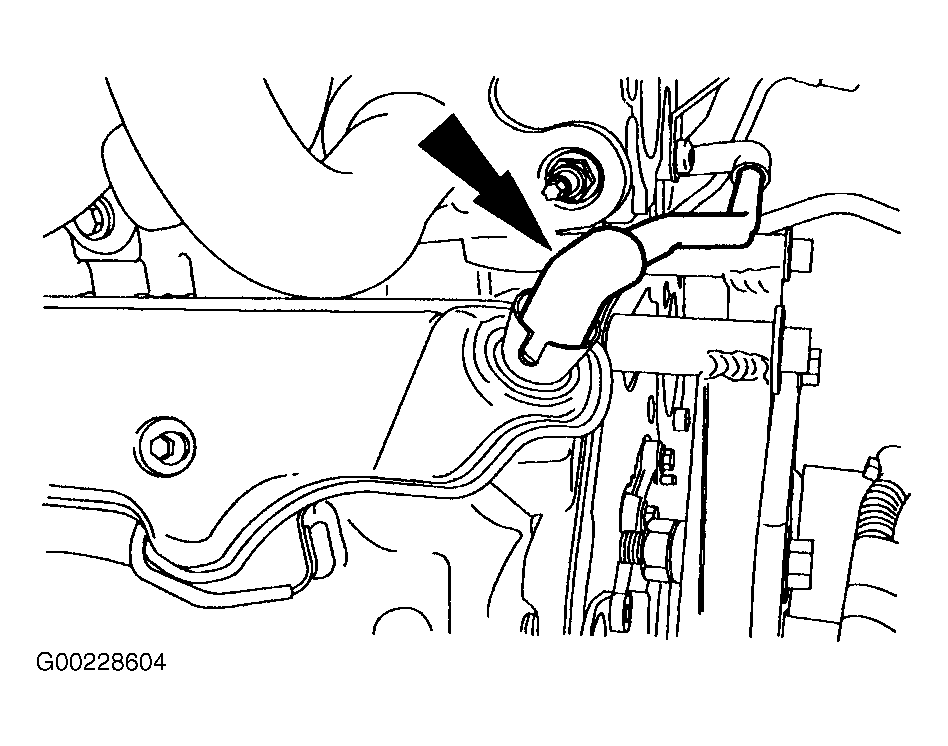

Raise and support vehicle. Drain cooling system. Lower the vehicle. Detach PCV tube from PCV valve, located in crankcase vent oil separator on back of engine. See Fig 1. Disconnect electrical connectors from the water temperature sensor, CMP sensor and the ignition coil. Detach the thermostat housing and secure to one side. Detach PCV tube bracket. Detach the PCV tube from the hose, and remove PCV tube. To install, reverse the removal procedure.
