Front Disc Brake Shield: Installation
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

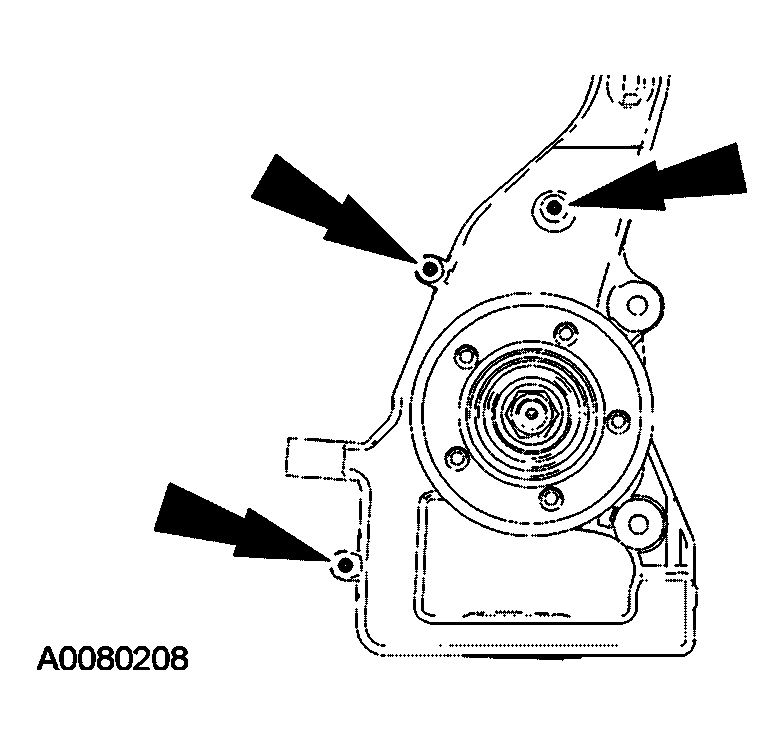

- Drill three 6.35 mm (0.25 in) holes into the wheel knuckle.
- Position the shield onto the wheel knuckle.
- Secure the brake disc shield to the wheel knuckle with three 6.35 mm (0.25 in) rivets (part number W701950-S100).
- Install the brake disc. For additional information, refer to BRAKE DISC .
