Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

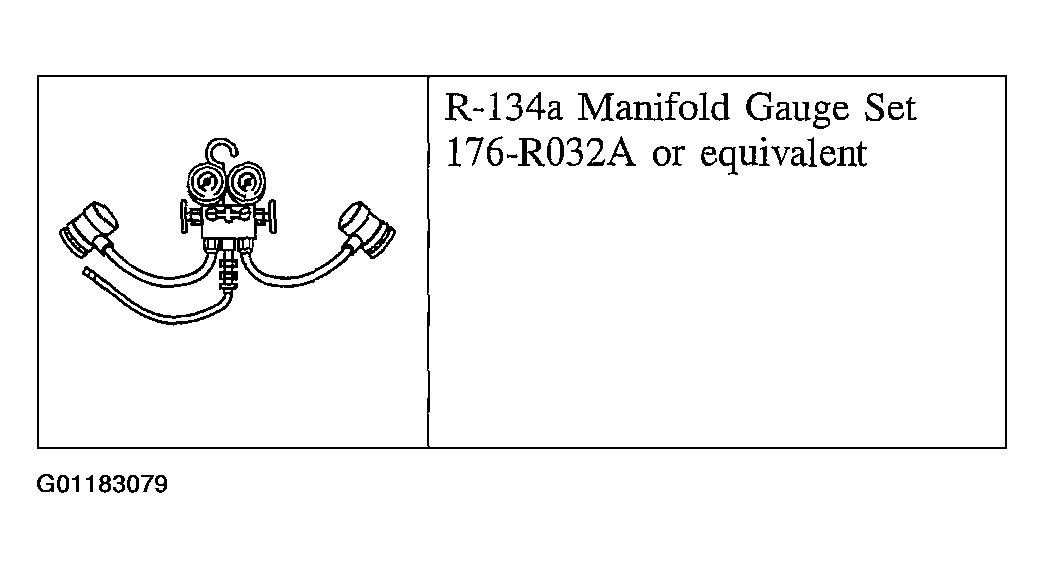

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Turn both valves on the R-134a Manifold Gauge Set clockwise to close the low-and high-pressure to the center manifold and center hose.

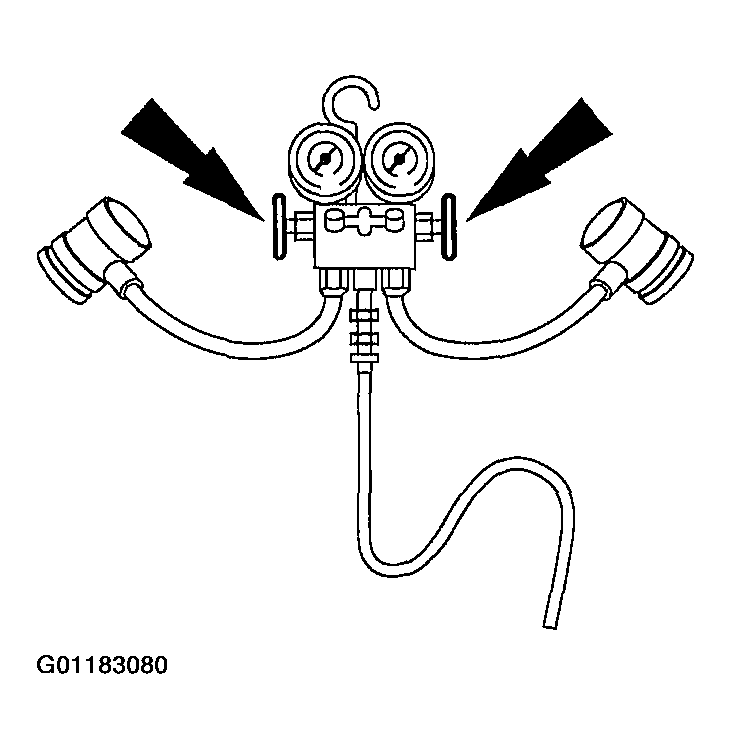

Fig 2: Turning Valves On Manifold Gauge Set
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap from the high-pressure service gauge port valve.

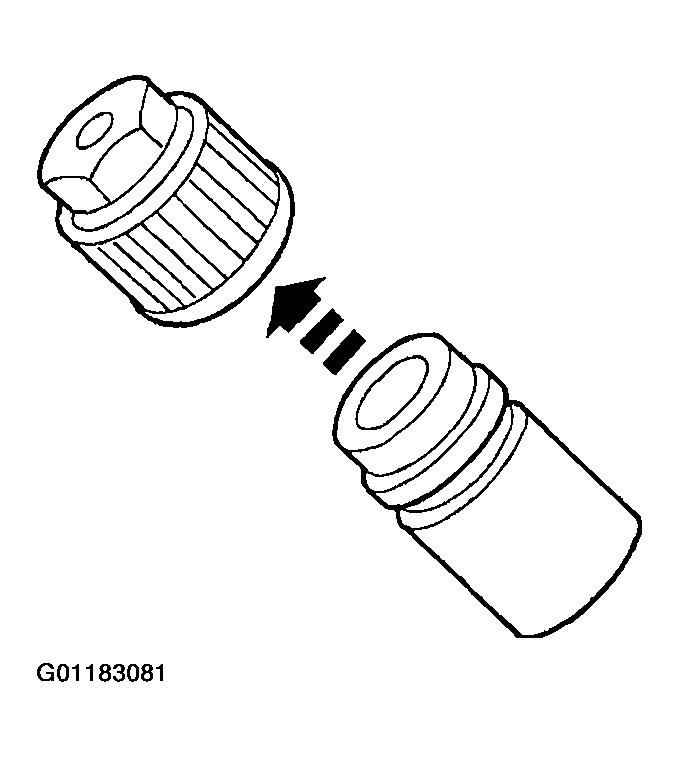

Fig 3: Removing A/C Charging Valve Cap From High-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.

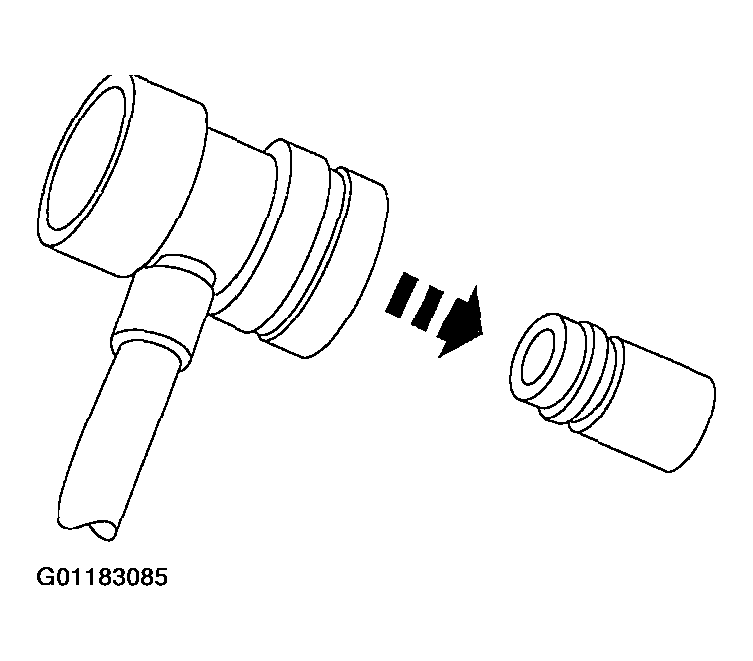

Fig 4: Disconnecting High-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Remove the Screws and the left sight shield.

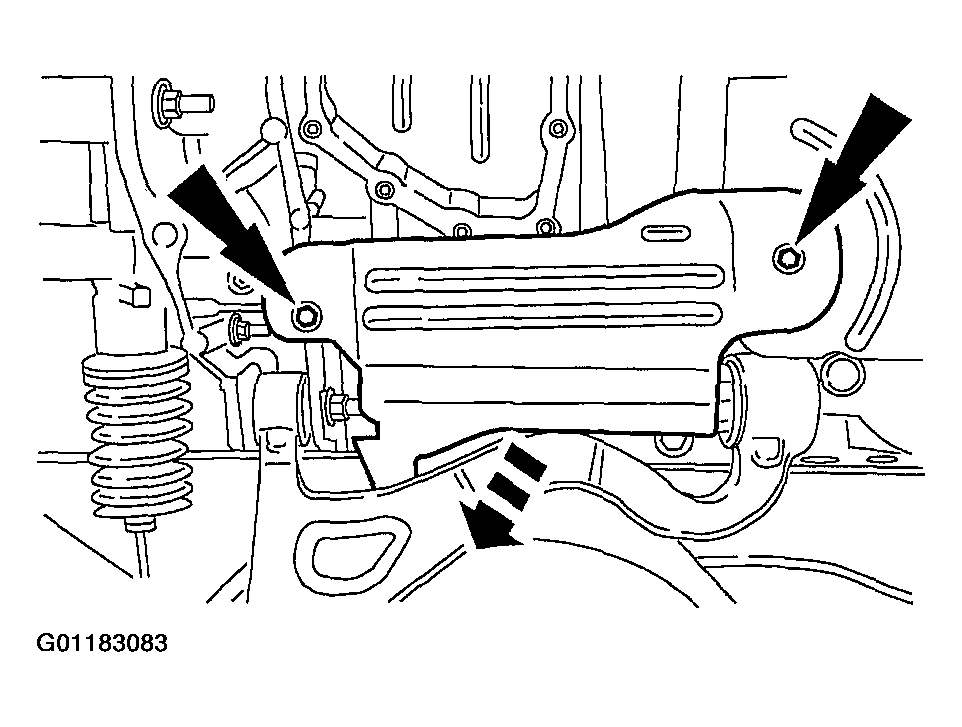

Fig 5: Removing Screws And Left Sight Shield
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap (19D702) from the low-pressure service gauge port valve.

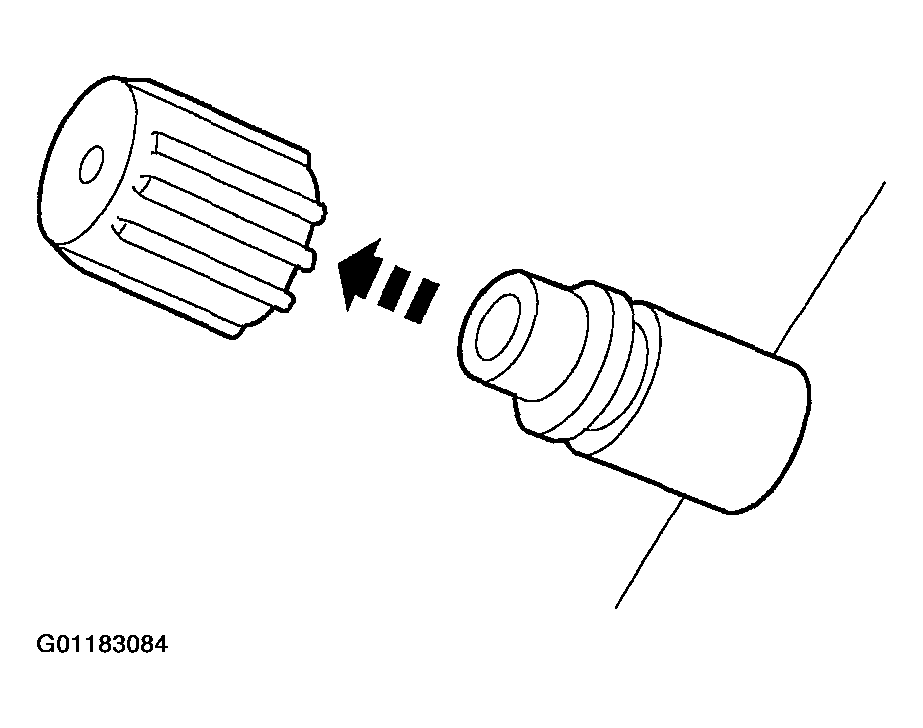

Fig 6: Removing A/C Charging Valve Cap From Low-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.

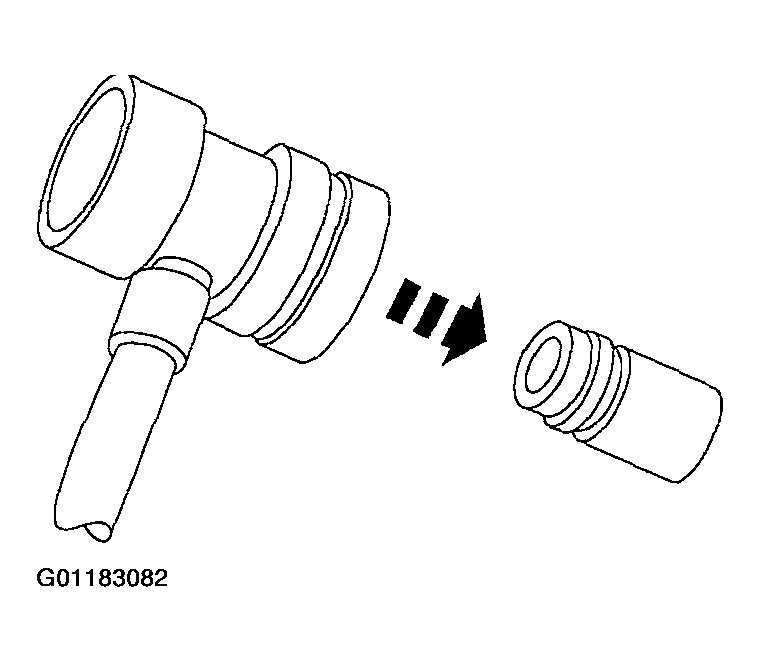

Fig 7: Disconnecting Low-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
To disconnect the manifold and gauge set, reverse the connection procedure.
