Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine air cleaner (ACL) and the outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Depress the tab and remove the accelerator control splash shield.

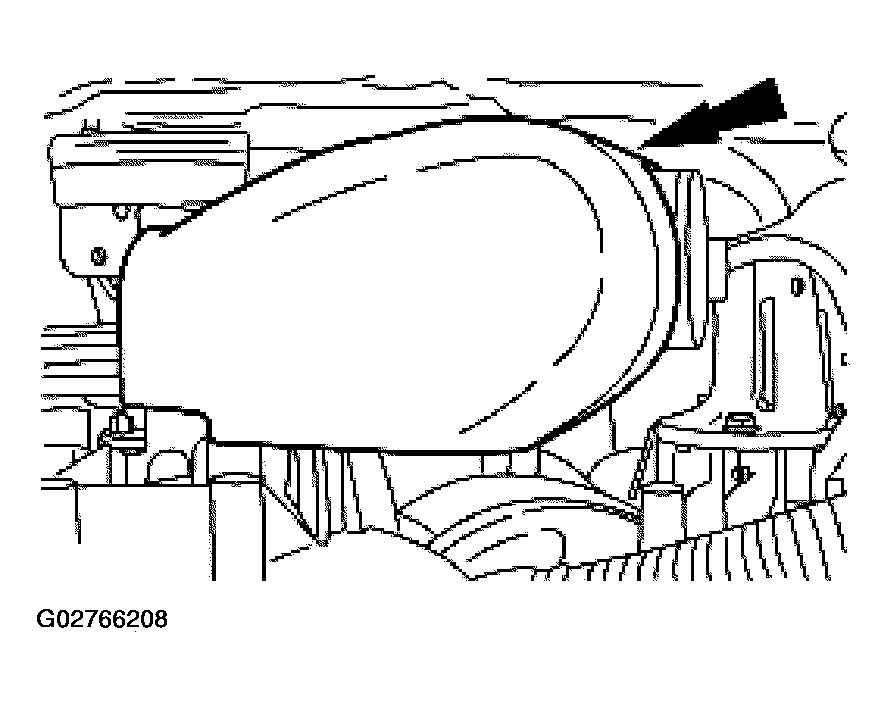

Fig 1: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the cables and spring.
1. Disconnect the accelerator cable.
2. Disconnect the speed control cable.
3. Disconnect and remove the spring.

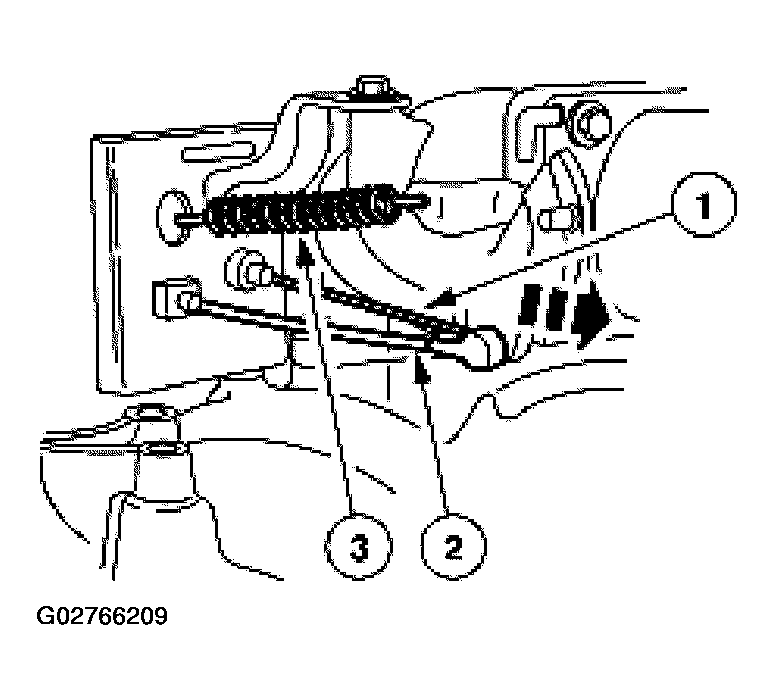

Fig 2: Disconnecting Cables And Spring
Courtesy of FORD MOTOR CO.
Compress the retaining tabs and remove the cables from the bracket.

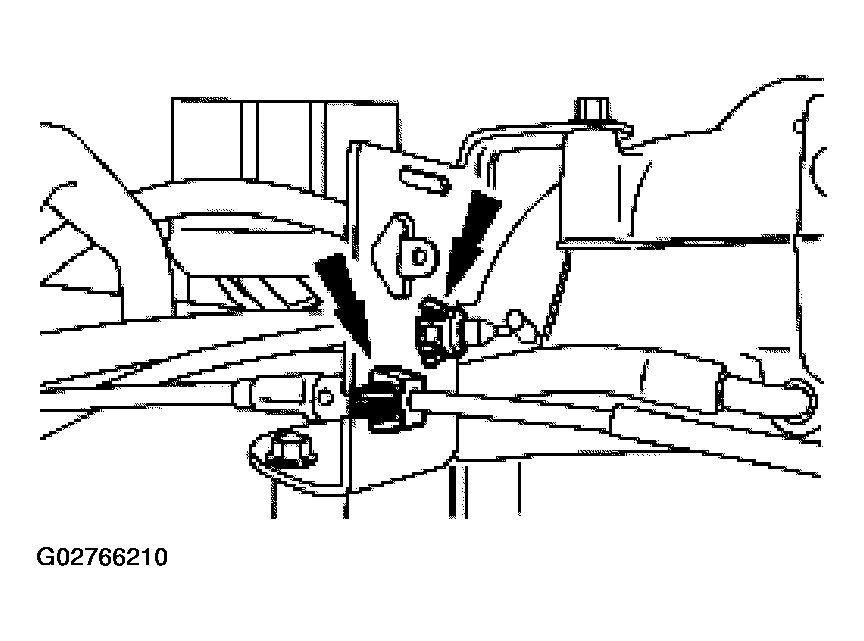

Fig 3: Removing Accelerator Cables From Bracket
Courtesy of FORD MOTOR CO.
Remove the bolts and accelerator cable bracket.

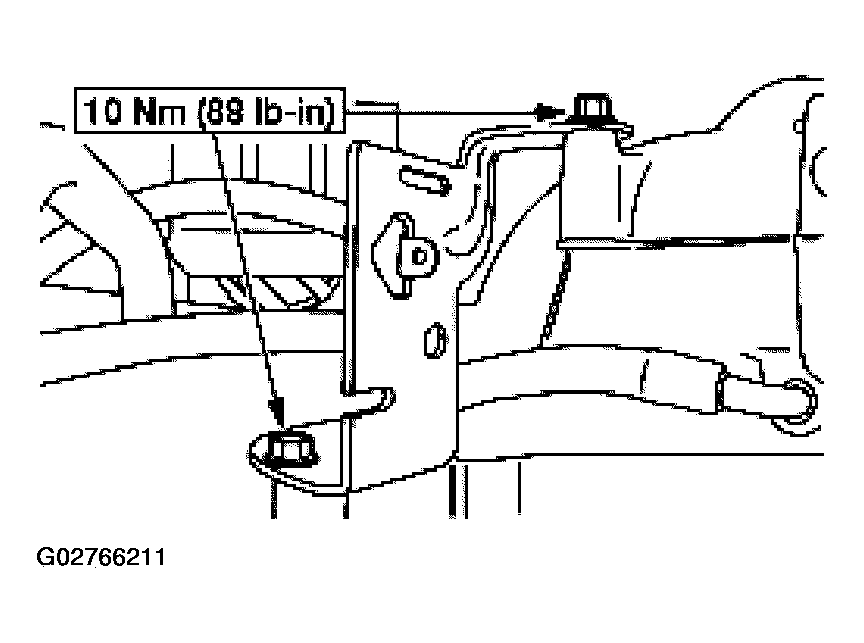

Fig 4: Removing/Installing Accelerator Cable Bracket Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
