Steering System

The power steering system has a typical rack-and-pinion design consisting of the following components:

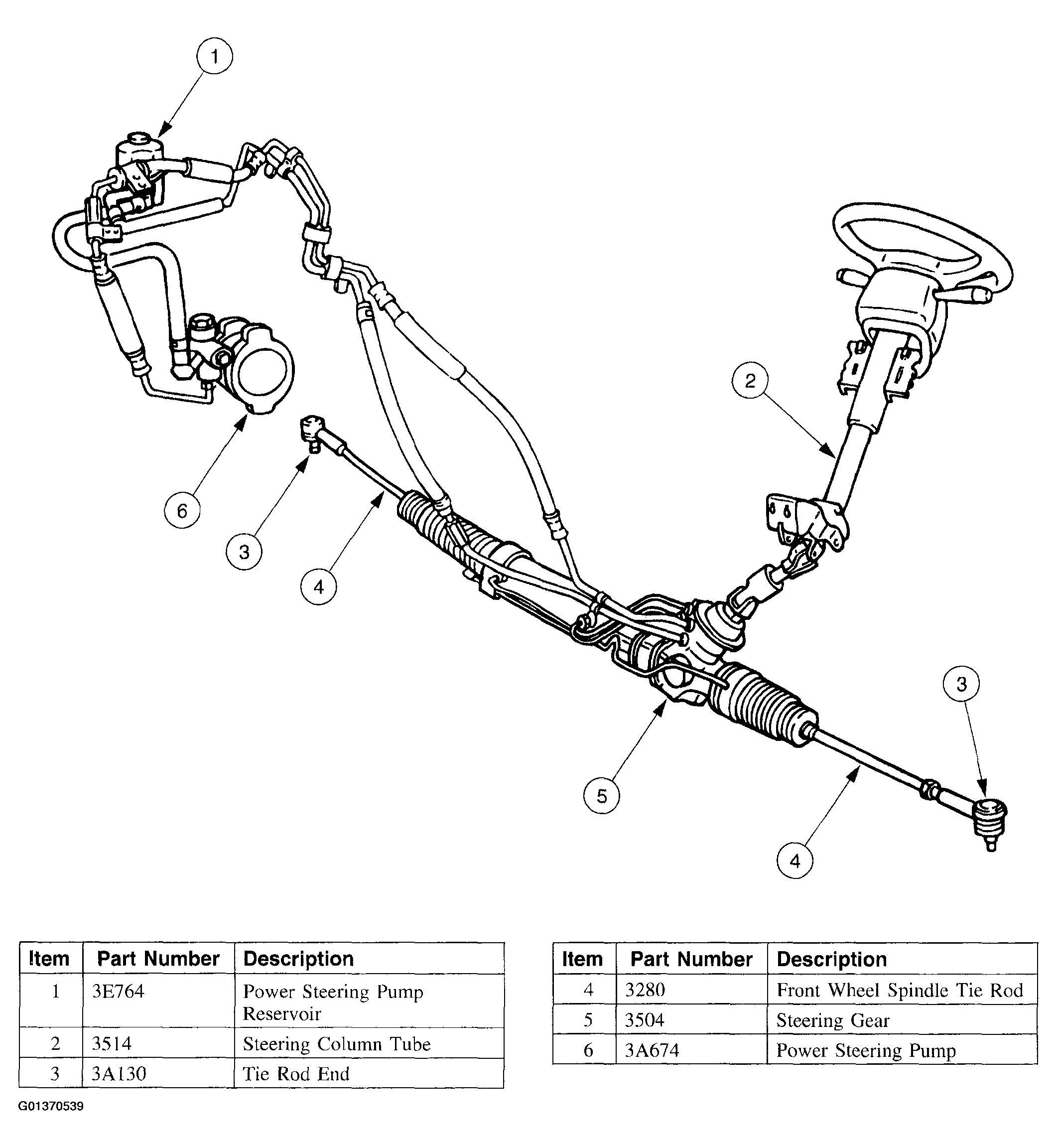

Fig 1: Identifying Steering System Components - Escort/Tracer Sedan/Wagon

Courtesy of FORD MOTOR CO.

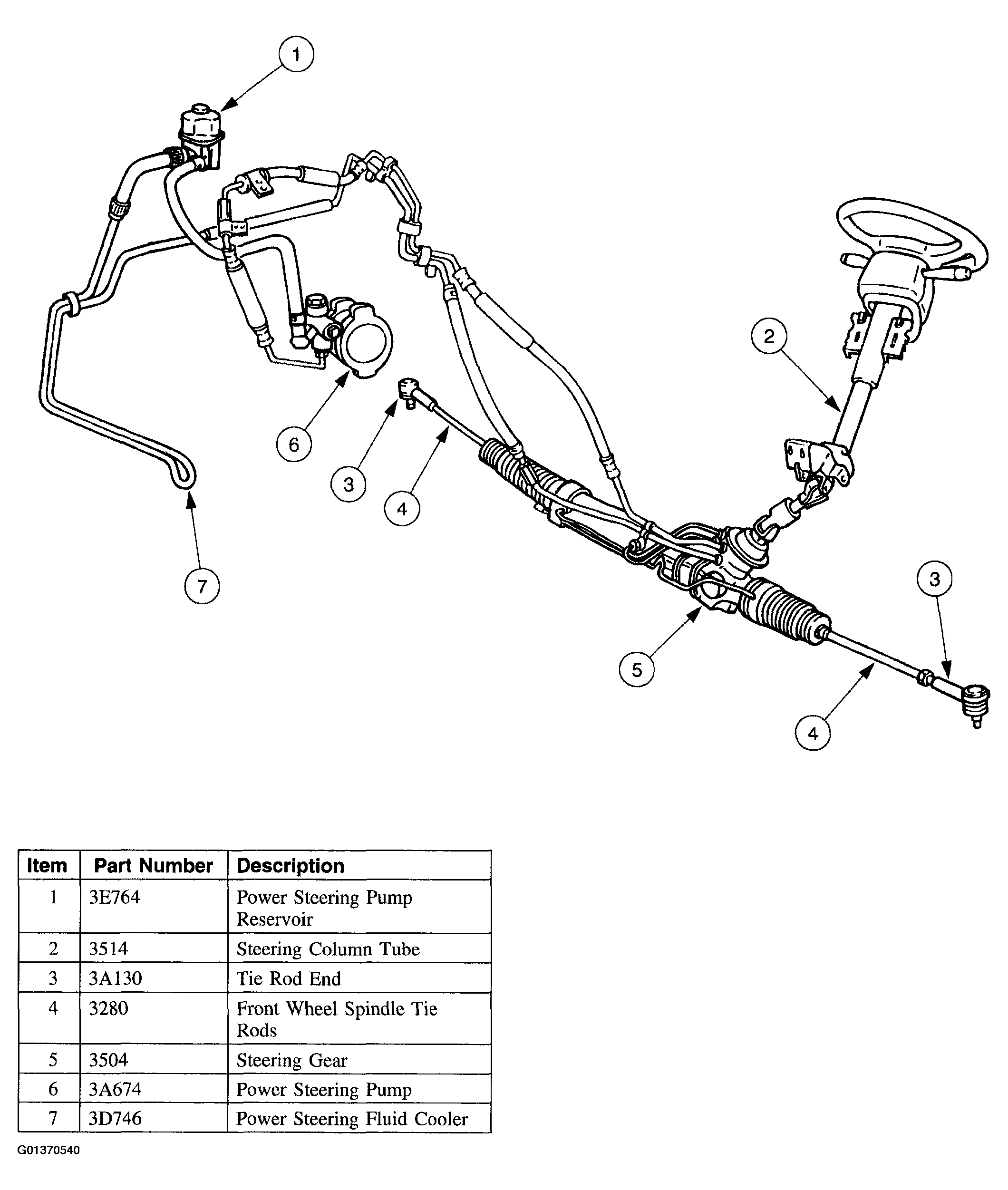

Fig 2: Identifying Steering System Components - Escort Coupe

Courtesy of FORD MOTOR CO.

For information on the power steering pump reservoir (3E764), refer to RESERVOIR .

For information on the steering wheel and column assembly, refer to STEERING COLUMN .

For information on the power steering fluid lines, refer to HOSES .

For information on the power steering pump (3A674), refer to POWER STEERING .

For information on the steering gear (3504), refer to STEERING GEAR .

For information on the tie rod end (3A130), refer to GEAR .

For information on the power steering fluid cooler (3D746), refer to COOLER--ZETEC .
