Ignition Switch Lock Cylinder: Removal

Remove the multi-function switch (13K359); refer to REMOVAL AND INSTALLATION in STEERING COLUMN SWITCHES - ZX2 article.

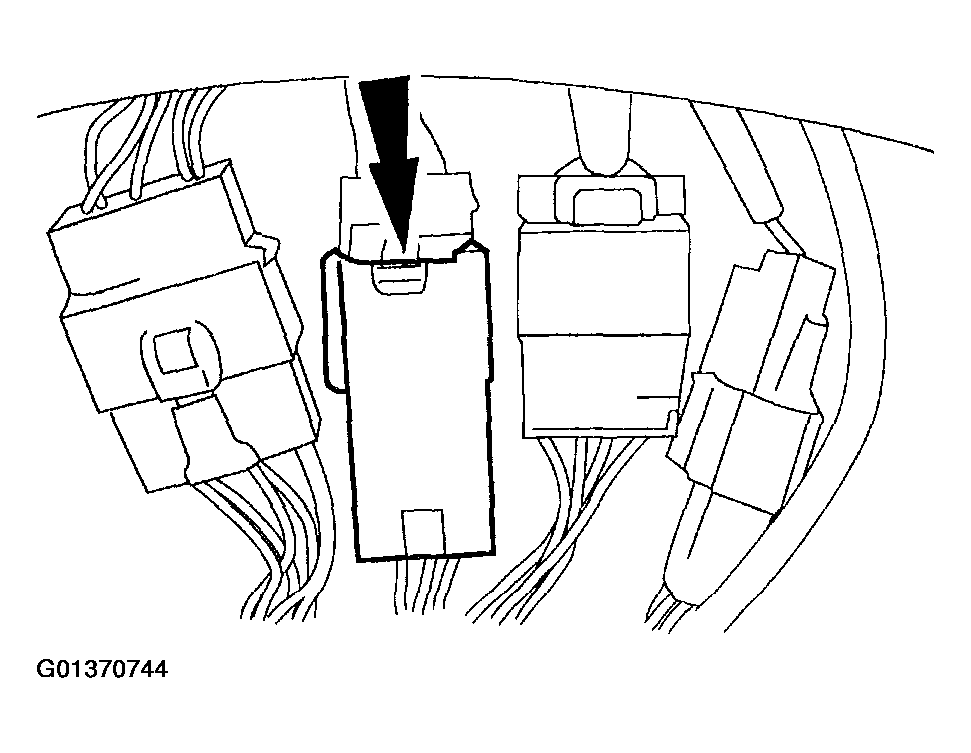

Disconnect the ignition switch electrical connector.

Fig 1: Disconnecting Ignition Switch Electrical Connector
Courtesy of FORD MOTOR CO.

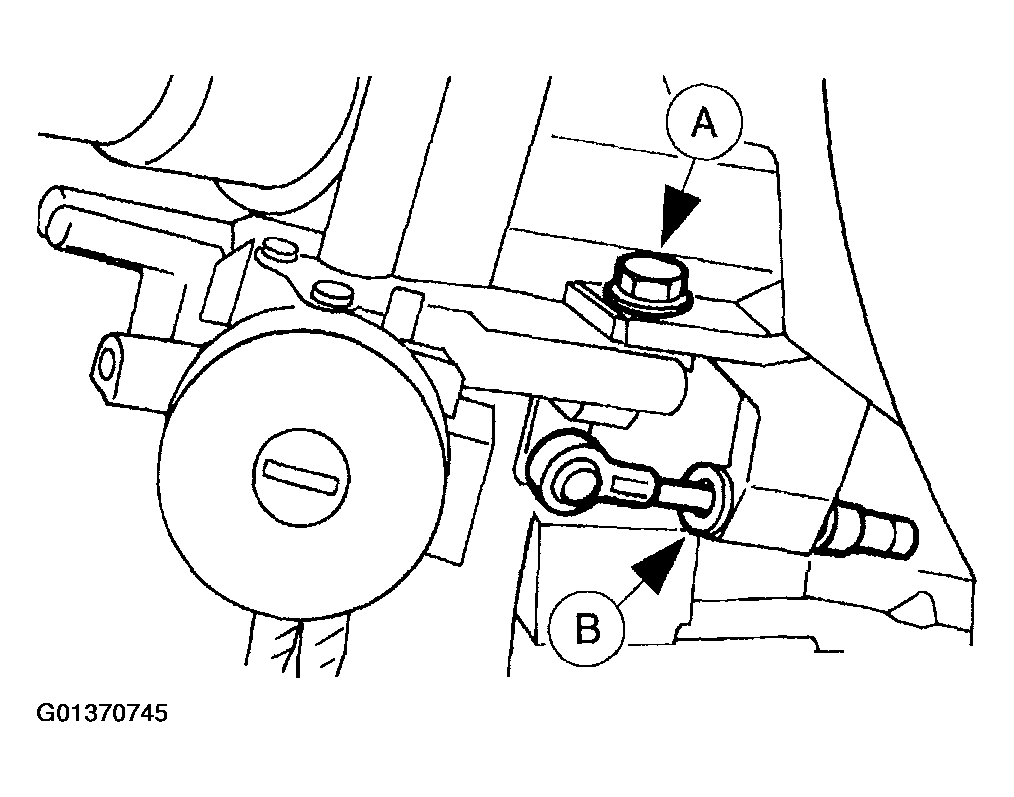

Remove the (A) bolt and position the (B) bracket and ignition/shifter interlock cable (3F719) aside.

Fig 2: Removing Ignition/Shifter Interlock Cable & Bracket Bolt
Courtesy of FORD MOTOR CO.

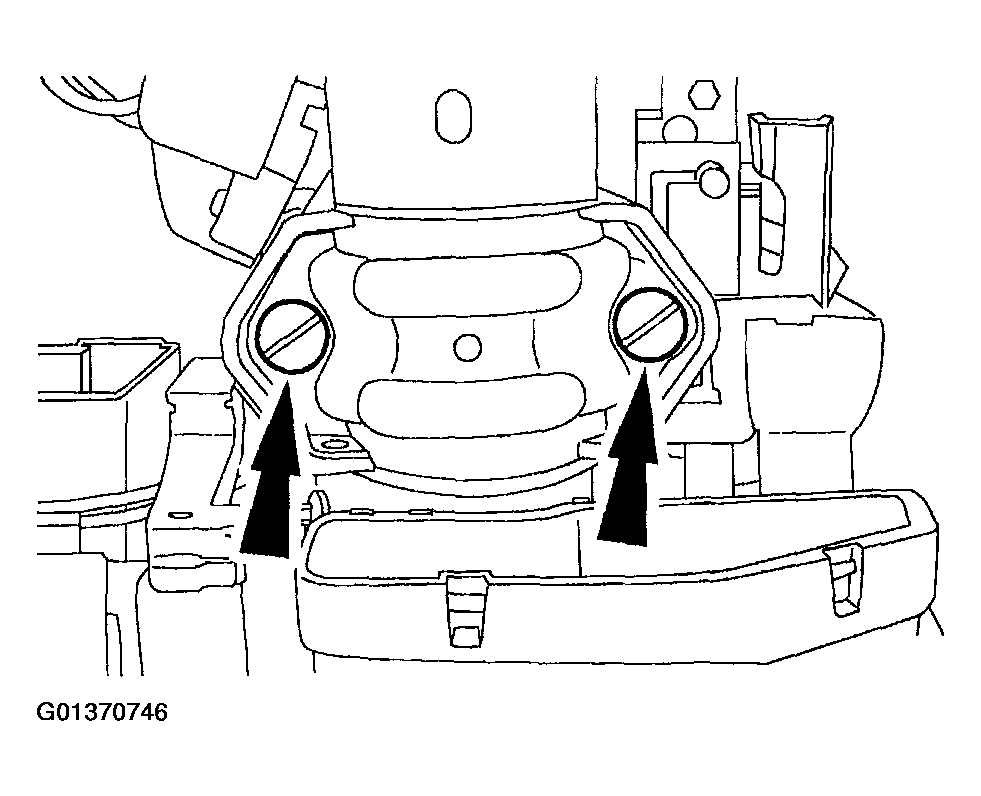

Groove the heads of the break-away bolts with a hammer and chisel.

Fig 3: Grooving Brake-Away Bolt Heads
Courtesy of FORD MOTOR CO.

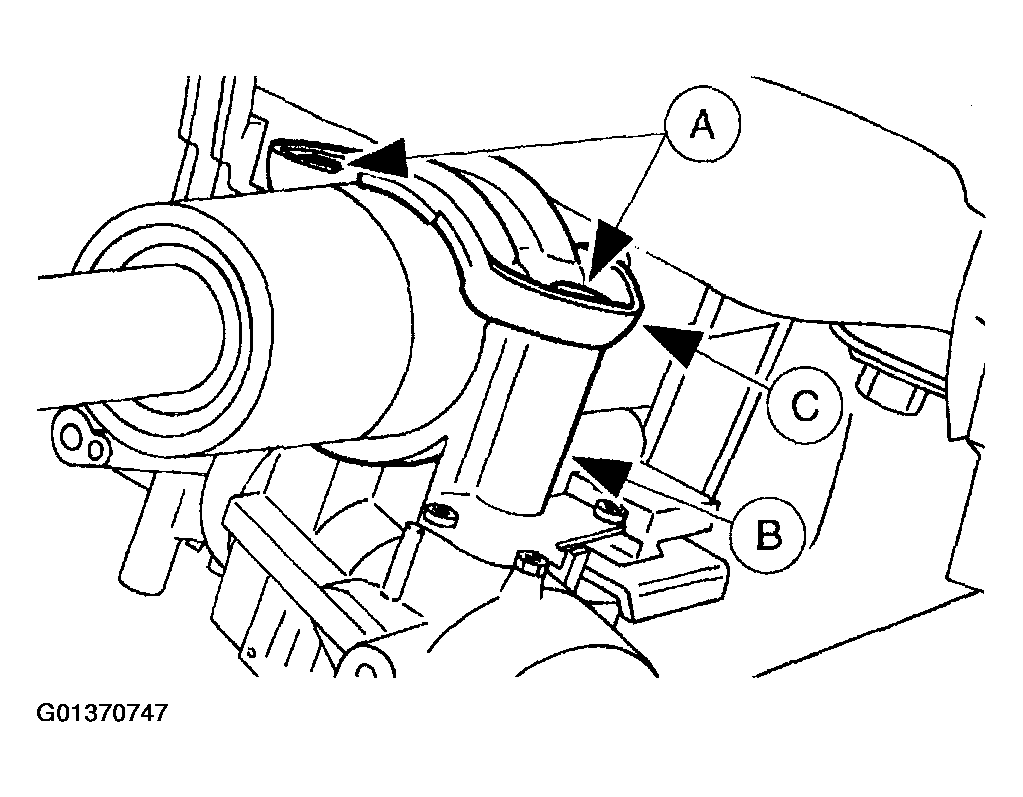

Remove the (A) break-away bolts, the (B) ignition switch lock cylinder (22050), and the (C) bracket.
- Discard the break-away bolts.
Fig 4: Removing Brake-Away Bolts
Courtesy of FORD MOTOR CO.
