Gearshift Stabilizer Bar: Installation

  1. To install, reverse the removal procedure.

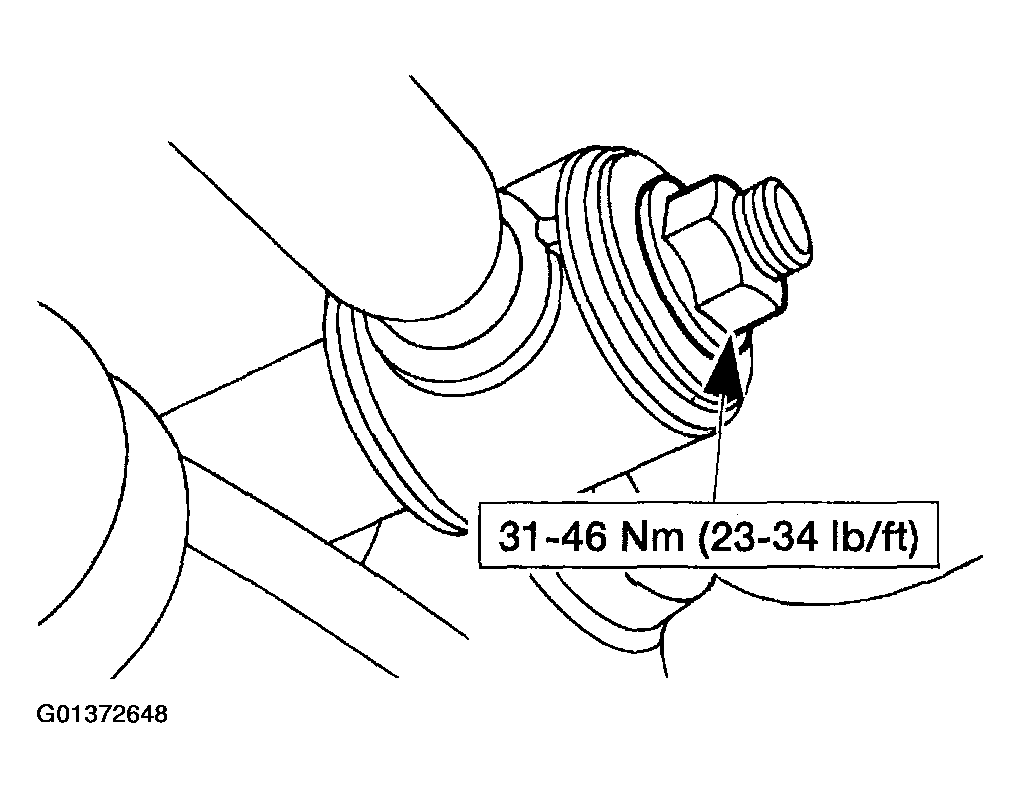

    Fig 1: Installing Stabilizer Bar And Support Nut
    G01372648Courtesy of FORD MOTOR CO.

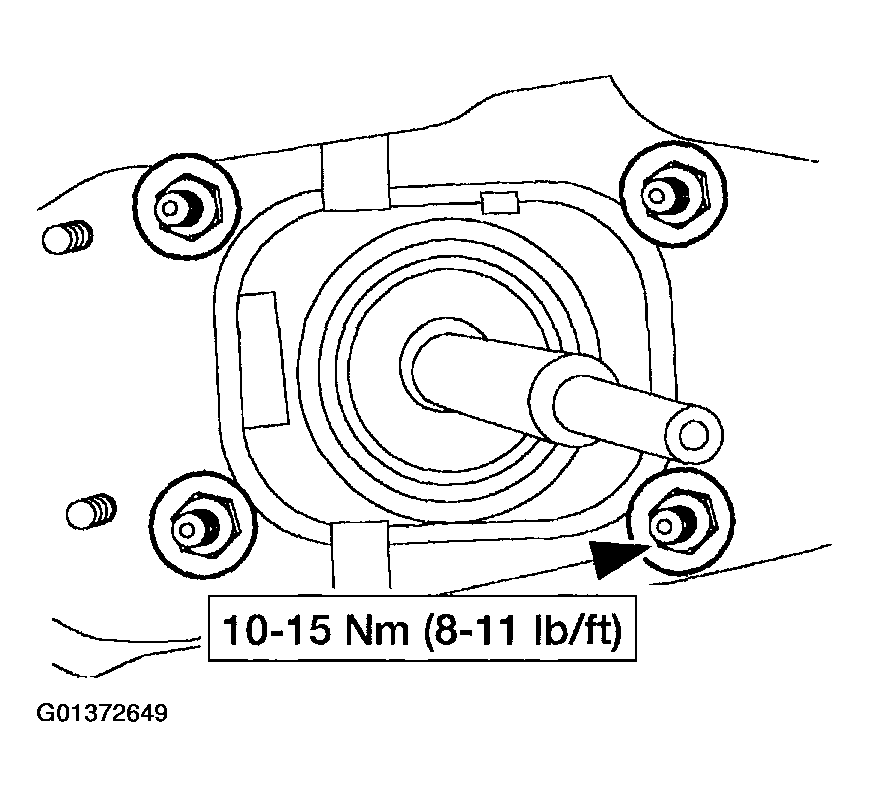

    Fig 2: Installing Stabilizer Support Nuts
    G01372649Courtesy of FORD MOTOR CO.
