Shift Lever - Boot: Removal

NOTE: Zetec shown, S/R series similar

Turn the knob in a counterclockwise direction and remove the gearshift lever knob.

Fig 1: Removing Gearshift Lever Knob
Courtesy of FORD MOTOR CO.
Remove the floor console; refer to INSTRUMENT PANEL AND CONSOLE .
Remove the screws and the gearshift lever boot (7277).

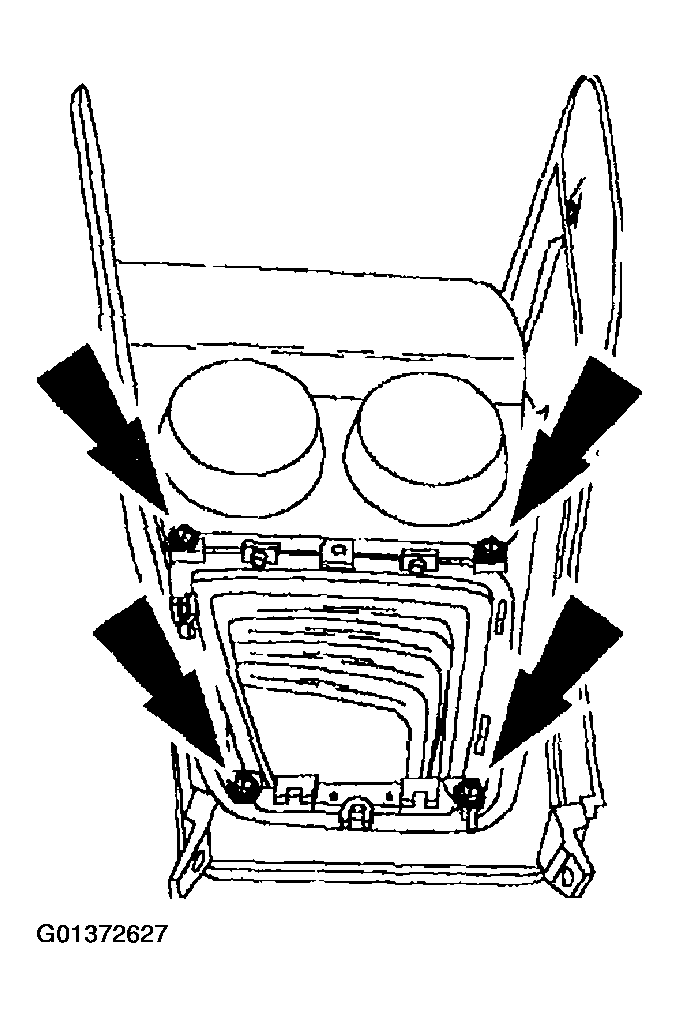

Fig 2: Removing Gearshift Lever Boot
Courtesy of FORD MOTOR CO.
