Shift Lever: Installation

To install, reverse the removal procedure.

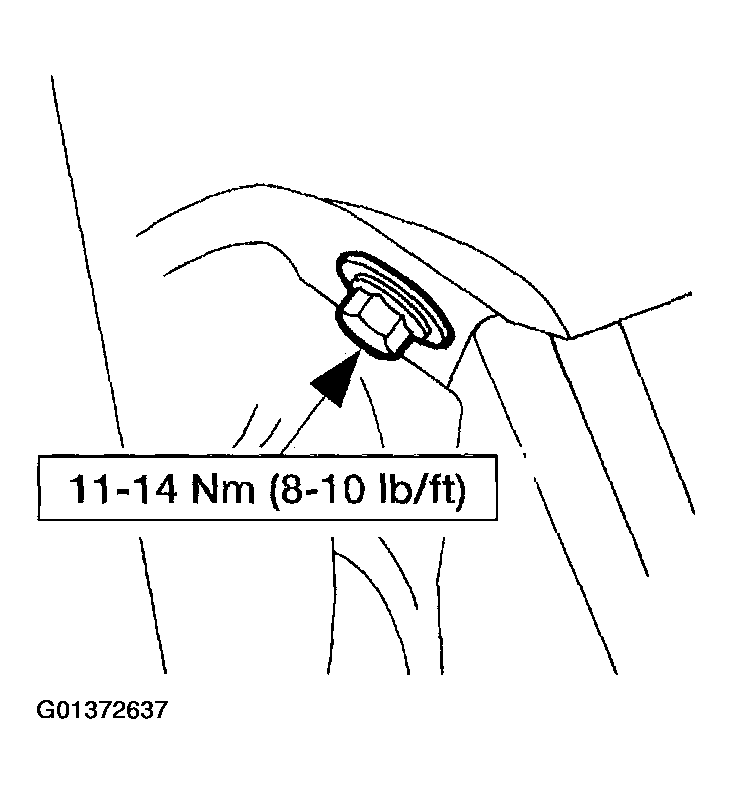

Fig 1: Installing Transmission Gearshift Rod-To-Shift Lever Nut
Courtesy of FORD MOTOR CO.

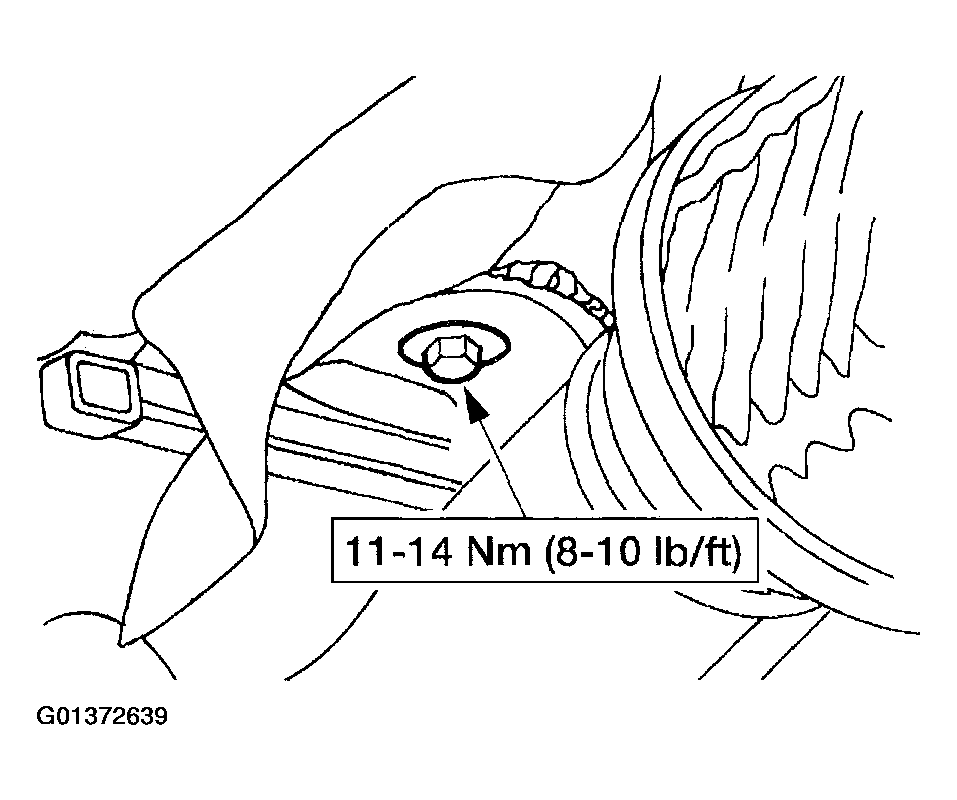

Fig 2: Installing Heat Shield Rear Bolt
Courtesy of FORD MOTOR CO.

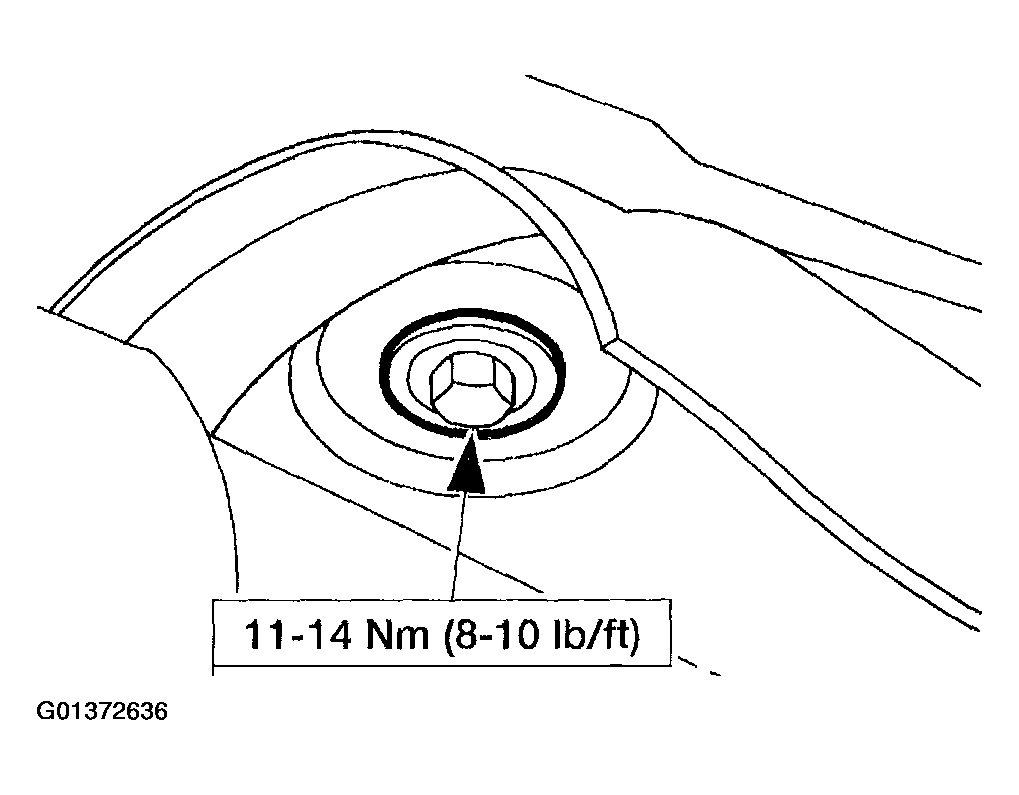

Fig 3: Installing Heat Shield Rear (LH) Bolt
Courtesy of FORD MOTOR CO.

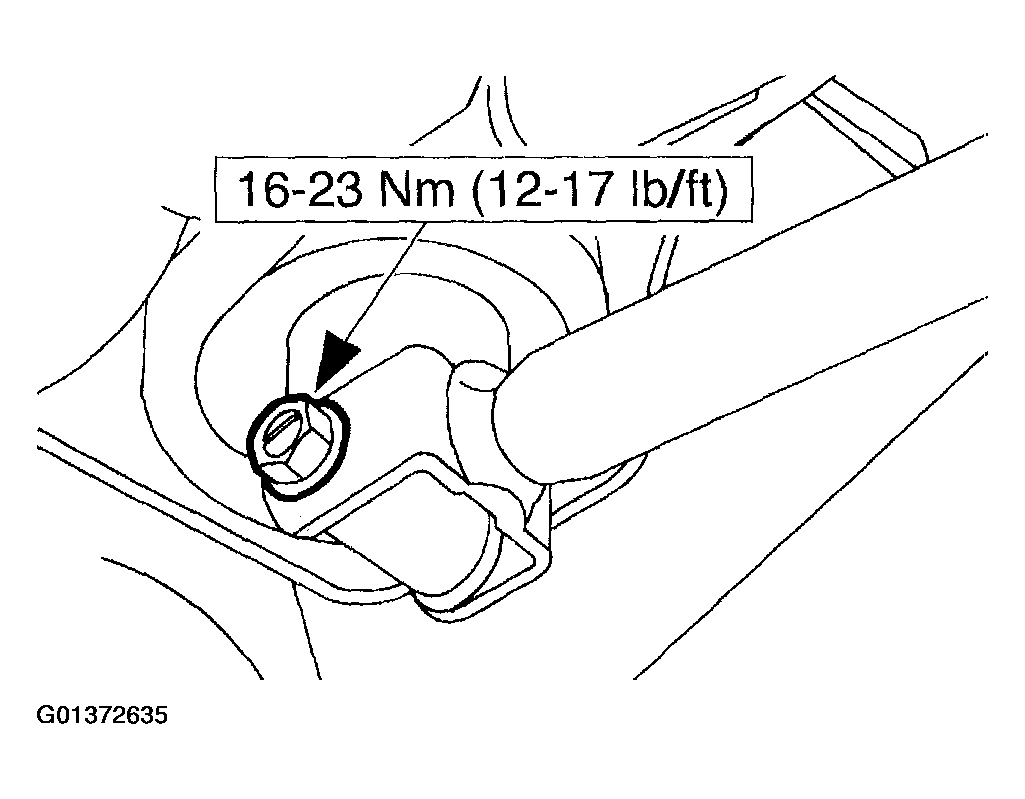

Fig 4: Installing Heat Shield Middle (RH) Bolt
Courtesy of FORD MOTOR CO.

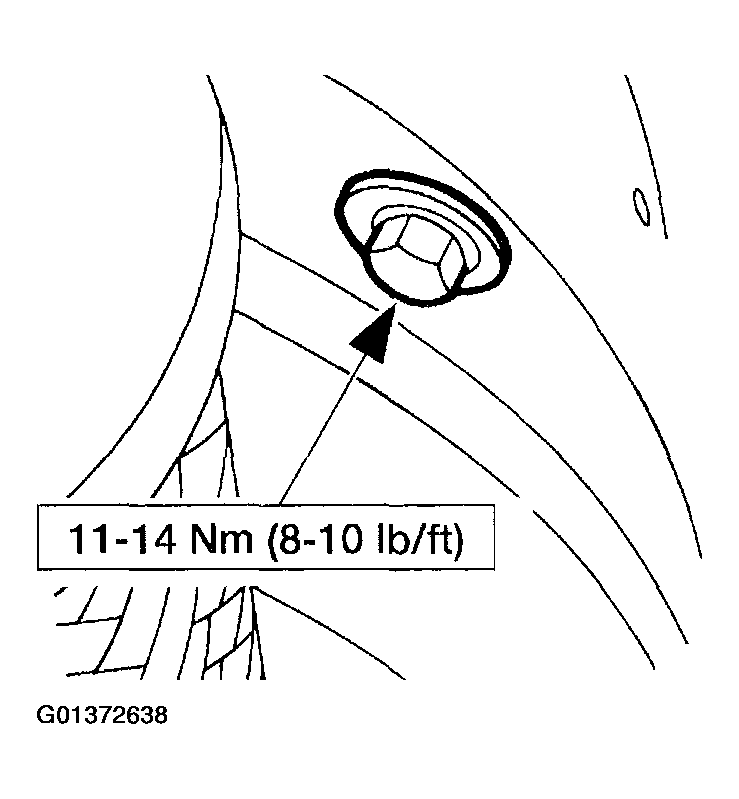

Fig 5: Installing Heat Shield Front (RH) Bolt
Courtesy of FORD MOTOR CO.
