Shift Linkage: Notes

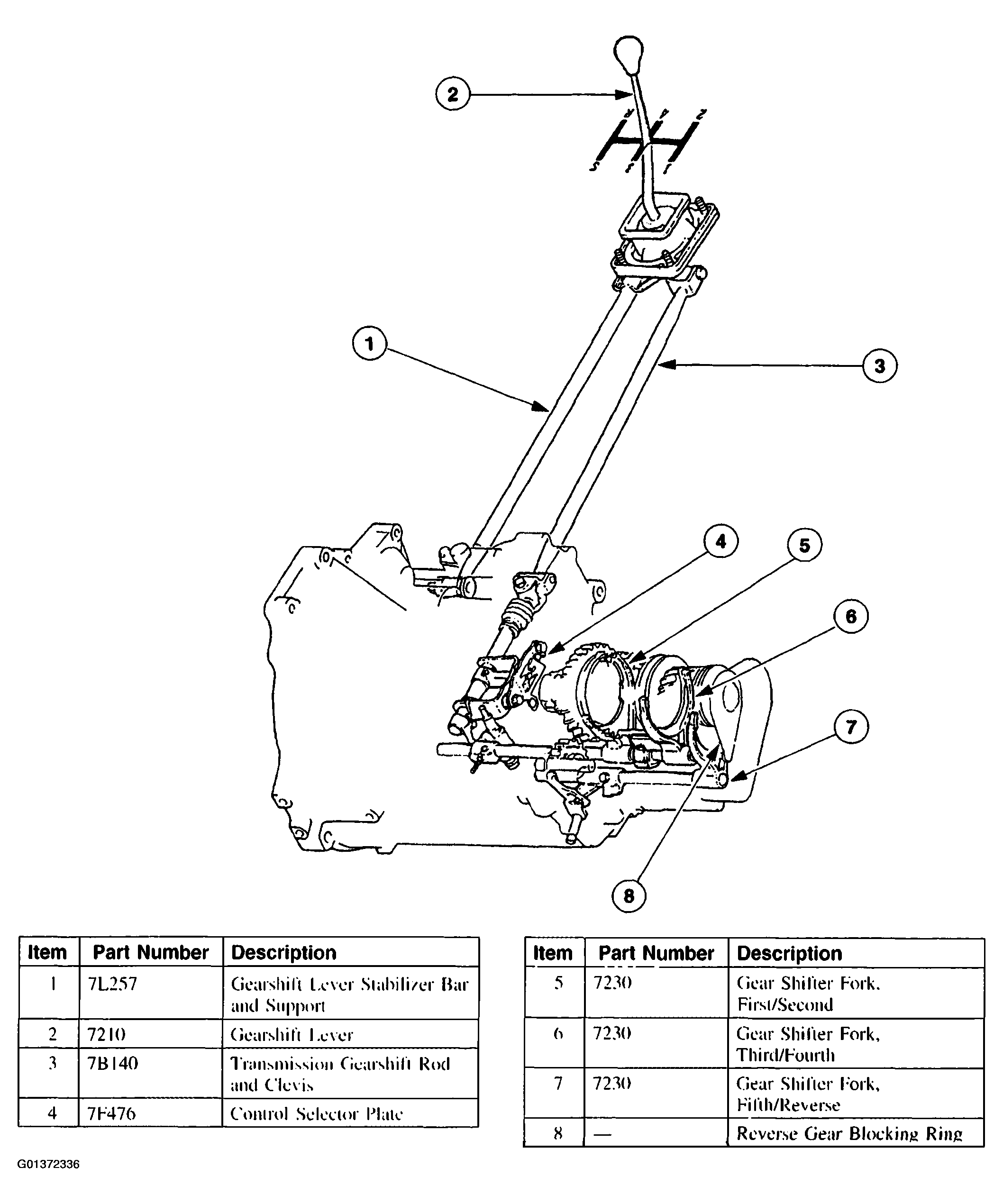

Fig 1: Identifying Shift Linkage Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
