Input Shaft: Assembly

NOTE: Whenever a bearing has been removed, it must be replaced with a new one.

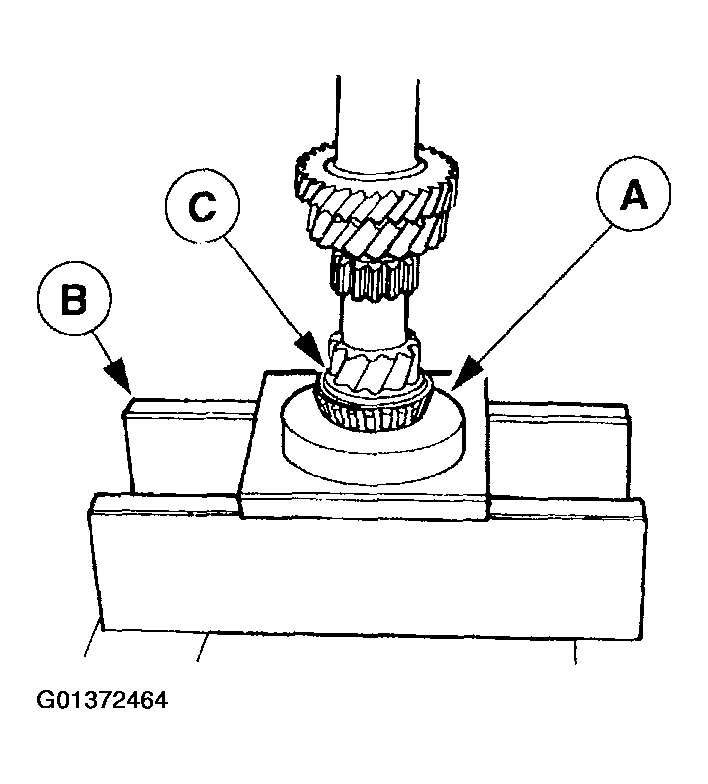

Fig 1: Pressing On Bearing

Courtesy of FORD MOTOR CO.

Use an arbor press, Shaft Protector, (A) Bearing Cone Replacer, and (B) Axle Bearing/Seal Plate to press on the (C) bearing (third gear side).
Install the third gear.

NOTE: When installing the synchronizer blocking ring, align the synchronizer blocking ring groove and synchronizer hub inserts.

NOTE: Be sure to have the ridge facing the third gear when installing the synchronizer hub assembly.

NOTE: Ensure that the four oil grooves in the synchronizer hub are facing the third gear.

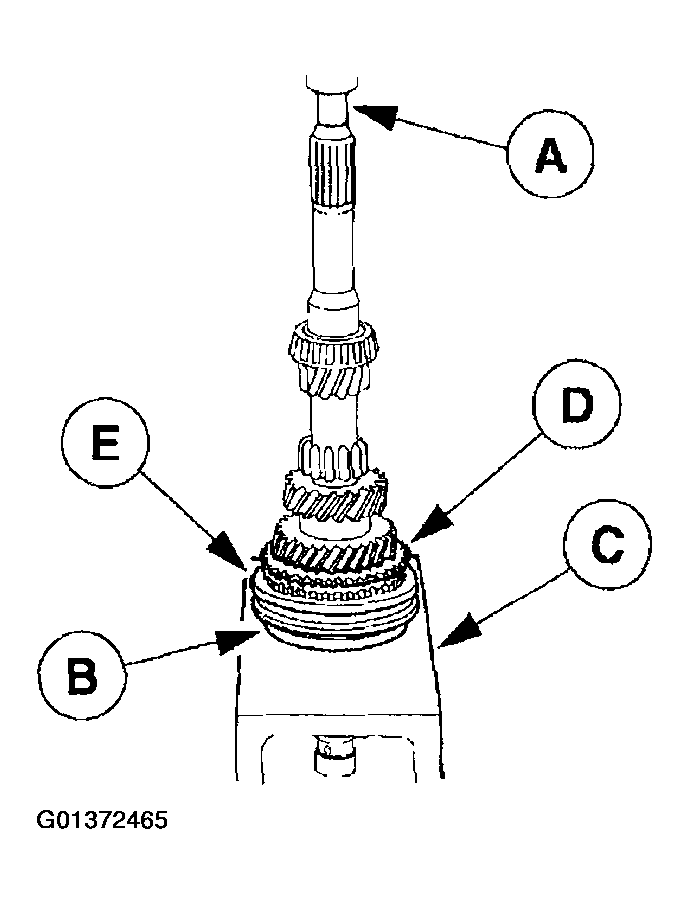

Fig 2: Installing Synchronizer Blocking Ring And Synchronizer Hub Assembly

Courtesy of FORD MOTOR CO.

Use an arbor press, (A) Shaft Protector, (B) Bearing Cone Replacer and (C) Axle Bearing/Seal Plate to press on the (D) synchronizer blocking ring and (E) synchronizer hub assembly.
Install the snap ring.

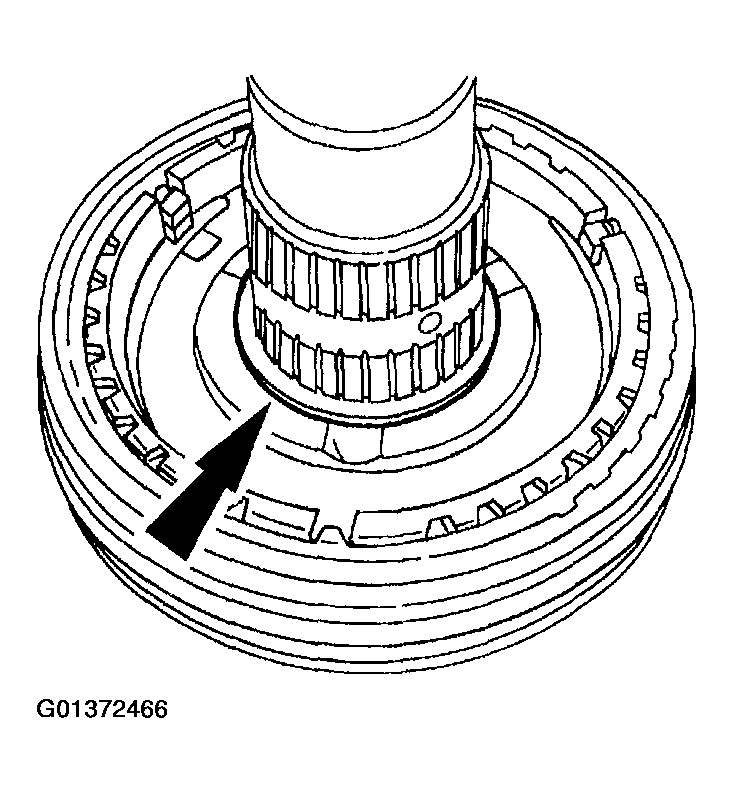

Fig 3: Installing Snap Ring
Courtesy of FORD MOTOR CO.

NOTE: When installing the synchronizer blocking ring, align the synchronizer blocking ring groove and synchronizer hub inserts.

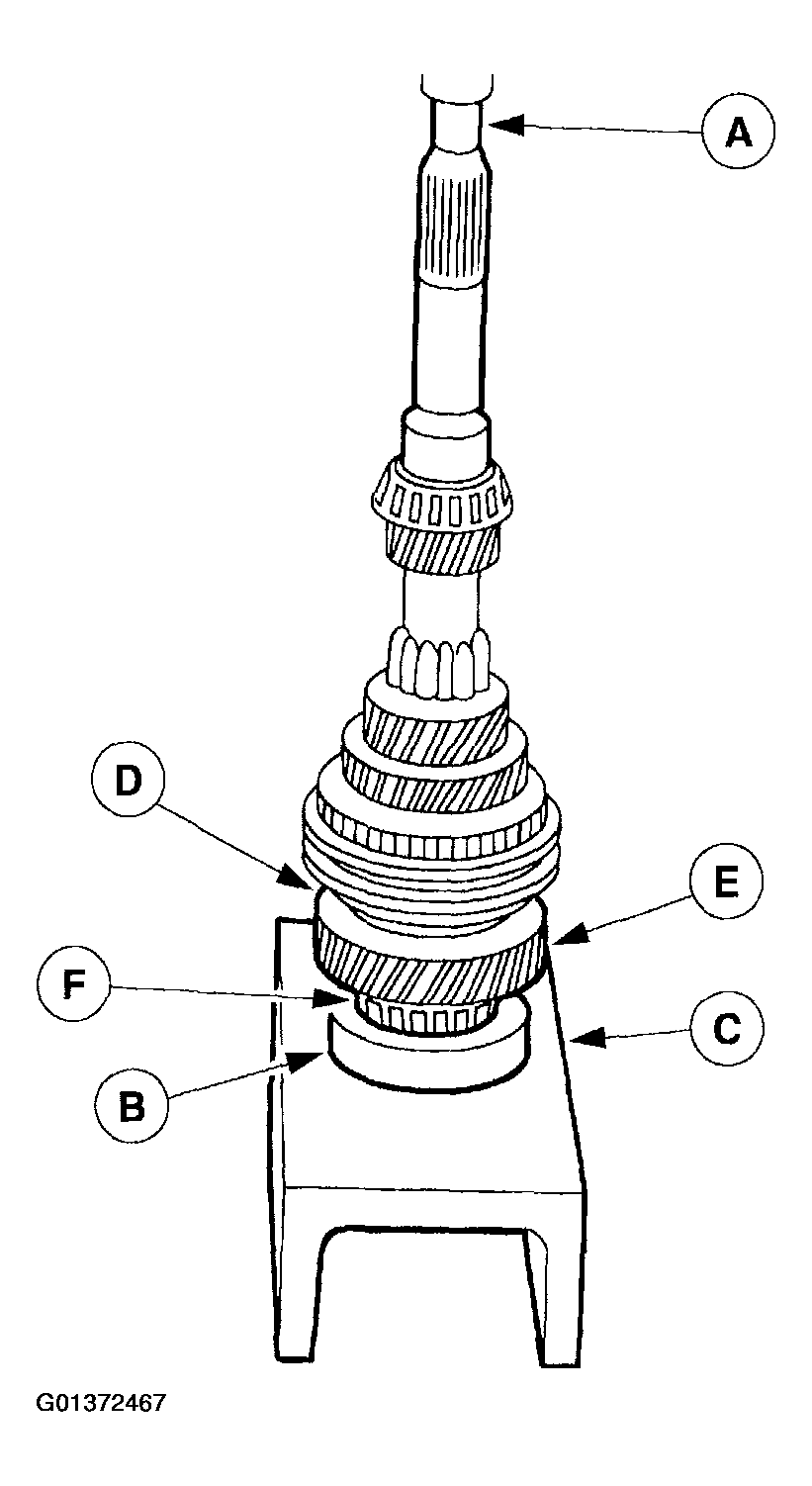

Fig 4: Installing Synchronizer Blocking Ring, Fourth Gear, And Bearing

Courtesy of FORD MOTOR CO.

Use an arbor press, (A) Shaft Protector, (B) Bearing Cone Replacer, and (C) Axle Bearing/Seal Plate to press on the (D) synchronizer blocking ring, (E) fourth gear, and the (F) bearing.

NOTE: If not within specifications, disassemble and reassemble the input shaft assembly.

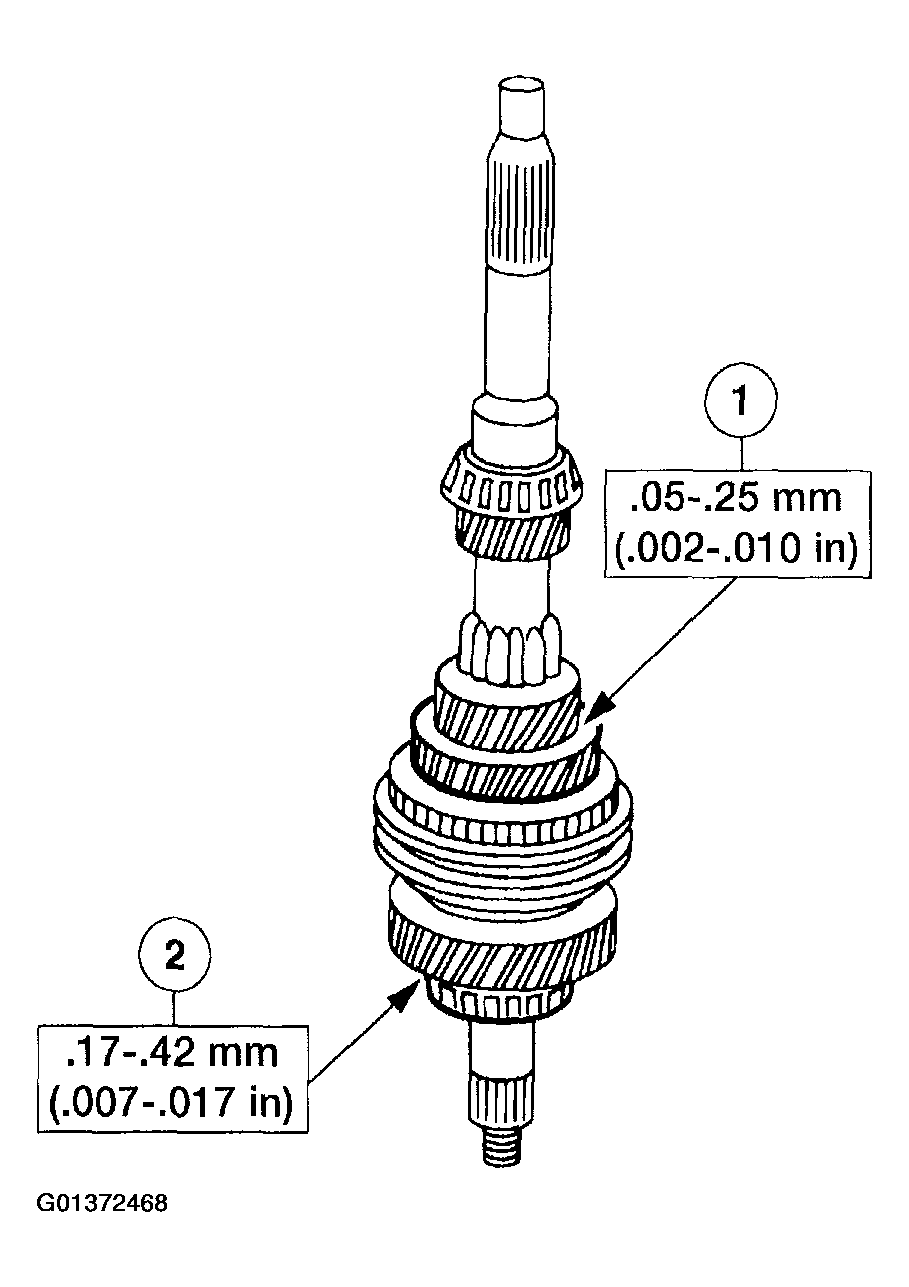

Fig 5: Measuring Input Shaft Clearances

Courtesy of FORD MOTOR CO.

Measure the input shaft clearances.
1. Measure the clearance between the third and second gears.
2. Measure the clearance between the fourth gear and the bearing cone.
