Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

NOTE: Align the index marks during assembly. Assemble the synchronizer.

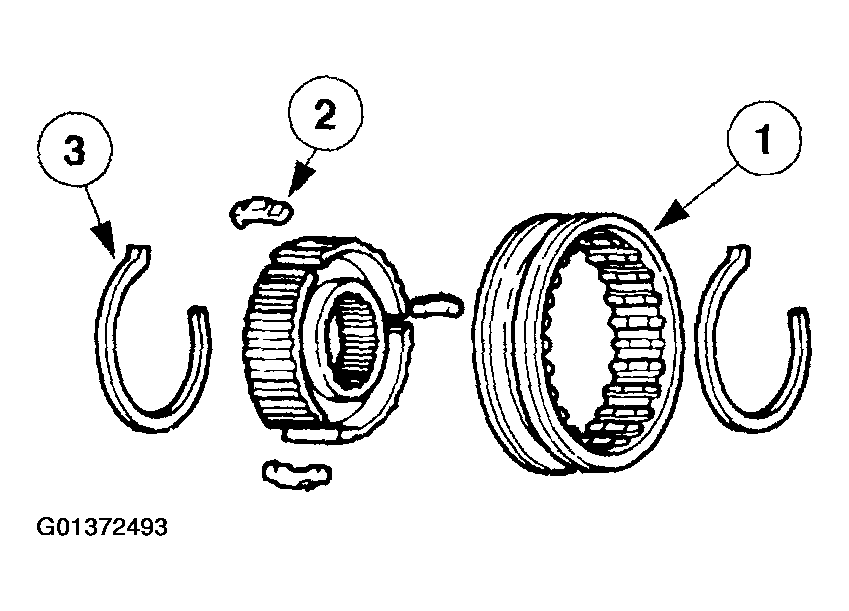

Fig 1: Assembling Synchronizer Assembly

Courtesy of FORD MOTOR CO.

1. Position the synchronizer hub and sleeve together.
2. Install the synchronizer hub inserts.
3. Install the synchronizer blocking springs.
