Special Tool(s)

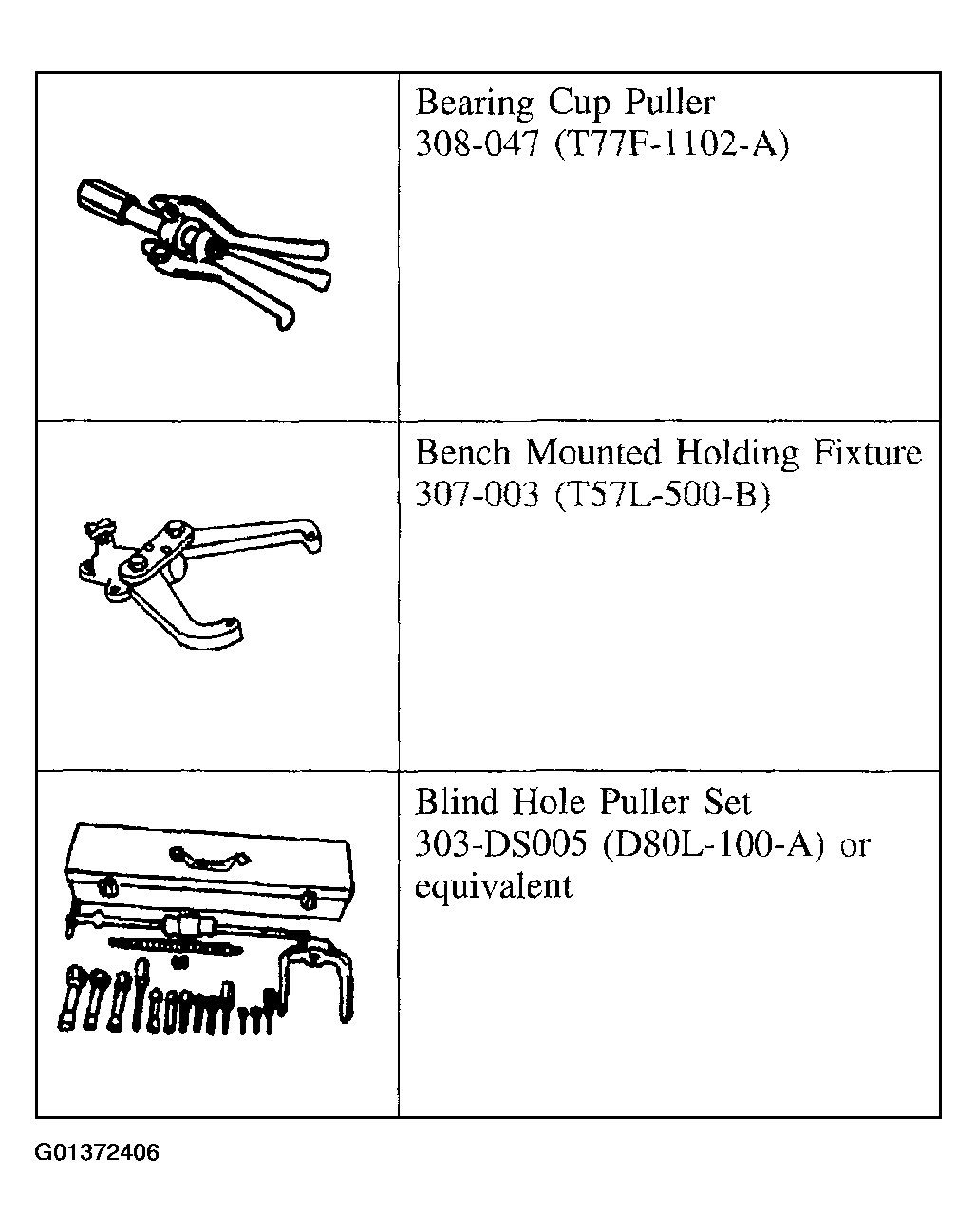

Fig 1: Identifying Special Tool (1 Of 3)
G01372406Courtesy of FORD MOTOR CO.

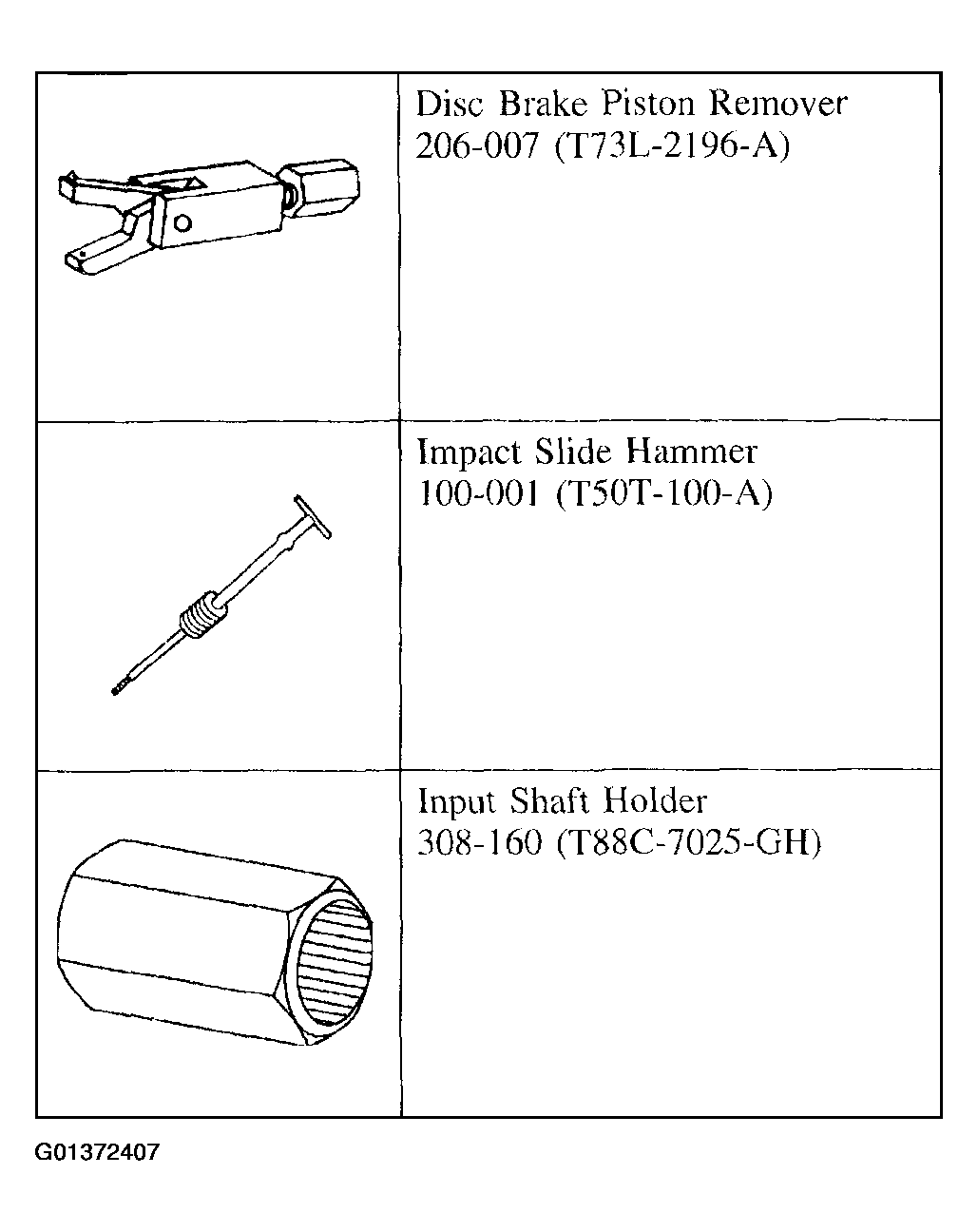

Fig 2: Identifying Special Tool (2 Of 3)
G01372407Courtesy of FORD MOTOR CO.

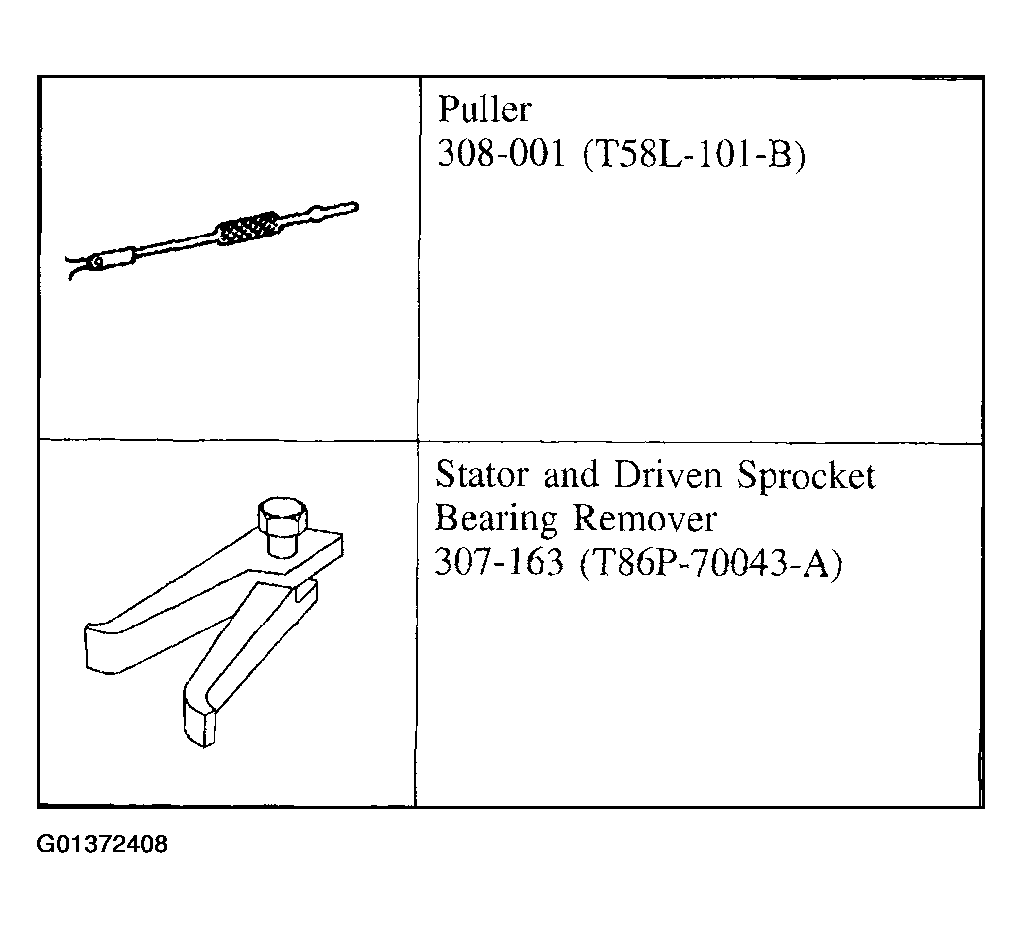

Fig 3: Identifying Special Tool (3 Of 3)
G01372408Courtesy of FORD MOTOR CO.
