Drain Procedure

Raise and support the vehicle; refer to JACKING & HOISTING .
Remove the drain plug and drain the fluid.

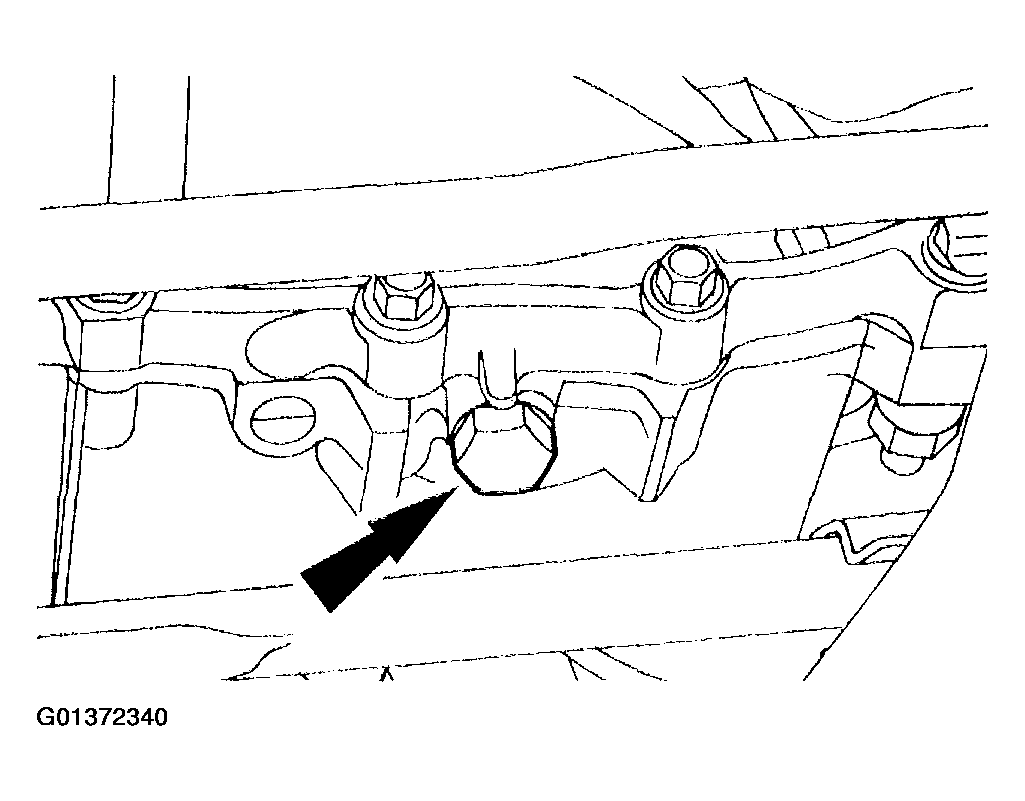

Fig 1: Removing Drain Plug
Courtesy of FORD MOTOR CO.

NOTE: Use a new gasket on the drain plug. Install the drain plug.

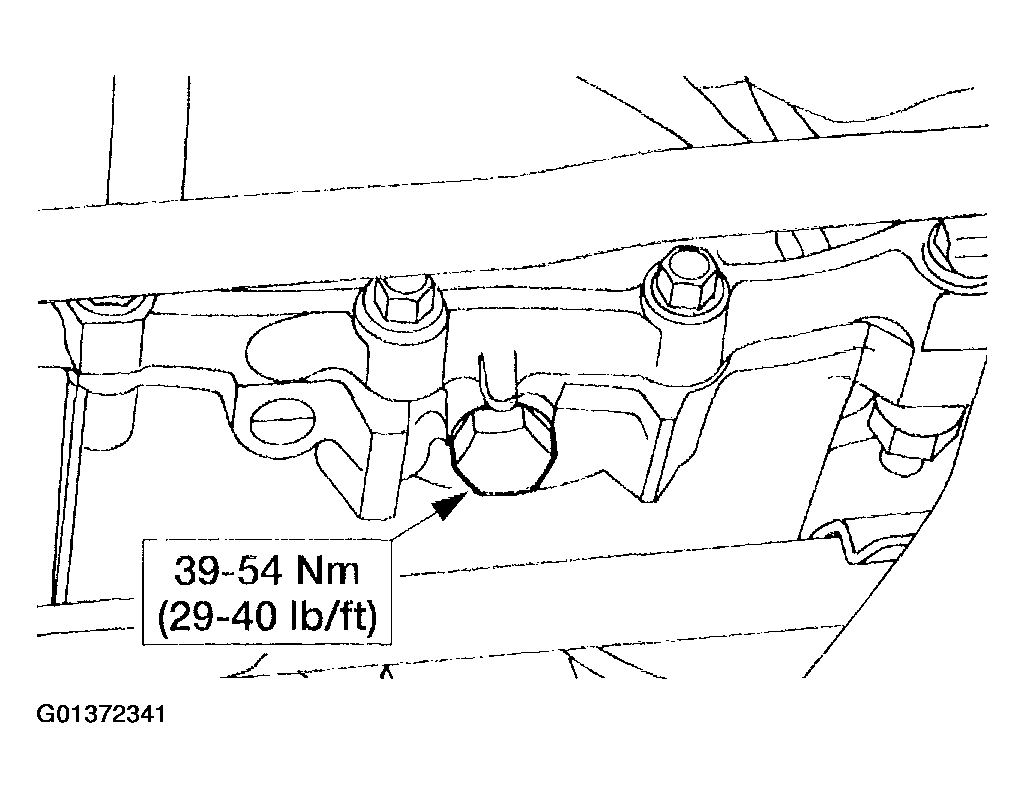

Fig 2: Installing Drain Plug

Courtesy of FORD MOTOR CO.
