Transmission Code

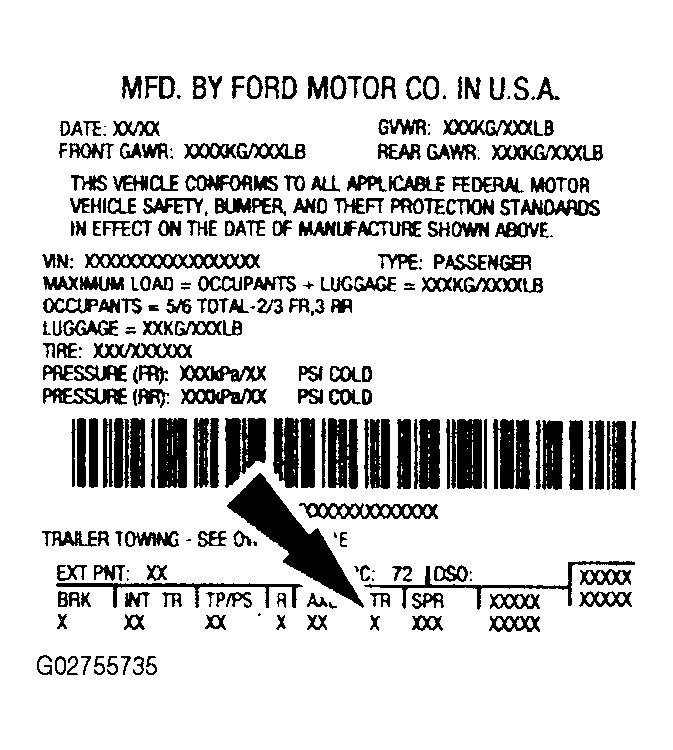

Fig 1: Identifying Transmission Code
Courtesy of FORD MOTOR CO.
The transmission codes are:
H - Four-speed automatic overdrive, (4R70W) Sharonville
R - Four-speed automatic overdrive, (4R75W) Livonia
U - Four-speed automatic overdrive, (4R70W) Livonia
Courtesy of FORD MOTOR CO.
