Glow Plug Sleeve: Installation
- Verify that the glow plug bore is completely clean and dry.

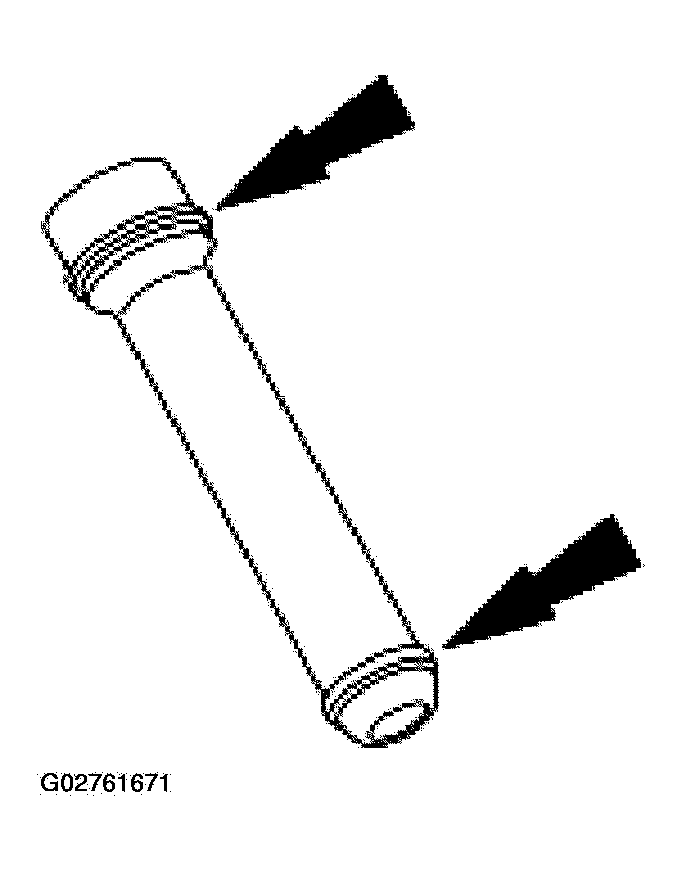

- Apply Threadlock 262 sealant to the glow plug sleeve in the two places shown.
Courtesy of FORD MOTOR CO.
- Install the glow plug sleeve into the glow plug bore until it bottoms.
Courtesy of FORD MOTOR CO.
- Clean the glow plug sleeve after installation with a nylon brush and solvent. Make sure Threadlock 262 sealant is cleaned out before it hardens.
- Install the lifting bracket on the cylinder head.
- Install the cylinder heads. For additional information, refer to ENGINE 6.0L DIESEL
article.
