Selector Lever Indicator Adjustment

  1. Place the transmission range selector lever into MANUAL 1 position, then back to the (D) position.
  2. Hang a 1.3 kg (3 lb) weight on the transmission range selector lever.
  3. Center the pointer in the middle of the (D) position.
    • Rotate the thumbwheel, located on the bottom of the steering column, to adjust the pointer.

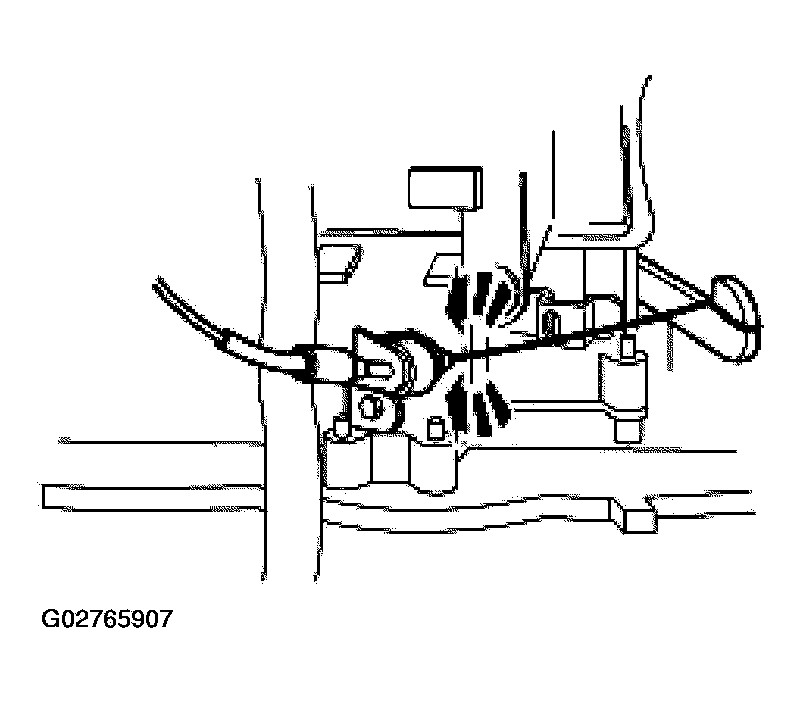

    Fig 1: Adjusting Selector Lever Indicator
    G02765907Courtesy of FORD MOTOR CO.
  4. Remove the weight.
